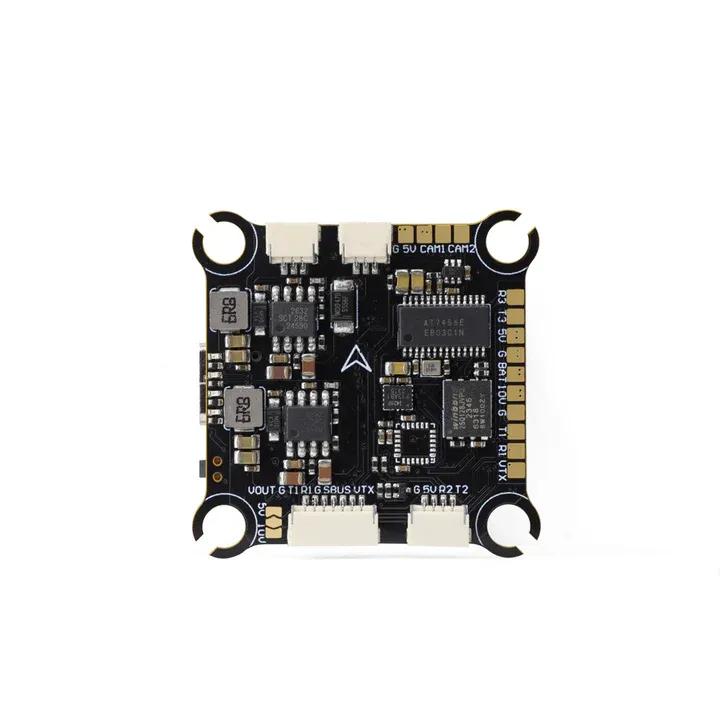

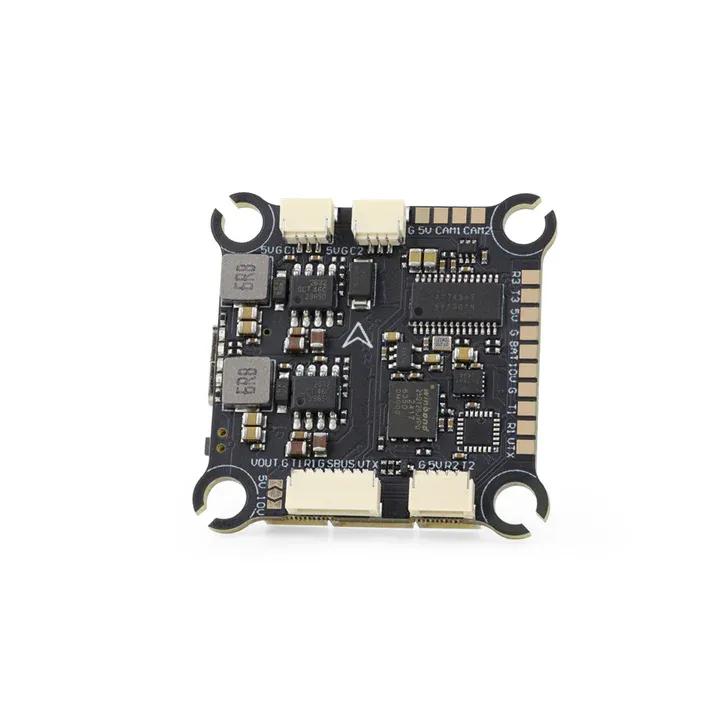

HGLRC F405 60A Stack 6S-8S V1 Flight Controller for FPV Racing Drone

The HGLRC F405 60A Stack 6S-8S V1 is a high-performance flight controller (FC) and electronic speed controller (ESC) stack designed for FPV racing and freestyle drones. It offers a seamless integration of flight control and power distribution, catering to advanced pilots seeking reliability and precision.

Features:

1. The flight control adopts the extremely stable MPU6000 gyroscope;
2. The flight control main control chip adopts F405 chip, and the serial port supports up to 4 groups, with fast operation speed and smoother control;

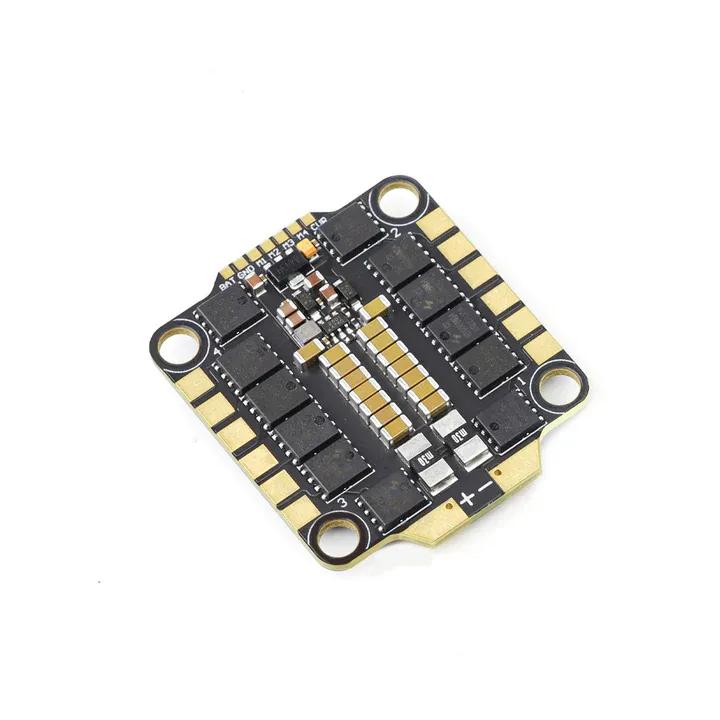

3. The main chip of the ESC selects a new imported FD6288 processor, which is matched with ON3109 high-performance MOS, and can continuously withstand current and stabilize output;
4. It can be quickly connected to the camera/receiver/image transmission/LED/GPS through the socket, no welding required;
5. Maximum support for BEC 9V2A/BEC 5V2.5A, which can provide stable voltage and current output to external devices;
6. Immersion gold high-tech design is temperature-resistant and current-resistant, the ESC has a large pad, and the flight controller is directly plugged in, so there is no trouble in welding;
7. Integrated 16M black box, can record flight data;
8. Onboard galvanometer module, real-time viewing of data such as current feedback through the flight control;

Package Includes:

1 X HGLRC F405 60A Stack 6S-8S V1 Flight Controller for FPV Racing Drone
