F722 BLS 55A V2 STACK 4IN1 ESC Flight Controller 30.5×30.5mm

The F722 BLS 55A V2 Stack is a high-performance flight control system tailored for FPV drones. Combining a powerful F7 flight controller with a 55A BLHeli_S 4-in-1 ESC, this stack delivers fast processing, reliable power distribution, and smooth motor control. Ideal for freestyle, racing, and cinematic drones, it offers modern connectivity, noise-resistant gyro, and built-in OSD, all in a standard 30.5mm mounting footprint.



 Features:

1. F7 STM32F722RET6 processor for high-speed flight control
2. MPU6000 gyro with SPI connection for stable and noise-resistant flight
3. Integrated Betaflight OSD for customizable in-FPV data display
4. 5 UART ports for peripherals like GPS, telemetry, receiver, and VTX
5. Onboard 16MB Blackbox flash memory for flight log storage and tuning
6. USB Type-C connector for modern and durable interface
7. BLHeli_S ESC firmware for smooth motor response
8. 55A continuous current per ESC channel (up to 6S LiPo support)
9. Supports DShot150/300/600, Oneshot125, and Multishot protocols
10. 4-in-1 ESC layout for simplified wiring and compact installation
11. Built-in BEC 5V @ 2A for powering peripherals
12. Compatible with Betaflight, INAV, and other flight firmware



 Applications:

1. Freestyle FPV drones
2. Racing quadcopters
3. Cinematic and long-range drones
4. DIY multi-rotor aircraft
5. Aerial video and photography platforms

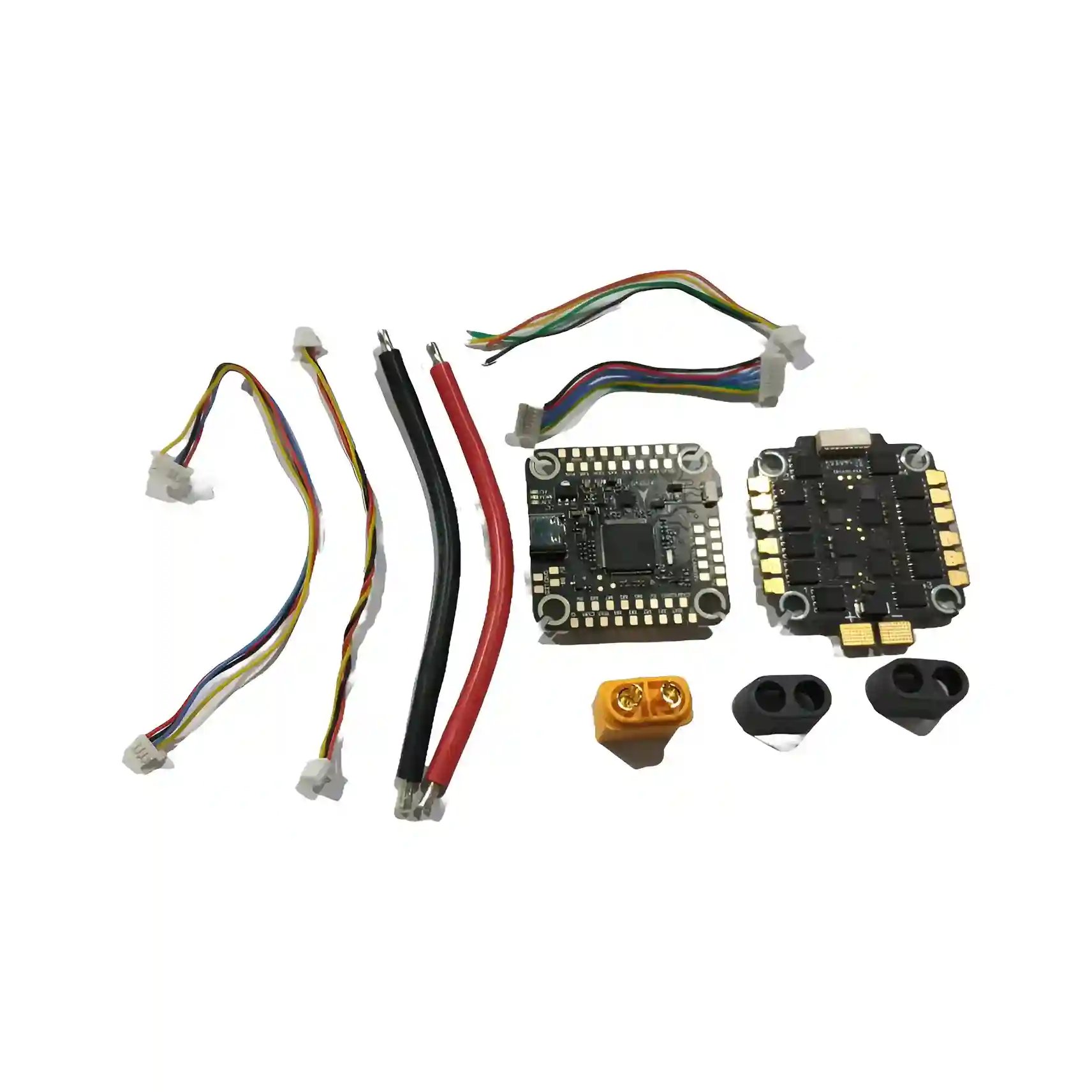

 Package Includes:

1. 1 × F722 Flight Controller (V2)
2. 1 × 55A 4-in-1 BLHeli_S ESC
3. 1 × XT60 Power Connector with Cable
4. 1 × Power Input Cable (Red/Black)
5. 4 × JST-SH to SH Wiring Harnesses (ESC/FC connection)
6. 2 × Rubber Grommets (for vibration isolation)
7. 1 × 8-pin ESC to FC Cable
8. 1 × 6-pin Accessory Cable
