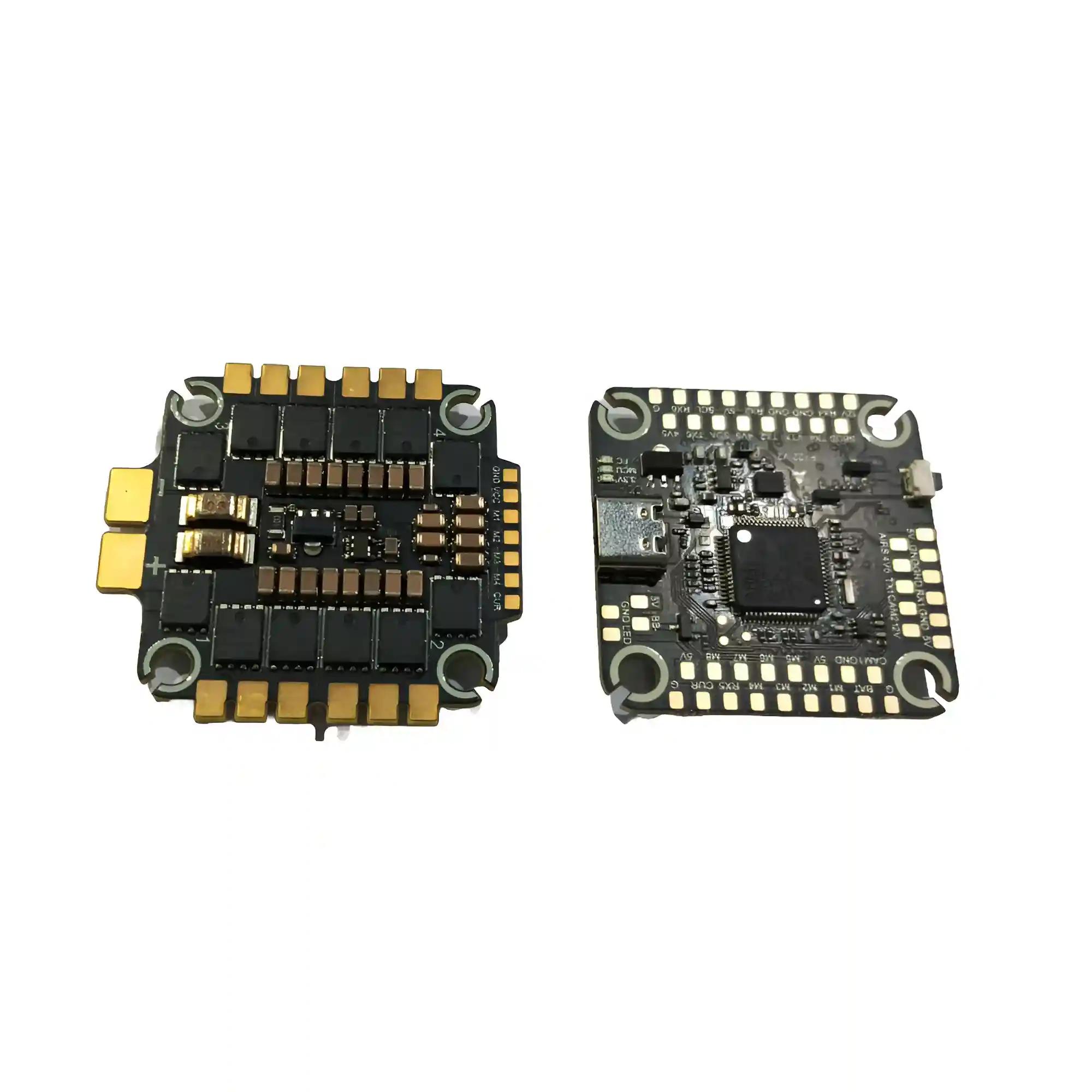

F722 BLS 65A V2 STACK 4IN1 ESC Flight Controller 30.5×30.5mm

The F722 BLS 65A V2 Stack is a high-performance flight controller and 4-in-1 ESC combo designed for racing drones, freestyle builds, and powerful quadcopters. Engineered for reliability, smooth flight performance, and compact integration, this stack features an F7 flight controller paired with a robust 65A BLHeli_S 4-in-1 ESC. With a standard 30.5×30.5mm mounting pattern, it ensures compatibility with most modern frames and offers extensive configurability via Betaflight.



Features:

1. Powerful STM32F722 flight controller for advanced processing.
2. BLHeli_S 4-in-1 65A ESC with smooth throttle response.
3. 3–6S LiPo battery support for flexible power options.
4. 30.5×30.5mm standard mounting pattern for wide compatibility.
5. Soft-mounted IMU for vibration isolation and stable flight.
6. Onboard 5V and 10V BEC for clean power output to peripherals.
7. Built-in OSD for real-time telemetry via FPV goggles.
8. Supports DShot 150/300/600 and Multishot/Oneshot125 protocols.
9. Large capacitor included for power filtering and spike suppression.
10. XT60 connector and power cables included for plug-and-play setup.
11. Plug-and-play connector harness for easy ESC-FC wiring.
12. Ideal for high-performance FPV drones and heavy payload crafts.



Applications:

1. FPV racing drones
2. Freestyle quadcopters
3. Long-range FPV builds
4. Cinewhoop drones
5. Custom drone development
6. Educational UAV platforms

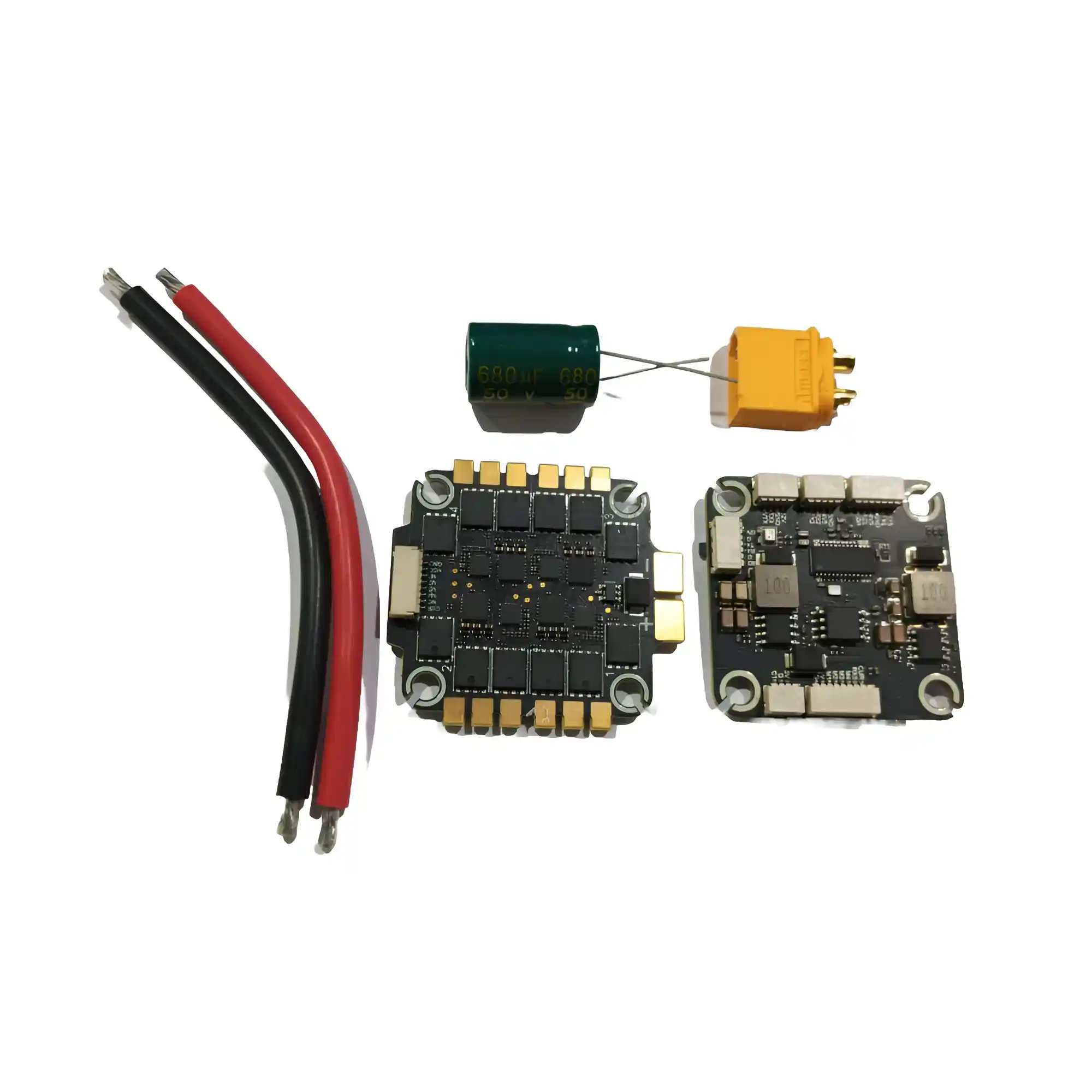

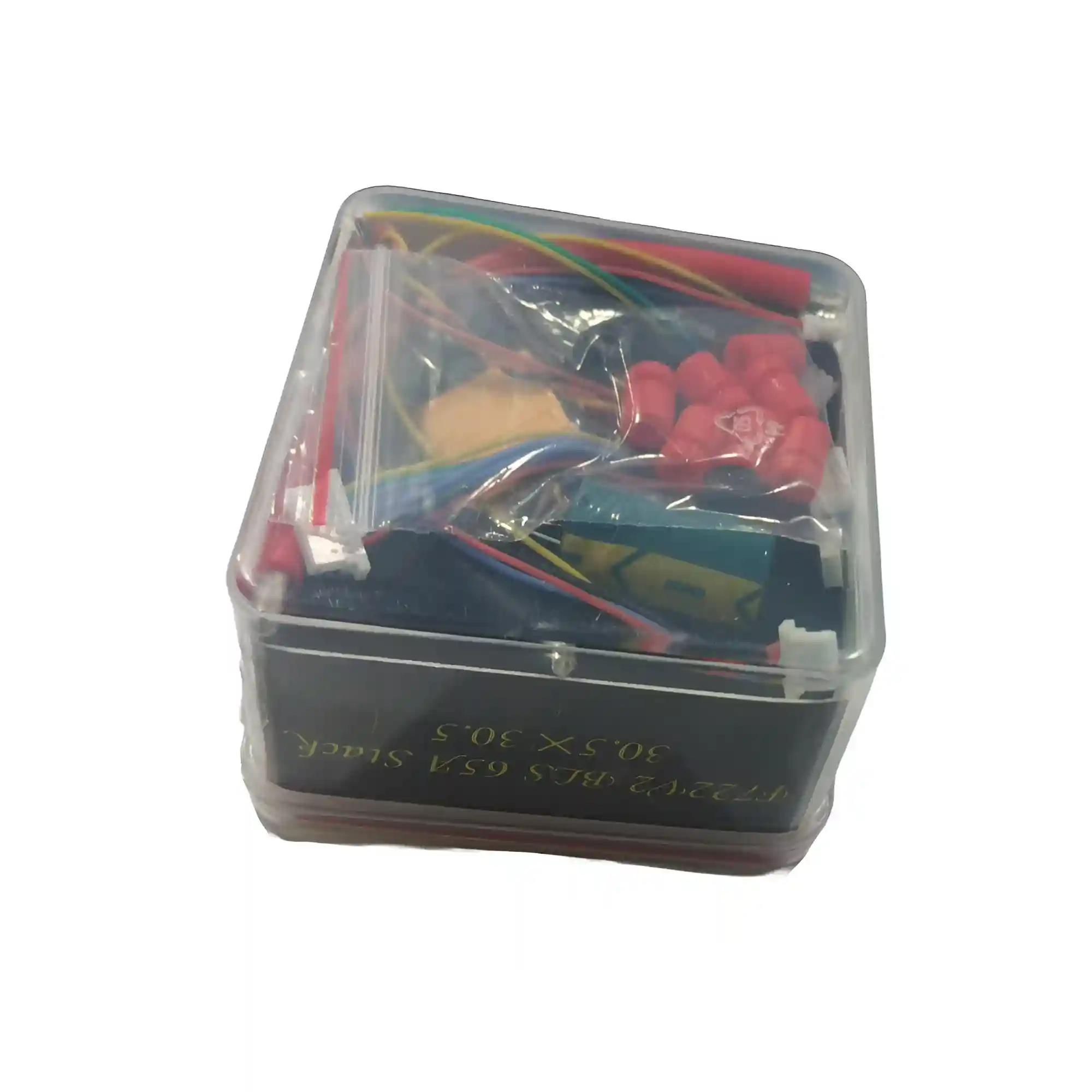

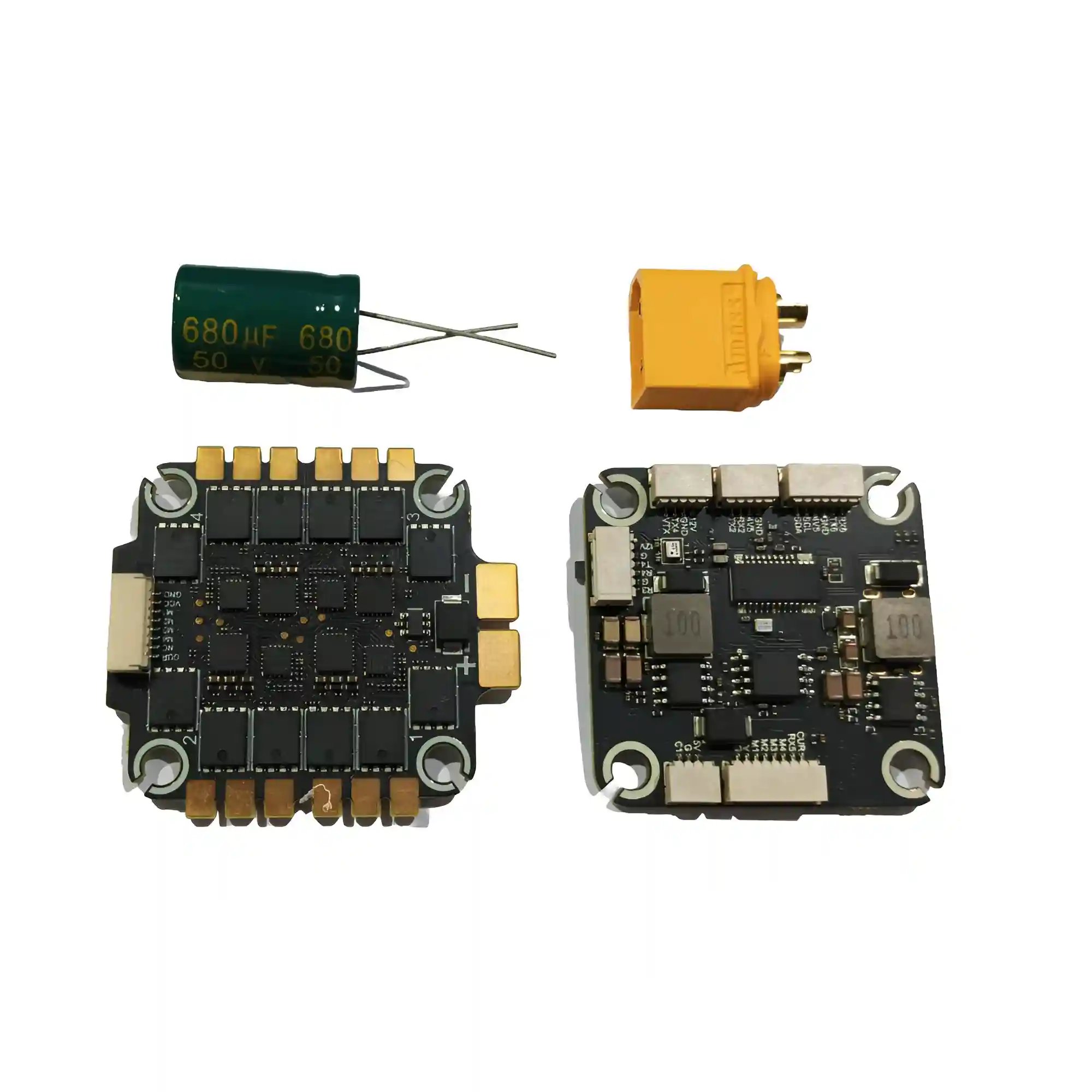

Package Includes:

1. 1 × F722 Flight Controller
2. 1 × 4-in-1 65A BLHeli_S ESC
3. 1 × 680μF Capacitor
4. 1 × XT60 Power Connector
5. 1 × 12AWG Power Cable (Red and Black)

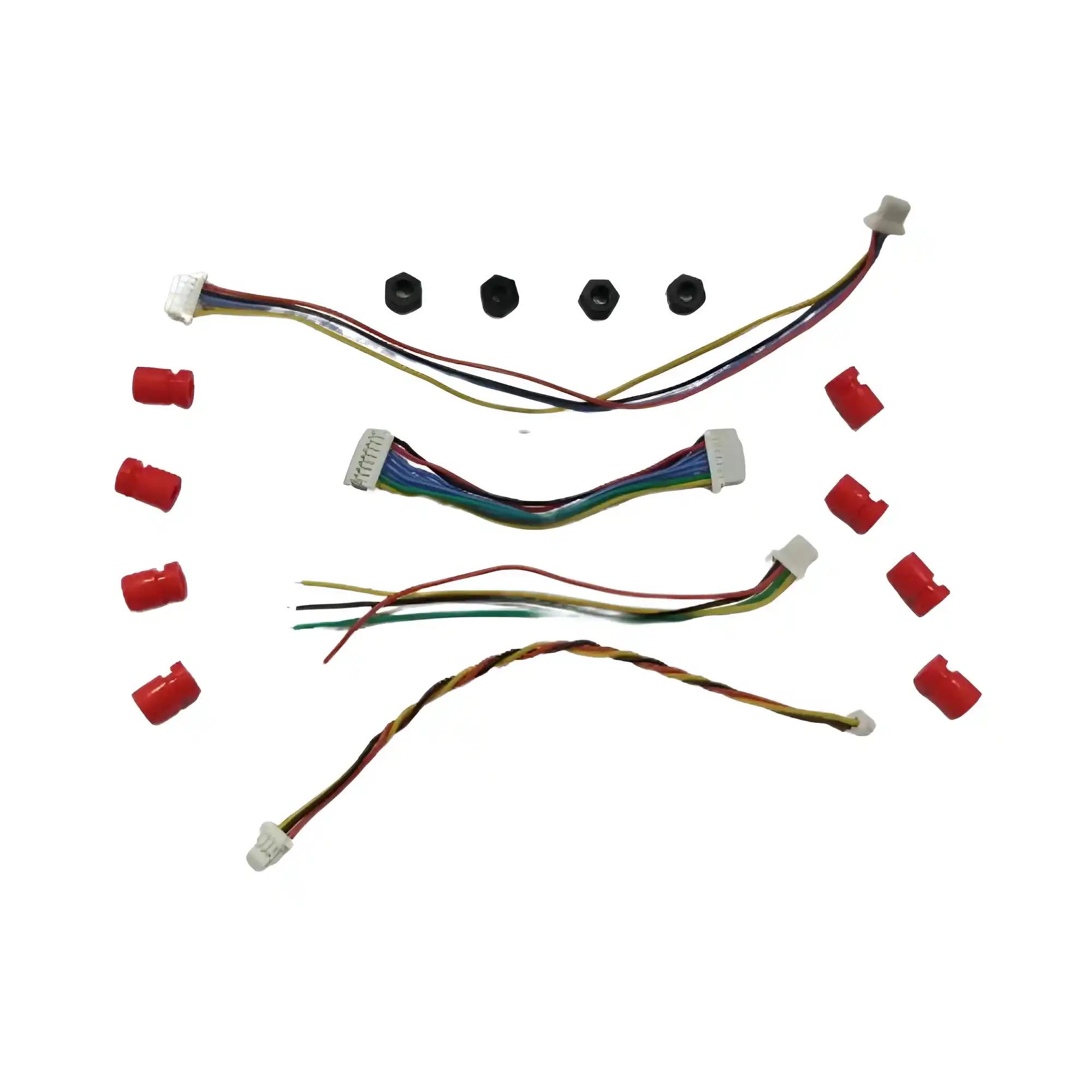

6. 1 × Wiring harness set
7. 4 × Silicone grommets
8. 8 × Motor plug caps (Red)
