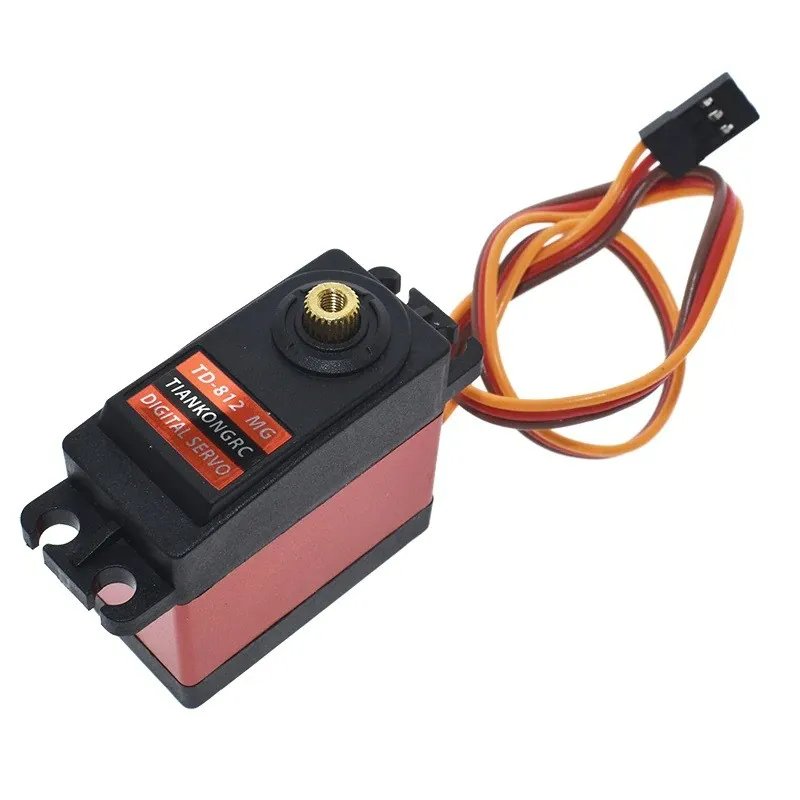

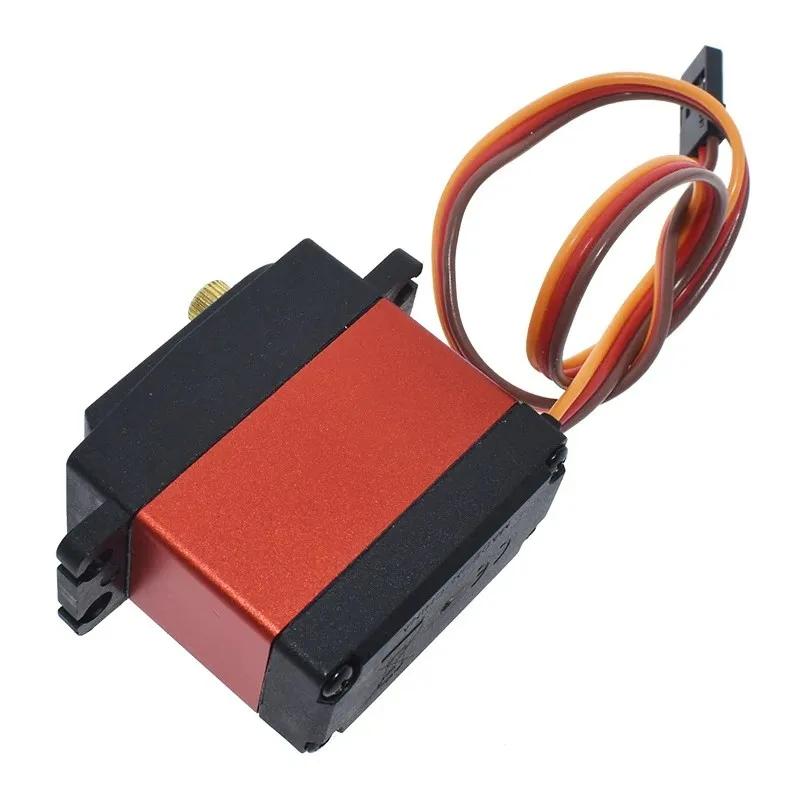

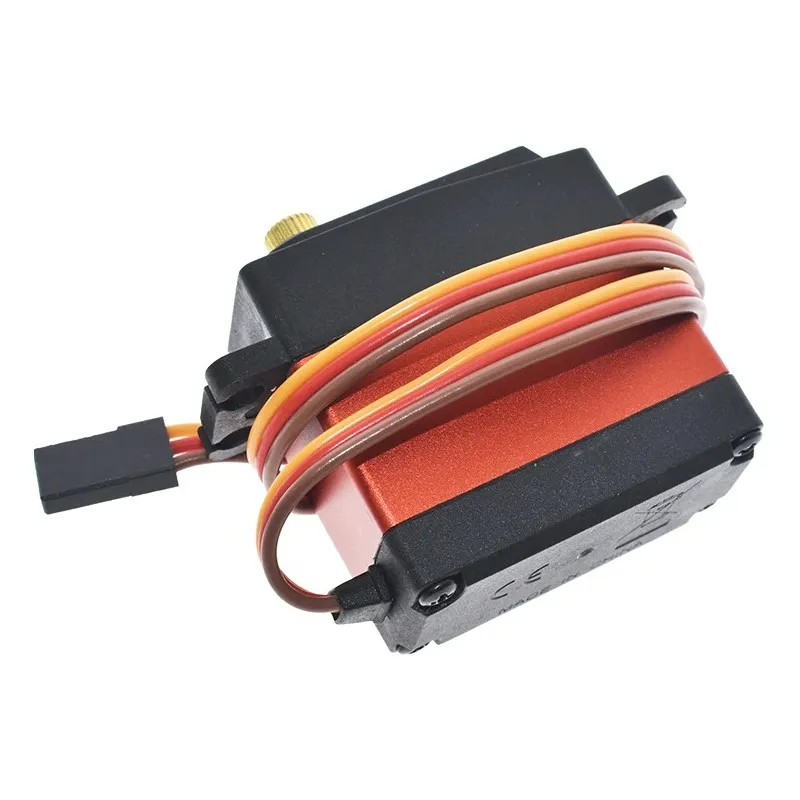

TIANKONGRC TD-8125MG 25KG Digital Servo Motor 180º 25Kg

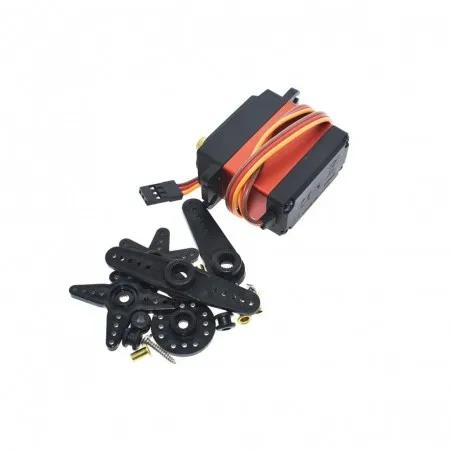

This servo can draw relatively high currents, especially with a load (up to approximately 2500mA at 6V at standstill). So choose a suitable power supply for the servo. It is not recommended to use the Arduino as power supply.If the servo has less than 180 degrees range, the minimum (500us) and maximum pulse width (2500us) must be adjusted in the controller. A very powerful servo that is easy to control. It comes with a few pieces of plastic that you can mount on it, to which you can then mount other things.

Features:

1. The servo provides a maximum torque of 25kg·cm (kilograms per centimeter) at 6.0V. This is considered high torque, making it suitable for controlling larger and more demanding loads in applications such as robotic arms, RC cars, or aircraft.
2. It is a digital servo, which offers more precise control over its movement compared to analog servos. Digital servos can provide better performance with quicker response times and less chance of signal degradation.
3. The servo offers a 180º rotation range, which is ideal for many applications requiring a broad range of movement.
4. The motor is metal-geared, ensuring durability and resistance to wear and tear under high load and continuous use. Metal gears are more robust compared to plastic gears, making this servo more reliable.
5. It operates at a 0.16-second response time per 60º (at 6.0V), providing fast actuation and The servo works efficiently between 4.8V and 6.0V, which makes it compatible with many standard RC systems and hobby electronics.
6. Equipped with dual ball bearings, which reduce friction and ensure smoother, quieter operation.
7. The servo weighs around 59 grams, making it relatively lightweight for its torque and size, allowing for ease of integration into many designs.
8. The TD-8125MG servo is widely used in RC vehicles (cars, boats, planes), robotics, model airplanes, and gimbals, among other applications requiring
9. high torque and reliable control.
10. As a MG (Metal Gear) servo, it has an overall sturdy build designed for handling higher mechanical stress, providing longer-lasting performance compared to its plastic counterparts.

Package includes:

1 X TIANKONGRC TD-8125MG 25KG Digital Servo Motor 180º 25Kg
