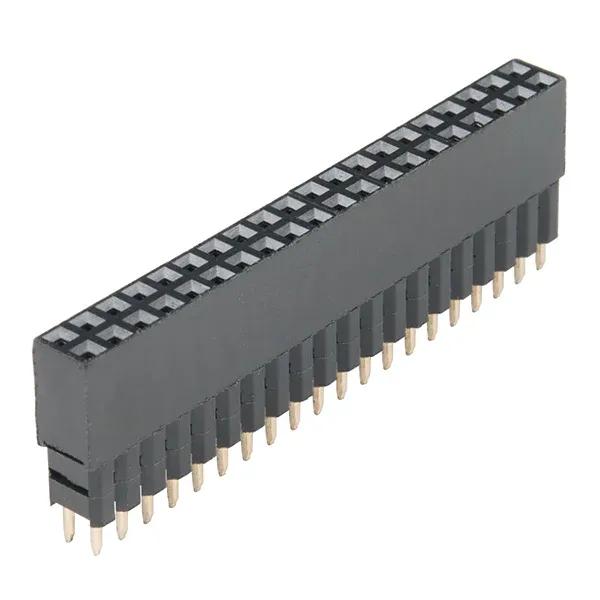

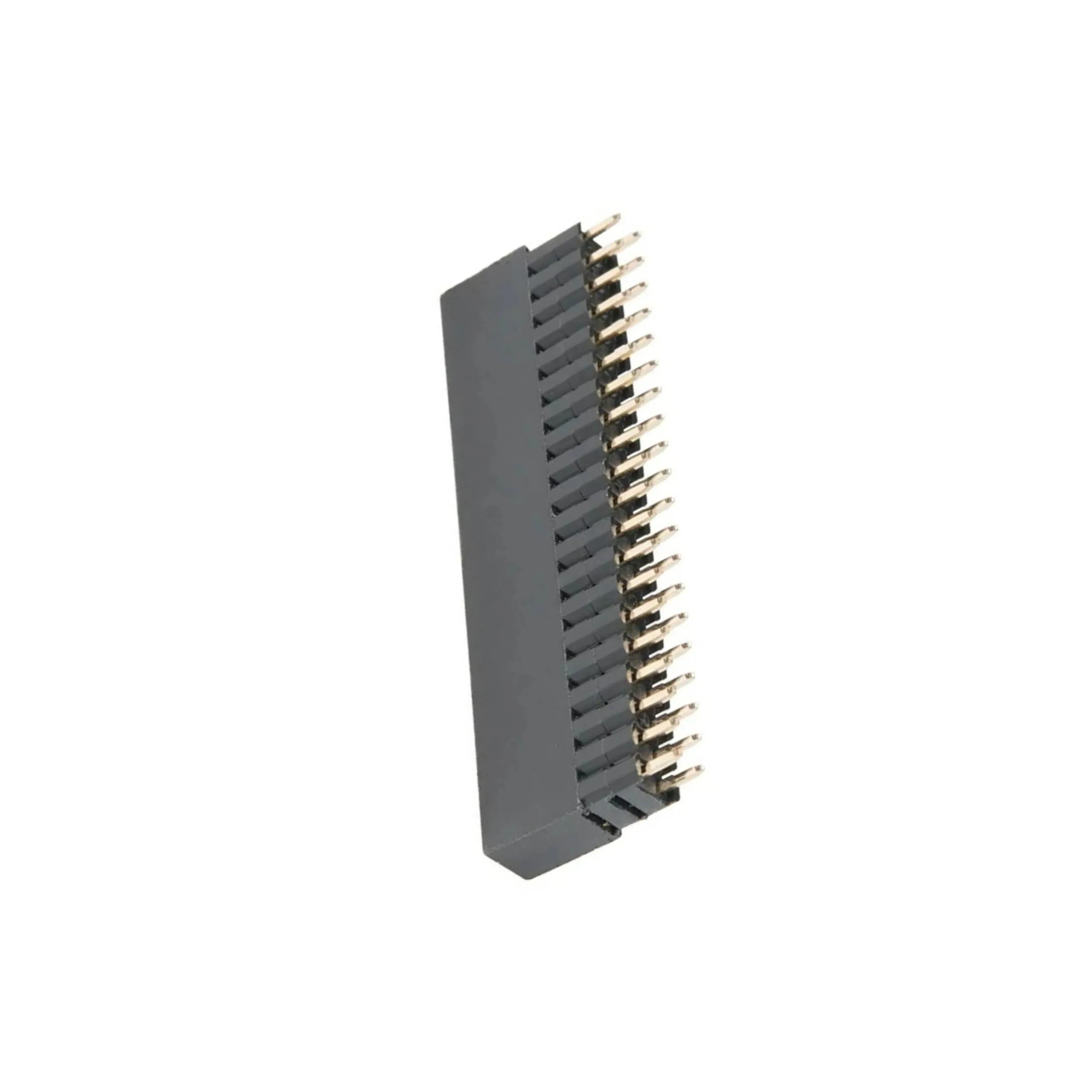

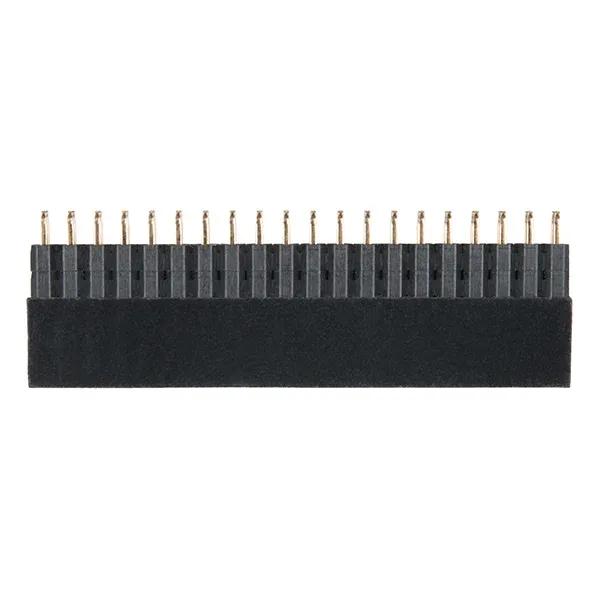

Raspberry Pi Tall GPIO Header 2x20 Ideal for HATs & Shields

This Raspberry PiGPIO Tall Header -2×20 “tall” header has the same number and spacing of pins as a Raspberry Pi and provides your board with the ability to extend the heights of your GPIO to accommodate for enclosures or other parts that can encapsulate your Pi.

This through-hole header has 40 0.1″-spaced pins and can just be snapped into place with minimal soldering to an applicable “shield.”



Features:

1. Extended Height: The header's female component is approximately 16.5 mm tall, allowing attached PCBs to clear components like Ethernet and USB jacks on the Raspberry Pi.
2. Standard Pin Configuration: It features 40 pins arranged in a 2x20 configuration with a 0.1-inch (2.54 mm) pitch, matching the standard GPIO layout of Raspberry Pi models.
3. Compatibility: Suitable for all versions of the Raspberry Pi, including models A+, B+, 2, 3, 4, and Zero.
4. Ease of Installation: Designed for through-hole mounting, it requires minimal soldering, simplifying the process of attaching custom PCBs or shields to the Raspberry Pi.
5. Versatility: Ideal for stacking multiple HATs or add-on boards, enabling expanded functionality for Raspberry Pi projects.

Package Includes:

1 x Raspberry Pi Tall GPIO Header 2x20 Ideal for HATs & Shields
