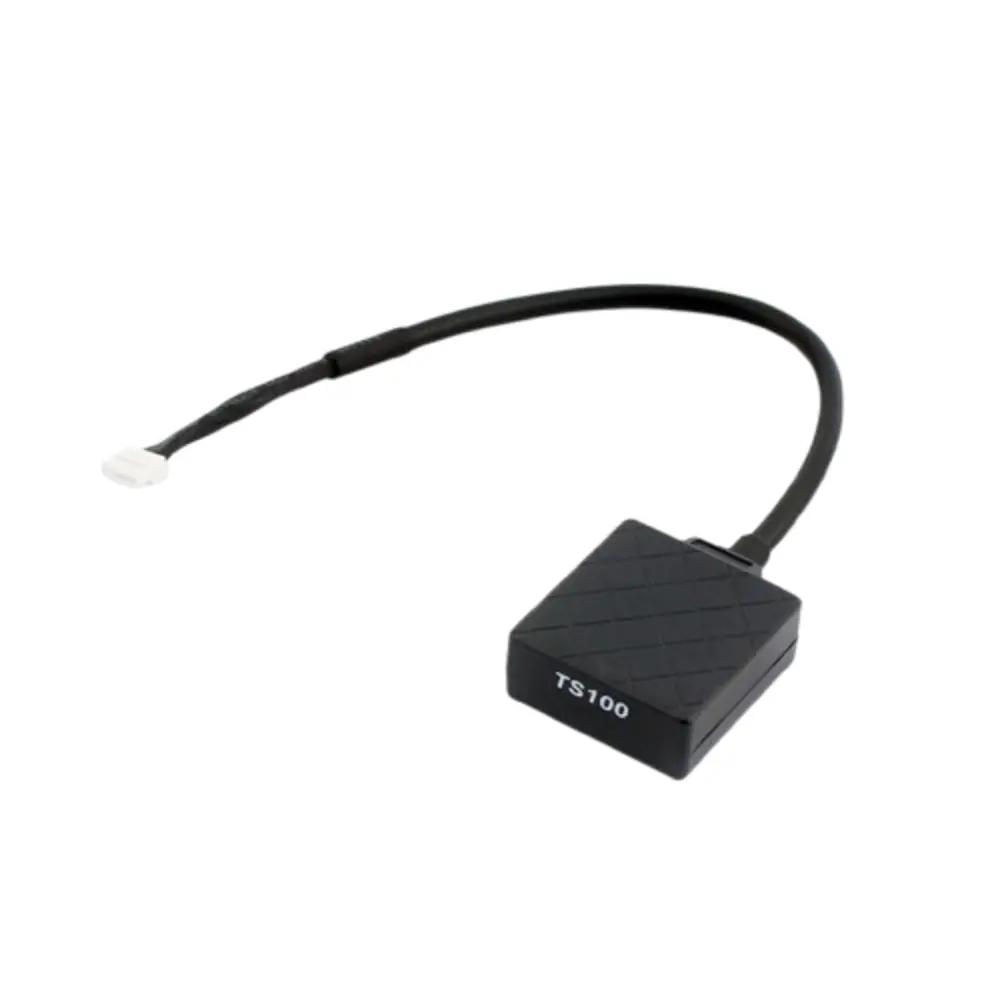

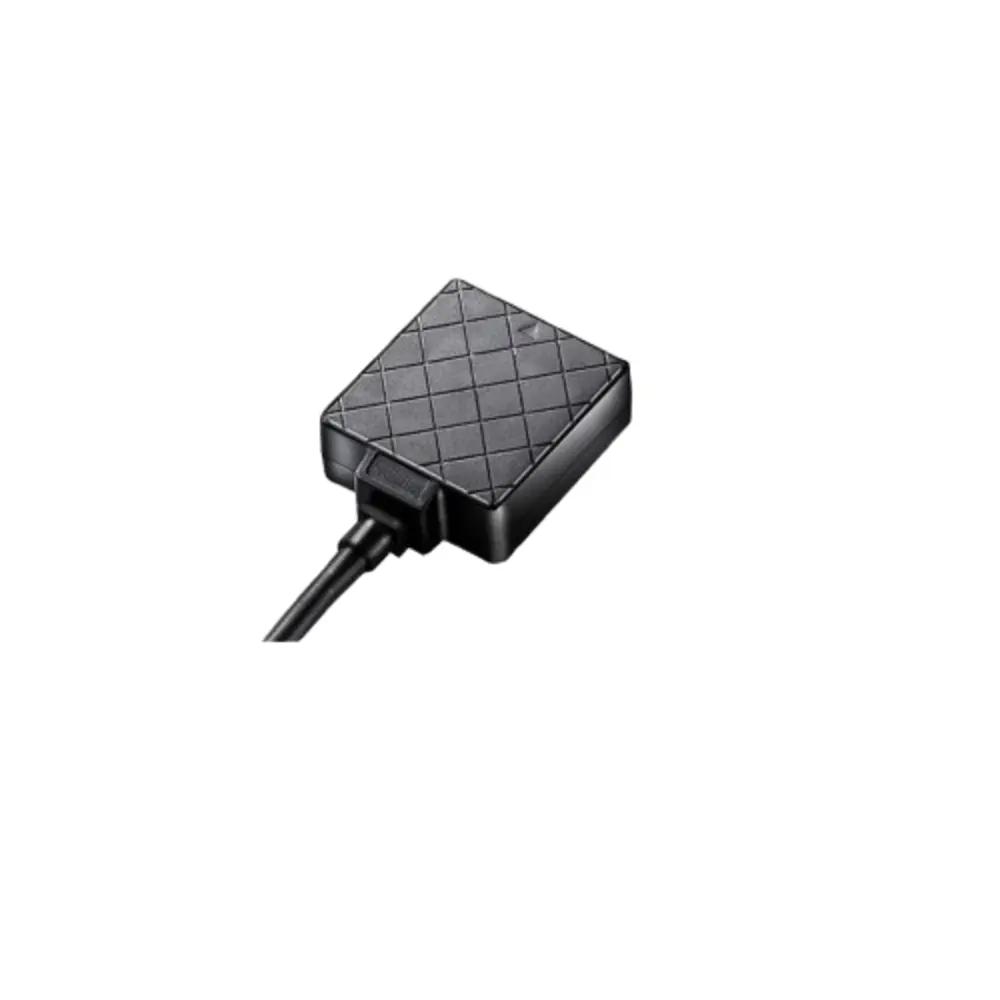

RadioLink TS100 Mini M8N GPS / Compass Module for Pixhawk Mini

The Radiolink TS100 Mini GPS Module for Mini PIX Flight Controller can measure with a 50-centimetre precision of accuracy when working with concurrent GNSS. The PRC-lNA low loss circuit design has enhanced the ability to capture extremely weak signals. The TS100 can seize very weak signals and effective suppression of input interference at the same time.

1. Positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability
2. Reception of GPS/QZSS LI C/A, GLONASS HOf, BelDou Bl SBASll C/AWAAS, EGNOS, MSAS

Radiolink MINI M8N GPS TS100 Configuration

1. GPS decoder chip: Radiolink M8N GPS, with u-Blox UBX-M8030(M8), 72-channel, MMIC BGA715L7 from Infineon, is much better than single GNSS 7N.
2. Concurrent reception of GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1, two GNSS working at the same time. SBASL1 C/A: WAAS, EGNOS, MSAS
3. Geomagnetic: QMC5883L which with the same technology as HMC5983 from Honeywell
4. Antenna: 2.5dbI high gain and selectivity ceramic antenna
5. Power amplify IC: MMIC BGA715L7 from Infineon
6. Double Filter: SAWF(Surface acoustic wave filter) from Murata

Features:

1. High-precision positioning with up to 50 cm accuracy for reliable drone navigation.
2. Supports multiple satellite systems including GPS, GLONASS, BeiDou, and QZSS.
3. Fast satellite acquisition for quick positioning and improved flight stability.
4. Built-in electronic compass for accurate heading and orientation detection.
5. High-performance u-blox M8N GNSS receiver with strong signal sensitivity.
6. Integrated high-gain ceramic antenna for better satellite signal reception.
7. Advanced anti-interference design for stable and reliable GPS signals.
8. Lightweight and compact design suitable for drones, UAVs, and FPV applications.
9. Compatible with Pixhawk Mini and other supported flight controllers.
10. Easy integration and installation for drone navigation systems.

Package Includes:

1 X RadioLink TS100 Mini M8N GPS / Compass Module for Pixhawk Mini
