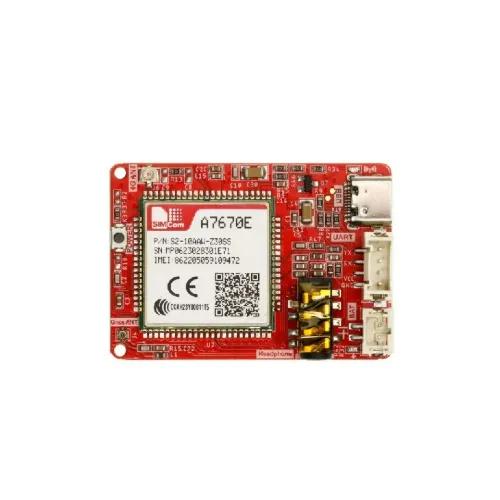

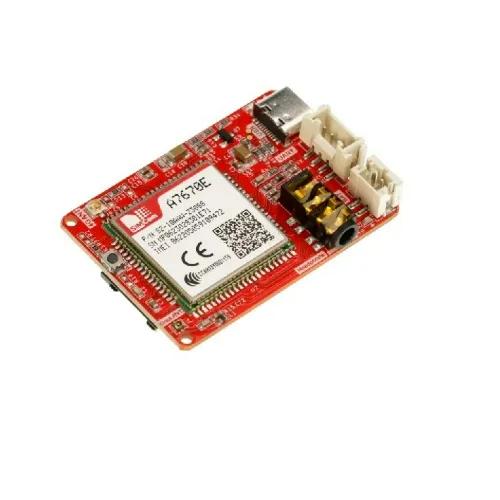

ELECROW Crowtail-4G SIM A7670E Module GPS Breakout Board support GPS/GLONASS/BDS

This Crowtail series 4G module is a high-performance LTE Cat1 wireless module. It uses the SIM A7670E communication module from Simcom and communicates through a UART interface, which enables 4G data transmission and voice communication. The module supports multiple LTE bands, including B1/B3/B5/B7/B8/B20, as well as WCDMA and GSM networks. In addition, it supports various protocols such as TCP/IP, FTP, HTTP, and multiple satellite navigation systems such as GPS, GLONASS, and BDS.

The module comes with a charging interface and can be powered by a 3.7V lithium battery or a 5V type-C interface. It also has a 3.5mm headphone jack, and by connecting a headphone with a microphone, it can be used for making and receiving phone calls. Its compact size makes it easy to integrate into various IoT devices and meet various application requirements. Furthermore, its low power consumption and reliable performance are also the reasons why it is widely used in IoT, smart home, automotive, and industrial control fields. When paired with our expansion board (Crowtail base shield for Raspberry Pi or Crowtail base shield for Arduino), it can quickly build 4G-related projects with Arduino or Raspberry Pi boards.

Features:

1. Integrate the A7670E communication module, enabling 4G data transmission and voice communication with low power consumption and high reliability
2. Supports multiple LTE bands, including B1/B3/B5/B7/B8/B20, as well as WCDMA and GSM networks
3. Supports various protocols such as TCP/IP, FTP, HTTP, and multiple satellite navigation systems such as GPS, GLONASS, and BDS
4. Comes with a charging interface and a headphone jack, which can be used for making and receiving phone calls by connecting a headphone with a microphone

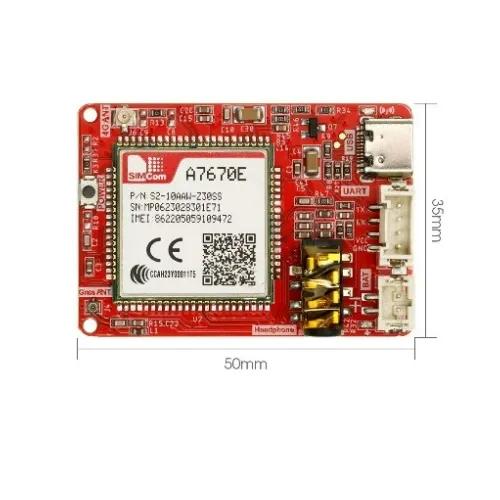

5. Small but powerful, compact size makes it easy to integrate into various IoT devices.
6. GSM/GPRS power class:
7. EGSM900: 4 (33dBm±2dB)
8. DCS1800: 1 (30dBm±2dB)
9. EDGE power class:
10. EGSM900: E2 (27dBm±3dB)
11. DCS1800 : E1 (26dBm+3dB/-4dB)
12. LTE power class: 3 (23dBm±7dB)
13. Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
14. Support phonebook types: SM/FD/ON/AP/SDN

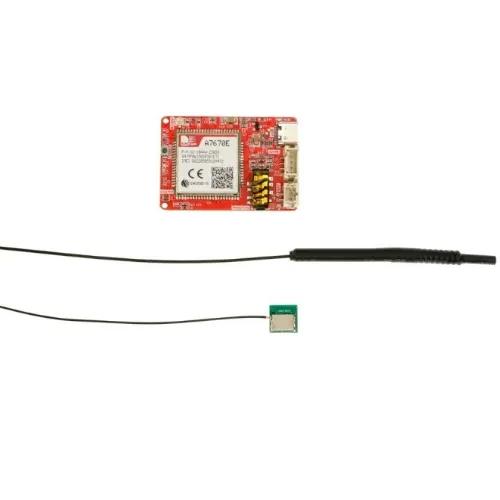

Package Includes:

1x Crowtail-4G SIM-A7670E

1x 4G GSM NB-IOT Antenna

1xGPS ceramic antenna
