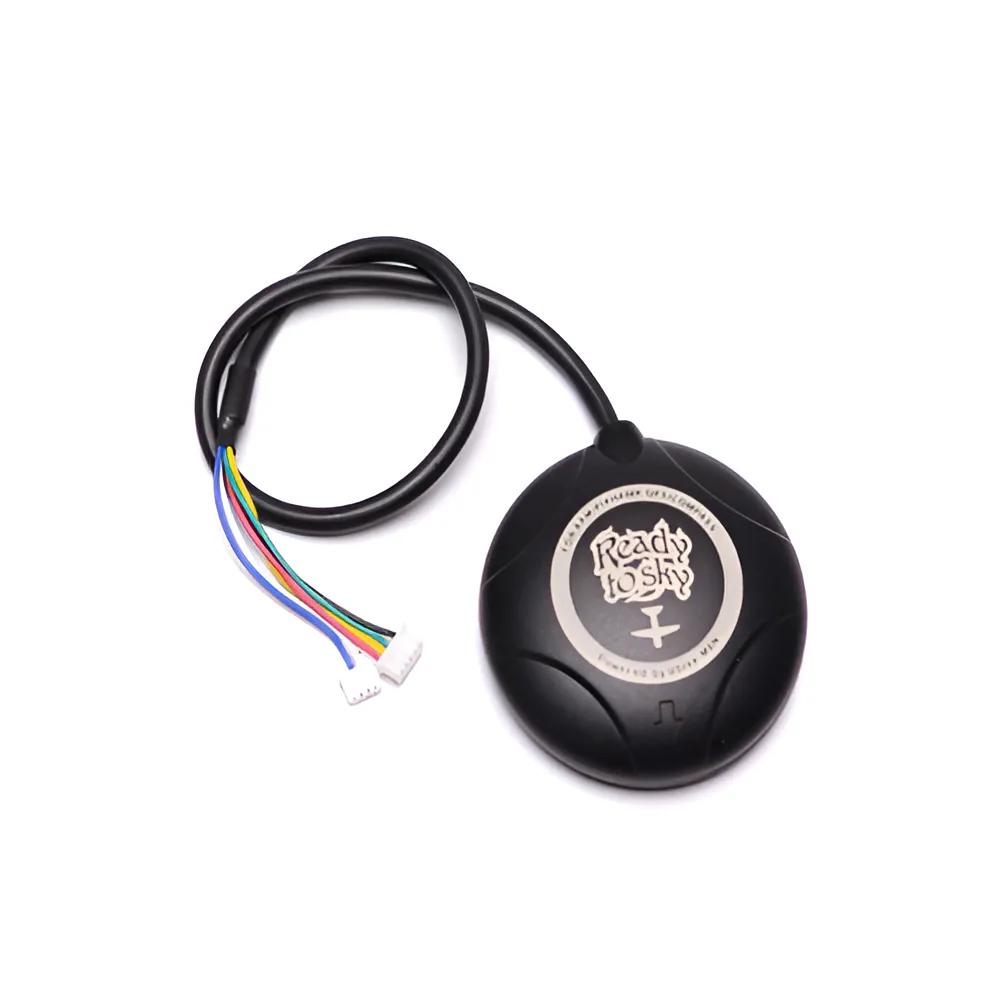

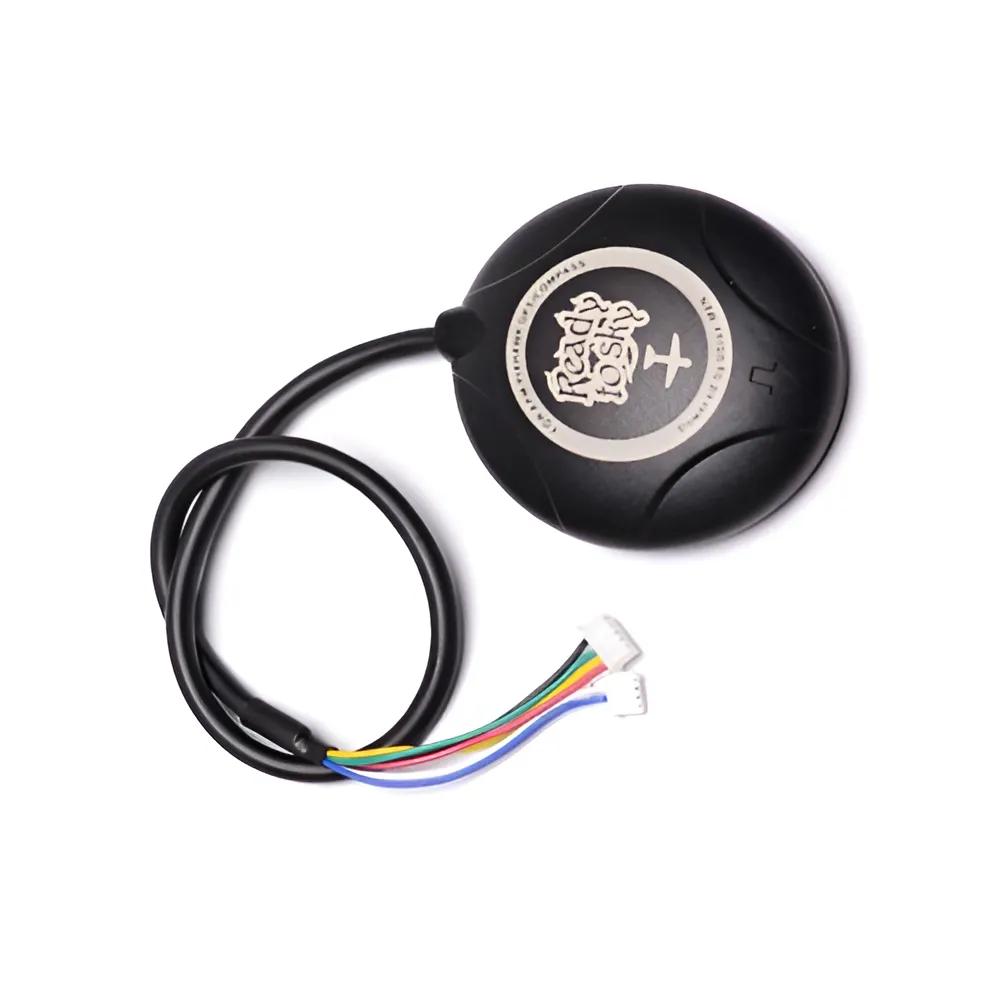

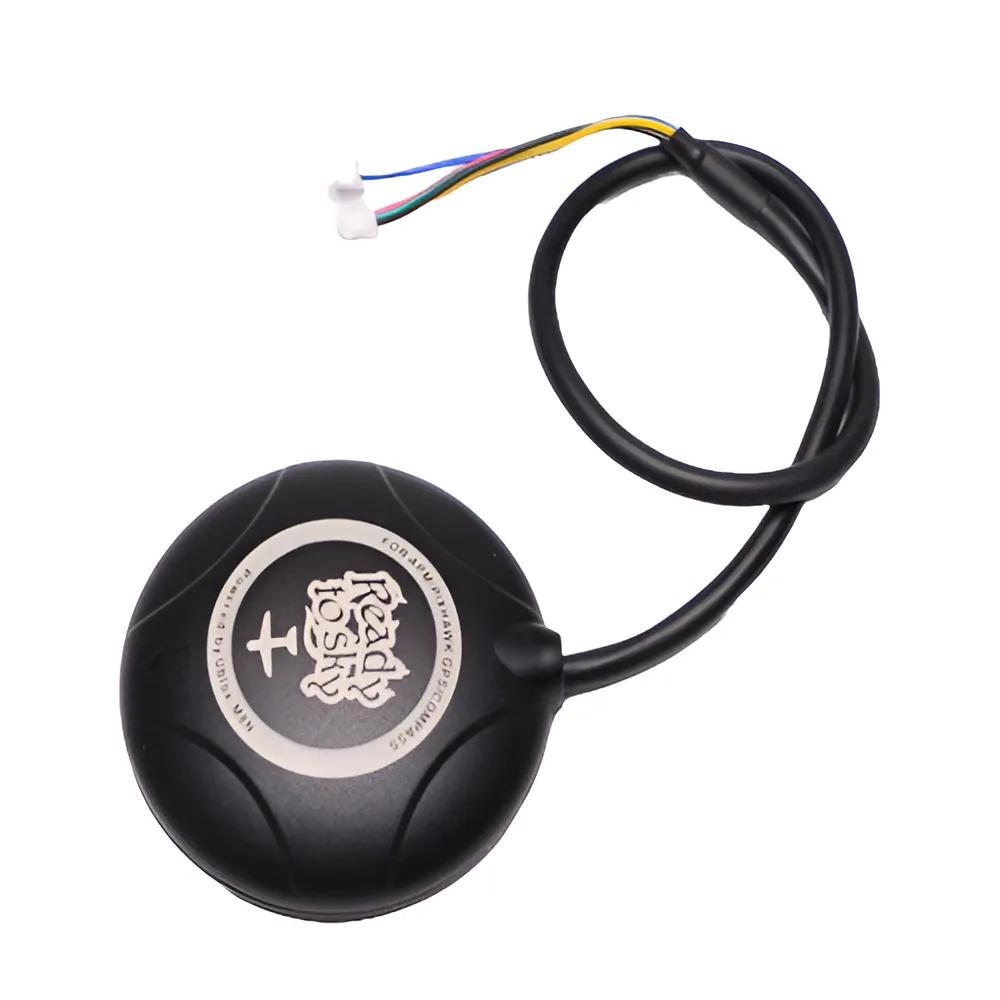

Holybro NEO-M8N GPS with Compass for Pixhawk with extra connector for APM
SKU: 557983
SAVE 25%
Quantity:

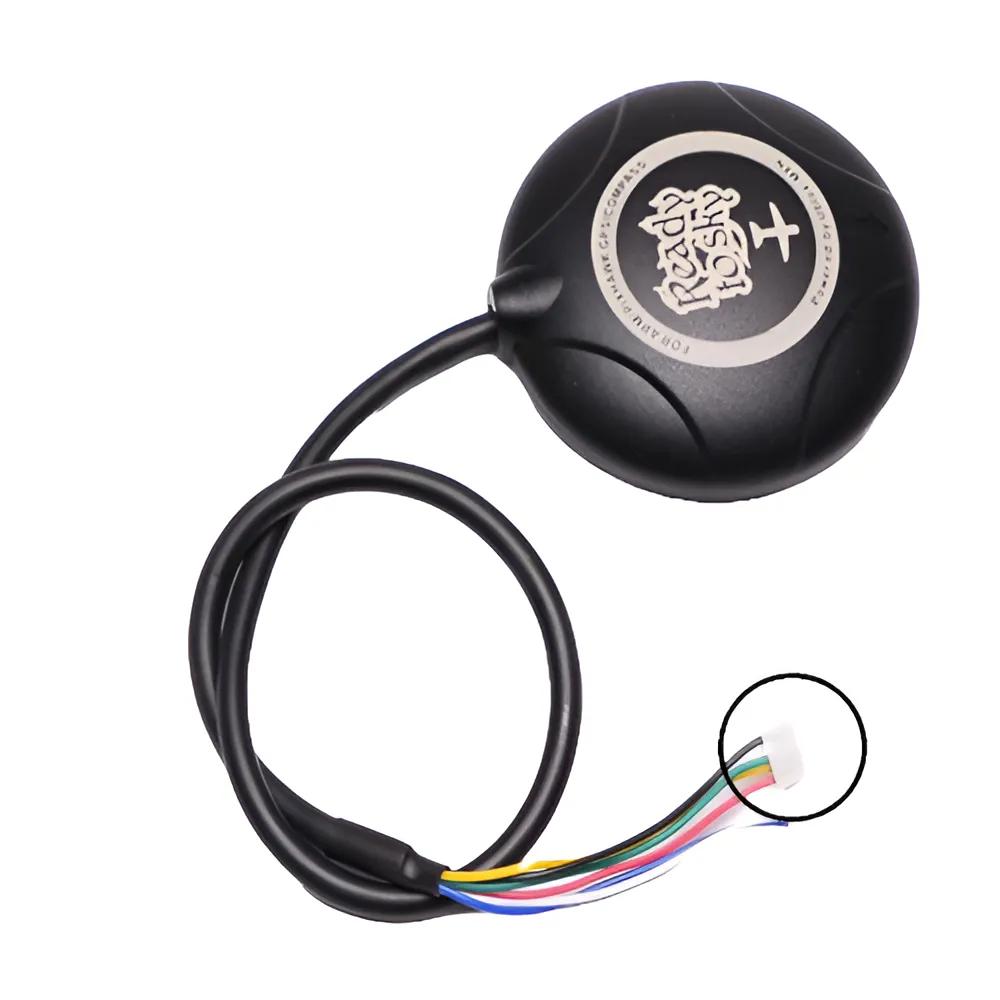

Pre OrderIt also comes enclosed in the plastic case to protect the module from the elements. This module outputs precise position updates at 10Hz and also has a rechargeable backup battery for warm starts. The Ublox NEO-M8N is configured to run at a baud rate of 38400 and can be used with Pixhawk and APM. Additionally, you can connect the same module to All versions of PIXHAWK Flight Controller just after swapping its 5-pin connector with an extra 6-pin connector provided in Package.
Capable of accuracy between 0.6 and 0.9 meters it is a significant improvement over previous models. Sattelite searching and acquisition is very fast, generally taking around ten seconds to locate and acquire up to 6 satellites. It also has a built-in compass with a 10Ghz refresh rate and a low noise figure which ensures this GPS module offers excellent performance.
The NEO-M8N provides the best performance and easiest RF integration of all the NEO-M8 configurations. The NEO form factor allows for easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments. NEO-M8 combines a high level of robustness and integration capability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems.
Ublox NEO-M8N GPS Module for APM APM2.52 APM Flight Controller with Case and GPS Antenna Mount to protect the GPS preventing electromagnetic interference. A new generation Ublox GPS NEO-M8N GPS Module, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy. Support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more. The NEO-M8N and ceramic antenna make this a very accurate receiver, fast locks & lots of satellites, and the stand is very sturdy to protect the GPS preventing electromagnetic interference.
The most important improvement with this module is the vast sensitivity it offers. This module receives concurrent reception from GPS/QZSS, GLONASS and BeiDou meaning that you should get an excellent signal no matter where you are in the world. Not only does it have these excellent reception capabilities, it maintains its low power consumption. This module is also backward compatible with the NEO-7, NEO-6, and NEO-5 families.
Features:
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
- SBAS L1 C/A: WAAS, EGNOS, MSAS
- Galileo-ready E1B/C (NEO-M8N)
- Onboard Compass
- Assistance AssistNow GNSS Online
- AssistNow GNSS Offline (up to 35 days)
- AssistNow Autonomous (up to 6 days)
- OMA SUPL & 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q),
- Crystal (NEO-M8M)
- RTC crystal Built-In
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for
- lowest noise figure (NEO-M8N/Q)
- Anti-jamming Active CW detection and removal. Extra
- onboard SAW bandpass filter (NEO-M8N/Q)
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
- Supported antennas Active and passive
- Odometer Travelled distance
- Data-logger For position, velocity, and time (NEO-M8N)
Package Includes:
1 X NEO-M8N GPS with Compass for Pixhawk with extra connector for APM
1 x Extra 5-pin Connector for APM FC
