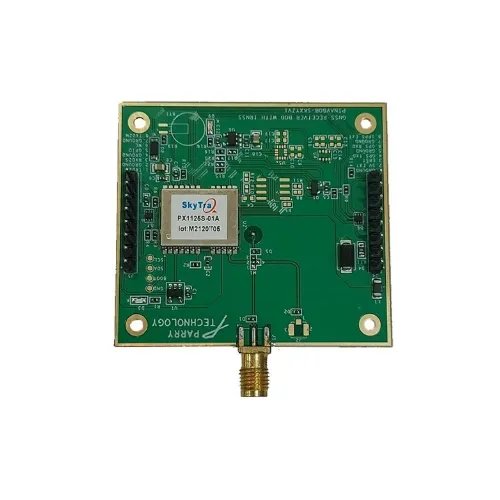

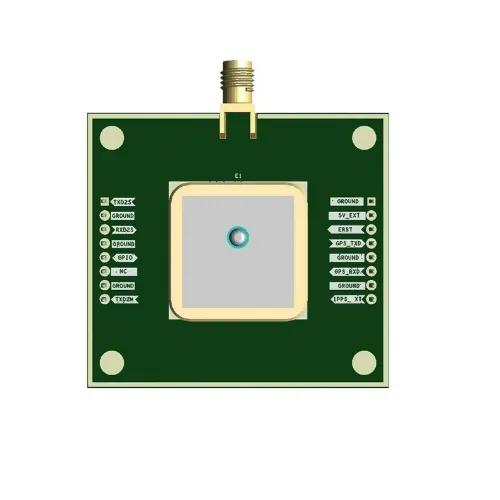

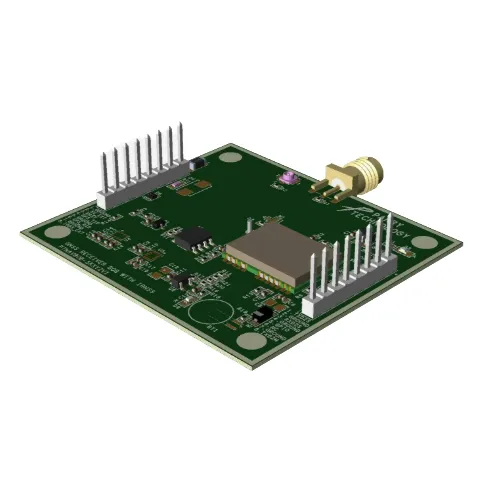

GNSS Receiver Evaluation Board with IRNSS support

GNSS Receiver BOB with IRNSS is a satellite navigation receiver break out board, capable of supporting band L5-NavIC and L1-GAGAN/GPS signals to provide 3D navigation.

GNSS Receiver BOB with IRNSS is a Breakout Board having satellite navigation receiver, capable of supporting band L5-NavIC (India) and L1-GAGAN/GPS/- GLONASS signals to provide 3D navigation. It has optional mounting of IMU sensors for Dead Reckoning applications and can also support optional RTK module. SkyTraQ chipset combined with best board level RF design of BOB and matched antenna, offers superior cold start sensitivity that allows to acquire, track, and get position fix autonomously even in difficult and weak signal environments.

Benefits:

Proper ground plane and RF layout design

Suitable on board or external antennas for best overall system performance

Possibility to use any external antenna with antenna matching option

One BOB suitable for multiple requirements (GPS, NavIC, ODR, RTK)

Features:

1. L1, L5 signal reception to support GPS and NavIC. Works with NavIC, GAGAN, GLONASS,
2. GPS satellites and more. Support for AGPS.
3. Support for Automotive Dead Reckoning (ADR), Odometer-less Dead Reckoning (ODR) with either built-in sensors within the GNSS BOB or with external sensors.
4. Optional Real-time Kinematic (RTK) module for Centimetre level precision and accuracy.
5. Less than 33 second cold start TTFF.
6. ~1 second hot start.
7. ~2.5m CEP accuracy.
8. Works from external 5V±5%, ≤120mA DC input.
9. Provision for RTC Battery (MS621FE-FL11E-not populated)
10. Easy to use
11. Easy to install
12. Good quality product

Package Includes:

1 x GNSS Receiver BOB with IRNSS
