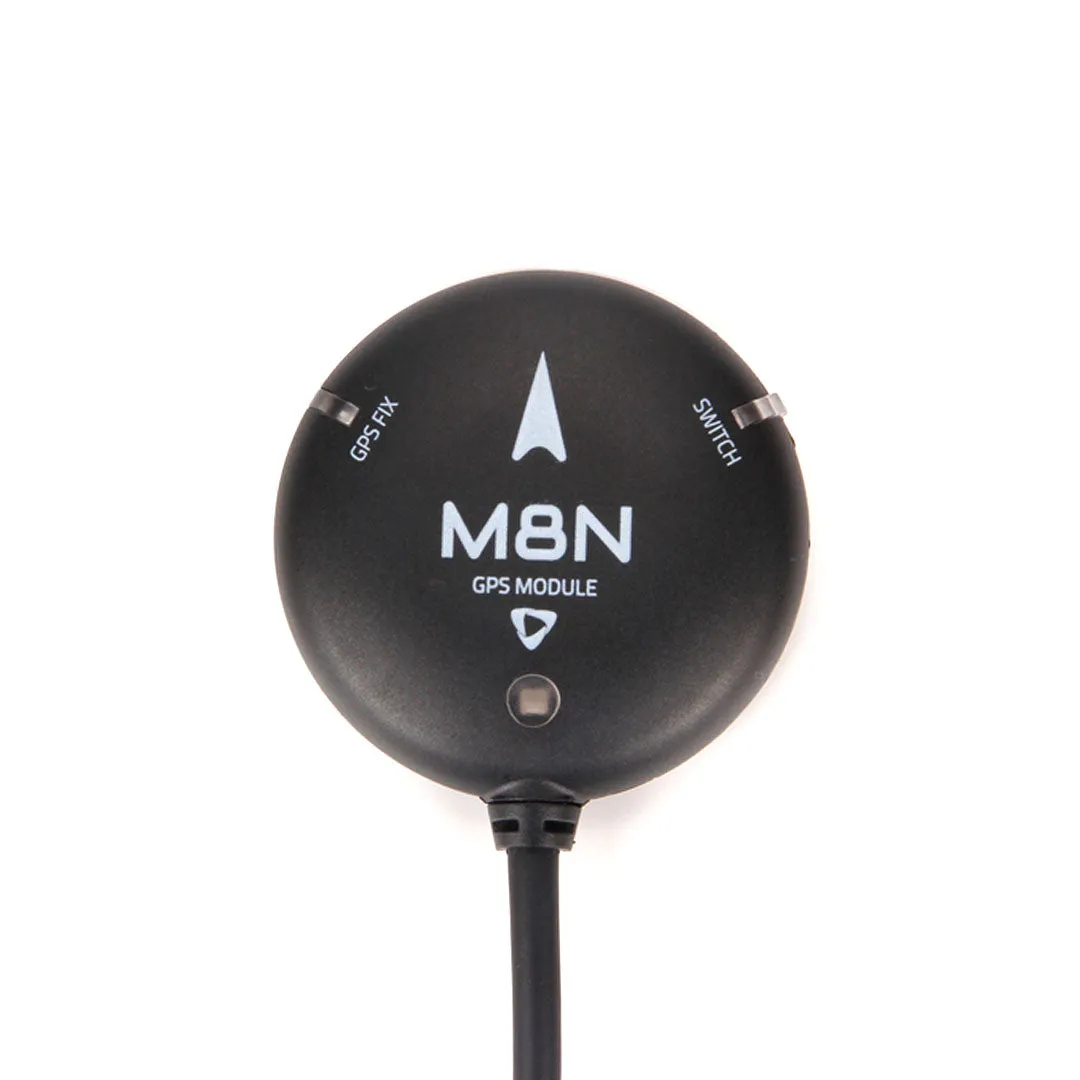

Holybro UBLOX Pixhawk NEO-M8N GPS Module

Holybro introduces this new GPS for you to work with PIXHAWK4. It has UBLOX M8N module on it, as well as IST8310 compass and tri-coloured LED indicator. Additionally, the Safety switch on it will make the connection more convenient and simple.

Out of the box, this GPS module comes with Mounting Stand with two (70mm & 140mm ) carbon rods.

Pixhawk 4 is the latest update to the successful family of Pixhawk flight controllers. It is designed and developed in collaboration with Holybro and the PX4 team, optimized to run the full Dronecode stack and comes preinstalled with the latest PX4 firmware (v1.7).

It features the currently most advanced processor technology from ST Microelectronics, sensor technology from Bosch, InvenSense and a NuttX real-time operating system, delivering incredible performance, flexibility, and reliability for controlling any autonomous vehicle.

Features:

Ublox Neo-M8N module

Industry-leading 167 dBm navigation sensitivity

Cold starts: 26s

LNA MAX2659ELT+

25 x 25 x 4 mm ceramic patch antenna

Rechargeable Farah capacitance

Low noise 3.3V regulator

Fix indicator LEDs

Protective case

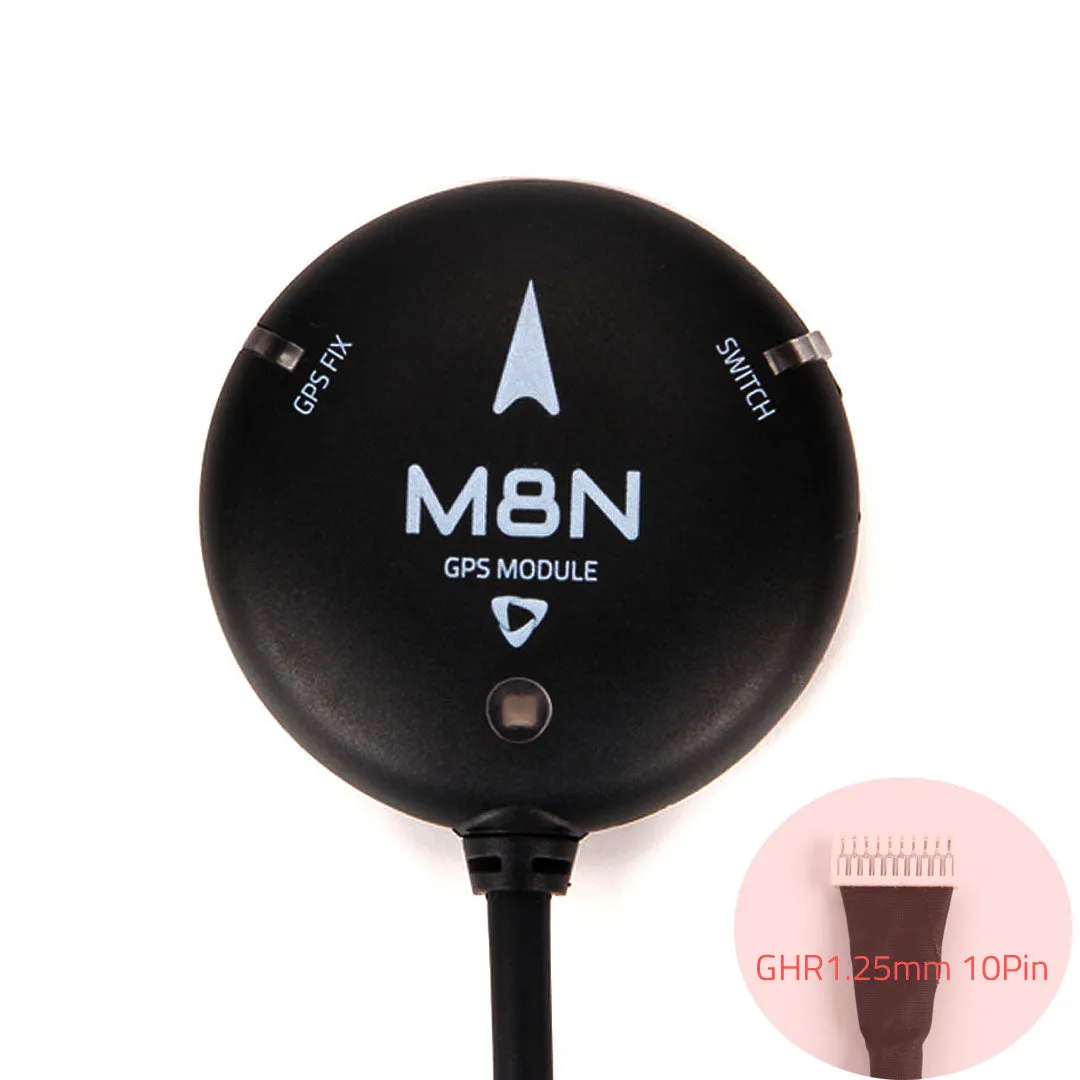

26cm Pixhawk4 compatible 10-pin cable included

Diameter 50mm total size, 32 grams with the case.

Package Includes:

1 x NEO-M8 with compass module

1 x ‘X’ type folding pedestal mount with fitting screws

1 x Carbon rod 100mm
