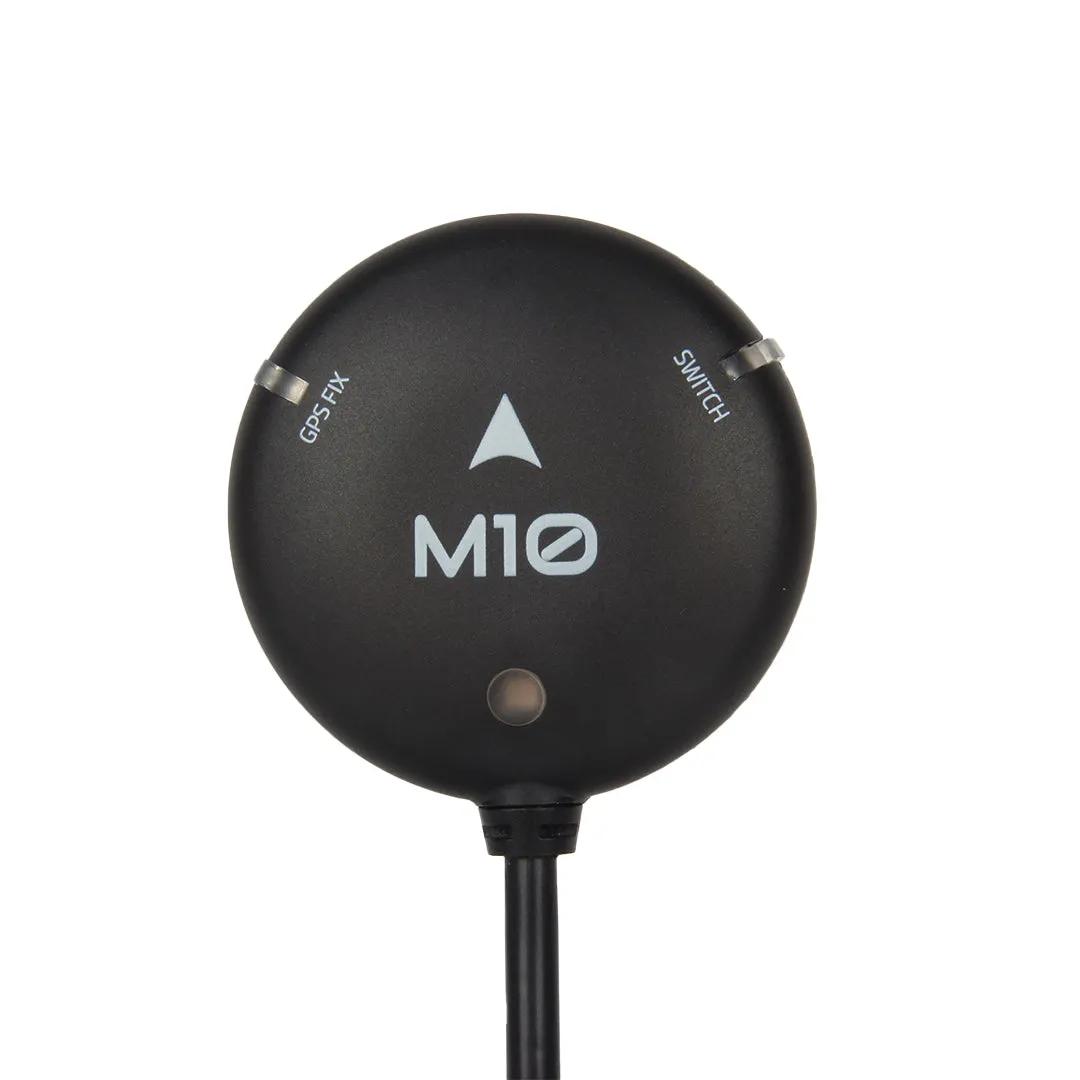

Holybro M10 GPS FOR Pix32 & Pixhawk (GPS V1.7)

Overview:

The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

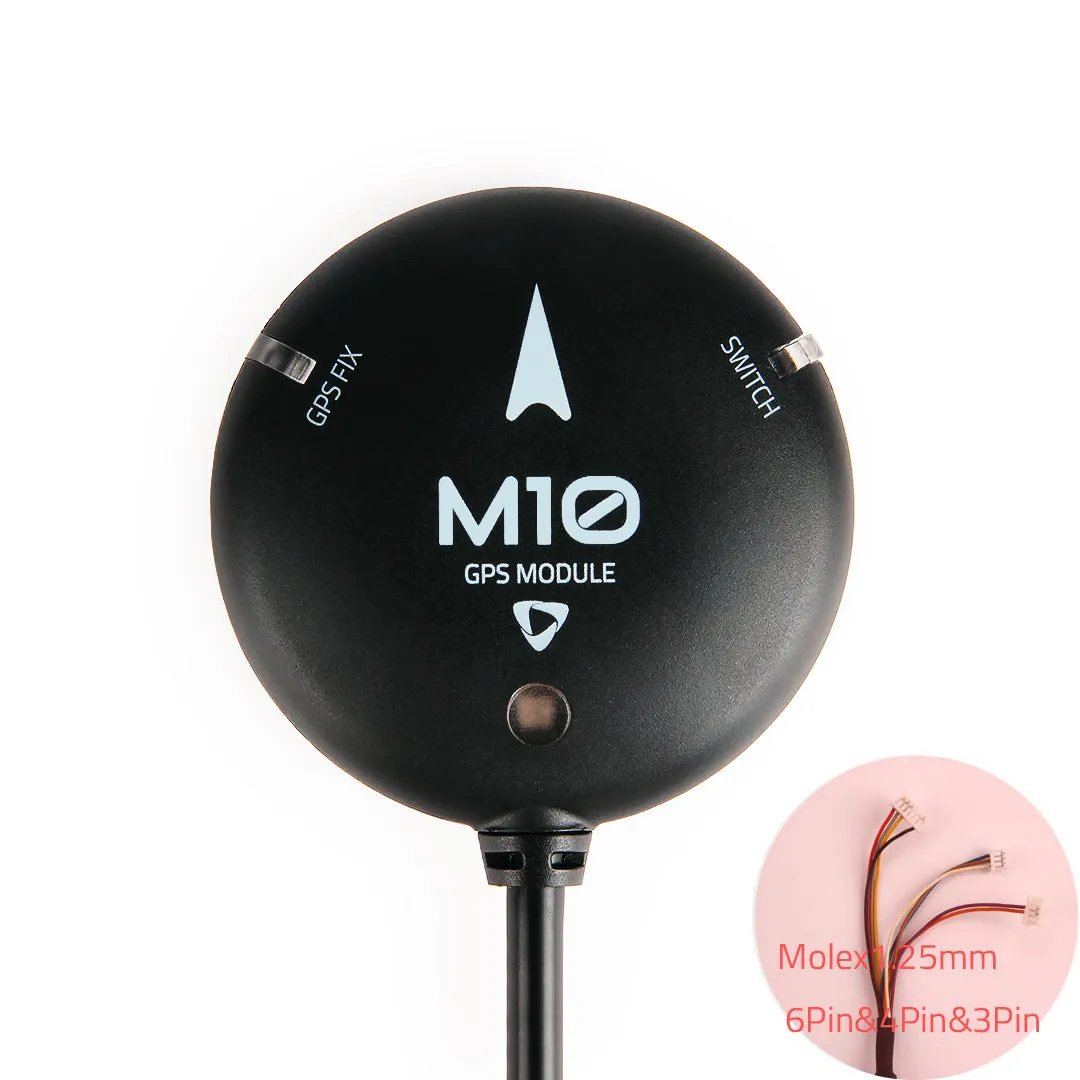

Holybro M10 GPS for Pix32 & Pixhawk1/2.4.6/2.4.8 (Molex1.25mm 6pin & 4pin &3pin cable):

These connectors are for "Switch", "GPS", and "I2C" input ports on the Pix32/Pixhawk1/Pixhawk 2.4.6/2.4.8

Firmware Support for M10 GPS:

PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Features:

1. Newest Ublox 10th Gen GNSS
2. Fast & Accurate Positioning
3. High-gain 25*25*4mm antenna
4. IST8310 Compass
5. Internal Buzzer, Safety switch
6. Ultra Bright UI RGB LED

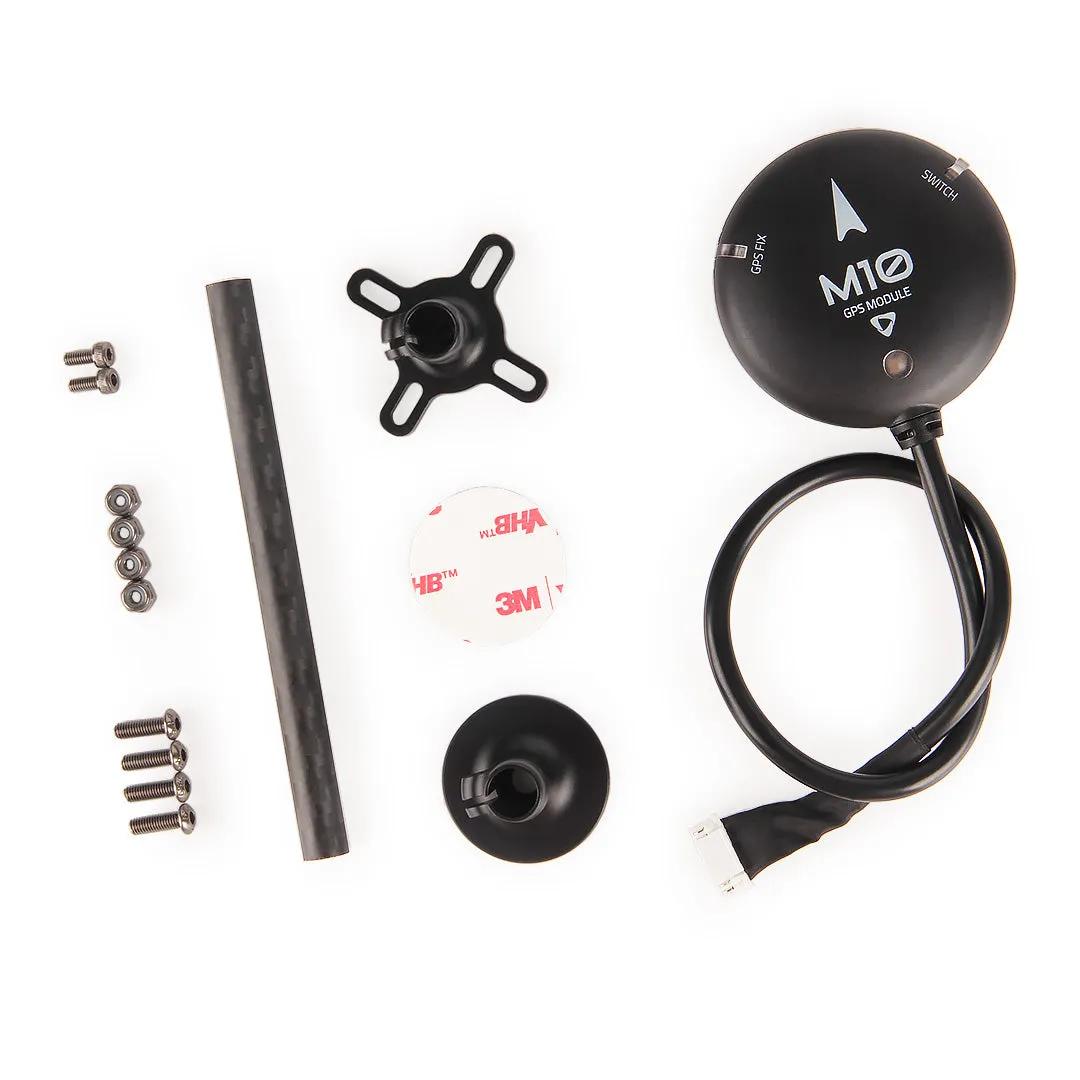

Package Includes:

1x M10 GPS Module

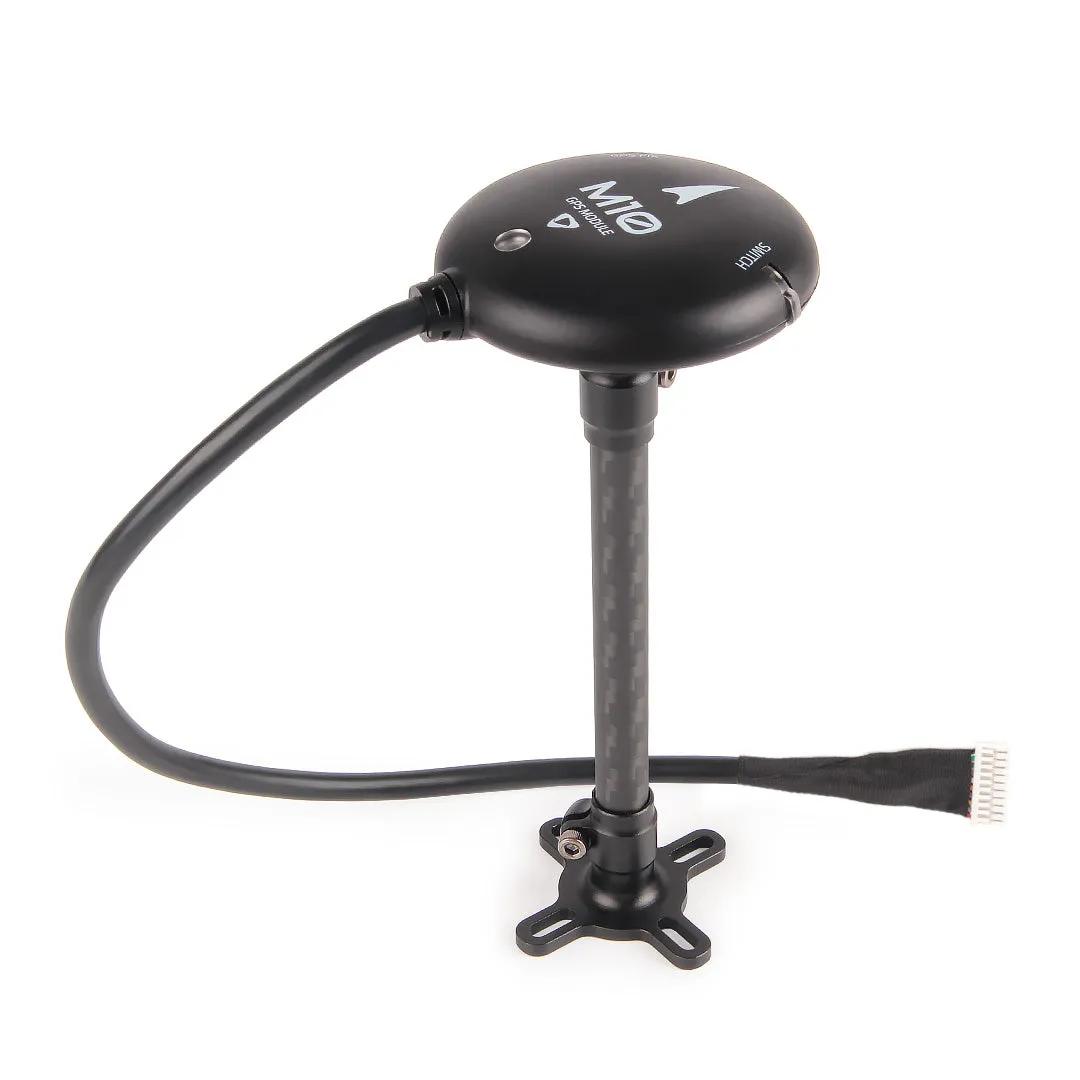

1x Fixed Carbon Fiber GPS mount
