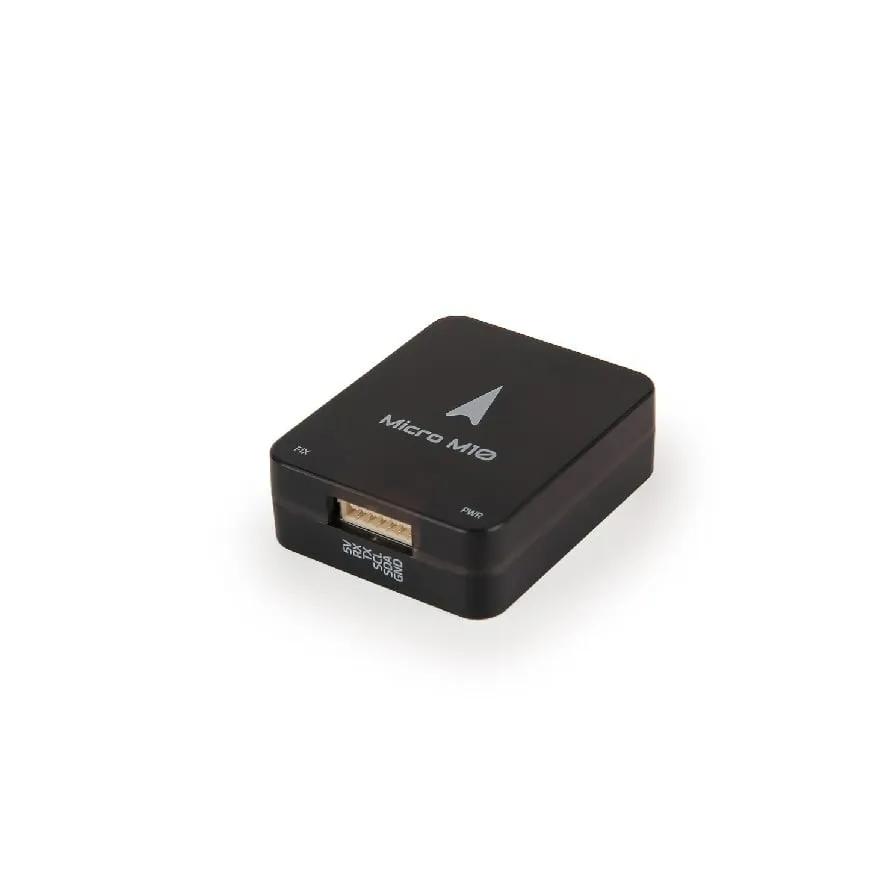

Holybro Micro M10 GPS Module With Case High-Precision Multi-Band GNSS

Holybro Micro M10 GPS With Case uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou can be received concurrently. It also comes with the IST8310 compass.

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, a rechargeable backup battery for warm starts.

Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Features:

The newest Ublox 10th Gen GNSS

Fast & Accurate Positioning

IST8310 Compass

Small Form Factor

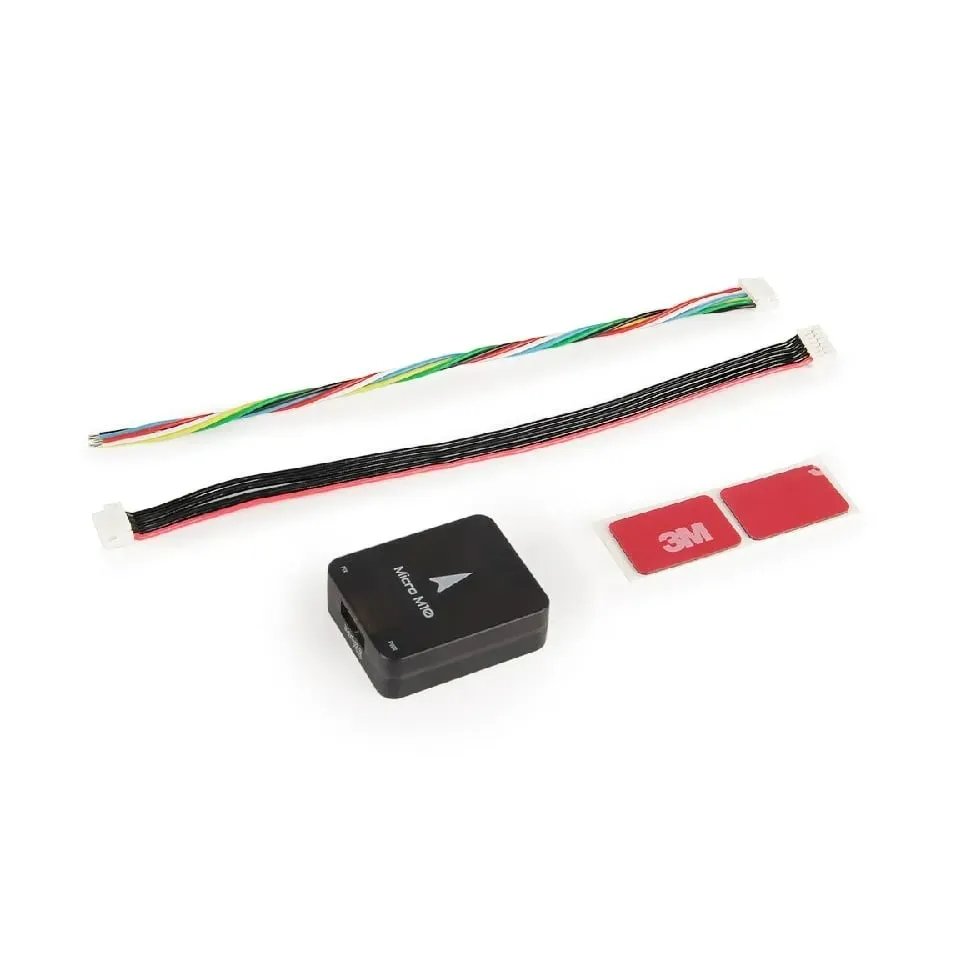

Package Includes:

1x Micro GPS module *1

1x JST GH 6 Position Connector 15 cm

1x JST-GH 6pin Colored Silicon Cable 15 cm
