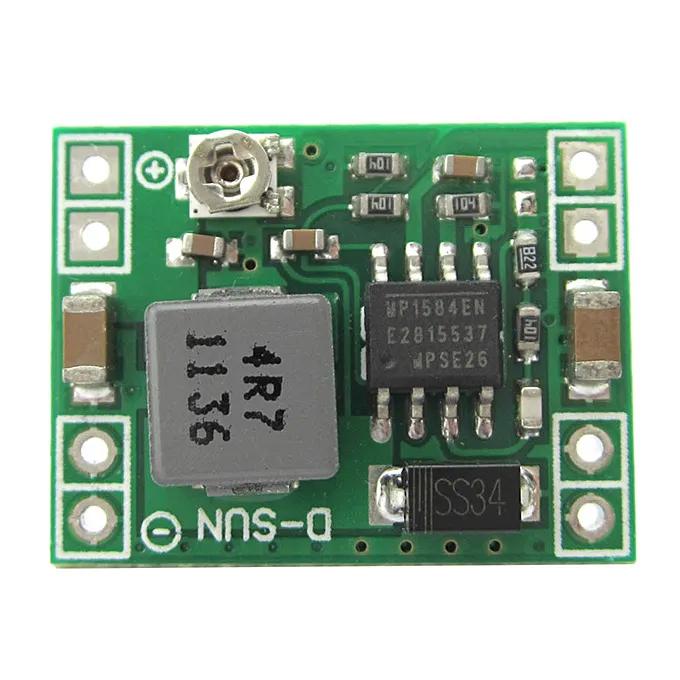

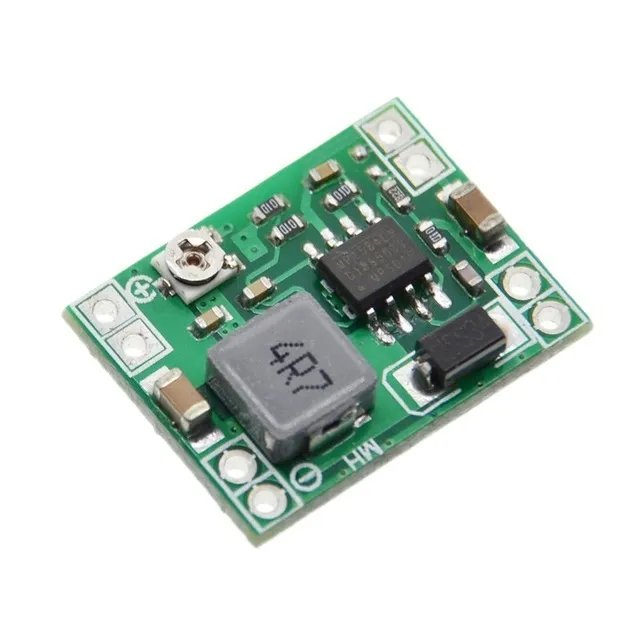

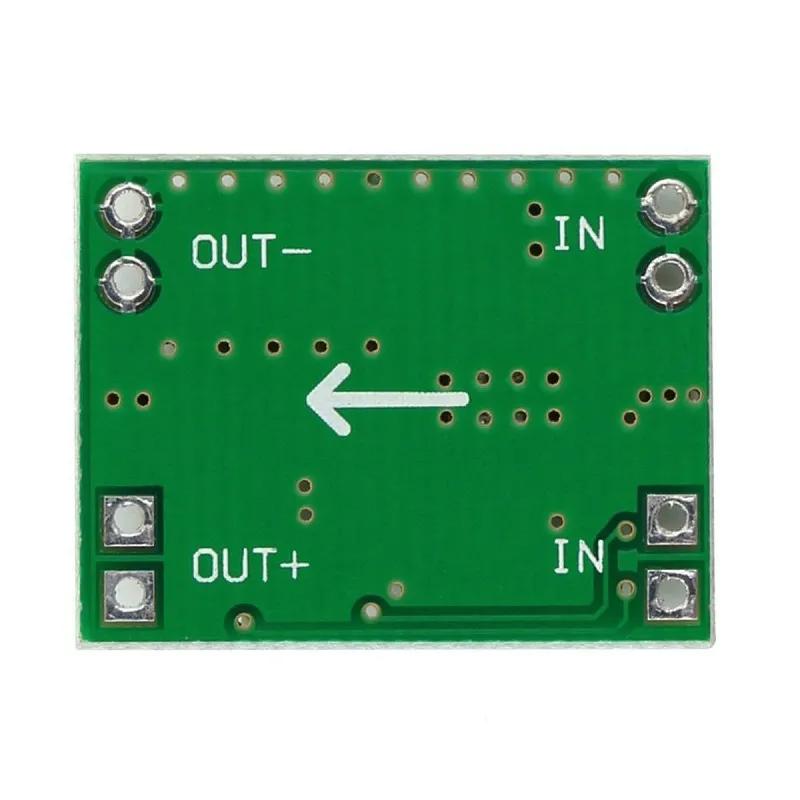

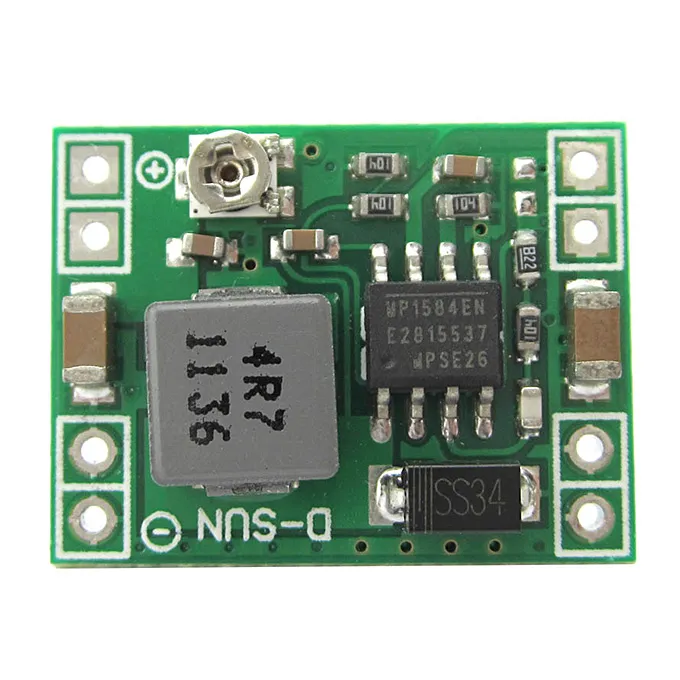

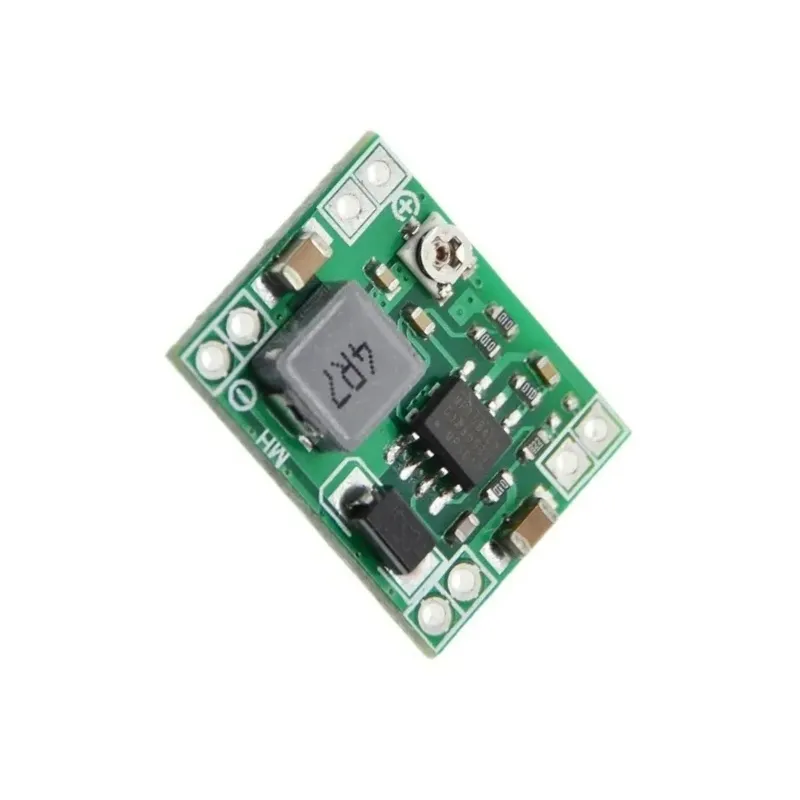

Mini MP1584 DC-DC Step-Down 4.5 to 28V 3A Adjustable Buck module

The Mini MP1584 DC-DC 3A Adjustable Buck module is ultra small adjustable 0.8V to 20V output DC to DC step-down Buck converter that uses an MP1584EN high frequency switching regulator and integrated high voltage power MOSFET.

It features a soft start, thermal shutdown, and under-voltage lockout (UVLO) to protect the module from operating at insufficient supply voltage.

Small size, lightweight, low internal power consumption, and wide input voltage range of 4.5V to 28V make this module suitable for a variety of different applications where small size and lightweight voltage conversion is needed, including RC cars and airplanes, quadcopters, robotics, Arduino modules, and DIY devices.

Features :

1. Wide 4.5V to 28V Operating Input Range
2. High-Efficiency Pulse Skipping Mode for Light Load
3. Ceramic Capacitor Stable
4. Internal Soft-Start
5. Internally Set Current Limit without a Current Sensing Resistor

Applications:

1. DIY 8051 / AVR / ARM / PIC / Arduino / Raspberry-Pi projects
2. Robotics
3. Breadboard power supply
4. Manual speed adjustment of small DC motors
5. Power Supply for RC project planes, cars, helicopters
6. Universal Battery Elimination Circuit (UBEC) for 2S-6S lipo battery pack
7. Receiver/servo power supply
8. Communications equipment power supply
9. Mobile equipment power supplies

Package Includes :

1 X Mini MP1584 DC-DC Step-Down 4.5 to 28V 3A Adjustable Buck module
