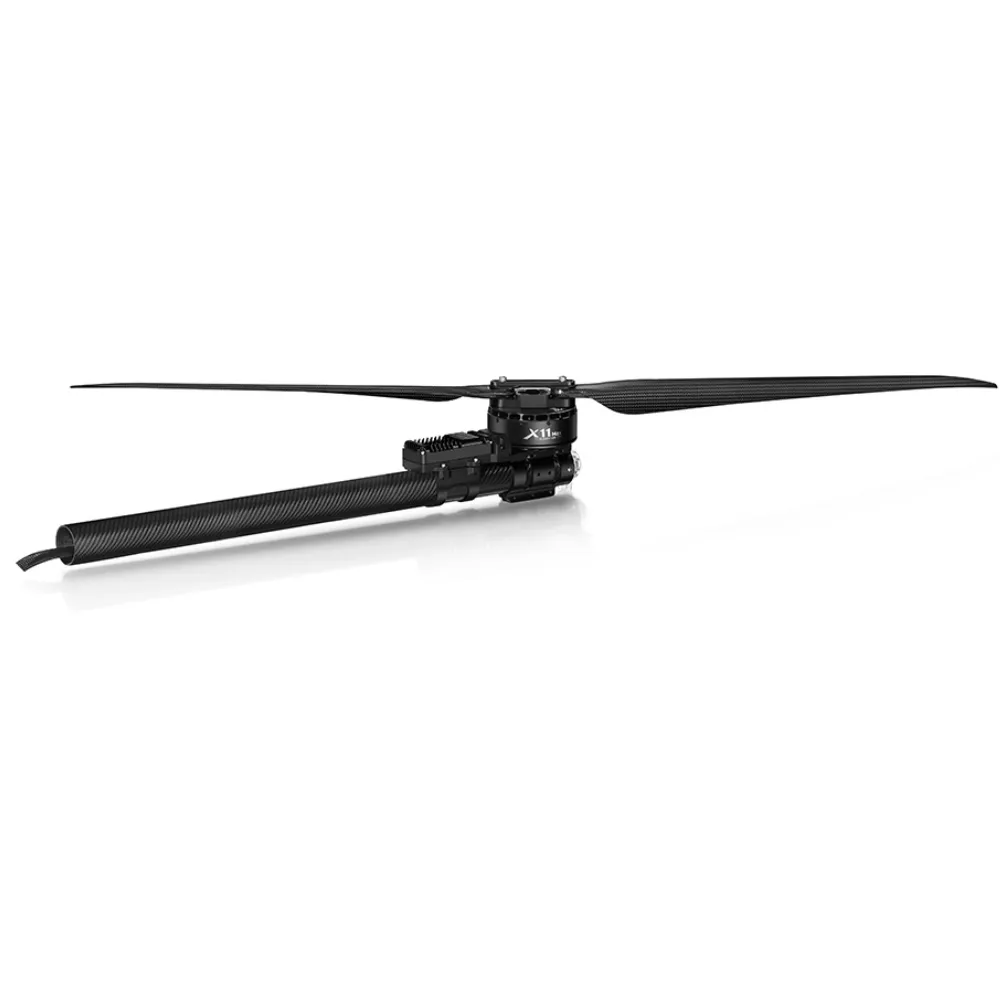

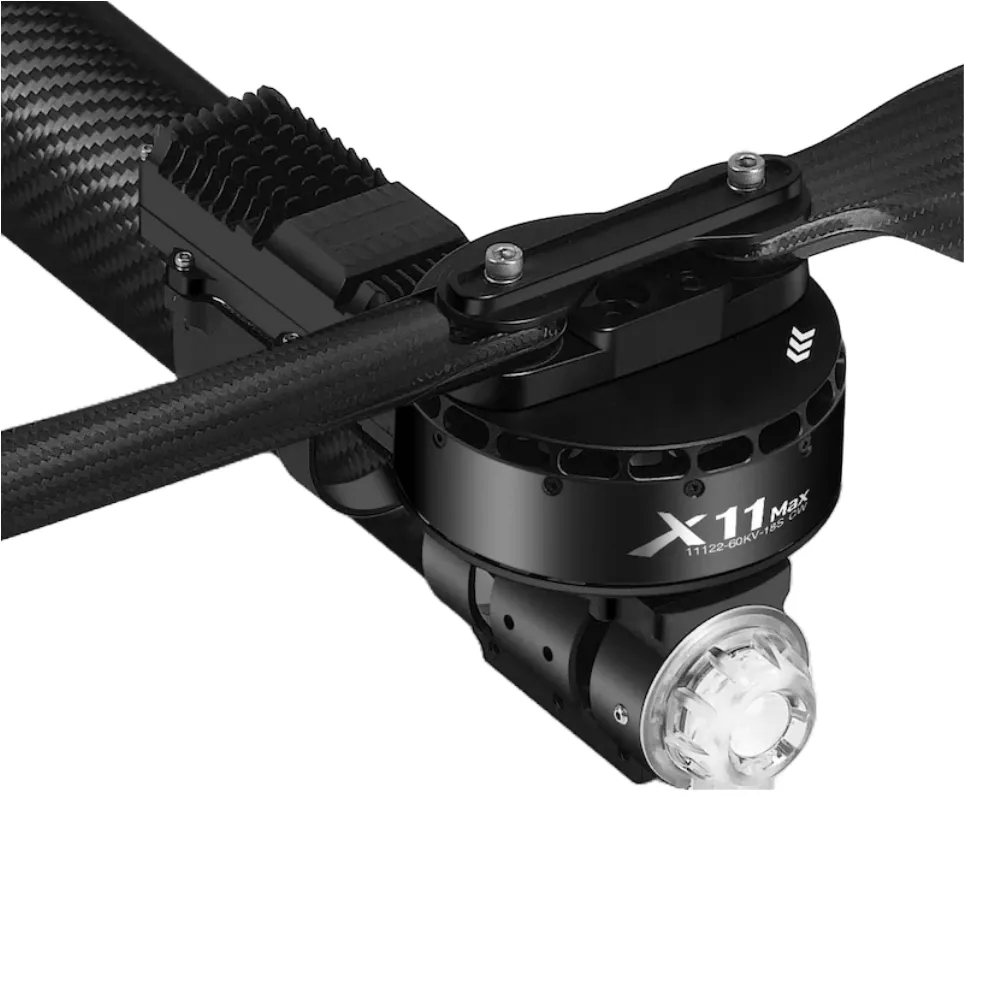

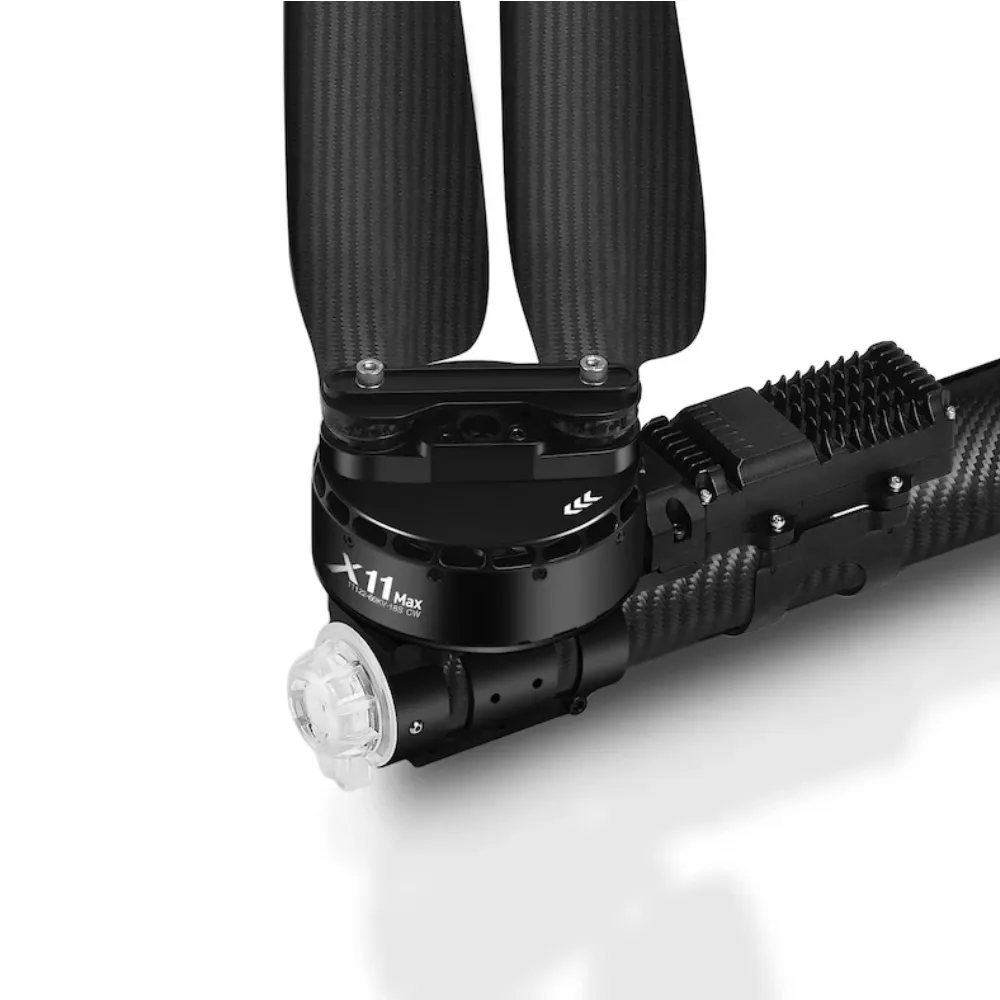

Hobbywing Xrotor X11 Max Power System Combo For Agricultural Drones CW

SKU: 506662

77031 (Inc GST)
89999

SAVE 14%

Quantity:

In Stock

The Hobbywing XRotor X11 Max Power System Combo (CW) is a professional-grade propulsion solution designed for high-payload agricultural drones. Engineered for maximum efficiency, power, and durability, this system delivers up to 44kg of thrust per rotor at 70V, making it suitable for large spraying drones, heavy-lift logistics UAVs, and other industrial aerial applications.

It integrates a high-torque motor, an advanced FOC ESC, and a large carbon-fiber propeller, all pre-matched for superior compatibility and performance. The CW (Clockwise) in multi-rotor configurations for balanced and stable flight .


Features:

  1. Provides up to 44kg of thrust per rotor (at 70V, sea level) — ideal for drones carrying large liquid tanks or heavy payloads.
  2. Efficient and stable operation within 20–22kg/axis for long-duration flights and payload handling.
  3. Designed to work with 18S LiPo batteries, maximizing power-to-weight efficiency and reducing current load.
  4. Operates smoothly in harsh conditions from -20°C to +50°C, suitable for year-round agricultural missions.
  5. Rugged and sealed system ensures reliable performance in wet or dusty field environments.
  6. Features a 111×22mm stator with 60 KV, built for torque-heavy applications and low heat generation.
  7. Uses high-quality Japanese bearings for smooth, long-lasting operation under high stress.
  8. Capable of handling up to 78.3V and 150A (peak) current, with support for PWM signal (3.3V/5V) and fixed 1050–1950µs pulse width for consistent response.
  9. Equipped with a large 48×17.5" propeller, delivering better lift-to-power ratio and lower vibration.
  10. This motor rotates clockwise (CW) and should be paired with a CCW unit for proper aerodynamic balance in multi-rotor systems.



Package Includes:

1 X Hobbywing Xrotor X11 Max Power System Combo For Agricultural Drones CW
