HOBBYWING H11M 11122-70KV brushless power system

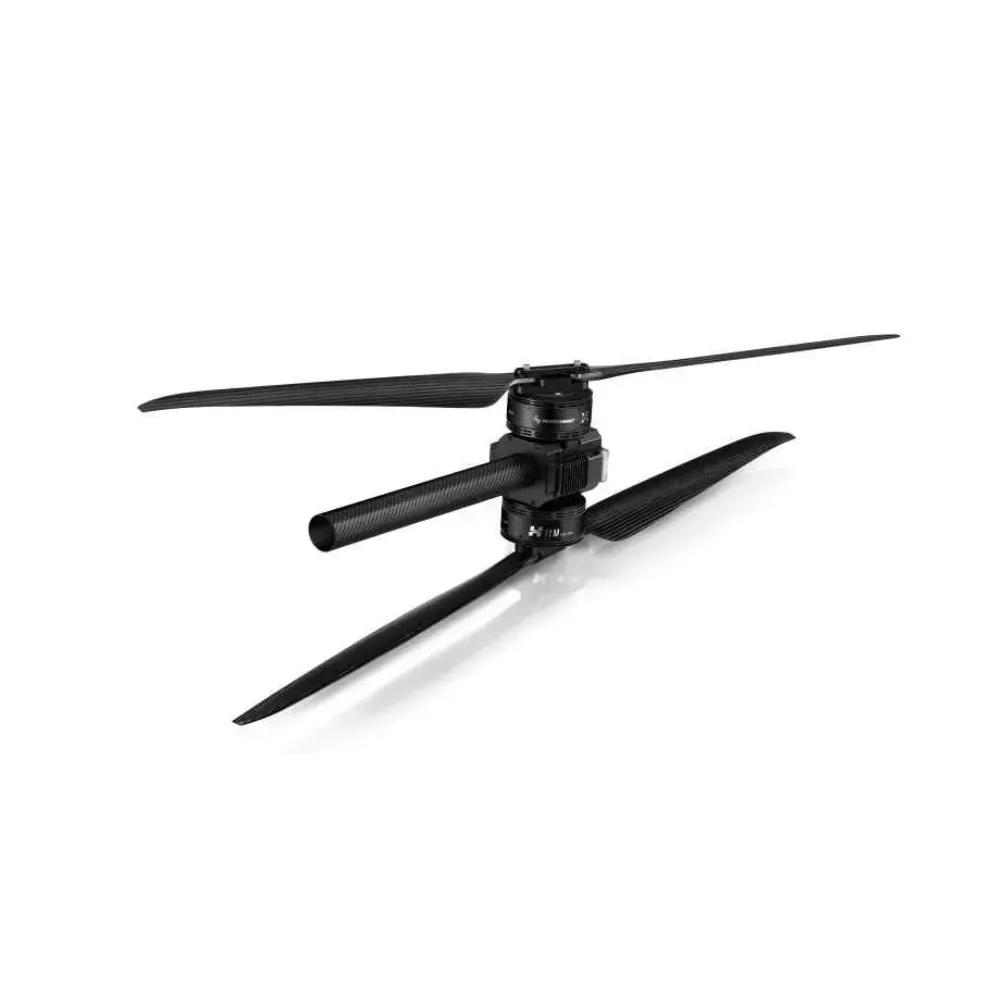

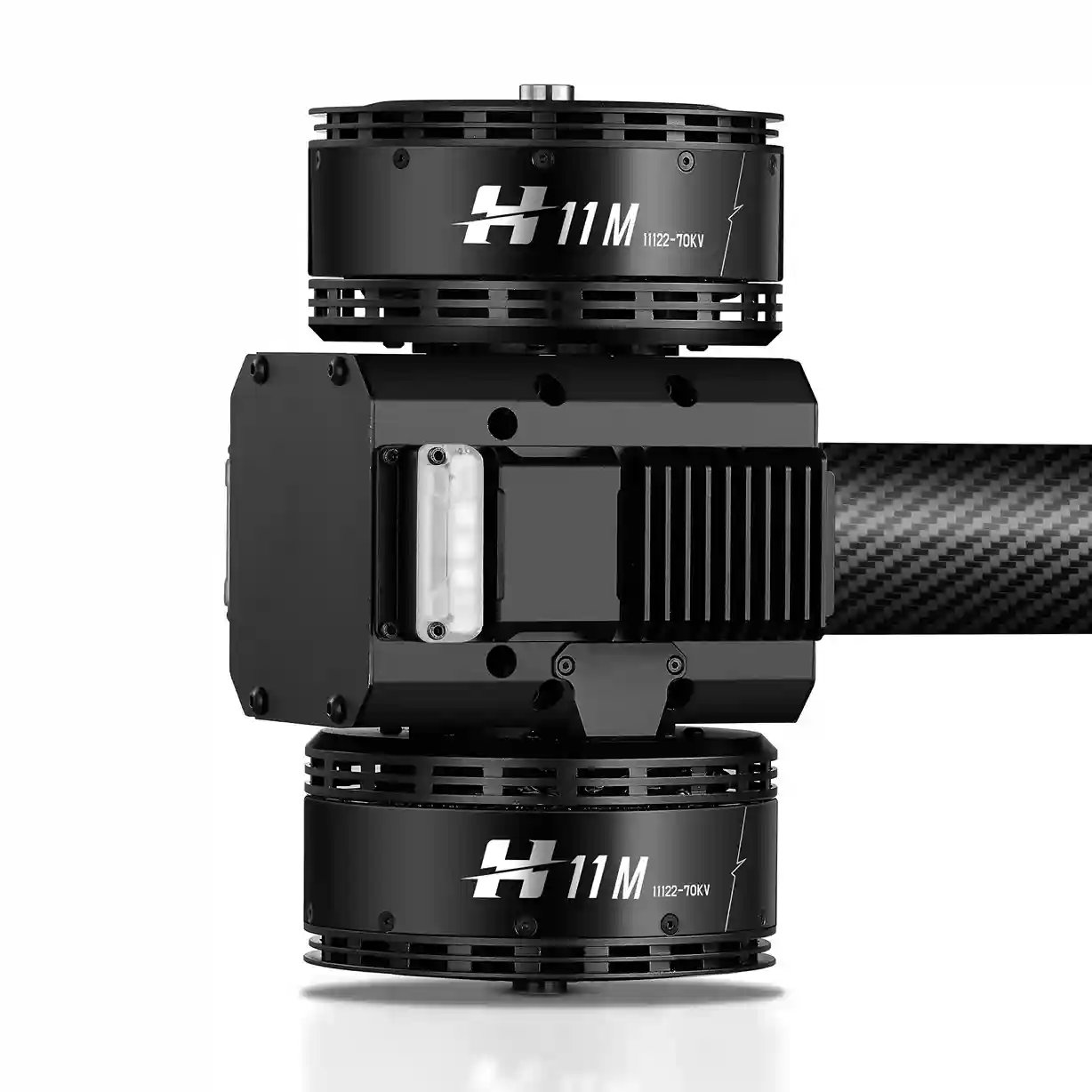

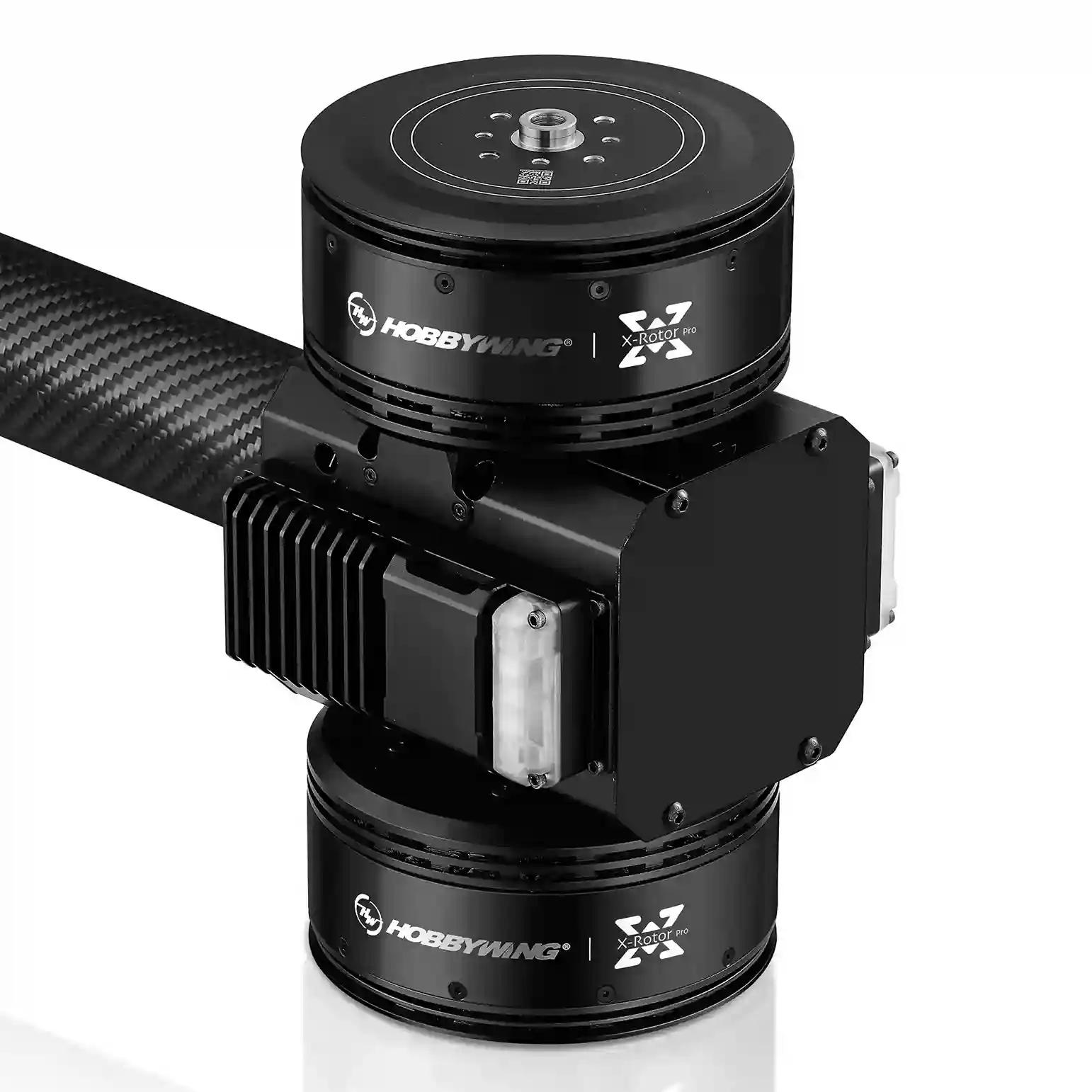

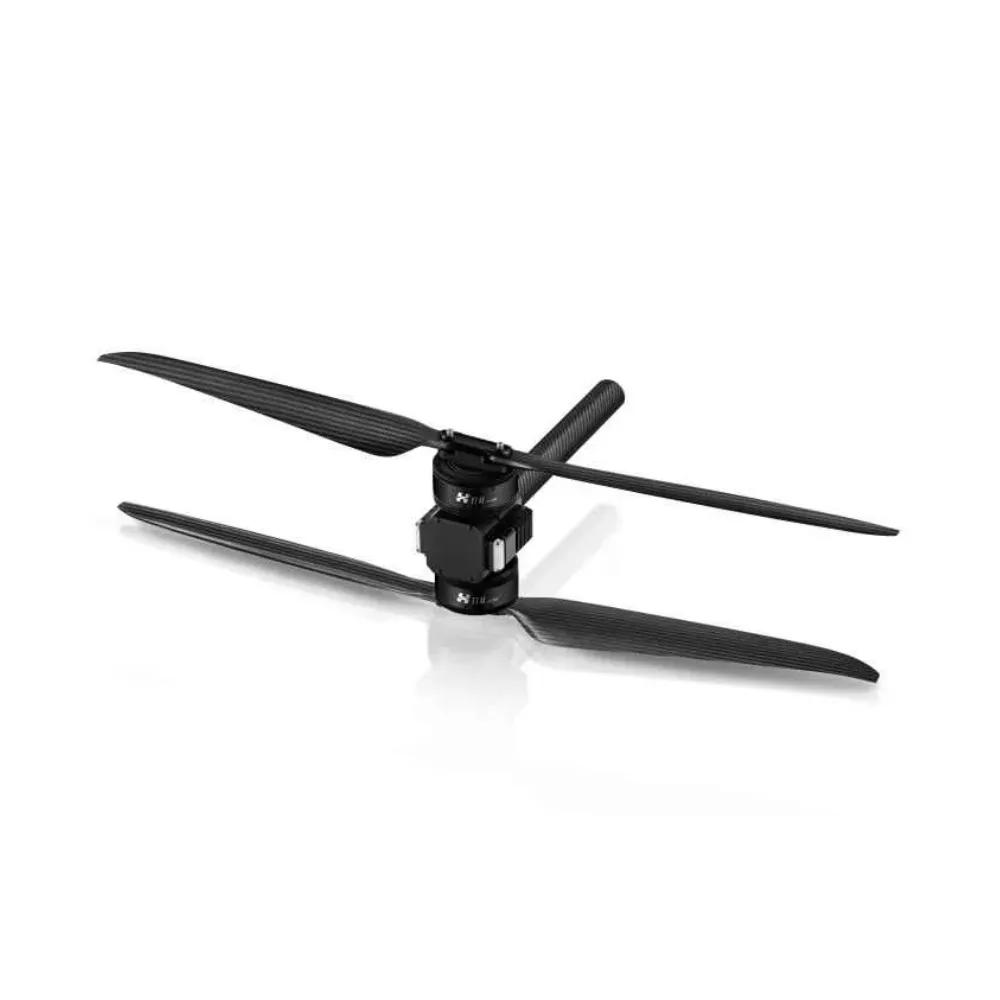

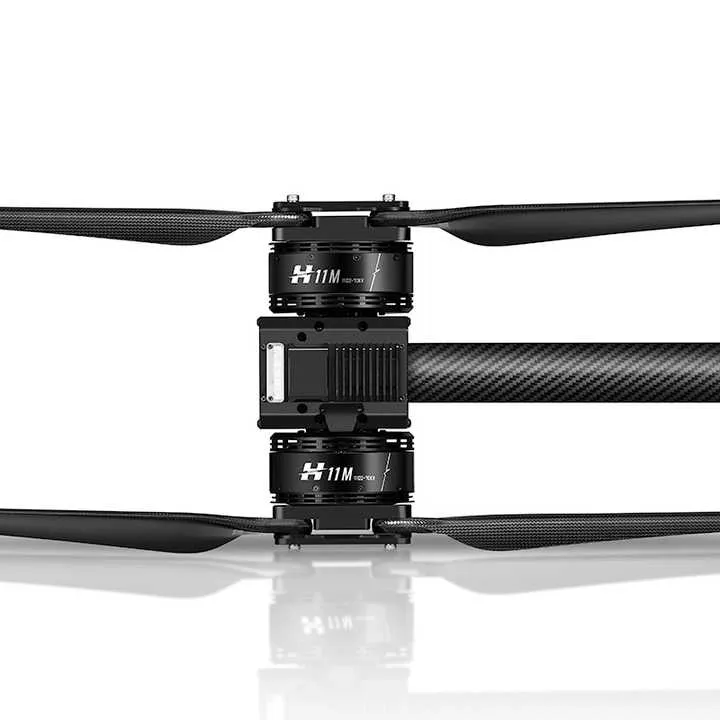

The HOBBYWING H11M 11122 70KV brushless power system is a coaxial industrial-grade solution designed for single-axis loads ranging from 25 to 28 kg, with a maximum pulling force of 57.5 kg. It is compatible with 50mm carbon fiber tube arms and boasts an IP45 waterproof protection rating. Offering efficient heat dissipation, it serves as a versatile power solution for various applications, including large-load operations, fire services, logistics, emergencies, and more.

The FOC ESC (Electronic Speed Controller) features CAN communication, a dual redundant design for digital and PWM throttle options, power-on self-test, fault storage, over-current protection, motor block protection, and other protective functions.

Precautions:

1. Please stay away from crowds, high-voltage lines, obstacles, etc. when using, and be sure to follow safety regulations when using.
2. The power system contains FOC drive ESC, which needs to strictly match the motor parameters. The program is unique. It is only suitable for one combination of propellers and is not compatible with multiple combinations at the same time. If you need to change it, please contact the manufacturer. Unreasonable combinations will trigger ESC protection and make it unusable.
3. The ESC is equipped with CAN function. When using the CAN function, the ESC ID and the throttle channel of the same aircraft cannot be the same, otherwise the multiple ESCs will be recognized as the same.
4. Do not bring propellers for ground testing to avoid unnecessary danger.
5. Be sure to connect all parts carefully. If the connection is poor, you may not be able to control the aircraft normally, or other unpredictable situations such as equipment damage may occur.
6. If you need to weld the input and output wire plugs of the ESC, please ensure that the welding is reliable and use welding equipment with sufficient power.
7. Do not use it when the external ambient temperature exceeds 50°C. The high temperature will destroy the ESC and may cause damage to the motor and cause the machine to explode.
8. The steering of the power system has been set at the factory. Please observe the motor steering mark. It is not supported to change the sequence of the motor phase wires due to the packaging and sealing process.

Power system installation:

1. The entire power system has been assembled at the factory and can be taken out directly from the package to install on the UAV frame according to the rotation of the motor.
2. The yellow, red and green three-color wire are the data output and upgrade signal wire (the system can be upgraded for the ESC), the yellow wire is the GND; the red wire is CAN-High (hereinafter referred to as CH); the green wire is CAN-Low (hereinafter referred to as CL);The black and white wires are the ESC throttle signal wires, the black is the GND, and the white is the throttle signal wire.
3. The data signal line outputs throttle, motor speed, bus current, bus voltage, capacitor temperature, MOS tube temperature and other data in real time.
4. The ESC accelerator is solidified at 1100~1940µs.

Package Includes:

1 X HOBBYWING H11M 11122-70KV brushless power system
