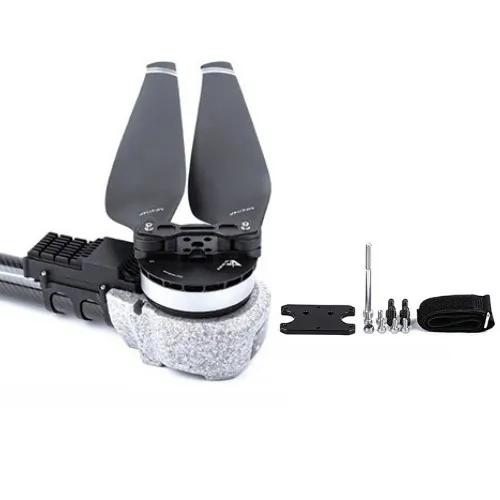

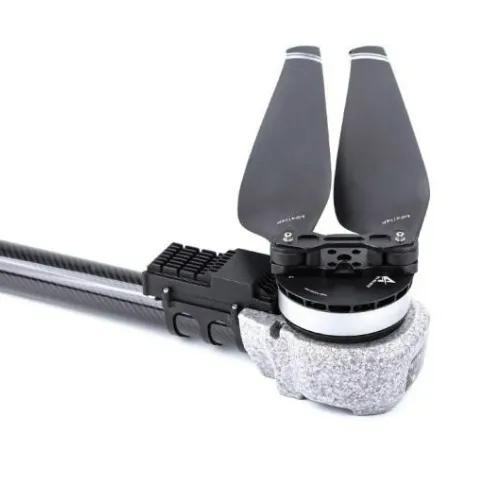

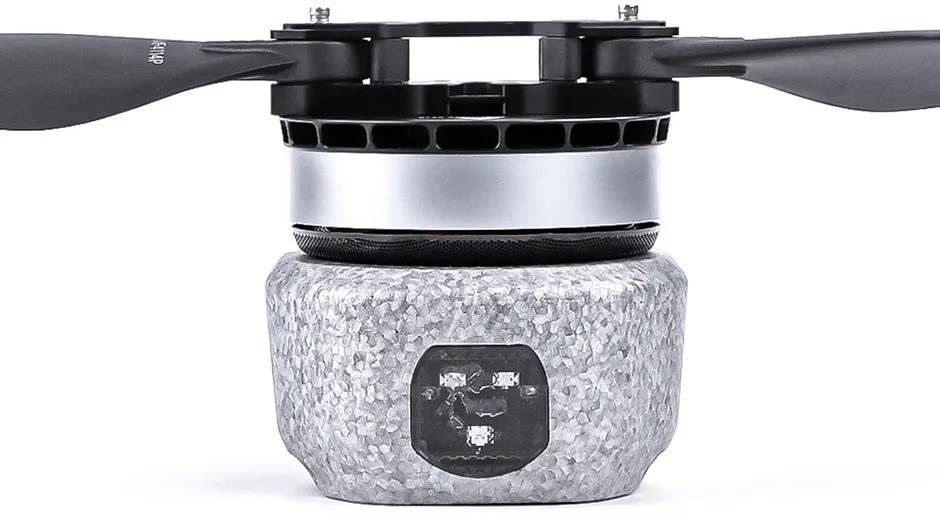

T-Motor BLDC A12L KV92 14S Motor with 50mm Propeller CW

The T-Motor A12L KV92 14S Motor with 50mm Propeller (CW) is a high-end modular propulsion system engineered for large agricultural drones and heavy-lift industrial UAVs. Designed to deliver exceptional thrust, efficiency, and durability, this system integrates a powerful brushless motor, a high-current FOC ESC, and a large folding propeller into a single optimized unit.

The A12L KV92 ensures stable and efficient performance even under extreme payload conditions. Its 50mm tube compatibility provides strong structural support for large drone frames, while the advanced ESC ensures smooth and precise control. With a rated thrust of 15–18 kg and a maximum thrust of up to 37.8 kg, this propulsion system is ideal for heavy-duty drone applications requiring reliability and long flight endurance.

Features:

1. Generates 15–18 kg rated thrust and up to 37.8 kg maximum thrust, suitable for heavy payload UAVs.
2. Combines motor + 200A FOC ESC + folding propeller, simplifying installation and reducing wiring complexity.
3. Ideal for 30L quadcopters and 40L hexacopters, supporting take-off weights up to 108 kg.
4. 50mm Tube Compatibility specifically for 50mm carbon fiber arms, ensuring robust and stable mounting.
5. Advanced 14S FOC ESC (200A) High-performance ESC with PWM and CAN support, delivering smooth throttle response and efficient control.
6. Large 43-Inch Folding Propeller (MF4315P) Provides excellent airflow efficiency, improved lift, and easy portability.
7. Achieves up to 8.4 g/W efficiency, reducing power consumption and increasing flight time.
8. Passed 2000-hour lifespan testing, ensuring long-term reliability in industrial applications.
9. Modular structure allows fast assembly and easy replacement of components.
10. Designed for harsh environments including agricultural spraying and outdoor operations.

Package Includes:

1 × T-Motor A12L KV92 Motor (CW)

1 × Integrated 14S FOC ESC (200A)

1 × MF4315P Folding Propeller

Pre-installed wiring
