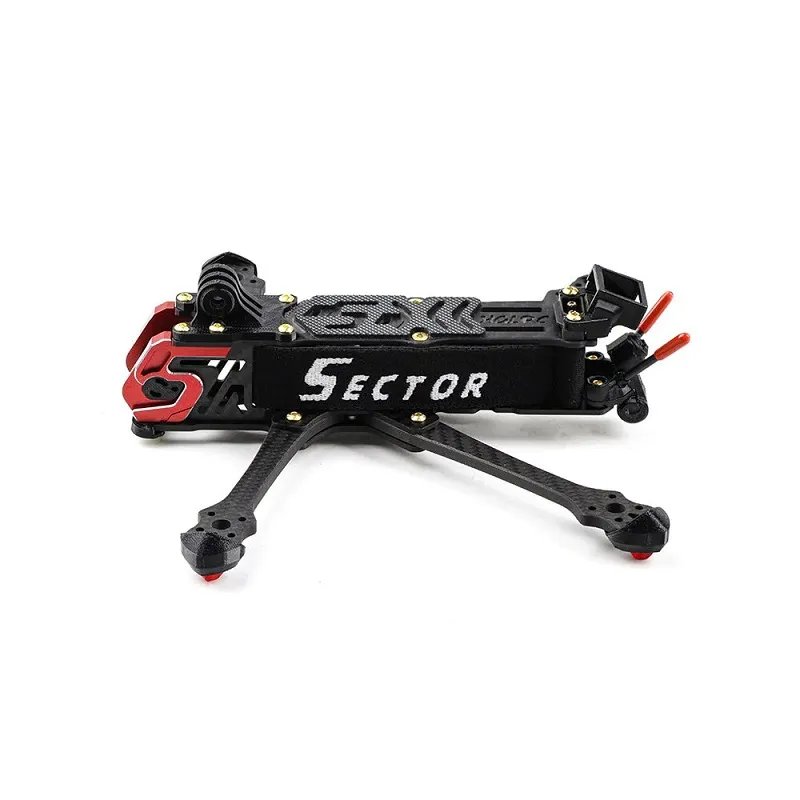

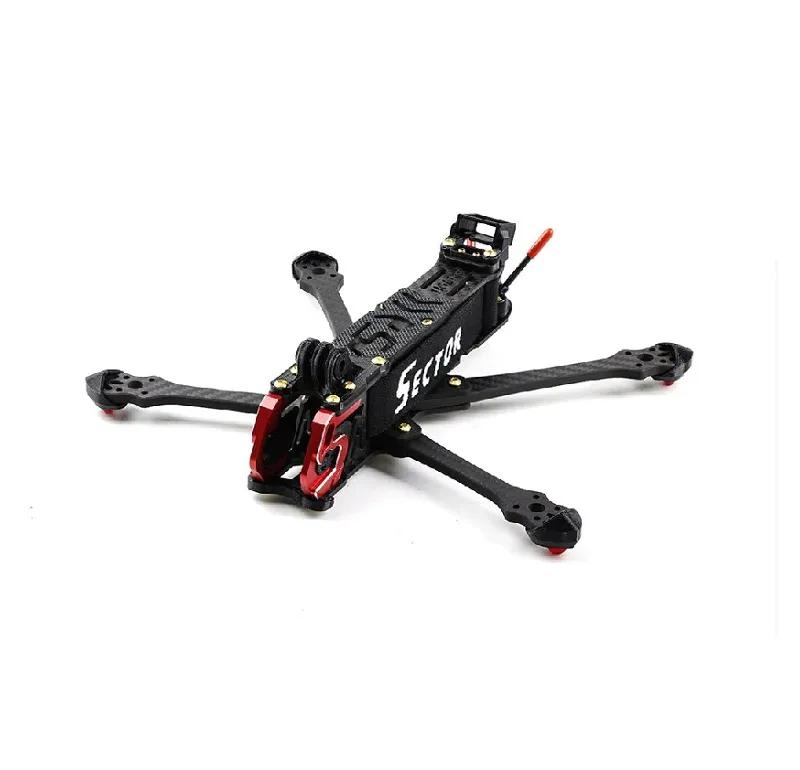

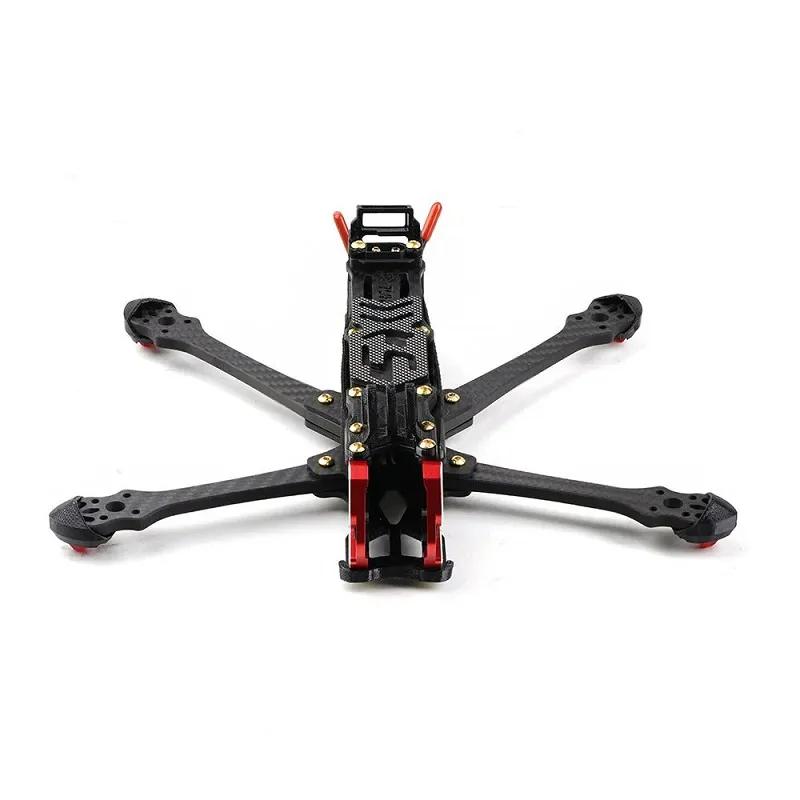

HGLRC Sector D5 FR 5-inch Freestyle FPV Frame

The HGLRC Sector D5 FR is a high-performance 5-inch freestyle FPV drone frame built for pilots who demand durability, agility, and clean design. Engineered specifically for aggressive freestyle flying and high-speed maneuvers, this frame provides a strong yet lightweight structure capable of handling the stress of intense aerial tricks and crashes. Constructed with high-quality carbon fiber and CNC-machined aluminum components, the Sector D5 FR offers exceptional structural strength while maintaining an optimized weight for maximum performance. The frame features a smart modular design with replaceable arms, allowing quick repairs without needing to disassemble the entire drone.

The frame is fully optimized for the DJI O3 VTX system, using specially designed 3D-printed mounting parts that securely hold the camera lens to reduce low-frequency vibrations. This significantly improves video stability and helps eliminate “jello” effects in recorded footage.

The thoughtful internal layout ensures easy installation of electronics and improved cable management, while the fixed power outlet design protects battery leads from being damaged by spinning propellers. Additional dust-proof straps help keep internal components clean and protected during flights. With its balanced 199 × 178 mm wheelbase, strong carbon plates, and optimized spacing for electronics, the HGLRC Sector D5 FR provides a reliable platform for freestyle pilots who want a durable frame that looks great and performs even better.

Features:

1. Durable 5-inch frame built to handle aggressive flying, crashes, and high-speed maneuvers.
2. Arms can be replaced quickly without disassembling the entire frame, making repairs faster and easier.
3. Specially designed aluminum structure and 3D-printed mounts reduce vibration and improve video stability.
4. Combined with precision 3D-printed components for enhanced strength and a premium look.
5. Protects battery power cables from accidental damage caused by propellers.
6. Covers both sides of the frame to help protect electronics and keep components clean.
7. Strong Carbon Fiber Plate Construction
8. Top Plate Thickness: 2.5 mm
9. Middle Plate Thickness: 2 mm
10. Bottom Plate Thickness: 2.5 mm
11. 25 mm stack height between top and middle plates allows flexible component installation.
12. Supports 30.5 × 30.5 mm mounting holes for wide FC compatibility.
13. Designed for 19 × 19 mm camera mounting, ensuring stable camera installation.
14. 199 × 178 mm frame dimensions provide excellent balance between agility and stability.

Package Includes:

1 x 2.5 mm Top plate

1 x 2 mm Mid-plate

1 x 2.5 mm Base plate

2x 5 mm Front arm

2x 5 mm Rear arm

1x 2.5mm Arm limit plate

2x 2mm Camera side panel

1x Frame head CNC aluminum parts (one pair)

1x TPU Black GOPRO holder mount

1X TPU black Cam Conversion board (one pair)

1x TPU black SMA antenna mount

1x TPU black GPS mount

1x TPU black bottom mount

4x TPU black arm protection

4x TPU Red footpad

2x Battery straps 20x250mm

1x Battery Anti-slip pad

1x Screw Accessory package
