HGLRC KT20 2 inch Traversing Machine Frame for FPV Racing Drone

The HGLRC KT20 is a nimble 2″ FPV racing frame designed for high-speed and agile maneuvers. Crafted with lightweight and durable materials, it provides a sturdy platform for micro-sized racing drones. With its sleek design and optimized layout, the frame offers efficient airflow and easy component installation. The KT20 is perfect for pilots seeking an exhilarating racing experience in a compact form factor.

Features:

1. The Frame supports (25.5×25.5mm) installing holes;
2. 2-inch rack, compact and light to adapt to any venue;
3. Indoor and outdoor, you can fly as much as you like.
4. Kart shape, super high value;

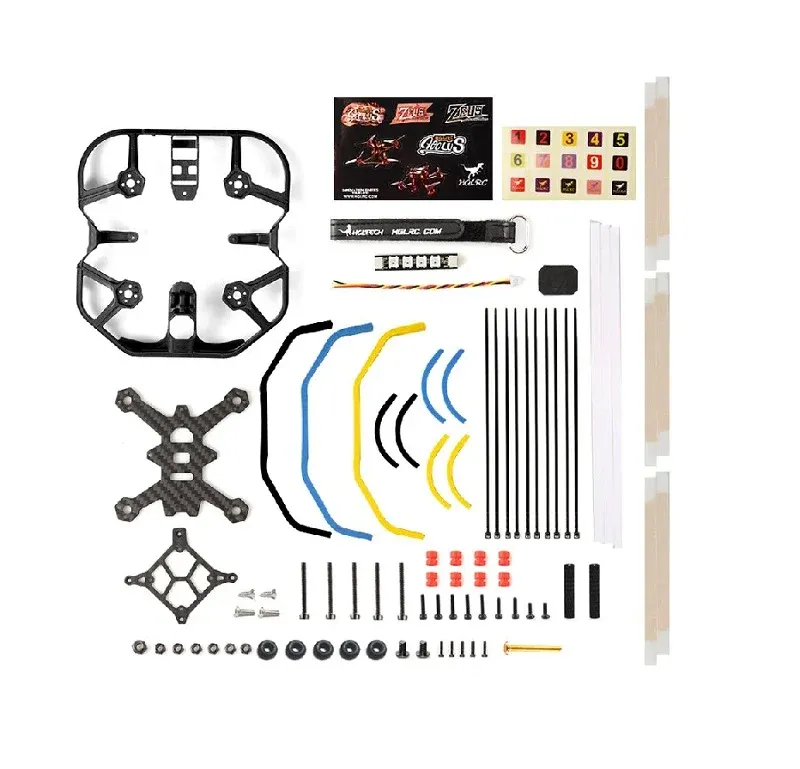

Package Includes:

1x 2mm top plate

1x 1.5mm bottom plate

1x KT20 2-inch frame

2x Countersunk Hexagon Socket M2*6 Self-Tapping Screws

2x Countersunk hexagon socket M2*7 304 stainless steel screw

2x Hexagon socket head tapping screws M2x8

2x Hexagon socket head M2*6 black nickel plated screws

2x M2*22*4mm outer diameter reticulated aluminum column

1x W554B LED strip (1pc)

1x KT20 front bumper EVA cotton (one set of blue, yellow, and black)

2x KT20 rear bumper EVA cotton (one set each for blue, yellow, and black)

3x 3M double-sided tape (3 sets of double-sided tape for front and rear bars)

1x Silicone cable length 110mm, single head PH1.0-3P Color: yellow, red, and black (LED cable)

10x cable tie 2*120mm nylon cable tie (root)

5x Round head hexagon socket M2*10 black nickel plated screws

5x Round head hexagon socket M2*18 black nickel plated screws

8x M2*6.6 shock-absorbing ball

6x Anti-loose self-locking M2 nut

5x Black O-shaped silicone outer diameter 7*2 inner diameter 3

3x Round head hexagon socket M2*3 black nickel plated screws

5x Cup head hexagon socket M1.6*8 black nickel plated screw

1x KT20 number sticker

2x battery tie, size: 10*150mm

1x KT20 battery non-slip mat

1x Round head hexagon socket M3*20 screw

1x M3 nut

1x B4 certificate label

1x HGLRC Sticker

1x KT20 Frame Installation Instructions
