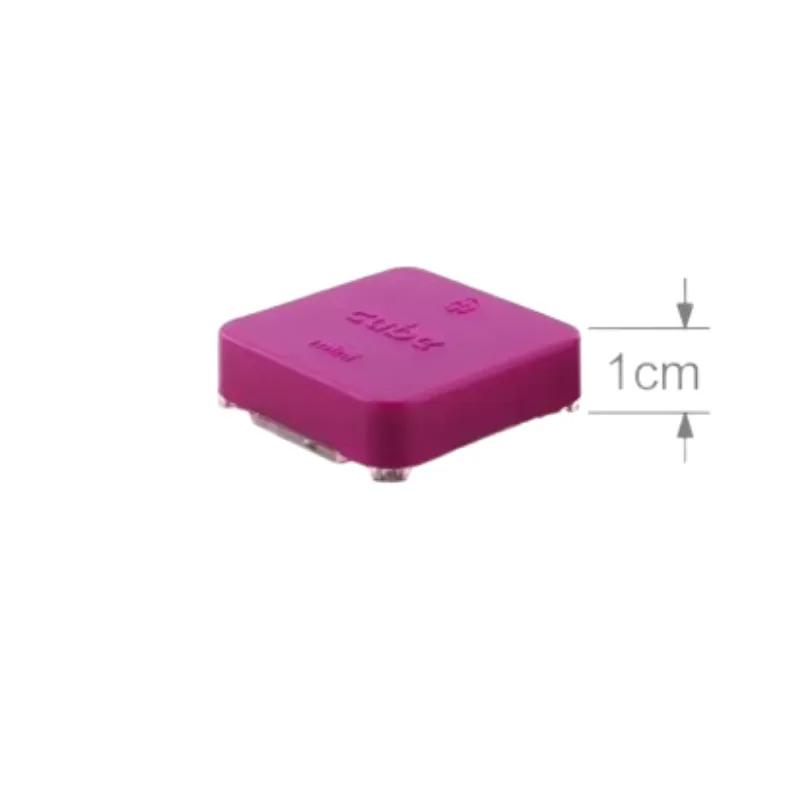

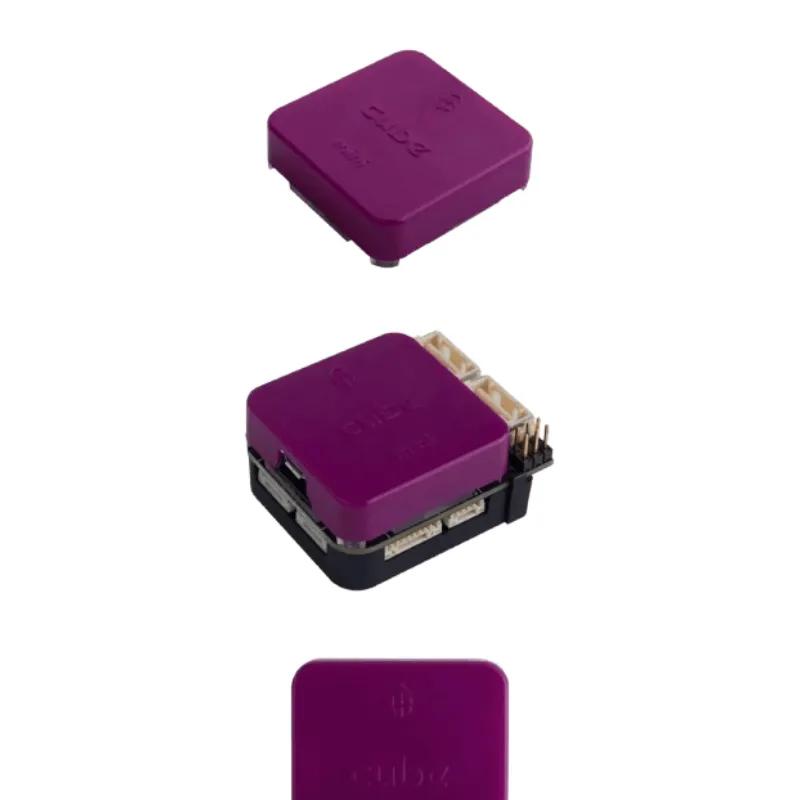

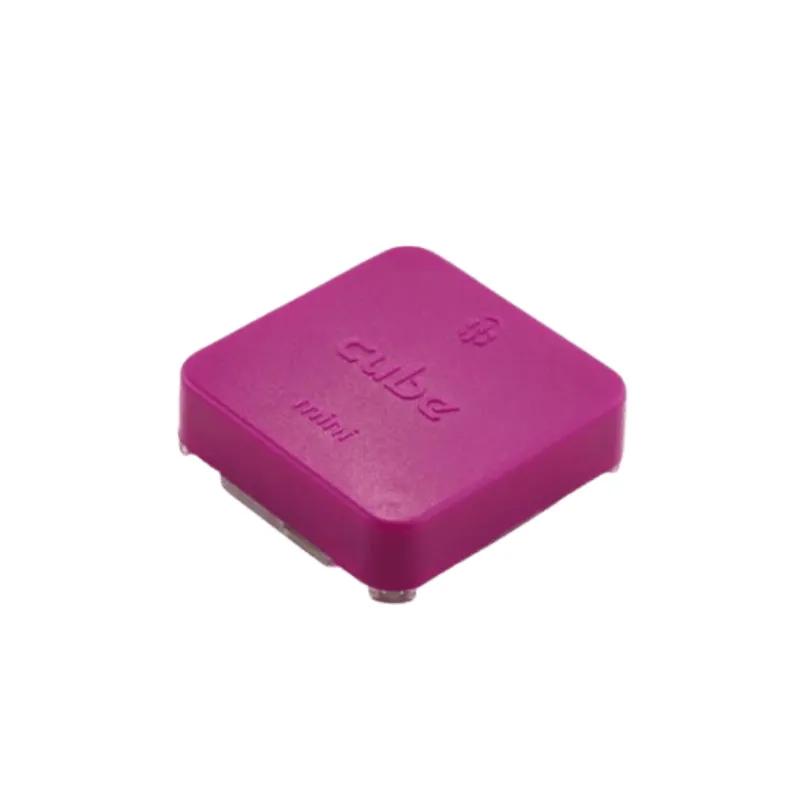

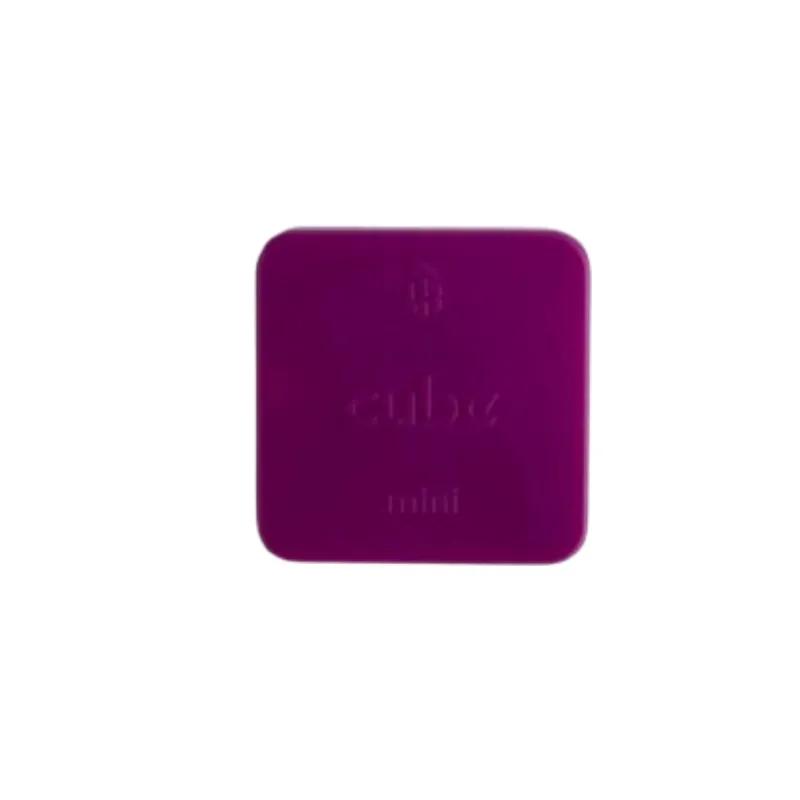

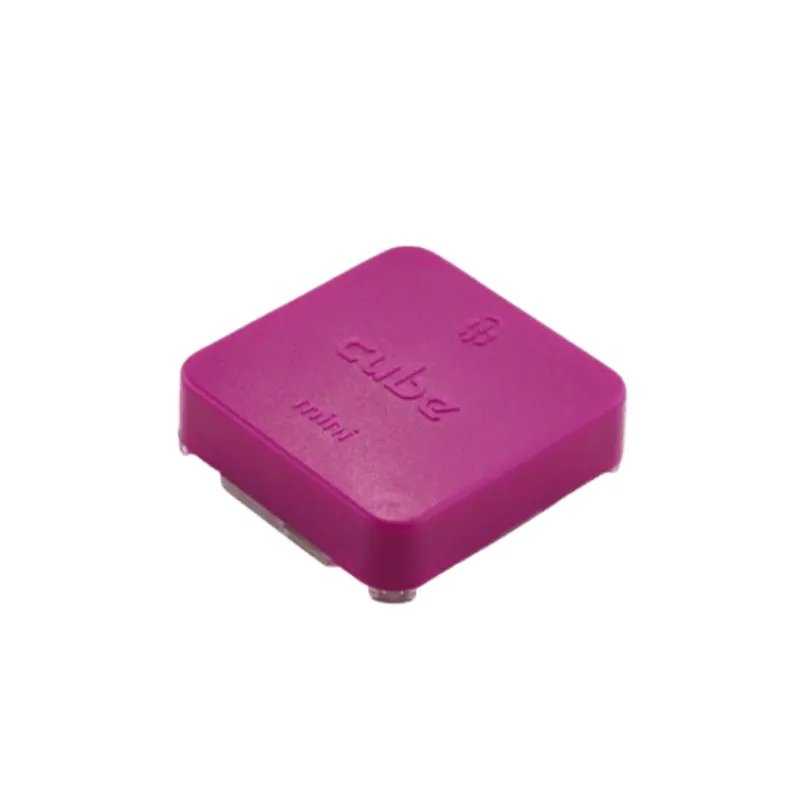

Hex Cube Purple Autopilot for Fixedwing UAV Drones in India

The Hex Cube Purple Autopilot, also known as the Cube Mini, is a compact flight controller primarily designed for ground-based unmanned vehicles such as boats, cars, and rovers. While it's optimized for terrestrial applications, its small form factor and robust features make it a viable option for small fixed-wing UAV drones, especially in scenarios where sensor redundancy isn't a critical requirement.

Features :

The Cube Purple autopilot is designed for ground based applications such as boat, car or rover. Based on the Cube Black main module the purple is a much smaller platform for applications where sensor redundancy is not required.

1. Single IMU sensor
2. Single Baro Sensor
3. The entire flight management unit(FMU) and inertial management unit(IMU) are housed in a reatively small form factor (a cube). All inputs and outputs go through a 80-pin DF17 connector, allowing a plug-in solution for manufacturers of commercial systems. Manufacturers can design their own carrier boards to suit their specific needs.
4. Processor
5. 32-bit ARM Cortex M4 core with FPU
6. 168 Mhz/256 KB RAM/2 MB Flash
7. 32-bit failsafe co-processor

Product includes :

1. 1 x IMU (accels, gyros and compass)
2. 1 x InvenSense MPU9250 (accel and gyro)
3. 1 x MS5611 barometers
