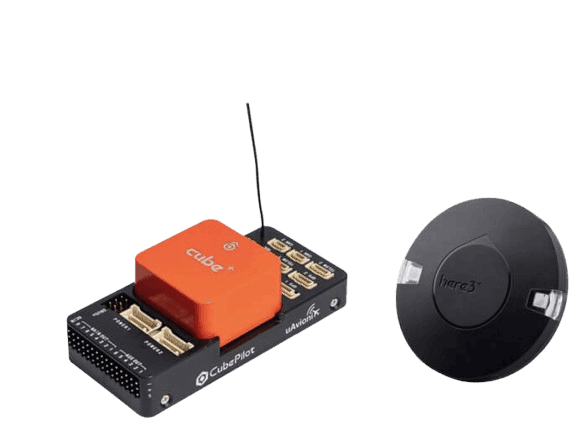

Hex Cube Orange+ With ADS-B Carrier Board & Here 3+ Plus Flight Controller

The Hex Cube Orange+ is a high-performance flight controller designed for a wide range of unmanned systems, including multirotor drones, fixed-wing aircraft, VTOLs, helicopters, and ground vehicles. Paired with the integrated ADS-B Carrier Board and the Here3+ GNSS module, this system offers advanced navigation, enhanced situational awareness, and robust flight control capabilities.

Feature:

Power input voltage/rated input current: 4.1-5.7 V / 2.5 A

Power-rated output/input power: 14 W

USB port input voltage/rated input current: 4-5.7 V / 250 mA

Servo rail input voltage: 3.3 V / 5 V

Not waterproof. External waterproof protection is needed

Operation Temperature: -10 °C / 55 °C

Cube Orange+ Housing Material: CNC Aluminum Alloy

ADSB Carrier Board Housing Material: ABS Molding

Equipped with high-performance H7 Processor

H7 has double-precision (DP) FPU, 1MB RAM, and 400 MHz CPU processor providing high performance, extremely fast operation, and a stable solution for flight.

Flexible PWM signal voltage

PWM output supports switching between 3.3 and 5 V signal levels. Voltage switching can be done by ground control station software. This provides better compatibility with external peripherals.

Protection Function

1.
2. Smart RTL
3. Battery low protection
4. Geo-Fencing
5. RC signal protection

Hardware

1.
2. Main Processor: STM32H753VIT6
3. Coprocessor: STM32F100
4. Supported RC signals: PPM / SBUS / DSM
5. Power redundancy: Triple redundancy
6. Sensors: Triple IMU System
7. Supported firmware: Ardupilot and PX4 opensource flight controller firmware
8. Supported vehicle type: Fixed-wing planes, Copters with 3-8 motors, Helicopters, VTOL planes, Rovers/boats/submarines
9. Weight: 73 g

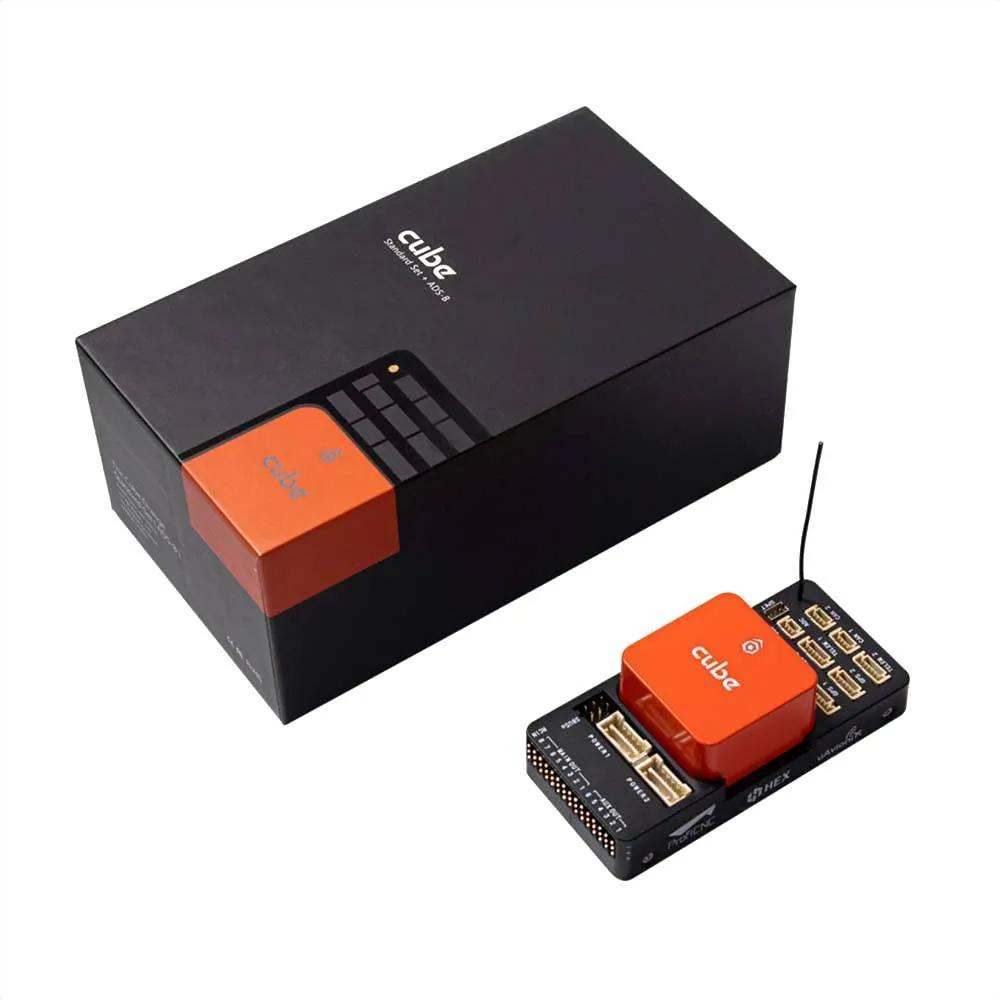

Package Includes:

1x Cube Orange+

1x ADSB Carrier Board

1x Power Brick Mini

1x I2C Board

1x Buzzer Cable

2x CAN Cable

1x Power Brick Mini Cable

1x GPS1 Cable

1x Micro USB Cable

2x I2C Cable

4x Mounting Screw

3x 3M Large Sticker

2x 3M Medium Sticker

4x 3M Small Sticker
