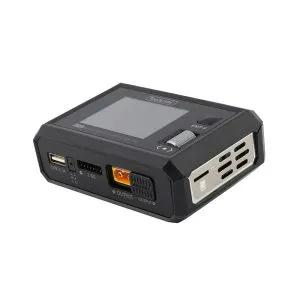

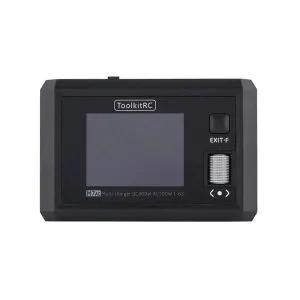

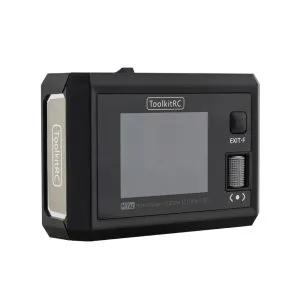

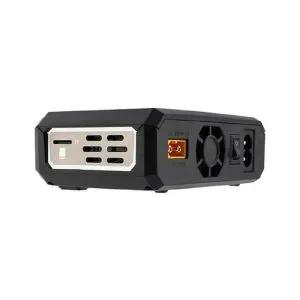

ToolKitRC M7AC 200W 15A 2-6S DC Smart Charger

This is ToolKitRC M7AC 200W 15A 2-6S DC Smart Charger (EU type). This charger is equipped with a full-color IPS LCD screen that is easily navigatable with its smooth roller selector. The M7 AC is the same size as its predecessor and is 33% more powerful with a max output of 200W and 15A! Now including ToolkitRC’s dual sliding connector doors which allow you to switch from XT30 to XT60 in a flash!!



Features:

1. Battery Charger
2. Cell Checker
3. Servo Tester
4. PWM, PPM.SBUS Input/output & Receiver tester
5. Viable AMP/volt DC Power supply (Required external DC input
6. Lithium battery cut-off voltage can be set (TVC function)
7. Measure battery voltage, internal resistance, balance
8. Measure PWM / PPM / xBUS signal values, Accuracy 1ms
9. Output PWM / PPM / xBUS standard signal, Accuracy 1ms
10. Customizable 1-28V constant voltage, 1-10A constant current
11. Charge the drone battery, activate and charge.
12. Multi-language optional
13. USB 2.1A@5.0V Output，for Mobile devices





Input

1. PWM: 880-2200us @20-400Hz
2. PPM: 880-2200us*8CH @20-50Hz
3. SBUS: 880-2200us*16CH @20-100Hz
4. Voltage: 1.0-5.0V @1-6S
5. Internal resistance: 1-99mR @1-6S
6. ESC: 200W@10A    PWM Output

Output

1. PWM: 500-2500us @20-1000Hz
2. PPM: 880-2200us*8CH @20-50Hz
3. SBUS: 880-2200us*16CH @20-100Hz
4. Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
5. OverCurrent Cutoff time: <5ms



Package Includes:

1 x ToolKitRC M7AC 200W 15A 2-6S DC Smart Charger
