TBS M10 GPS GLONASS for RC Drone Aircraft Models

M10 GPS from TBS. Small in size, with a quick lock, great performance, and sensitivity. Precise GPS positioning for Betaflight, iNav, and more.

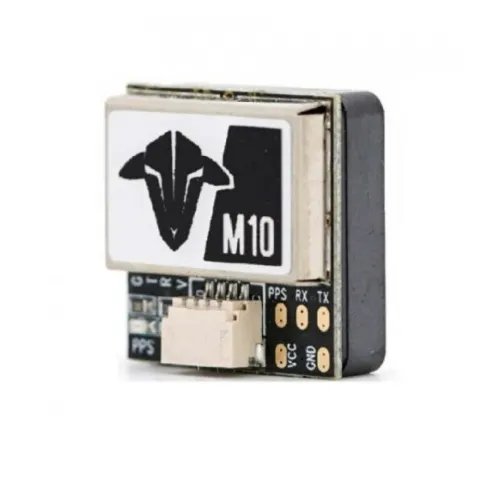

The TBS M10 GPS GLONASS Module is a high-precision, compact GPS module designed for seamless integration with flight controllers such as Betaflight and Pixhawk. Equipped with the advanced ublox UBX-M10050 chipset, it ensures rapid satellite acquisition and reliable performance for various UAV applications.

Features:

1. ublox UBX-M10050
2. Flash memory for saving configuration.
3. Chipset – ublox UBX-M10050
4. Frequency – L1, 1575.42MHz ; L2,1561.10MHZ；L3,1602.00MHZ
5. Baud Rate – 4800bps-921600bps, default 38400bps
6. Sensitivity – (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start – 148dBm)
7. Cold start – Average 26 seconds
8. Warm start – Average 24 seconds
9. Hot start – Average 1 second
10. Accuracy – (HorizontalPosition: Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
11. Maximum height – 50000m
12. Maximum speed – 500 m/s
13. Maximum acceleration – ≦ 4G
14. Refresh Rate – 0.25Hz-18Hz, default 1Hz
15. Size – 18 x 18 x 6.1 mm
16. Weight – 4.9g
17. Input Voltage – 5V

Package Includes:

1 x TBS M10 GPS GLONASS
