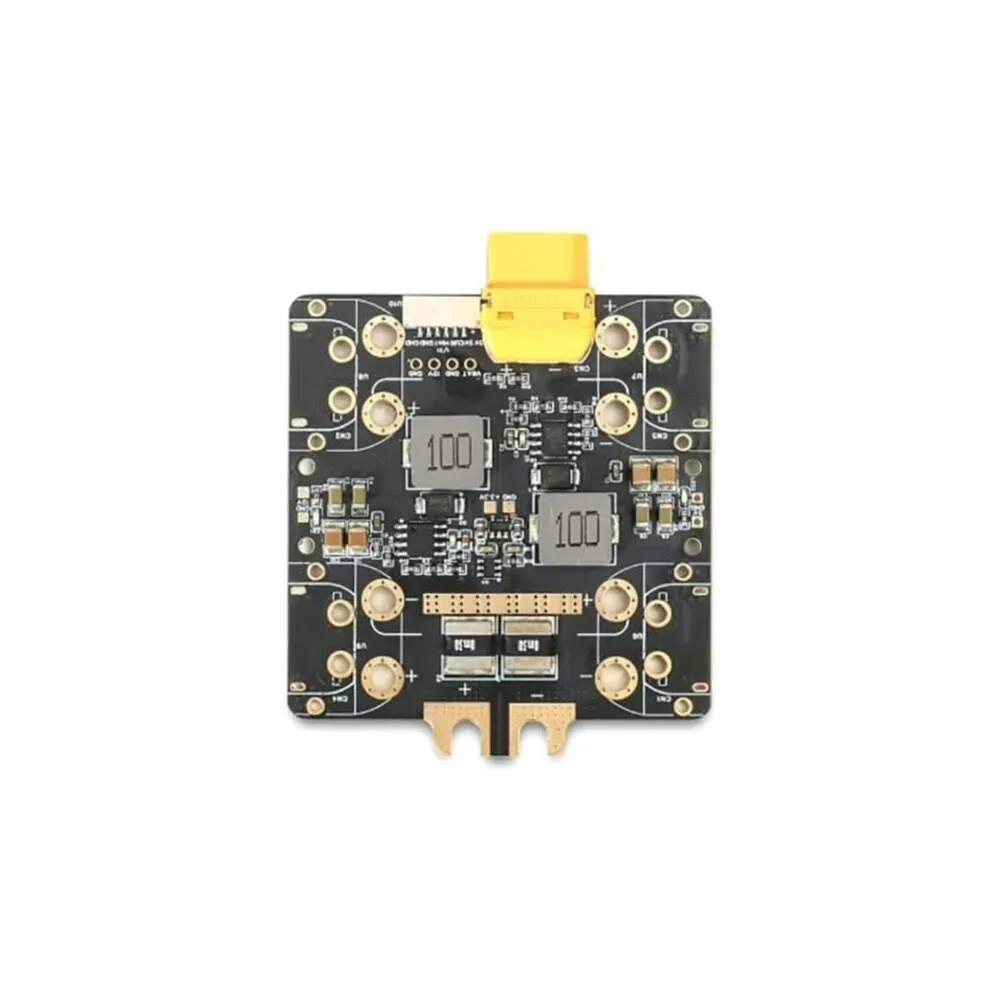

Tarot Distribution Board12S High Current 100A - TL3302
SKU: 820758
SAVE 25%
Quantity:

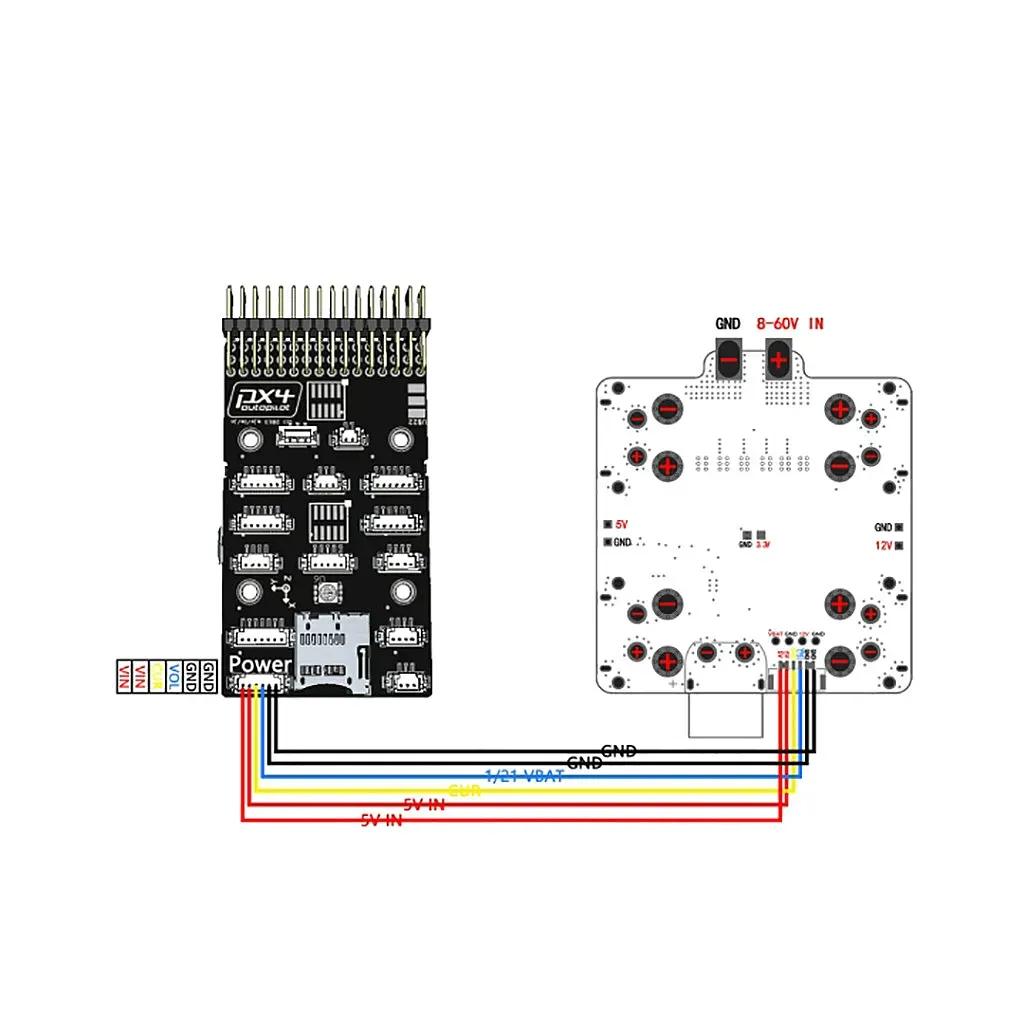

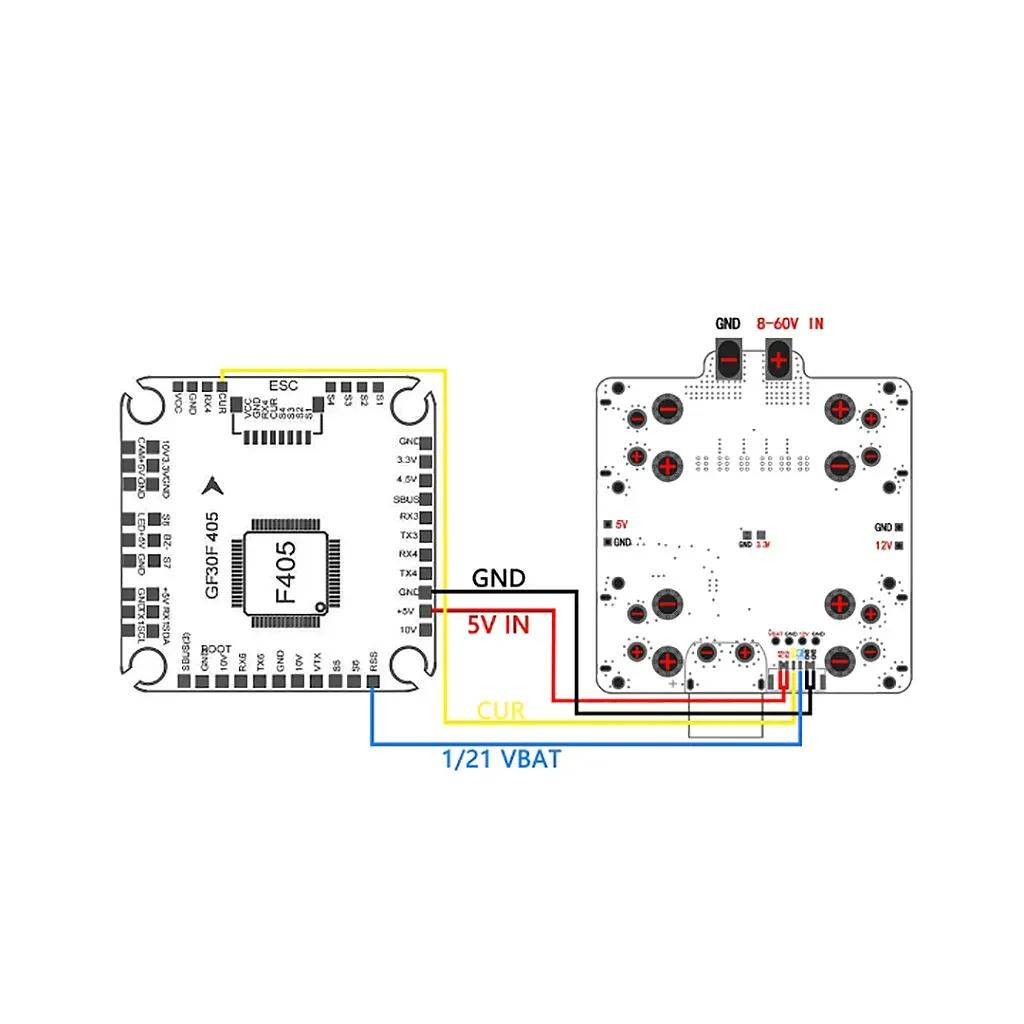

In StockTarot Distribution Board/12S Voltage and Current Meter/High Current 100A Quadrotor Hub TL3302.Tarot's newest Quadrotor PDB supports a wide range of input voltages from 8-60V and a continuous current of 100A.Support the detection of voltage and current meters docked to the open source flight controller Pix-hawk and Betaflight.Suitable for quadcopter, FPV traverser and other types of aircraft power distribution use.
Features:
·Support DC8-60V wide voltage input;
·Provide 1 way Vbat voltage output self-soldering point;
·Provide 1 way 5V/5A BEC output self-soldering point (with LED indicator);
·Provide 2-way 12V/4A (total) BEC output self-soldering point (with LED indicator);
·Integrate 1 Vbat voltage output of model XT60PW plug;
·Integrated 1 GH1.25-6P female socket,using the corresponding connecting cable
can be directly connected to all types of flight control Power interface;
Package includes:

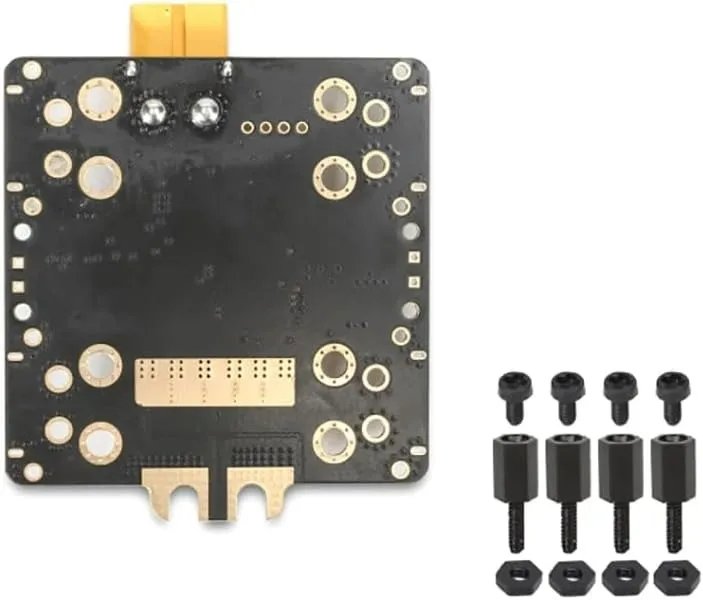

1 x TAROT Distribution Board 12S Voltage and Current Meter/High Current 100A TL3302
