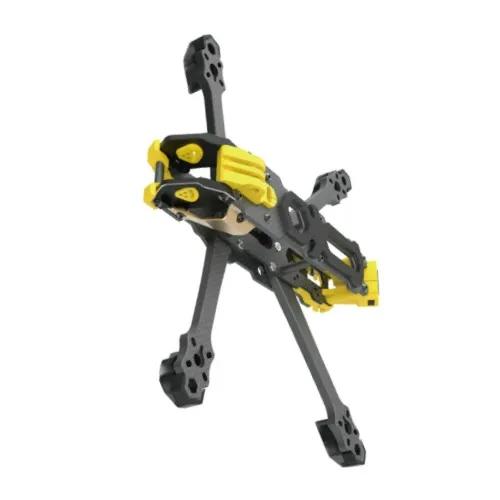

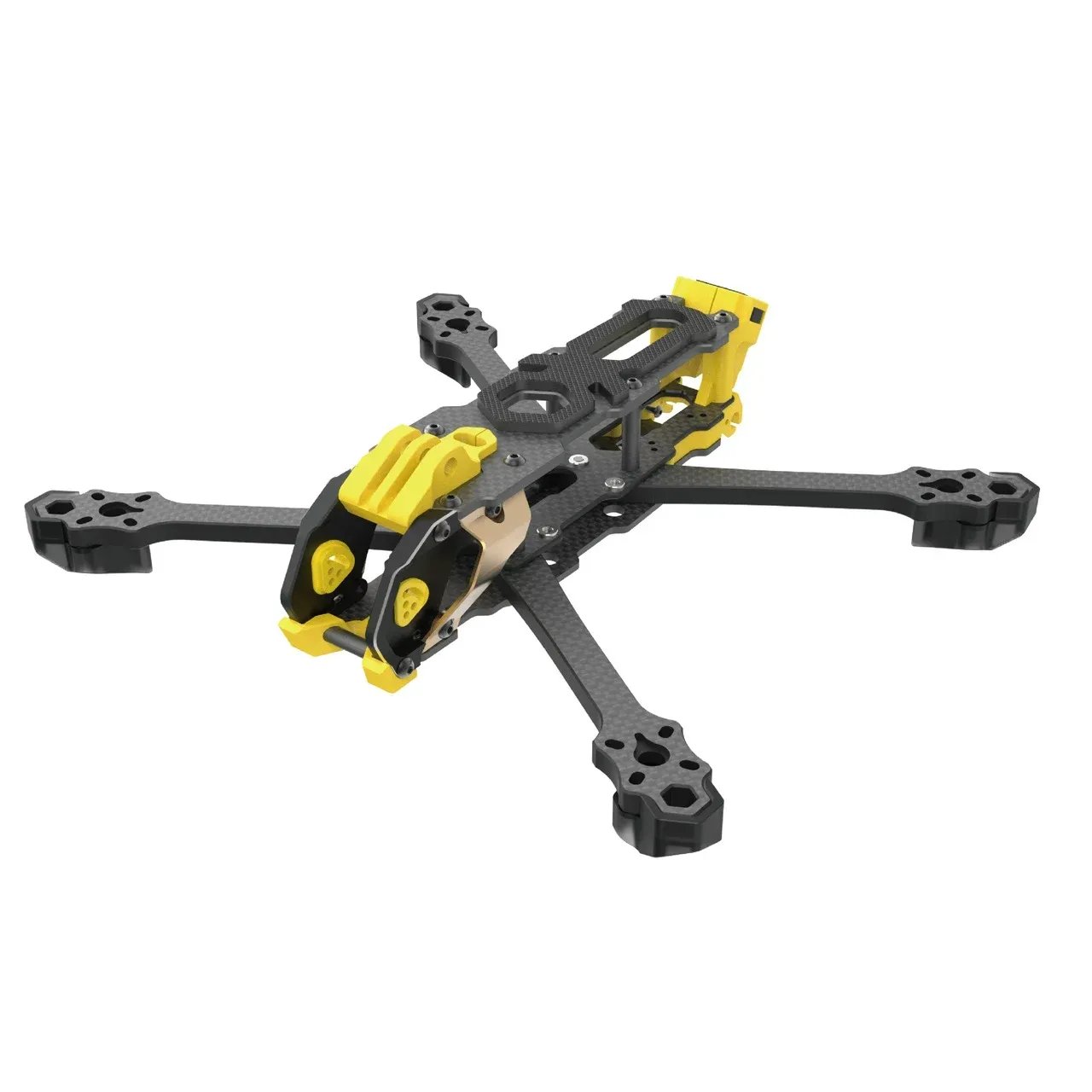

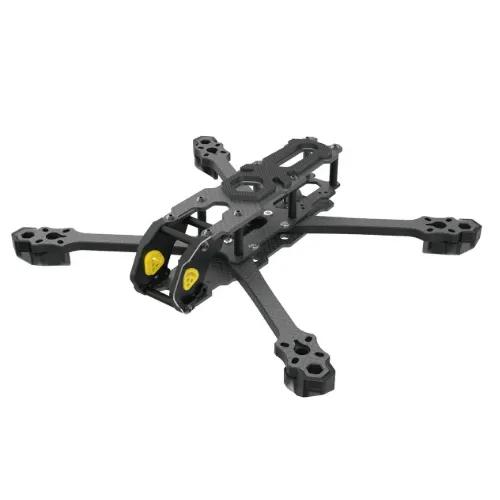

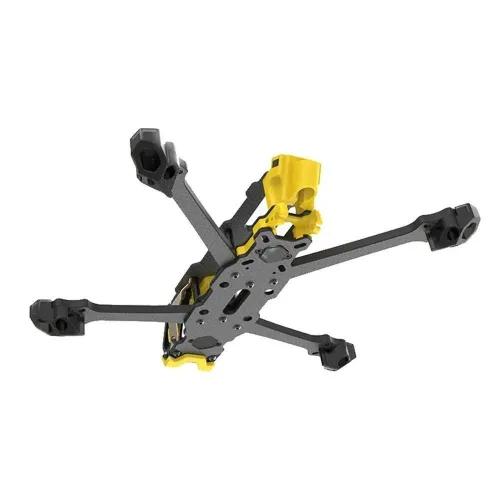

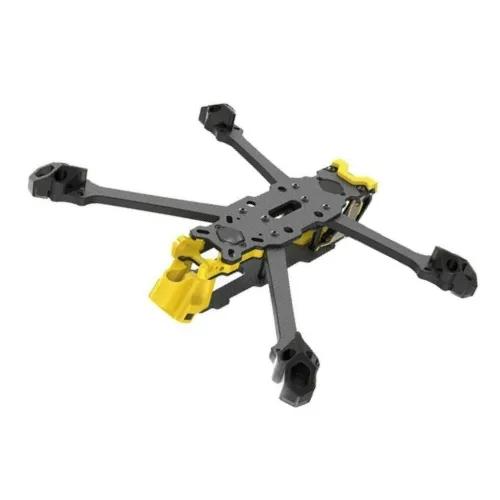

SpeedyBee Mario 5 XH Carbon Fiber Advanced Version FPV Frame

The SpeedyBee Mario 5 XH Advanced Version Frame boasts a high-strength aviation aluminum alloy head to meet DJI O3 VTX ultra-wide-angle requirements and protect the lens, ensuring an impressive visual experience. It minimizes the ‘jello effect’ for steady imaging, offers a recessed GoPro mount for improved center of gravity, and features a unique carbon plate arm support structure for enhanced stability and capacitor installation accommodation.

Features:

1. Enhanced HD VTX for steady imaging.
2. Supports dual-directional capacitor installation.
3. Neat capacitor wiring space.
4. Convenient dual main power input.
5. Translucent protective cover for receiver binding.
6. Lightweight protective footpads for motor and frame protection.
7. Camera Mounting Screw: 7mm
8. 3D Printed Parts: Yellow TPU
9. Battery Anti-Slip Pad: Silicone 3mm
10. Motor Mounting Hole Distance: 16-19mm
11. FC Mounting Hole: 30.5×30.5(M3)
12. VTX Mounting Hole: 20×20(M2) / 25.5×25.5(M2)
13. Head Material: Aviation Aluminum Alloy
14. Aluminum Column Material: 7075 D5*23mm/D46*22mm
15. Internal Mounting Height: 23-31mm
16. Receiver Installation Space: 25*13*6mm
17. Suitable Capacitor Size: Φ10mm*20mm
18. GPS Installation Size: 18*18*7



Package includes:

1 X SpeedyBee Mario 5 XH Carbon Fiber Advanced Version FPV Frame
