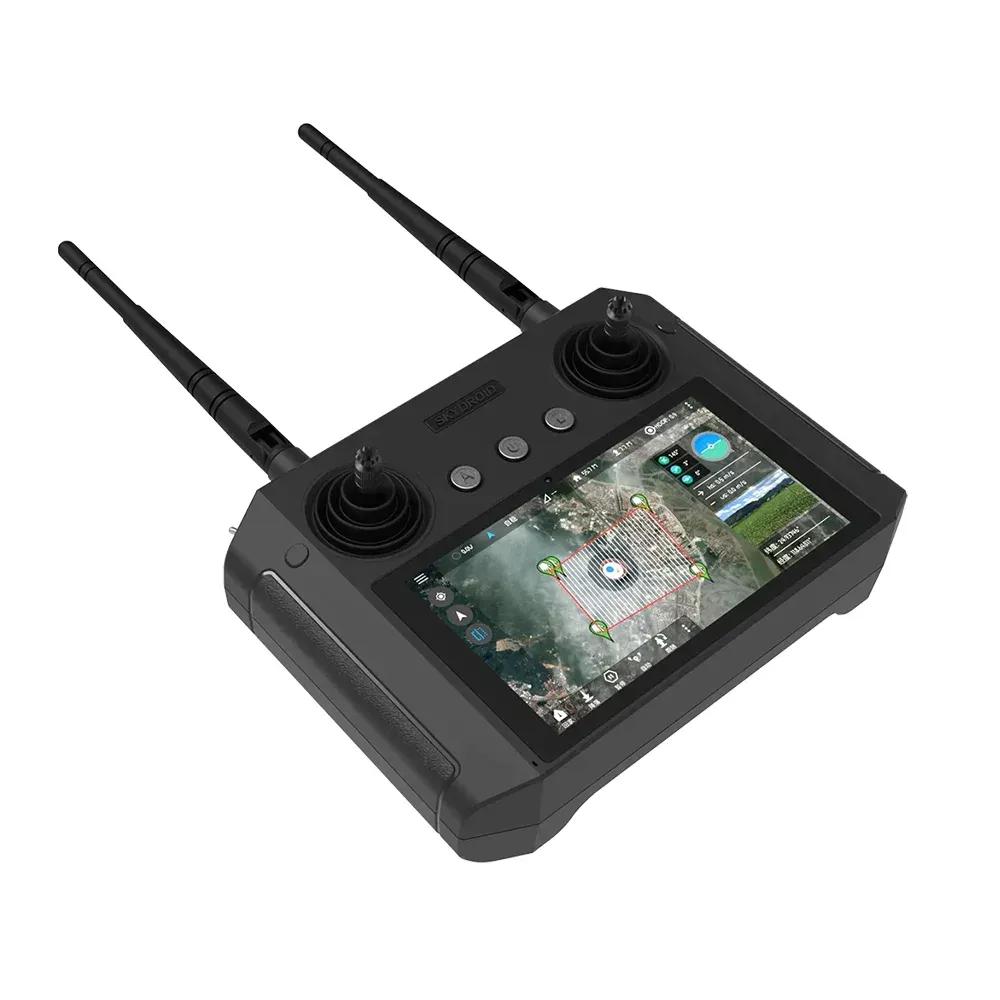

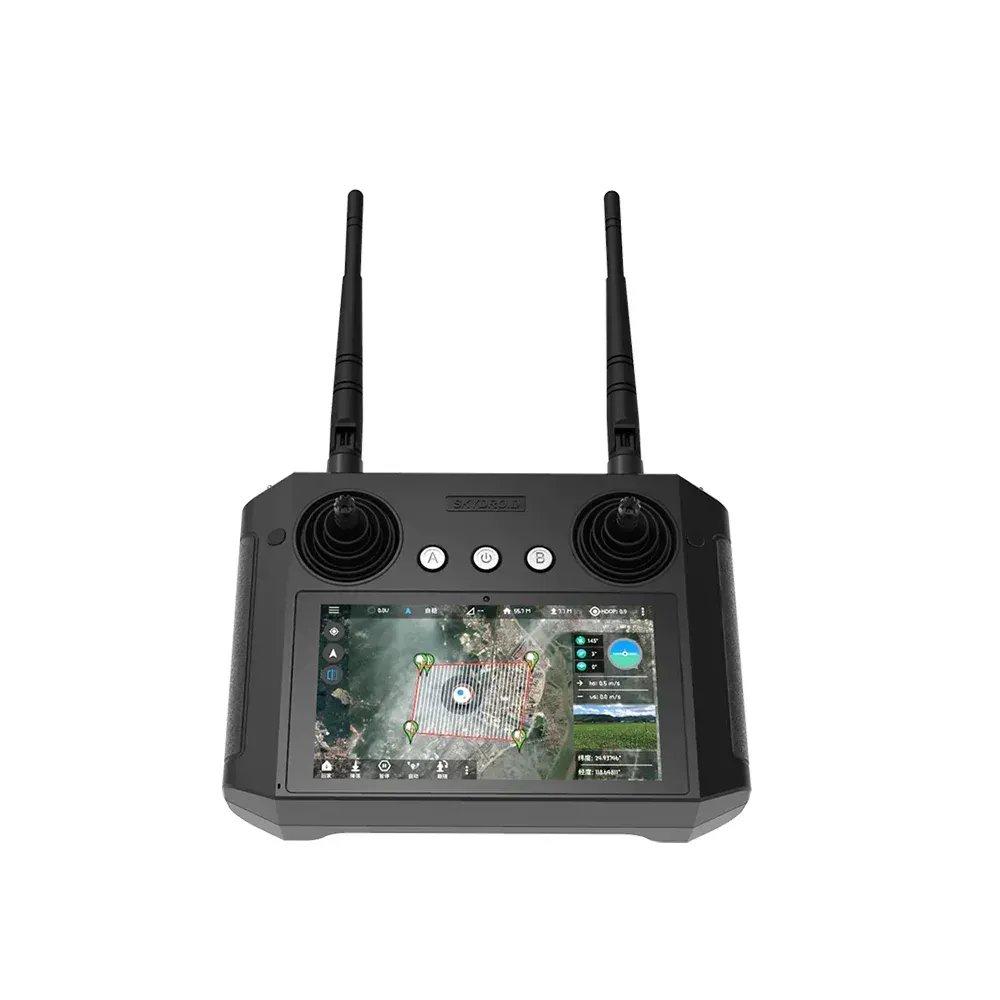

SKYDROID H12 12CH Inbuilt Display Remote Control Without Camera

This remote controller is suitable for Pixhack / V5 flight controller, Pixhaw flight controller, X7 (pro) / Nora flight controller, V5+/ V5 Nano flight controller.

The H12 series uses newest Qualcomm Snapdragon 625 processor, equipped with an Android embedded system and advanced SDR technology and super protocol stack, making the image clearer, lower the latency, longer distance, stronger anti-infection, whether it is drones, robots, industrial control equipment, etc. can be applied,

It is used to remotely operate helicopters, fixed wings, multi-rotors, vehicles, ships, etc.

Features:

1. Built in Android smartphone
2. Comes with reciever
3. Up to 30km range
4. Comes with a carry case for easy transport
5. Industrial grade radio
6. Perfect for any pilot
7. Easy to set up



Specifications:

Remote Controller:

1. Model No: H12
2. Working voltage: 4.2V
3. Channels: 12
4. Frequency: 2.400-2.483GHz
5. RF Power 20DB@CE
6. Frequency hopping: Newest FHSS
7. Battery: 10000mA/H
8. Charging port: Type-C
9. Endurance: 6-20 Hrs
10. Applications: Helicopter, fixed wing, multi-rotor, unmanned vehicle, unmanned boat, etc

Receiver:

1. Model No: R12
2. Channels: 12
3. Working voltage: 4.5-5.5V
4. RF power: 140mA@5V
5. Size: 51*41*13mm
6. Weight: 14g

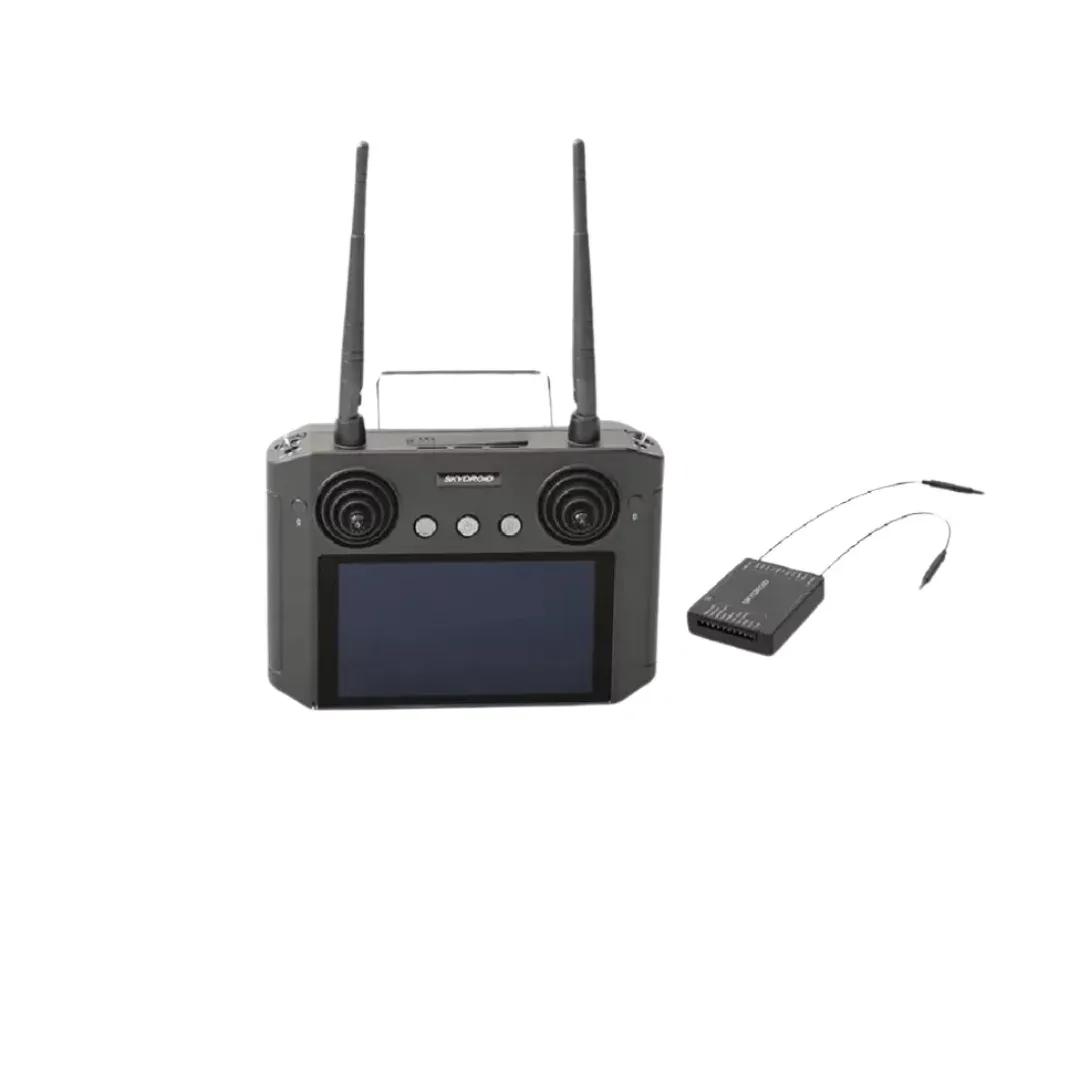

Package Includes:

1 x Skydroid H12 Radio

1 x Carry case

1 x R12 Receiver

2 x antenna boots

1 x USB C cable and plug
