SIYI ZT30 4K 8MP 180X Hybrid 30X Optical Zoom Gimbal Camera

The SIYI ZT30 Optical Pod featuring Four Sensors stands as a pinnacle of versatility and advancement in aerial camera systems. Equipped with four high-resolution optical sensors, it excels in capturing intricate imagery and data from aerial perspectives. Tailored for a myriad of applications such as aerial photography, mapping, and surveillance, its compact yet durable build guarantees unwavering performance even in demanding conditions. By seamlessly integrating with drones, the SIYI ZT30 elevates the standards of professionalism across various industries, cementing its status as an indispensable tool for professionals seeking unparalleled aerial capabilities.

Features:

1. Four High-Resolution Optical Sensors
2. Versatile Aerial Camera System
3. Ideal for Photography, Mapping, and Surveillance
4. Compact and Durable Design
5. Enhances Drone Capabilities
6. Suitable for Various Professional Applications

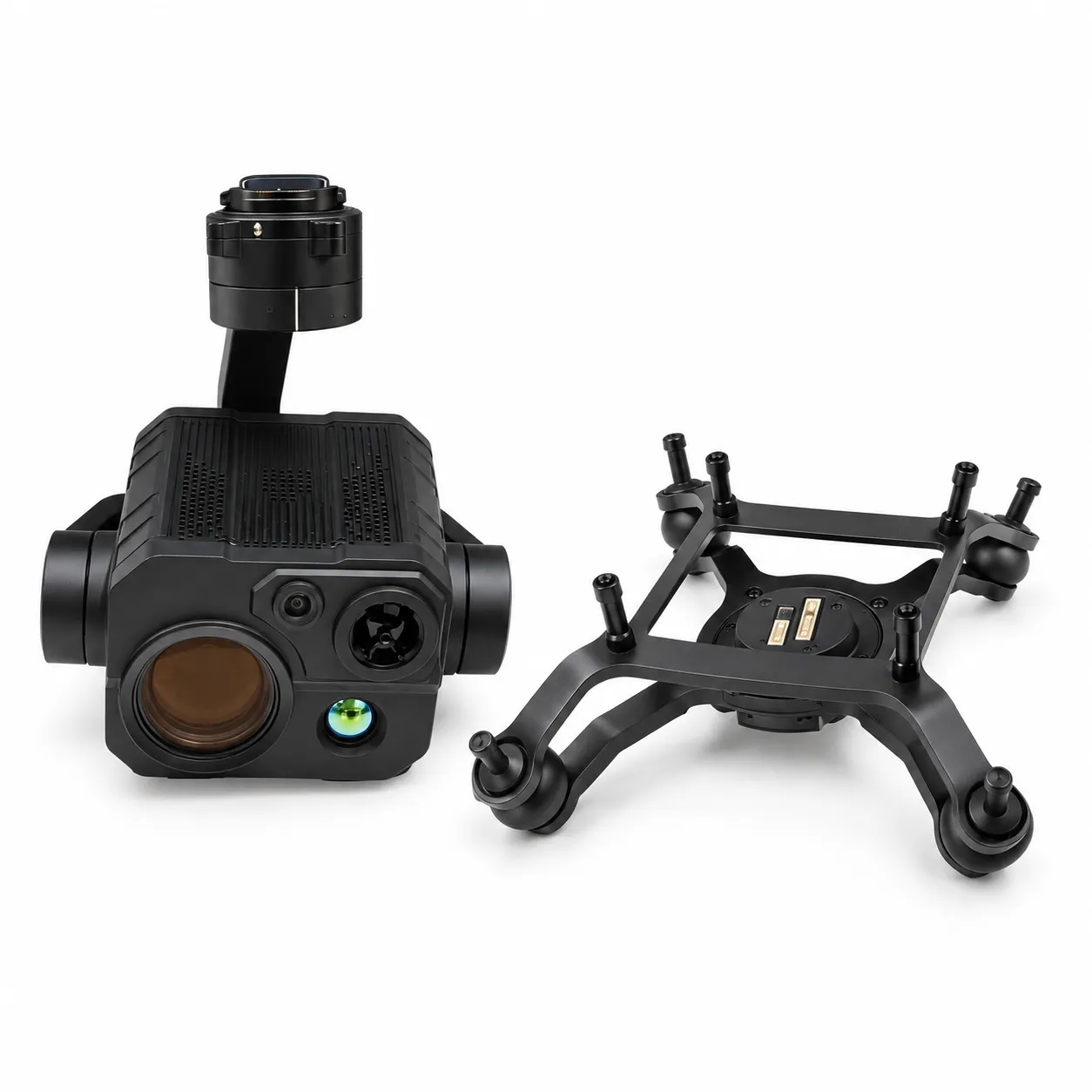

ZT30 Quick Release Anti-Vibration Claw

Dimension: 141*140*42.5 mm

Weight: 104 g

Gimbal

Angular Vibration Range: ±0.01°

Controllable Pitch Angle: -90° to +25°

Controllable Yaw Angle: Limitless

Roll Angle: -45° to +45°

Zoom Camera

Lens: 30X Optical Zoom (180X Hybrid Zoom)

Focal Length: 4.8% to 149 mm (±5%)

Image Sensor: 1/2.7 Inch, 8 MP effective resoultion

Aperture: F1.3 to F4.8 (±5%)

FOV: Horizontal 62°

Video Recording Resolution:

– 4K (4096 x 2160) @ 30 fps

– 2K (2560 x 1440) @ 30 fps

– 1080p (1920 x 1080) @ 30 fps

– 720p (1280 x 720) @ 30 fps

Still Photo Resolution: 4K (4096 x 2160)

Thermal Imaging Camera

Resolution: 640 x 512

Digital Zoom: 2X

Lens

– Focal Length: 19 mm

– Aperture: F1.1

– Fixed Focus

– Athermalization

Wavelength Range: 8 ~ 14 um

Temperature Measuring Range

– High Gain: -20 ~ +150℃

– Low Gain: 0 ~ +550℃

Temperature Measuring Accuracy

– ±2℃ (-20 ~ +150℃)

– ±3℃ (0 ~ +550℃)

Temperature Measuring Mode

– Point to Measurement

– Full-Screen Measurement

Wide Angle Camera

Image Sensor: 1/2.8 Inch, 4 MP effective resoultion

Equivalent Focal Length: 21 mm

FOV: Horizontal 88°

Video Recording Resolution: 2K (2560 x 1440) @ 30 fps

Still Photo Resolution: 2K (2560 x 1440)

Range Finder

Range: 5 ~ 1200 m

Wavelength Range: 900 ~ 908 nm

Resolution: 0.1 m

Ranging Accuracy:

– ±1 m (3 ~ 100 m)

– ±1 + L*0.25% m, L=Length (100 ~ 600 m)

Laser Pulse Frequency: 3 Hz

Max Laser Power: 5 mW

General Camera Specs

Video Storage Bitrate: 15 Mbps (H.265 codec)

File Storage Format: FAT32

Image Format: JPG

Video Format: MP4

Supported MicroSD Cards: MicroSD Class10, Max 128GB

Still Photography Mode: Single

Metering Mode: Evaluative metering

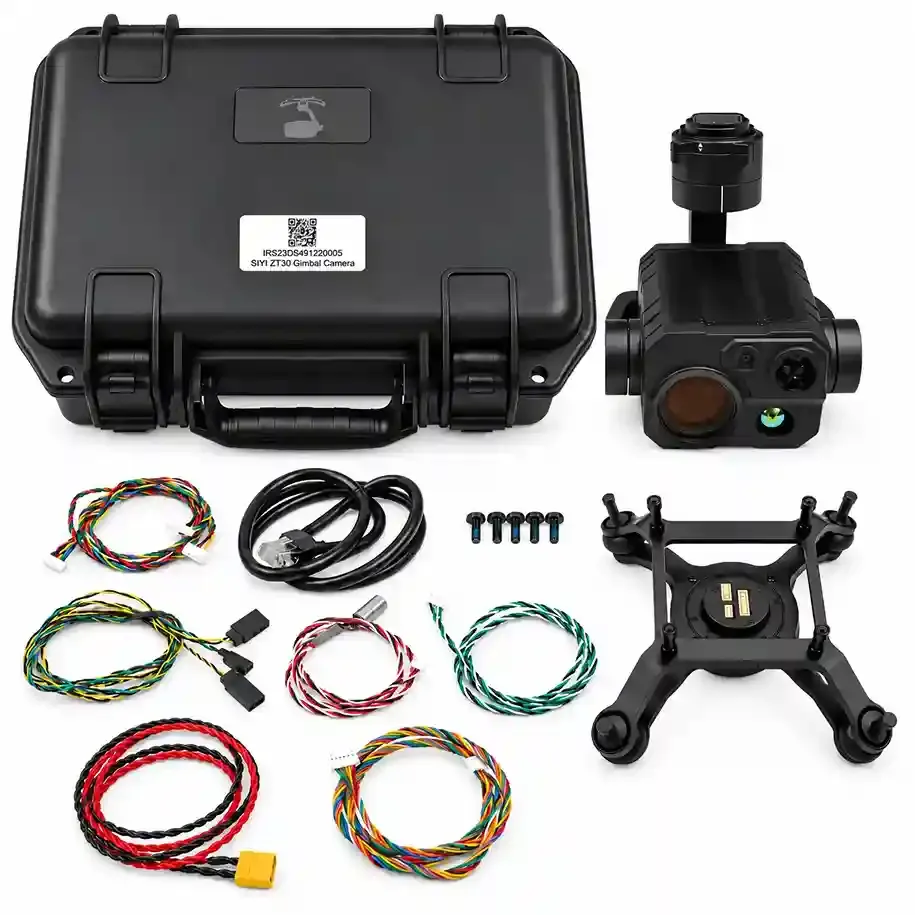

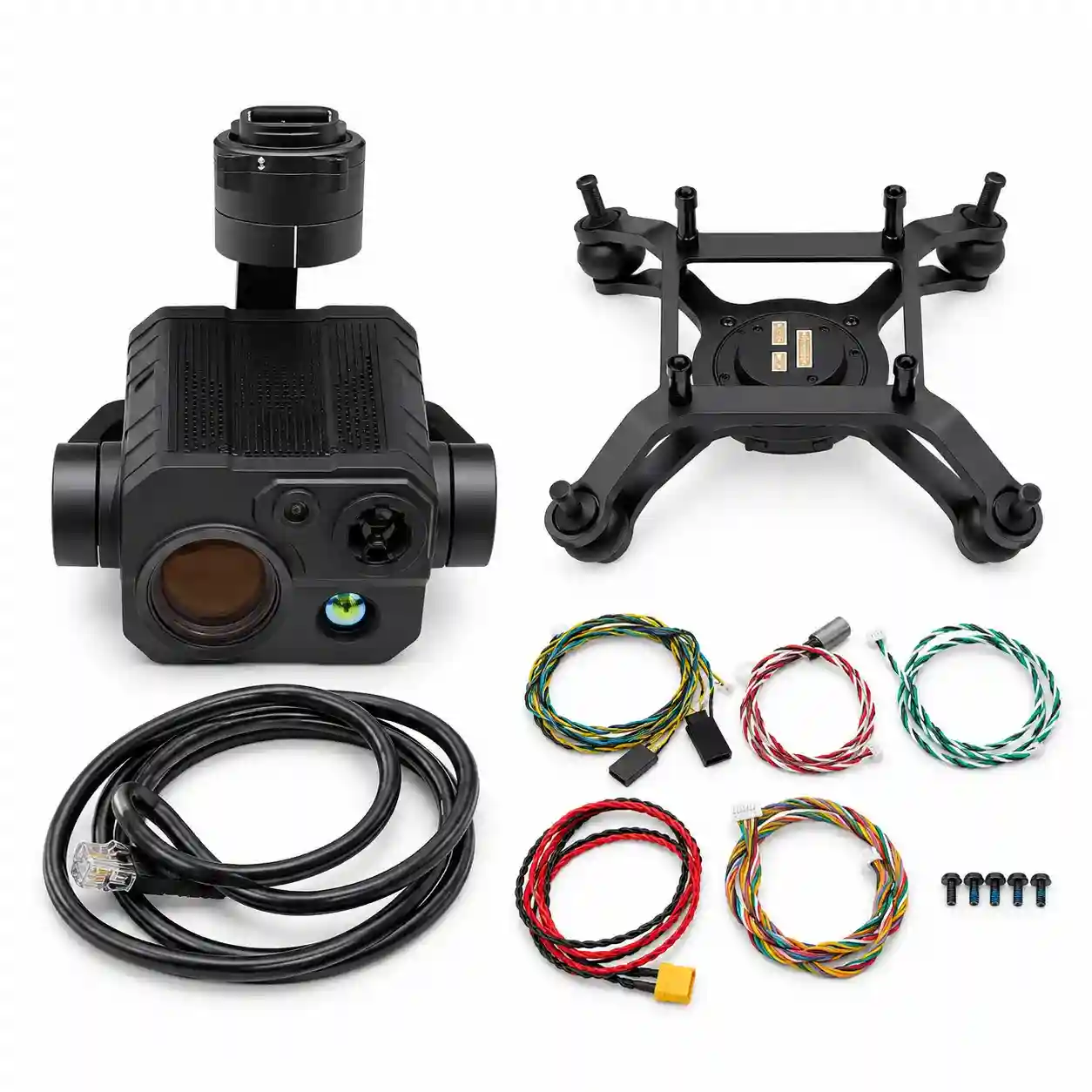

Package Includes:

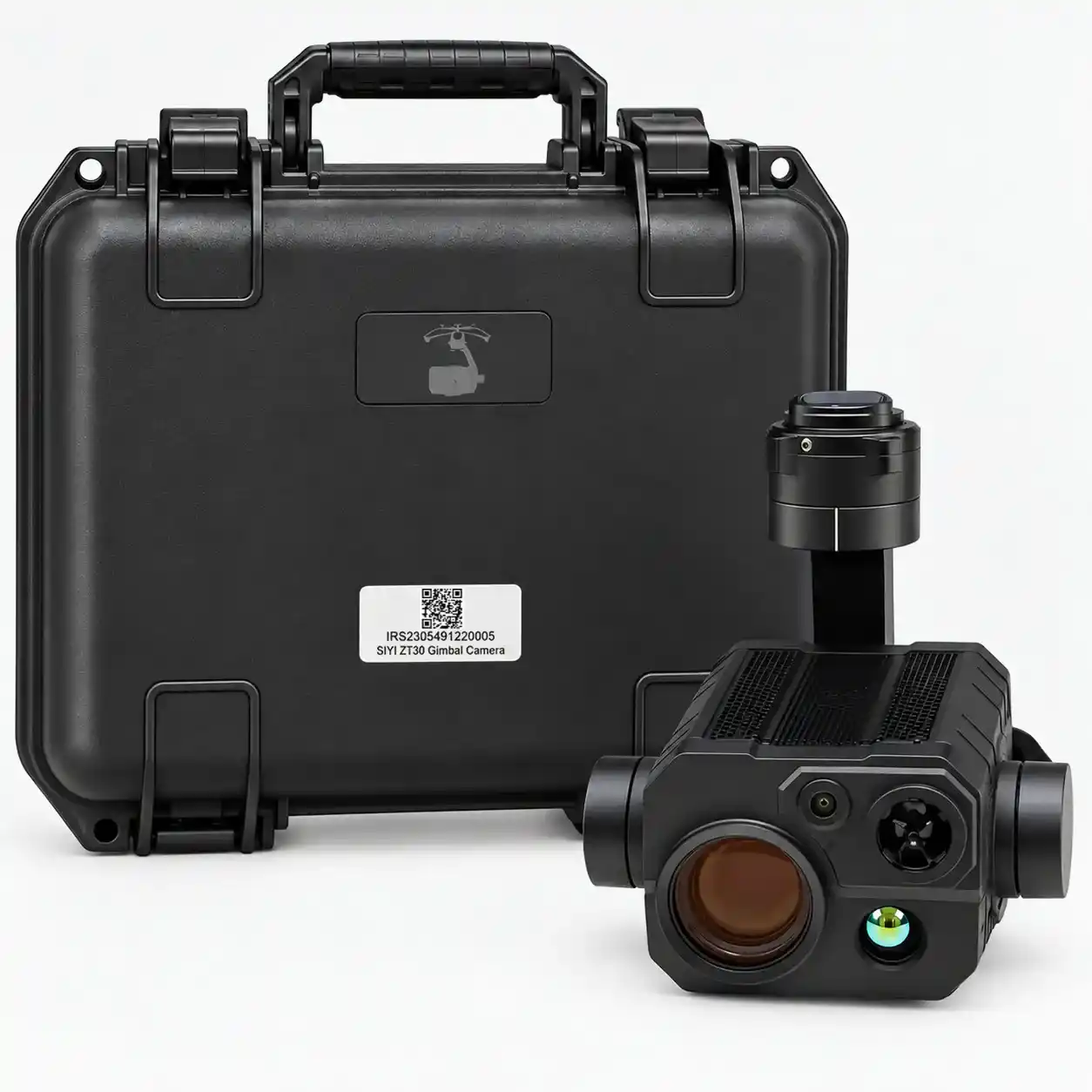

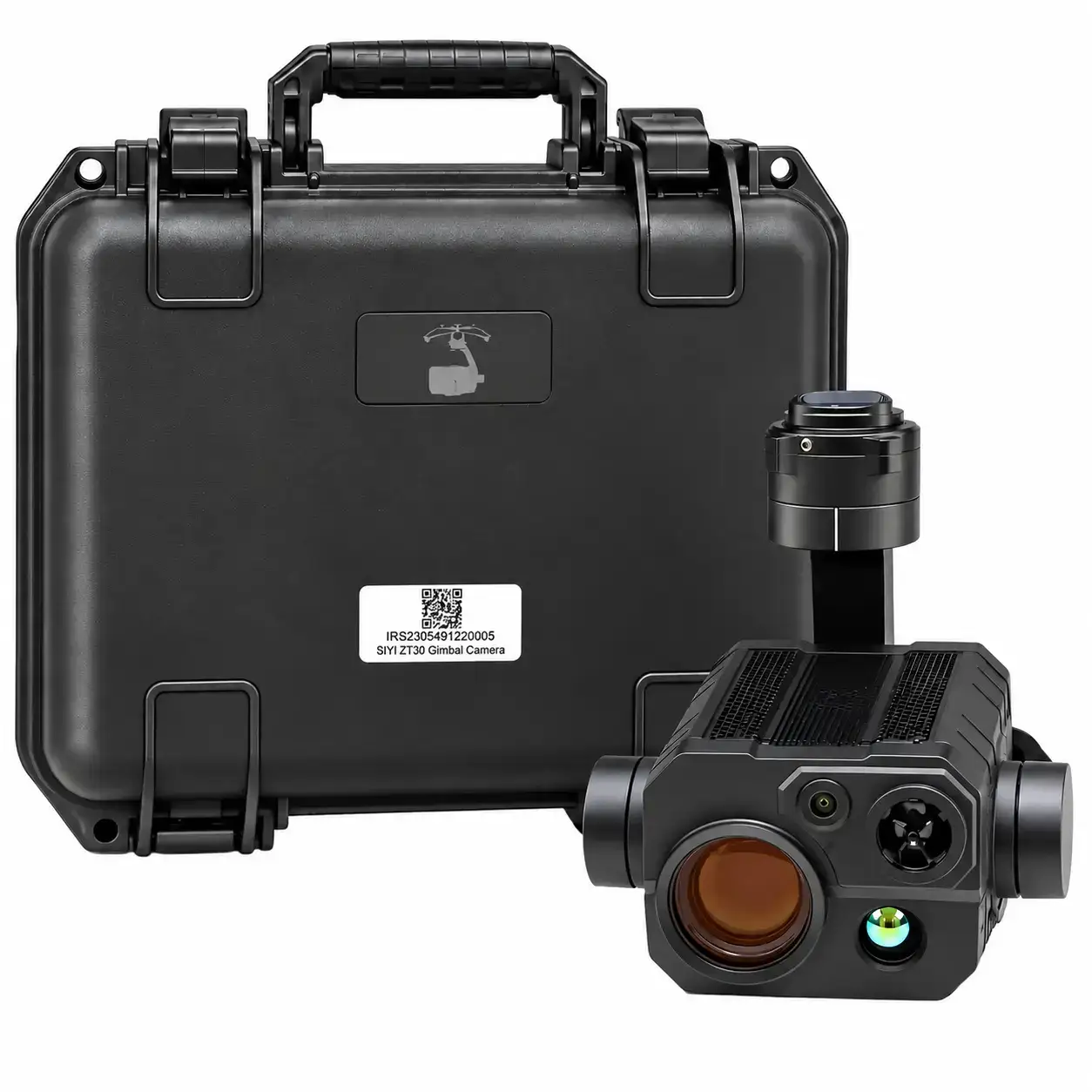

1 x SIYI ZT30 Optical Pod Four Sensors 4K 8MP 180X Hybrid 30X Optical Zoom Gimbal Camera

Gimbal Accessories
