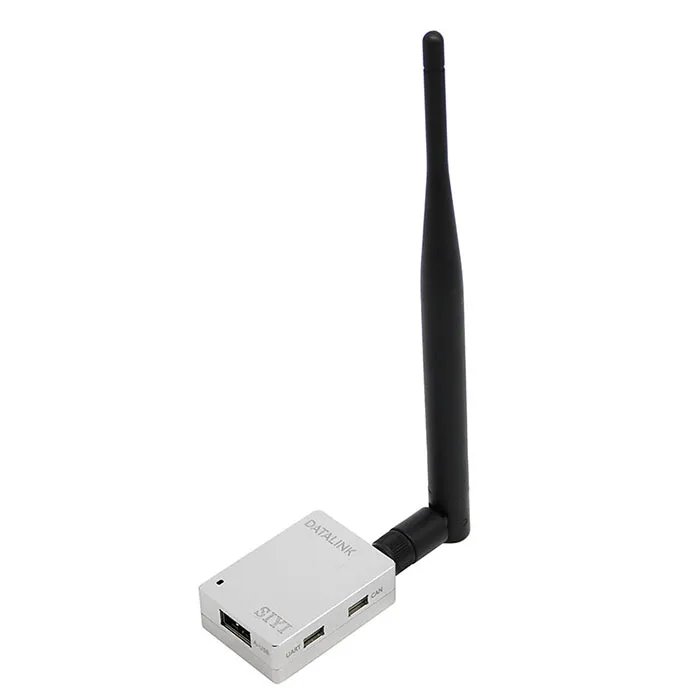

SIYI 2.4G Datalink Long Range Transmission System

SIYI 2.4G Datalink is designed to be a professional transmitting and receiving station for drones on industrial application, such as aerial mapping. It is applied with a brand new RF modulation technology which supports an anti-interference long communication distance at very low transmitting power.

The low-power RF solution which includes the advanced frequency hopping algorithm and the remarkable anti-interference technology makes the communication distance up to 15 kilometers.

The 2.4G Datalink supports UART/CAN(optional) data input and is equipped with a USB port by which users can upgrade the device through PC easily.

Sky Part:

Support data interface: UART, CAN (optional)

Antenna gain: 5dBi

Antenna connector: SAM external threaded hole

Operating voltage: 5V

Working environment temperature: -10 ° C to 50 ° C

Dimensions (without antenna): 49 * 31 * 13.5 mm

Weight (without antenna): 28g

Ground Part:

Data output: UART, USB (Support PC, Android phone)

Antenna gain: 5dBi

Antenna connector: SAM external threaded bore

Operating voltage: 5V

Working environment temperature: -10 ° C to 50 ° C

Dimensions (without antenna): 50*35*16 mm

Weight (without antenna): 35g

Package Includes:

Siyi 2.4G Datalink Ground part with antenna x 1

Siyi 2.4G Datalink Sky part with antenna x 1
