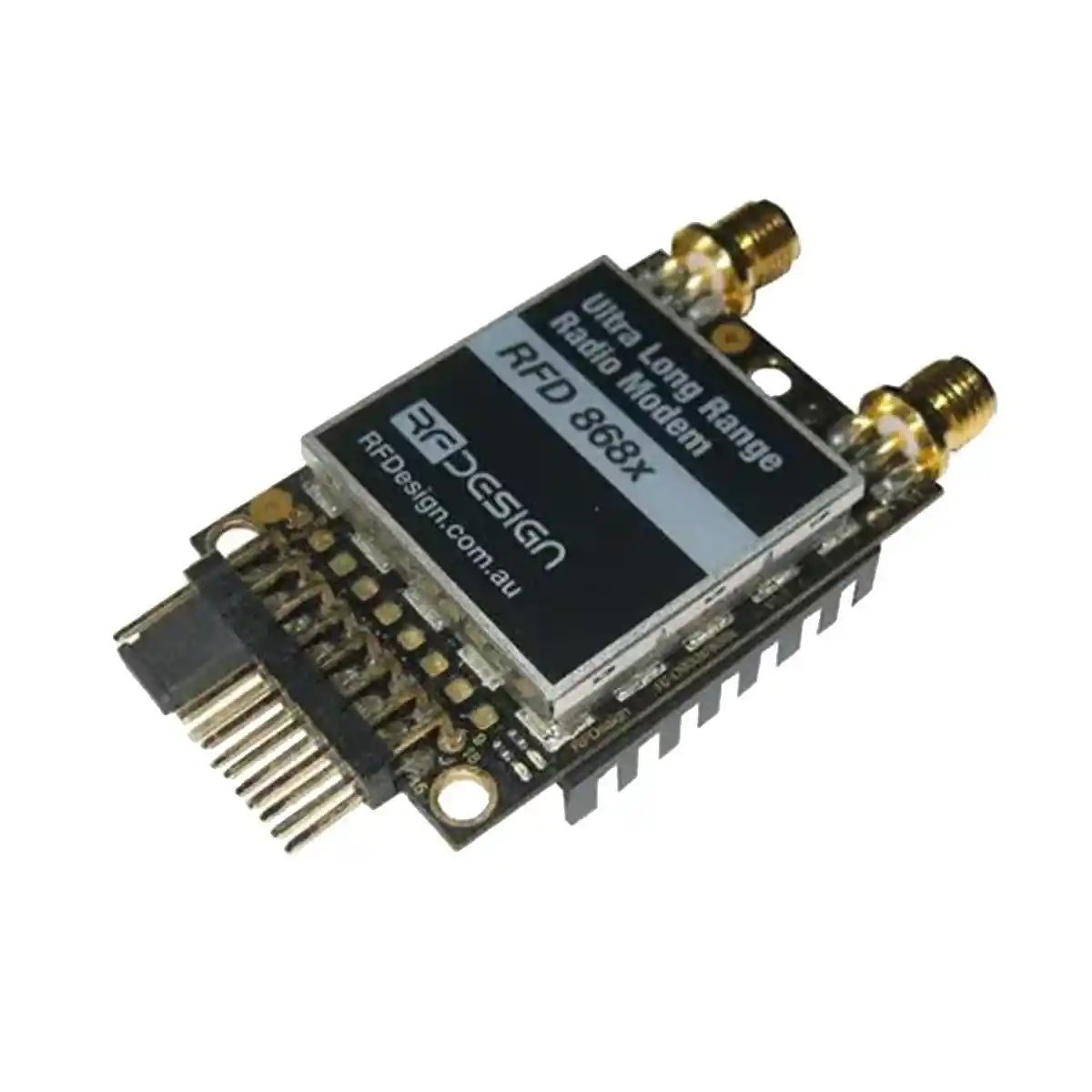

RFD868X Bundle Data Transmission Device
SKU: 866380
₹42999 (Inc GST)
₹59999
SAVE 28%
Quantity:
In StockThe RFD868X Bundle is a high-performance, long-range radio data transmission device designed by RFDesign, capable of transmitting data over distances exceeding 40 kilometers, depending on antenna configuration and environmental conditions.
Features:
- Frequency Range: Operates within the 868-869 MHz band.
- High Output Power: Delivers up to 1 Watt (+30 dBm) of transmit power, adjustable in 1 dB increments.

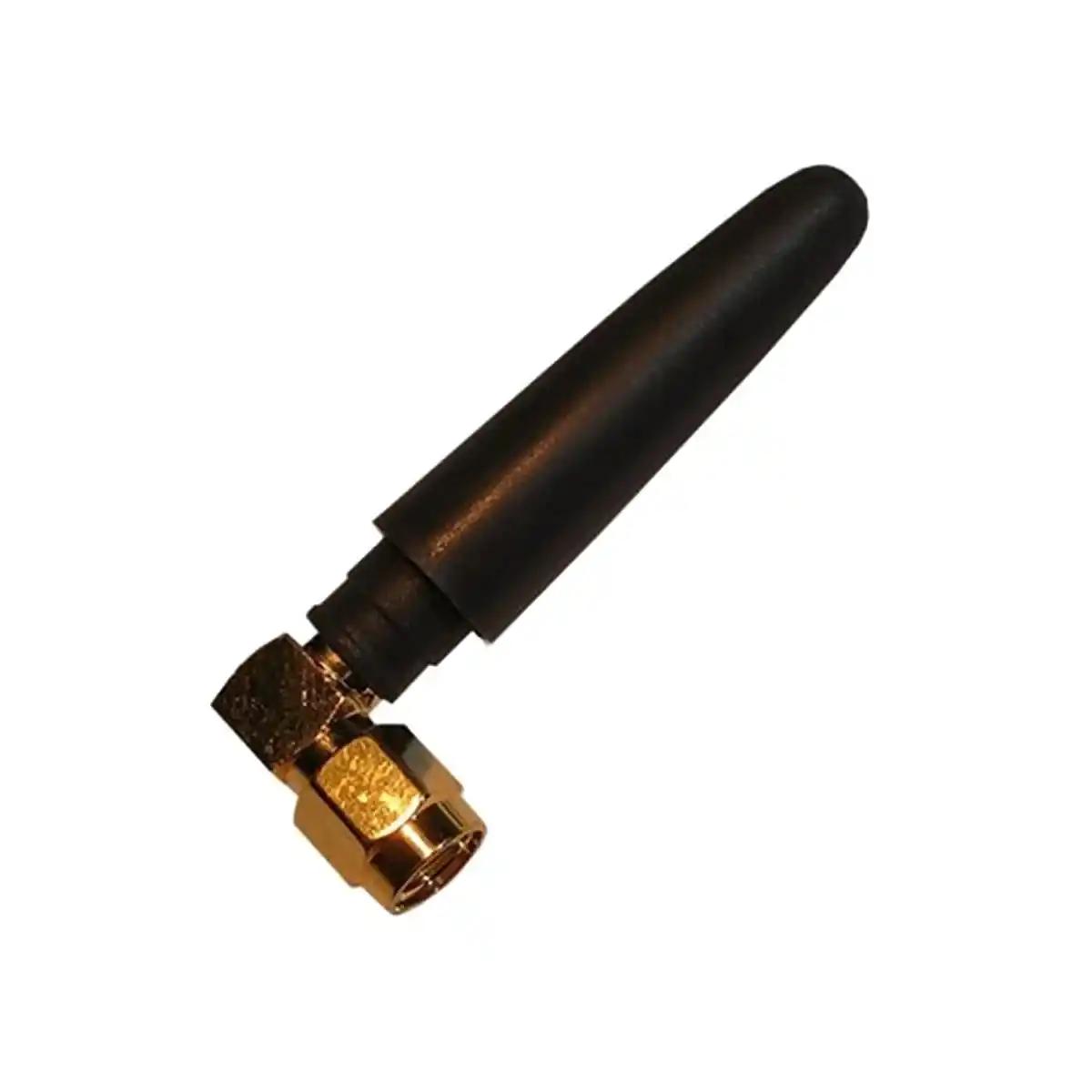

- Diverse Antenna Support: Equipped with two RP-SMA RF connectors for automatic antenna diversity switching, enhancing signal reliability.
- Enhanced Sensitivity: Features a low-noise amplifier with over 20 dB gain and a high third-order intercept point (IP3), along with a receive (RX) SAW filter for improved signal clarity.
- Robust Firmware: Utilizes re-implemented SiK and Multipoint SiK firmware, offering field upgradeability and straightforward configuration via AT commands.

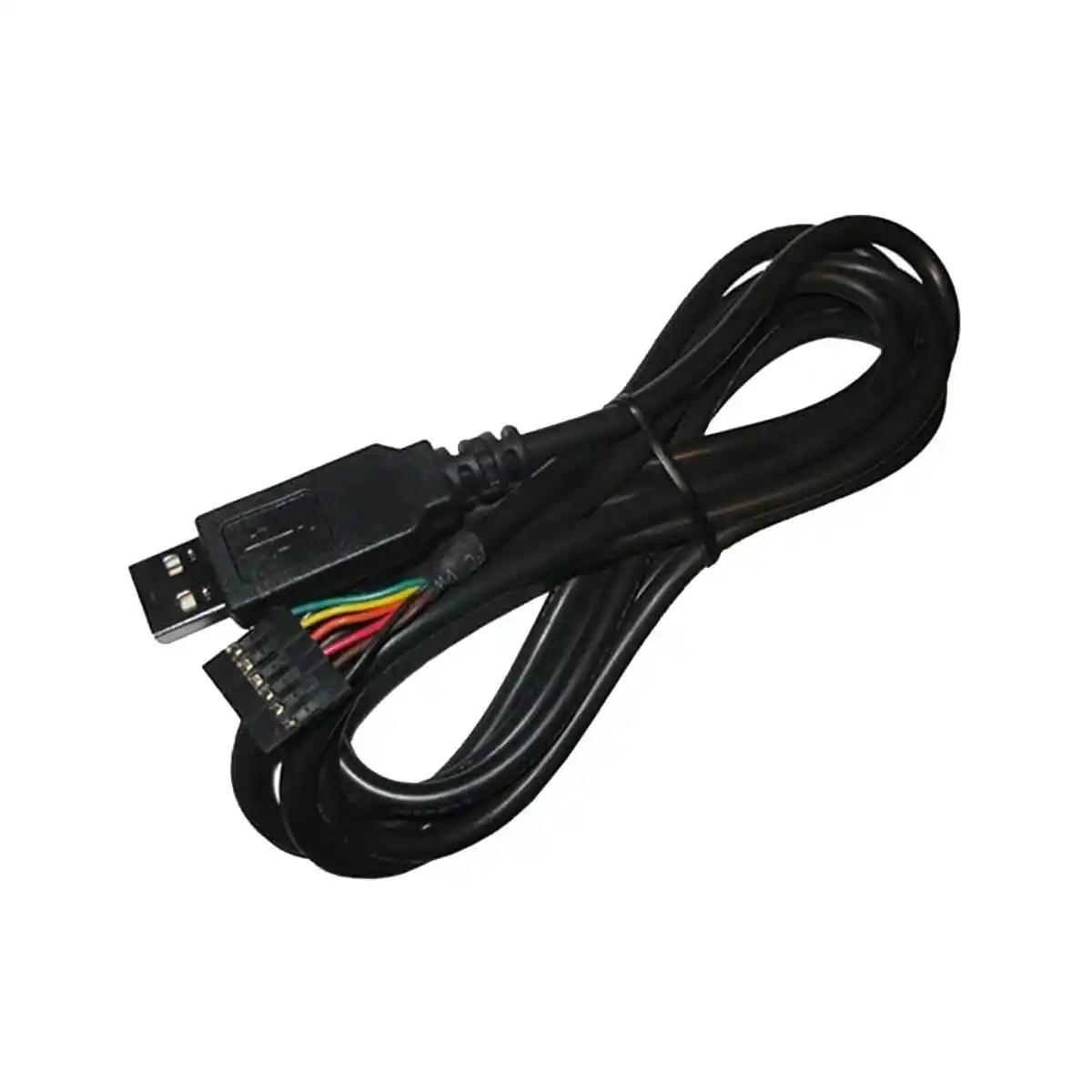

- Versatile Interfaces: Provides logic-level TTL serial communication, six general-purpose input/output (GPIO) pins capable of digital, analog-to-digital conversion (ADC), and pulse-width modulation (PWM) functions.
- Power Requirements: Operates on a +5V power supply, with a peak current draw of approximately 800 mA at maximum transmit power.
Package Includes:

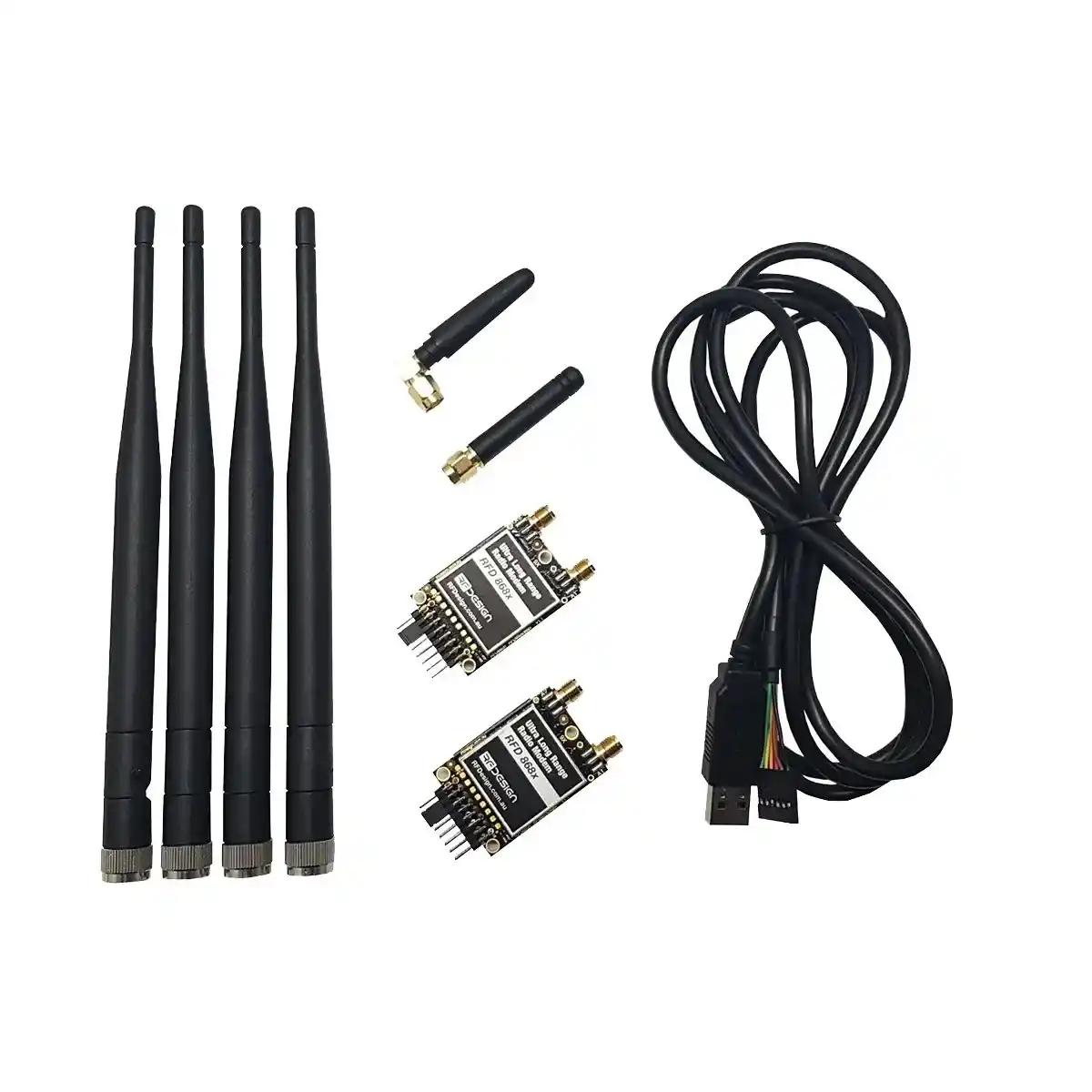

1 X RFD868X Bundle Data Transmission Device
