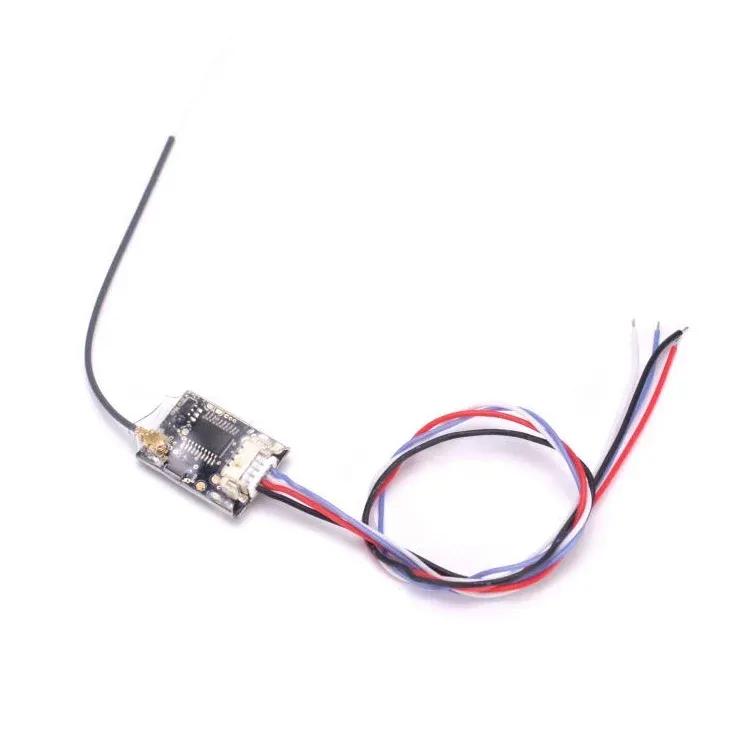

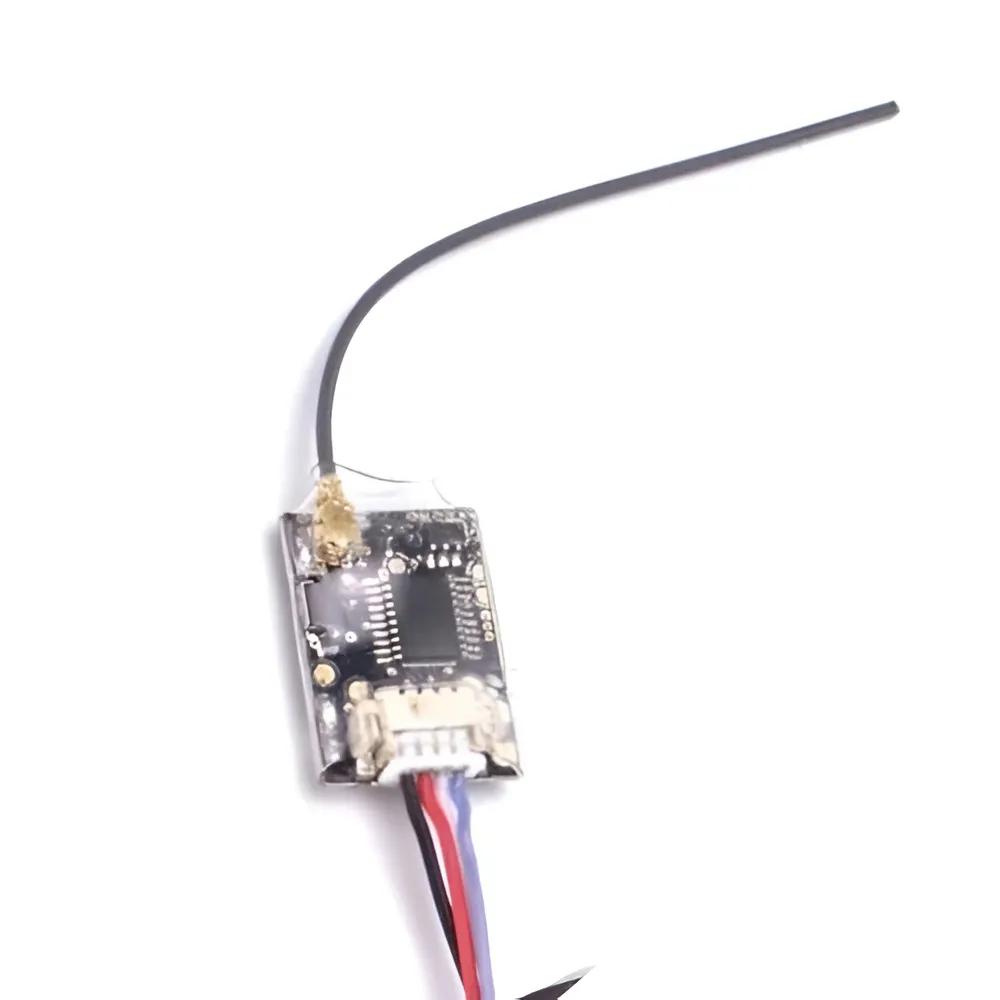

Mini Radio Receiver 2.4GHz Compatible with Flysky PPM & SBUS Remote Control Transmitter

Mini Radio Receiver 2.4GHz Compatible with Flysky PPM & SBUS Remote Control Transmitter for all of those FlySky users looking for a good micro receiver, this is it!!!

It’s not much bigger than the DasMikro V2; another micro FlySky compatible Rx, but it boasts more channels and greater range.

Like the DasMikro it outputs 8-channels using PPM, but it then supports 18-channels using SBUS. The advantage of PPM/SBUS over traditional PWM channels is that you only need to use one signal wire, rather than one for each PWM channel.

Because of its micro size, it’s ideally suited to micro quads, like the racing quads.

The module is compatible with FS-i10, FS-i6S, FS-i6X, FS-TM10, FS-TM8 etc.

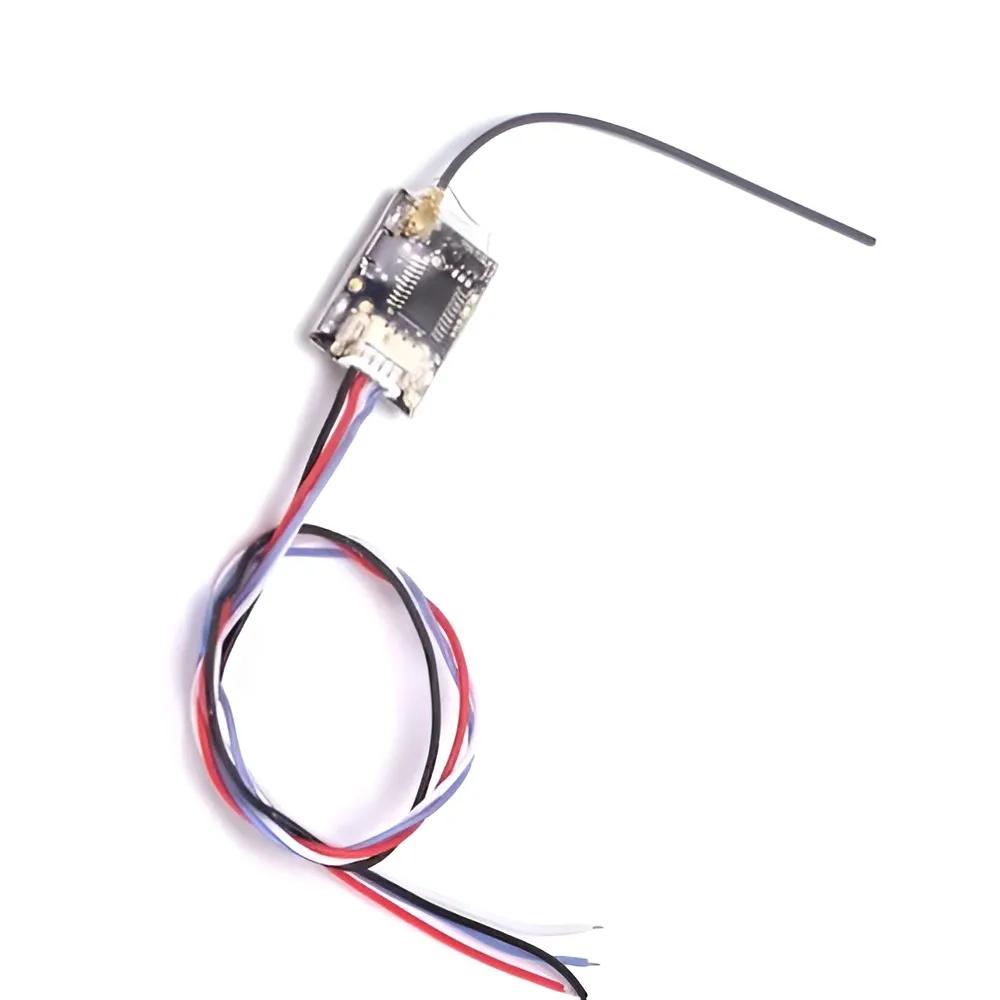

Pin Description:

Black: GND

Red: VCC 4.5V-6V

White: SUBS

Blue: PPM

Package Includes :

1 x Mini Radio Receiver 2.4GHz.
