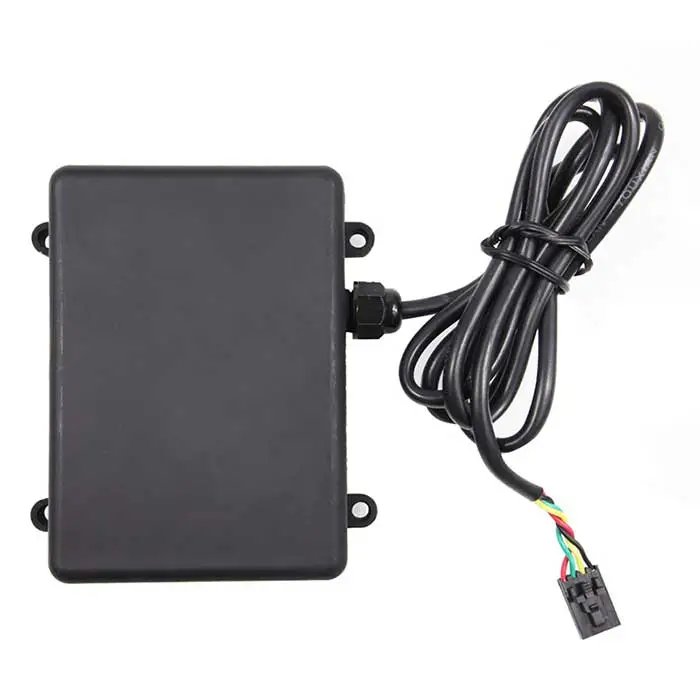

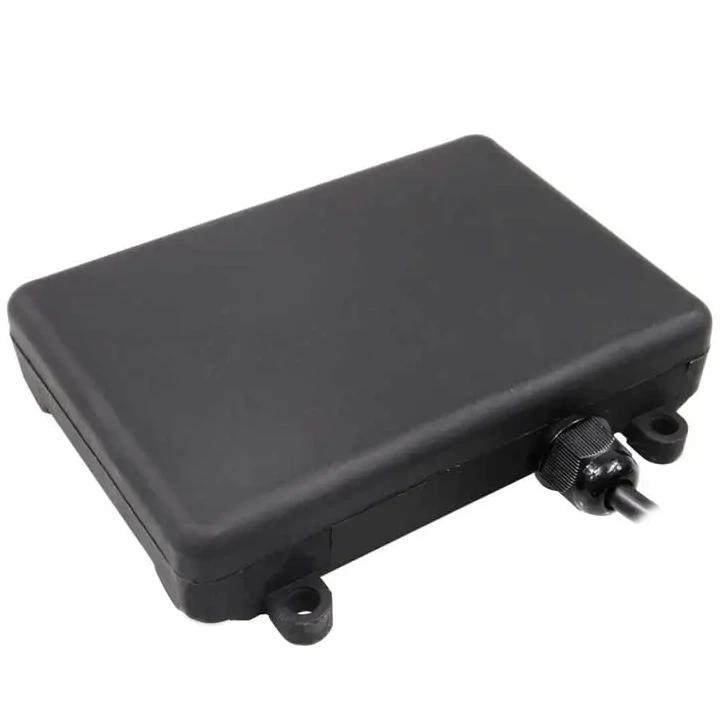

JIYI Terrain Radar Sensor For K3APro For Agriculture Drone in India

The ground like radar module uses millimeter-wave radar technology. Through continuous scanning of the radar, the aircraft can sense the terrain change in the flight direction, and adjust the flying height in time according to the terrain and crop height to achieve ground-like flight and ensure uniform spraying in flight . The ground-like radar module has stable detection performance and good environmental applicability, strong anti-interference ability, not affected by light, long detection distance, and has the characteristics of all weather and all day.

Specification:

1. Product Weight: <50g
2. Center Frequency : 24.125Ghz
3. Modulation Mode: FMC
4. Usage Environment: No obstruction below Try to stay away from water mist
5. Altimetry Range: 0. 3-15m(Relative to the ground)
6. Altimetry Accuracy: 0. 05m
7. Output Frequency: 50Hz
8. Power Waste: 1. 5W @25°C
9. Working Voltage: 6-28V
10. Working Temperature: -20°C~+85°C
11. Output Interface: CAN

Package Includes:

1X JIYI Terrain Radar Sensor For K3APro For Agriculture Drone
