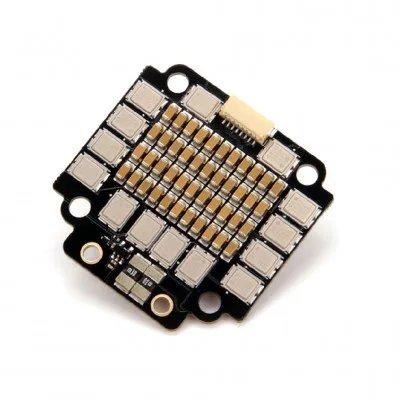

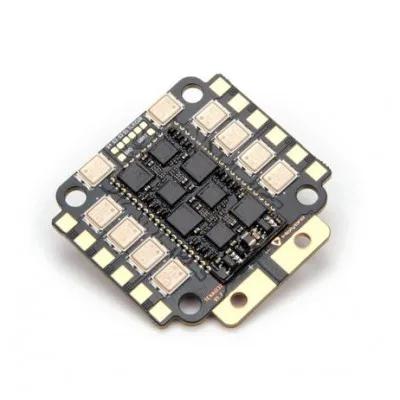

Holybro Tekko32 F4 Metal 4-in-1 65A ESC (AM32) Dshot 1200

The Tekko32 Metal stands out as the market’s first 4in1 ESC to incorporate the swift F4 MCU operating at 150Mhz. It features a robust metal-cased MOSFET and supports PWM output up to 96K, suitable for 4~6S setups, and runs on BLHELI32 firmware. This ESC is renowned for its power and reliability, offering smooth control and a rapid response.

Features:

1. New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
2. PWM output up to 96K (default 48K)
3. Metal-cased MOSFET for excellent heat dissipation
4. Massive on-board capacitance for noise filtering at 2068uf
5. 3 oz copper PCB design to allow bigger current and better heat dissipation
6. Separate drive & control circuit, this broadens the current capability of the drive
7. circuit while reducing the electrical interference to the control circuit.

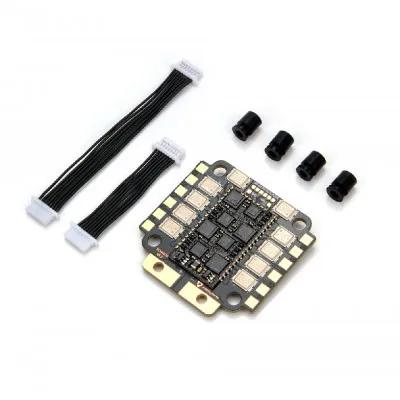

Package Includes:

1 x Tekko32 F4 Metal 4in1 65A ESC

4 x M3 Anti-Vibration Silicone Grommet Insert

1 x Electrolytic capacitor: 1000uF 35v

1 x 8pin to 8pin 1mm pitch 65mm cable

1 x 8pin to 8pin 1mm pitch 25mm cable
