Holybro Pixhawk Power Module PM02 V3 12S

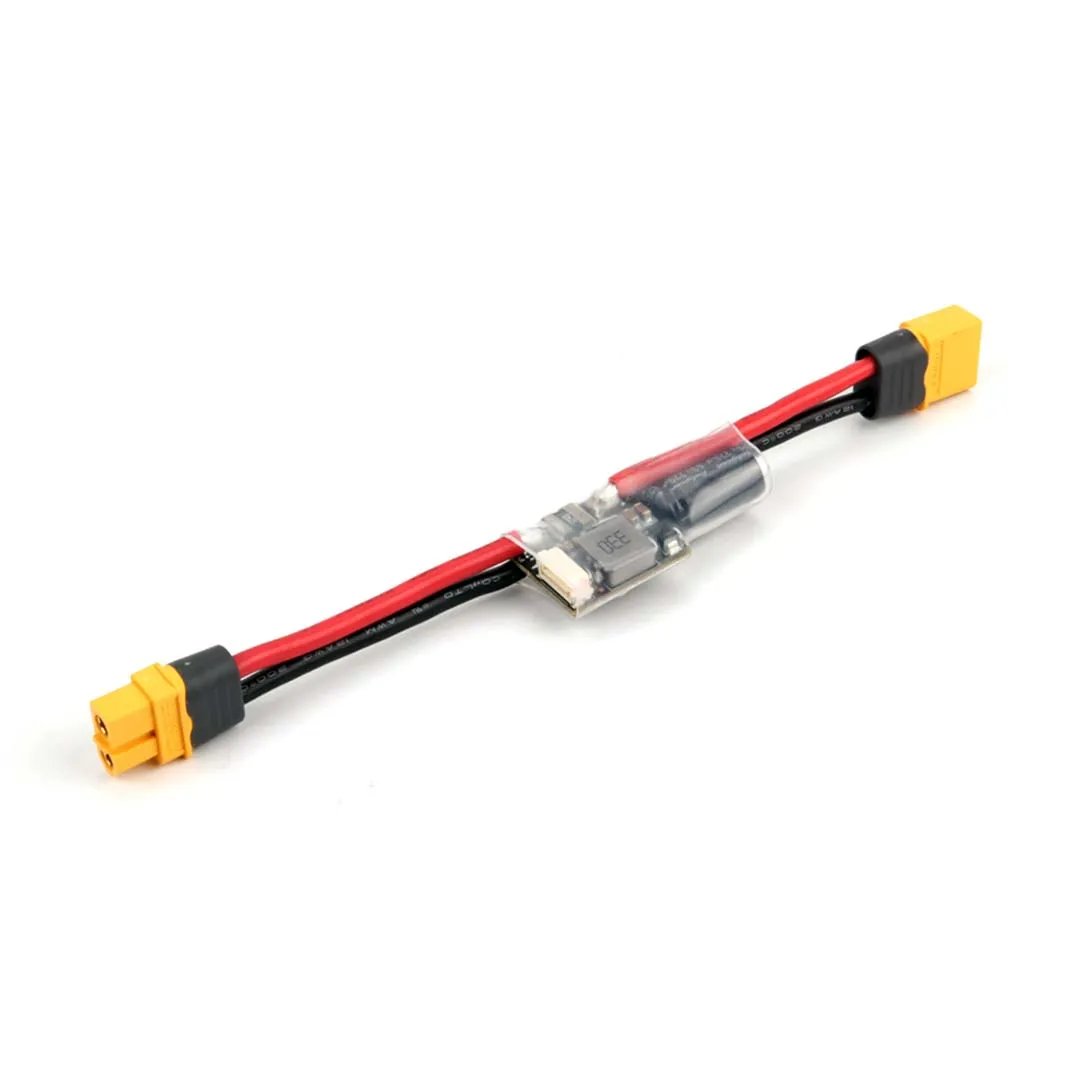

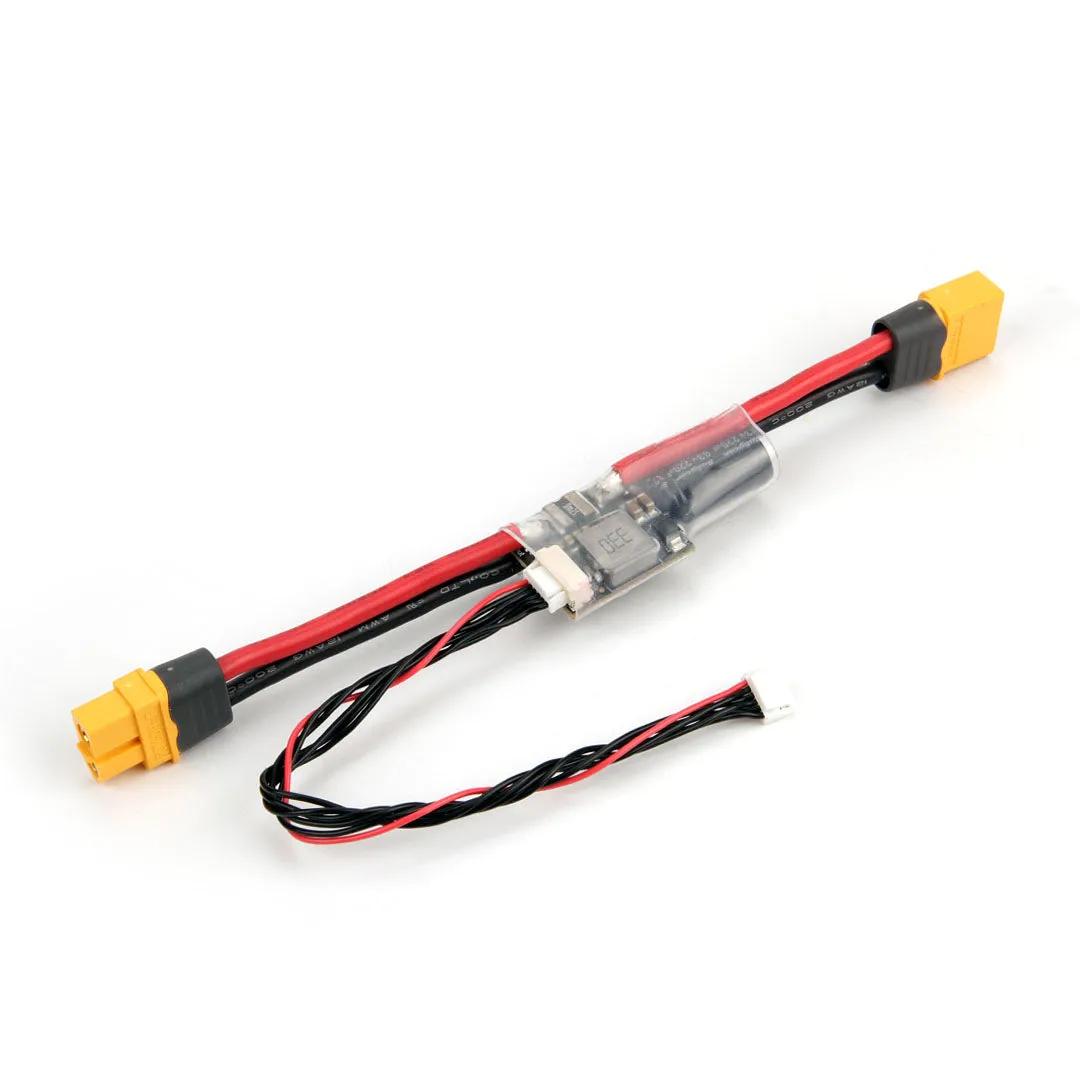

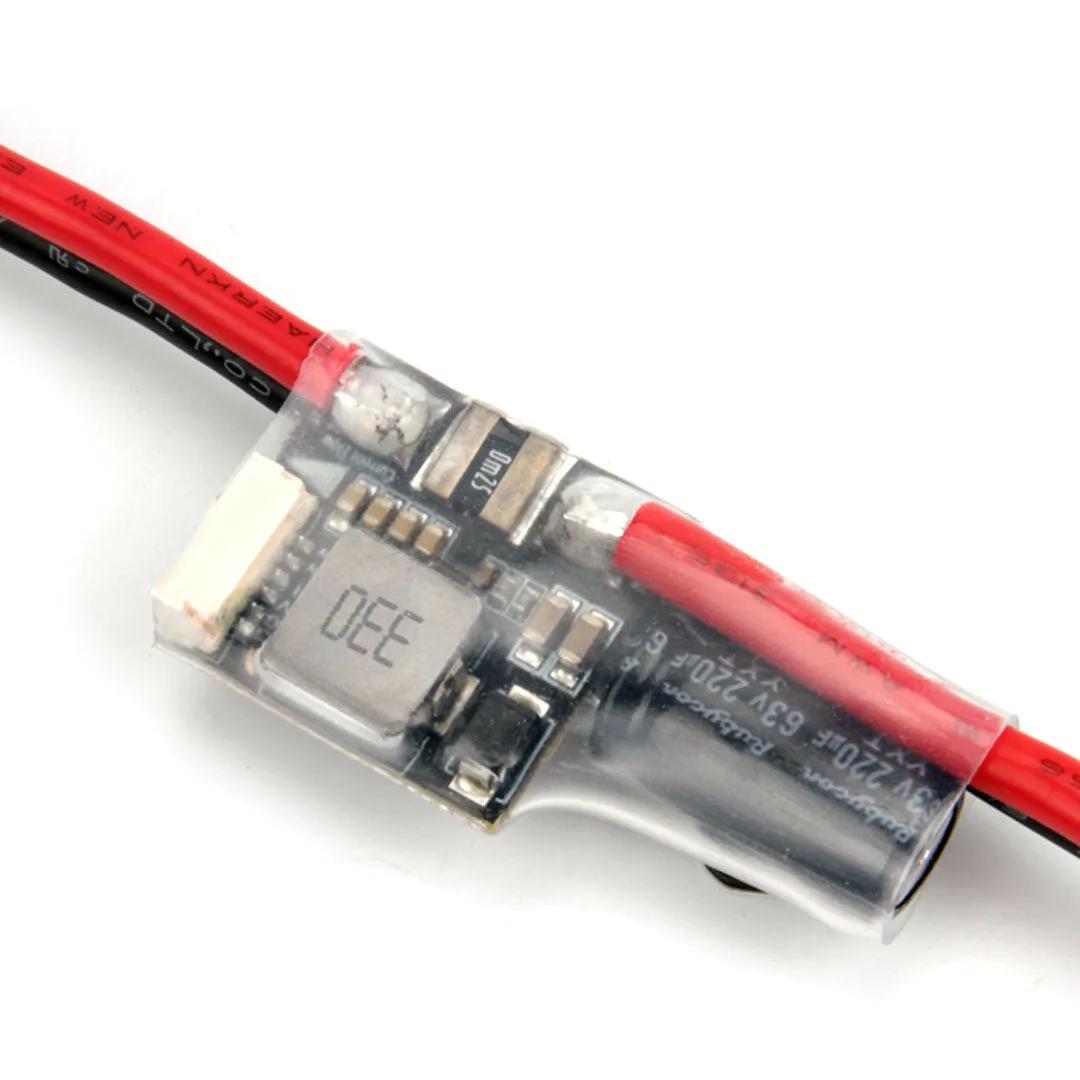

This PM02 Power Module provides a simple way to supply regulated 5.2V to flight controller from the battery while providing current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable. It comes with pre-soldered wires, capacitor, and XT60 connector on both ends, along with shrink tubing on the PCBA for physical protection.

The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.

-This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).

Features:

1. Light weight
2. Best for your DIY projects
3. Easy to Use

Package Includes：

1 x Holybro Power Module PM02 V3 12S
