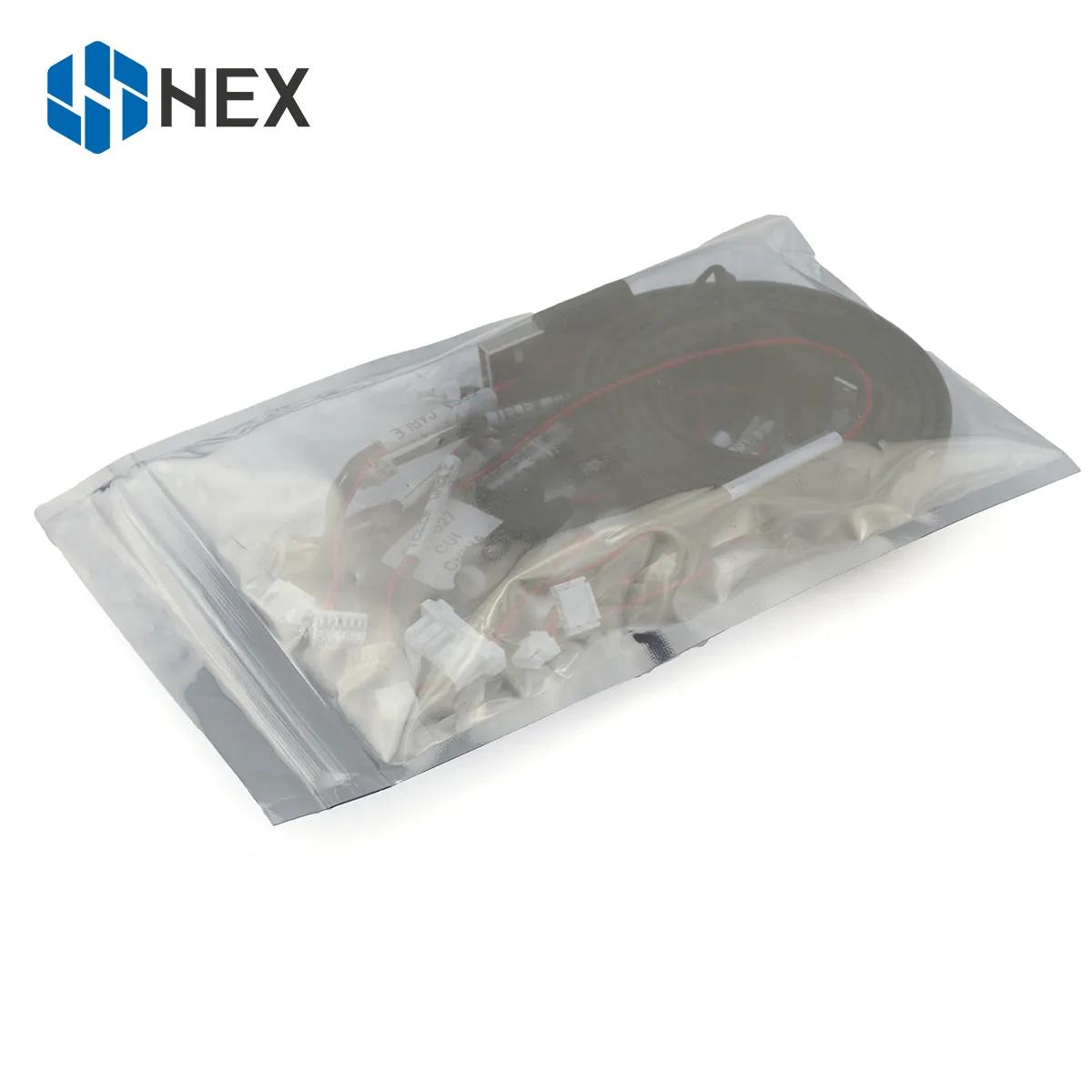

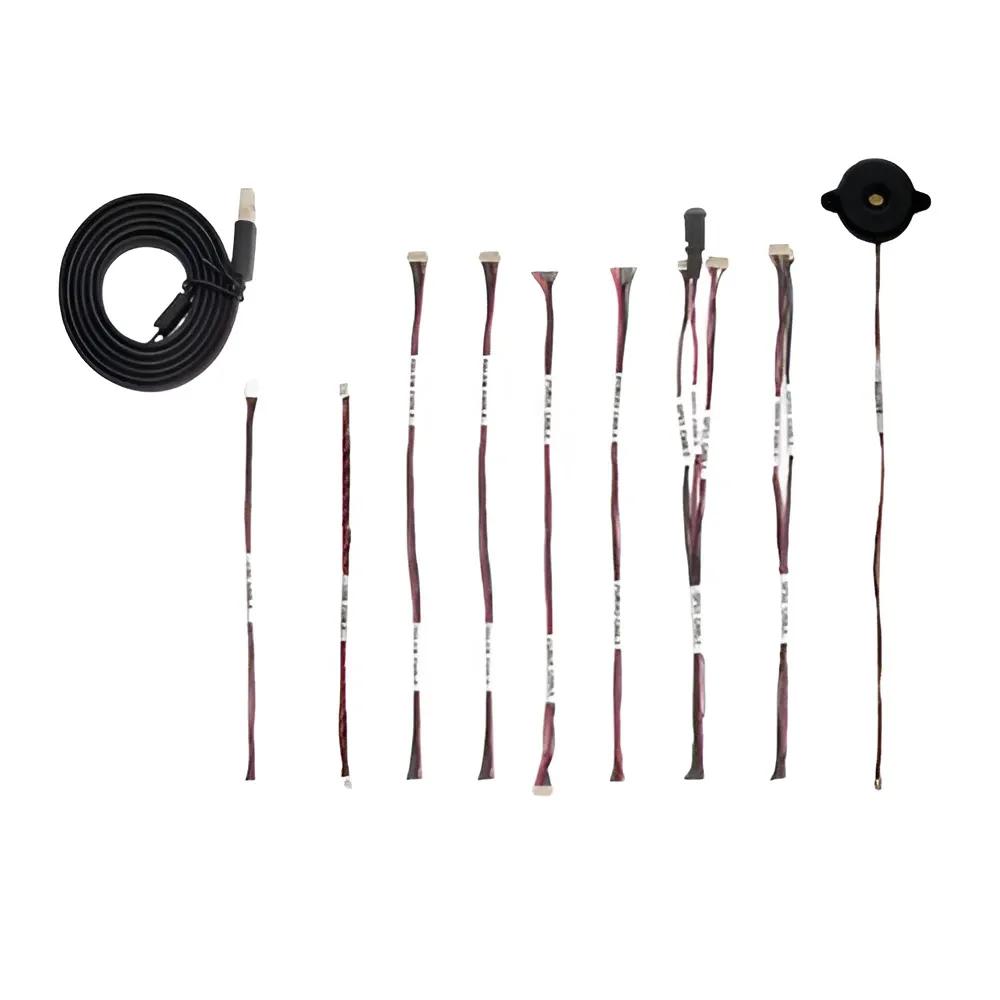

Hex Mini Carrier Board Cable Set

The Mini Carrier Board from Hex Technologies / ProfiCNC for particularly compact designs. With the DF17 Standard Connector all "The Cubes" can be used. Particularly space-saving in combination with The Cube Purple Mini.

Functionality

1. Dual power input (for redundant energy supply, switches to another if one source fails)
2. Power Distribution (limits the current on each connector to prevent overload)
3. Voltage Protection (over and under voltage protection)
4. Mini Carrier Board Interface ModelPorts
5. Corresponding Connecter Model

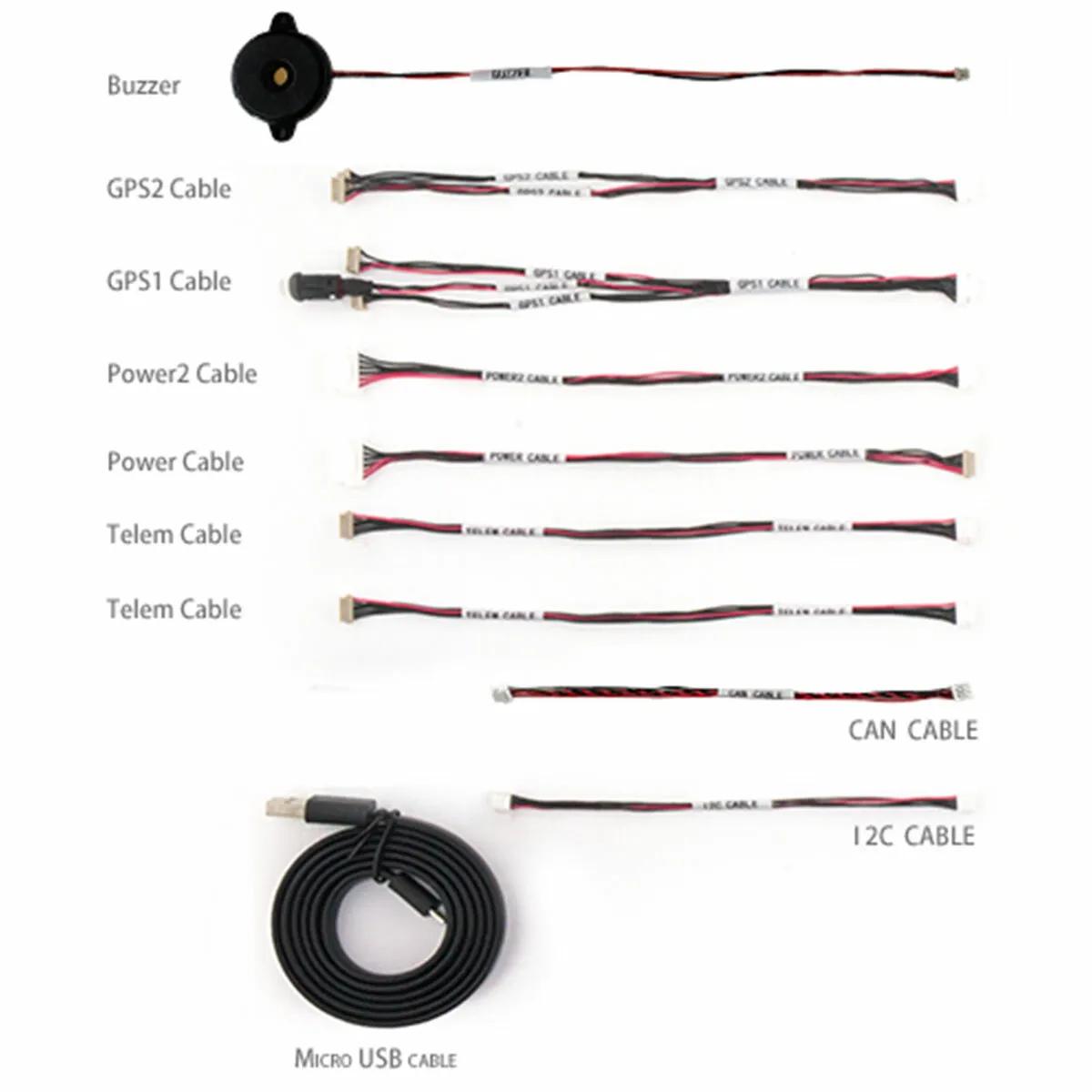

Ports	Corresponding Connecter Model
GPS1	JST-GH 1.25 mm (8-pin)
GPS2	JST-GH 1.25 mm (6-pin)
TELEM1	JST-GH 1.25 mm (6-pin)
TELEM2	JST-GH 1.25 mm (6-pin)
I2C	JST-GH 1.25 mm (4-pin)
CAN2	JST-GH 1.25 mm (4-pin)
POWER1	Molex CLIK-Mate 2 mm (6-pin)
POWER2	Molex CLIK-Mate 2 mm (6-pin)
BUZZER	DF13 1.25 mm (2-pin)

Included

1. 1x Mini Carrier Board für The Cube
