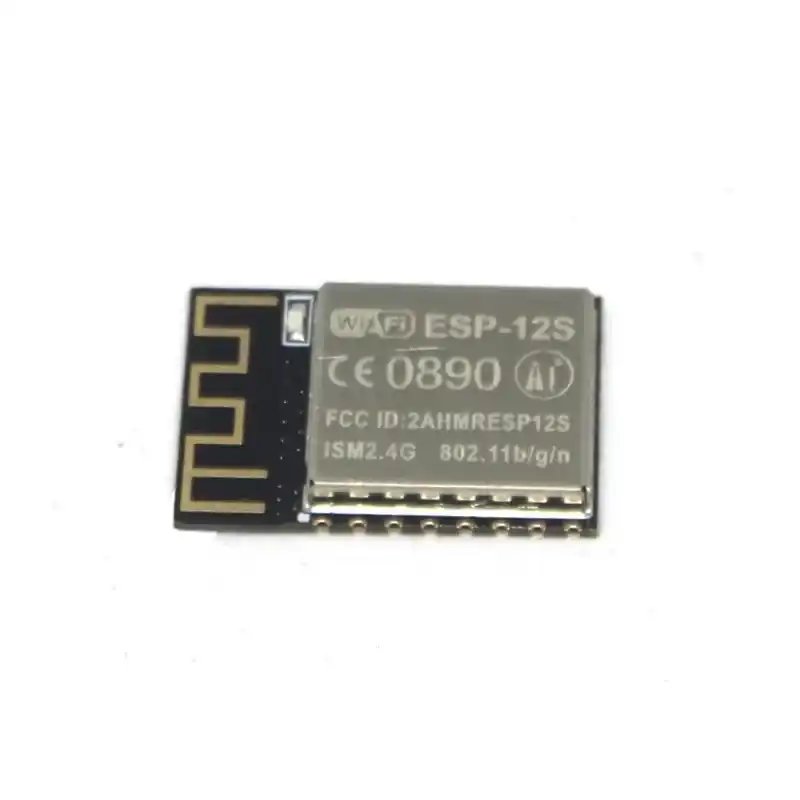

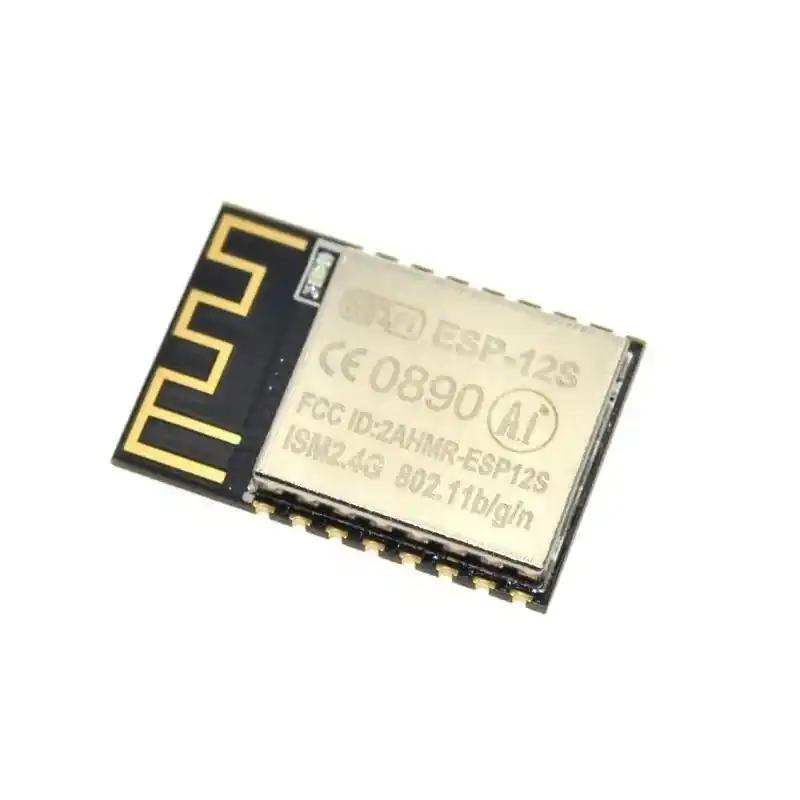

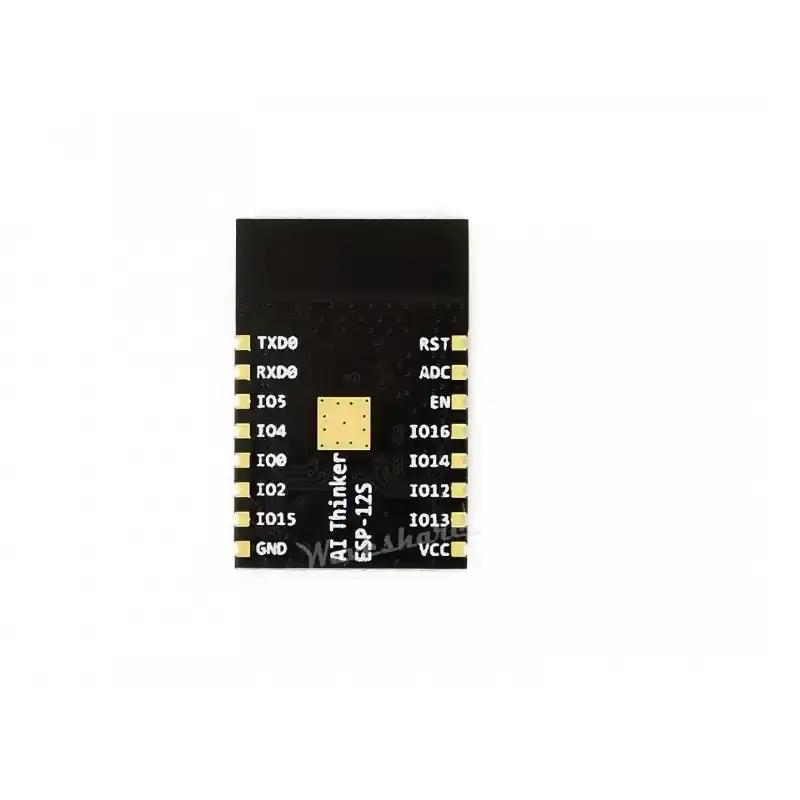

ESP-12S ESP8266 WiFi Module Compact IoT Board Module with 32-Bit MCU

The ESP-12S ESP8266 Serial WiFi Module has a highly competitive package size and ultra-low power technology. ESP-12S can be widely used in a variety of networking, for home automation, industrial wireless control, baby monitors, wearable electronic products, wireless location sensing devices, and wireless positioning system signals.

The core processor ESP8266 integrates the industry-leading Tensilica L106 ultra-low-power 32-bit micro MCU in a small package with 16-bit Lite mode, clocked at Supports 80 MHz and 160 MHz, supports RTOS, and integrates Wi-Fi MAC/BB/RF/PA/LNA.

ESP-12S is packaged in SMD, through the standard SMT equipment to achieve rapid production of products, to provide customers with high reliability of the connection, especially for automation, large-scale, low-cost modern production methods, It’s suitable for all kinds of Internet of things hardware terminal occasions.



Features:

1. The smallest 802.11b/g/n Wi-Fi SOC module
2. Low power 32-bit CPU, can also serve as the application processor
3. Up to 160MHz clock speed
4. Built-in 10 bit high precision ADC
5. Supports UART/GPIO/IIC/PWM/ADC
6. SMD-16 package for easy welding
7. Integrated Wi-Fi MAC/BB/RF/PA/LNA
8. Support multiple sleep patterns. Deep sleep current as low as 20uA
9. UART baud rate up to 4Mbps
10. Embedded LWIP protocol stack
11. Supports STA/AP/STA + AP operation mode
12. Support Smart Config/AirKiss technology
13. Supports remote firmware upgrade (FOTA)
14. General AT commands can be used quickly
15. Support for the two development, integration of windows, Linux development
16. environment



Package includes:

1 x ESP-12S ESP8266 Serial WiFi Module
