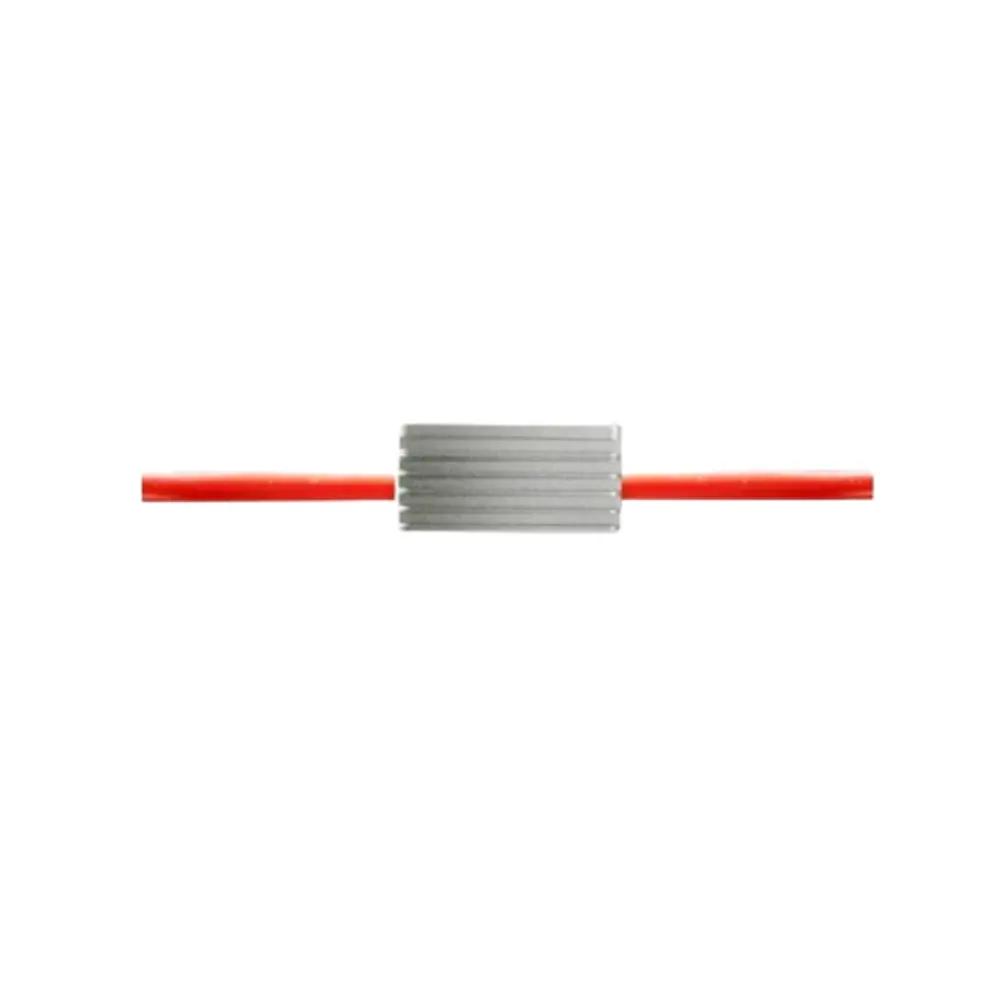

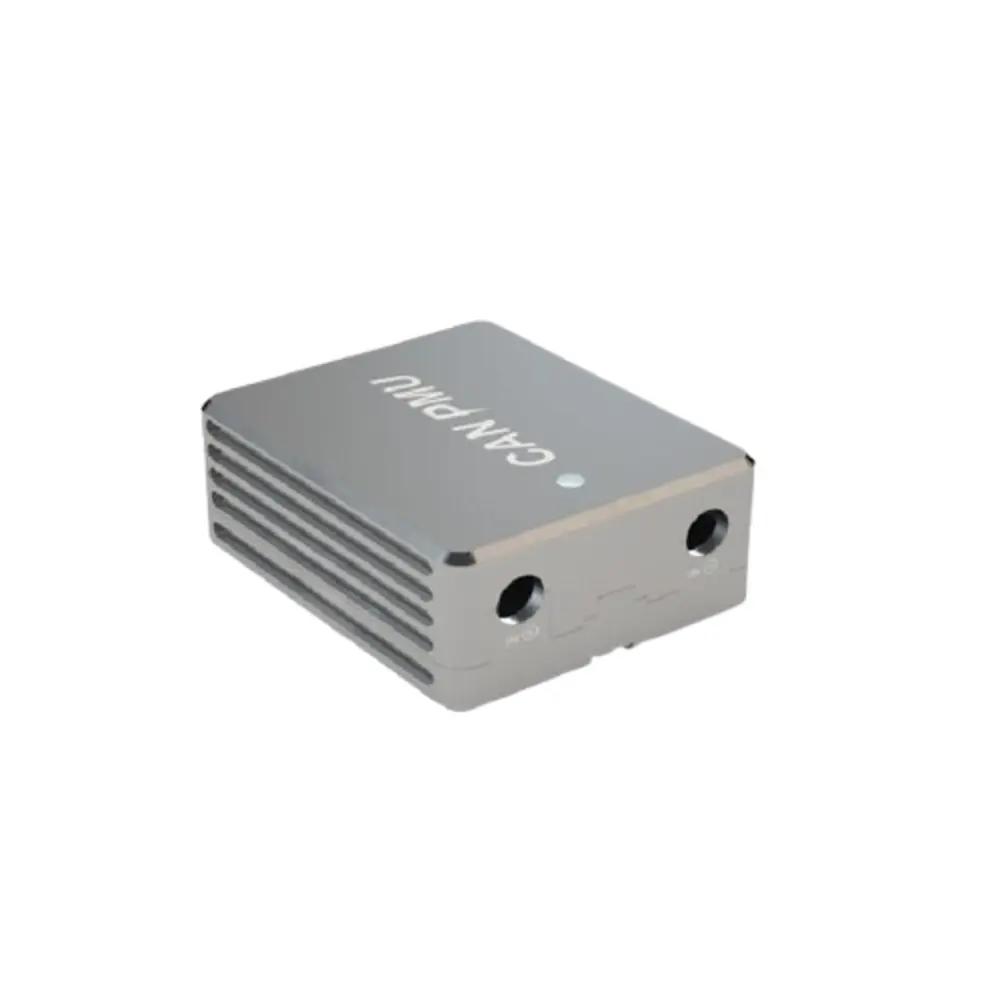

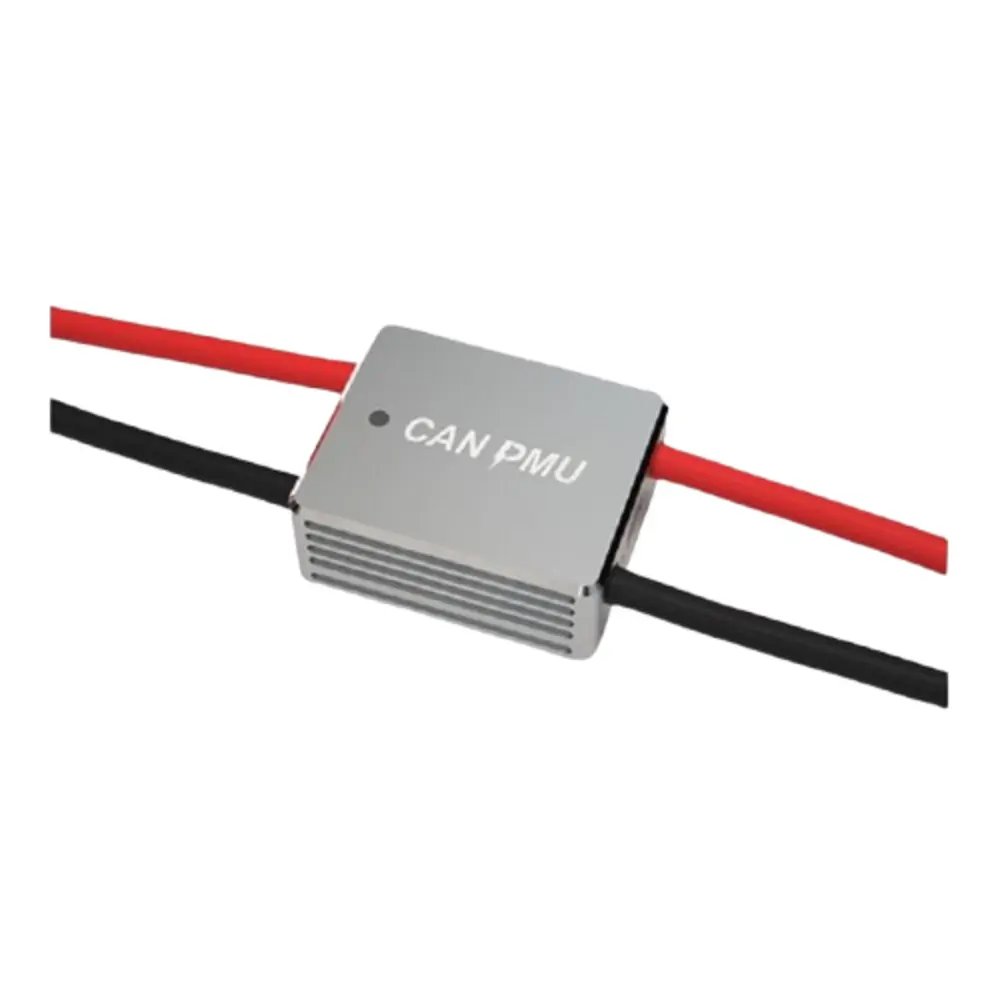

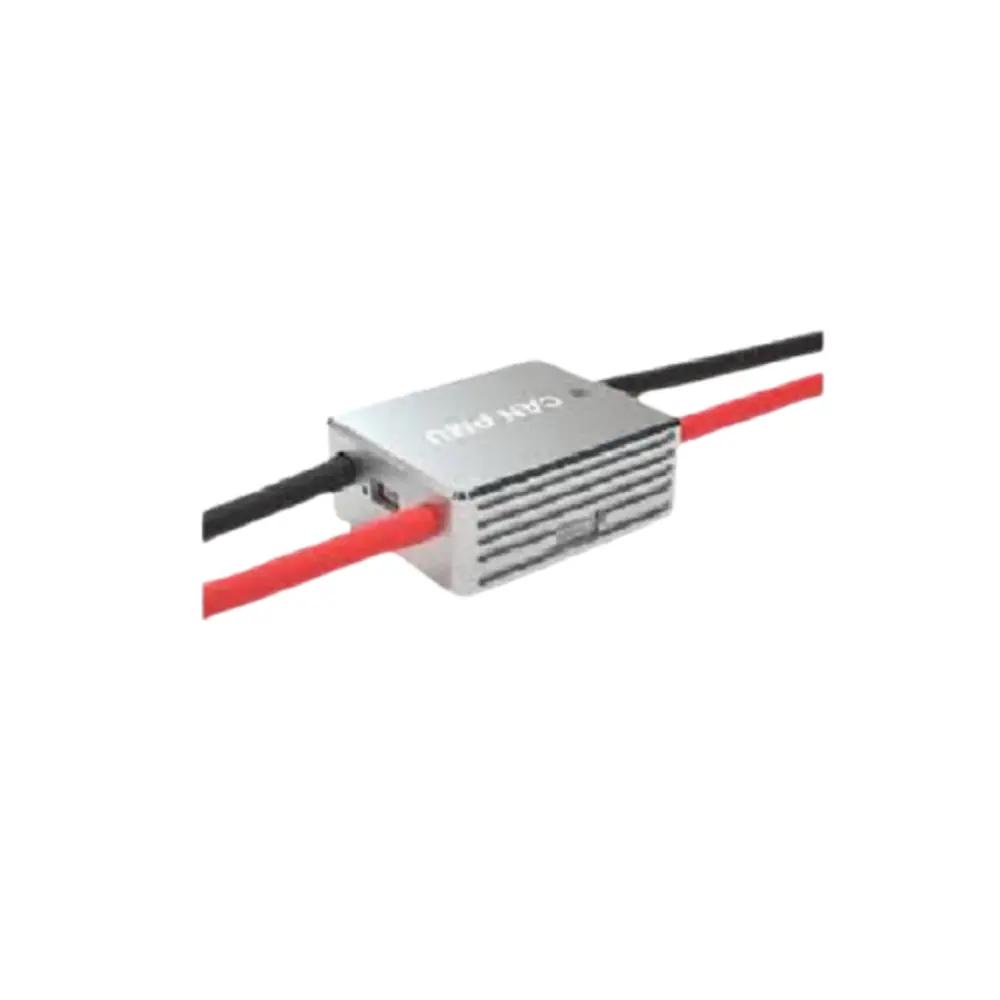

CUAV CAN PMU Autopilot Power Module STM32F4 Processor

CUAV CAN PMU Autopilot Power Module is a drone power management module with a built-in STM32F4 processor; running CUAV ITT compensation algorithm can accurately measure the voltage and current of the drone; support 6~62V voltage input, and the POWER port can output 5V/ 8A. It uses advanced CAN bus communication and supports the standard UAVCAN protocol; each PMU uses factory-level calibration to ensure good consistency and high accuracy.

Features:

1. Efficient power management for autopilot systems in UAVs.
2. Utilizes a CAN interface for seamless integration with autopilot systems.
3. Supports multiple power inputs for redundancy and uninterrupted operation.
4. Real-time monitoring of voltage and current levels.
5. Facilitates power distribution to various UAV components.
6. Incorporates overcurrent and overvoltage protection mechanisms.
7. Configurable parameters for customization.
8. Compact and lightweight design.

Package Includes:

1 x CUAV CAN PMU Autopilot Power Module

1 x X7 Series Power Cable

1 x V5 Series Power Cable
