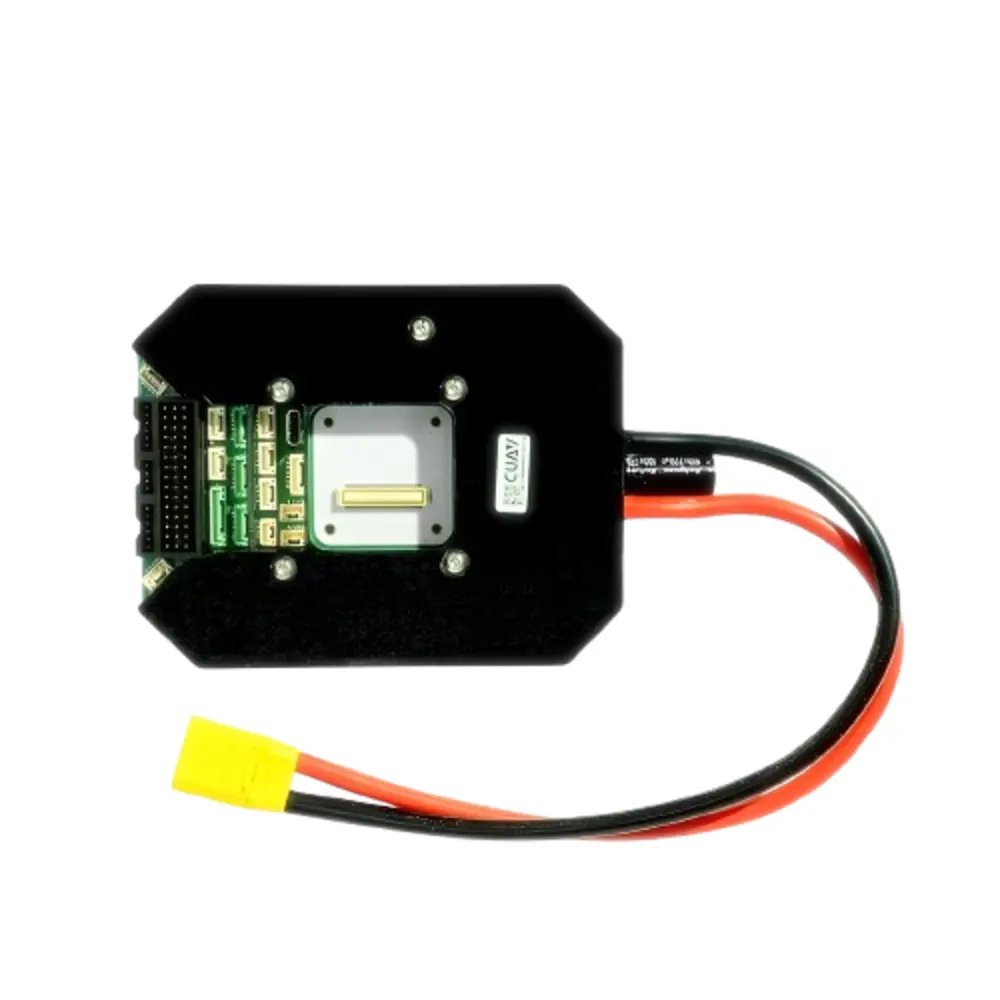

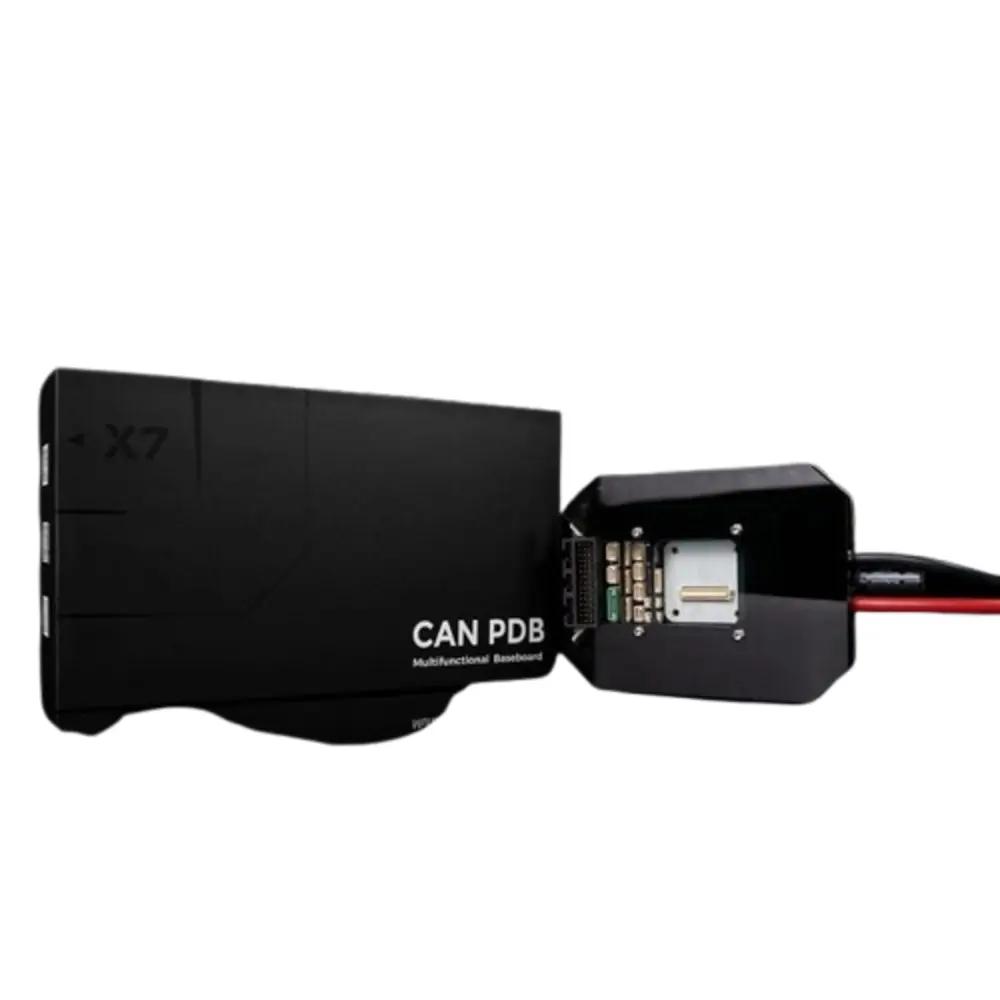

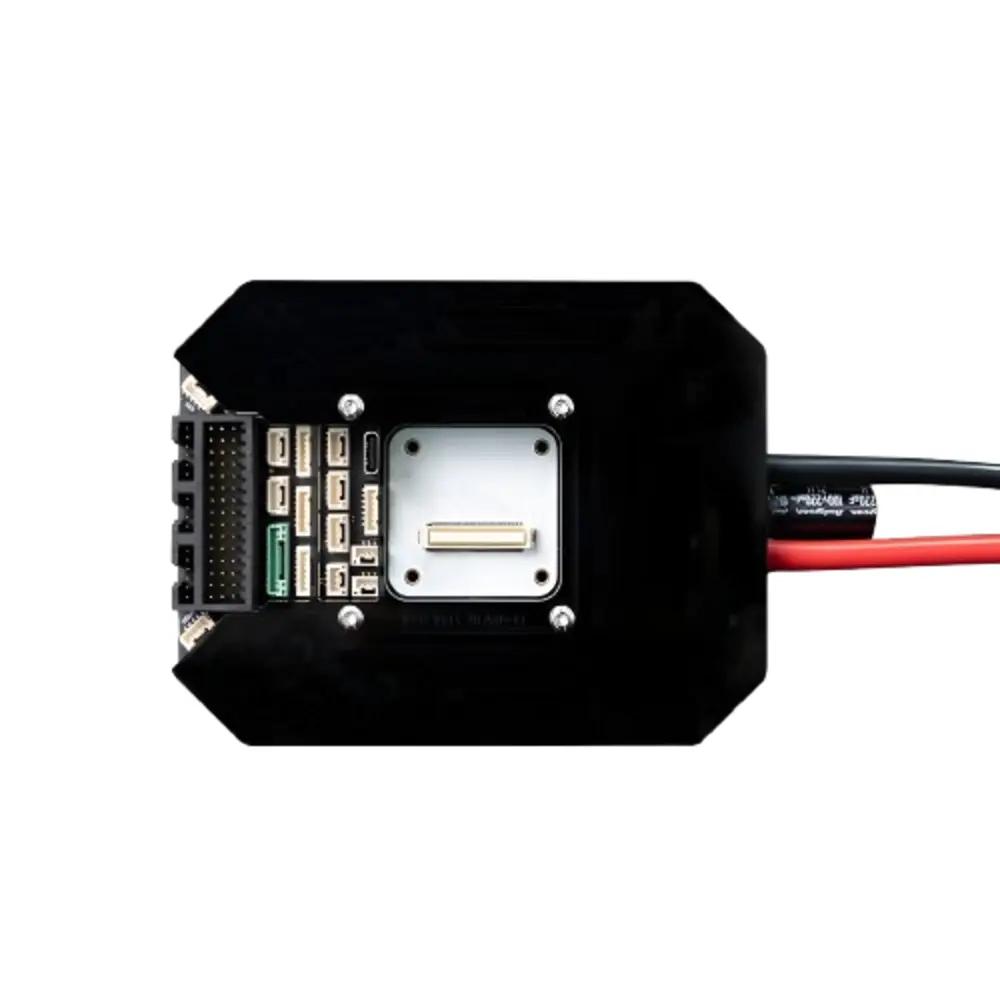

CUAV CAN PDB Multifunctional Autopilot Baseboard

CAN PDB is a multi-functional baseboard of flight controller CORE, which provides abundant interfaces, integrates the functions of power supply module and power distribution board, supports voltage input of 10~60V, and provides continuous working current up to 110A. It adopts self-developed ITT algorithm and has high accuracy power detection of 0.1A and 0.05V. It has 10-way power output welding points, and provides a 5V/6A and a 12V/4A stabilized output to provide power for external device. Furthermore, it also supports CORE module of flight controller.

V2.5 Update:

1. Adding PPM interface enriches the support of remote control receiver protocol;

2. The power output is upgraded from screw fixing to welding process, which reduces the risk of loose screws caused by heating and vibration caused by poor contact.

Features:

1. Support 10~62V ultra-wide voltage input
2. Continuous current: 180A
3. Accurately measure voltage and current, current accuracy within 110A is 0.1A, voltage accuracy is 0.05V
4. 14 servo channel output
5. Dual regulated output interface: It can provide up to 5V/6A, 12V/4A power output for peripherals
6. Ultra-thick copper and thick tin-plated PCB can effectively reduce the heating caused by the internal resistance of the circuit under high current
7. Power indicator LED, visually indicating Lipo voltage status
8. Ultra low pressure drop 10 main power output
9. Future upgrades support more functions such as high-precision power consumption statistics and transient power consumption push
10. Excellent heat dissipation and current-carrying capacity: ultra-thick copper layer PCB brings excellent current-carrying capacity, window tinning reduces internal resistance and improves heat dissipation capacity
11. 78W UBEC regulated output: Generally, the UBEC of the distribution board only has a regulated output of 1-2A, and the CAN PDB can provide a regulated output of up to 5V/6A and 12V/4A.

Package Includes:

1 x CUAV CAN PDB Multifunctional Autopilot Baseboard
