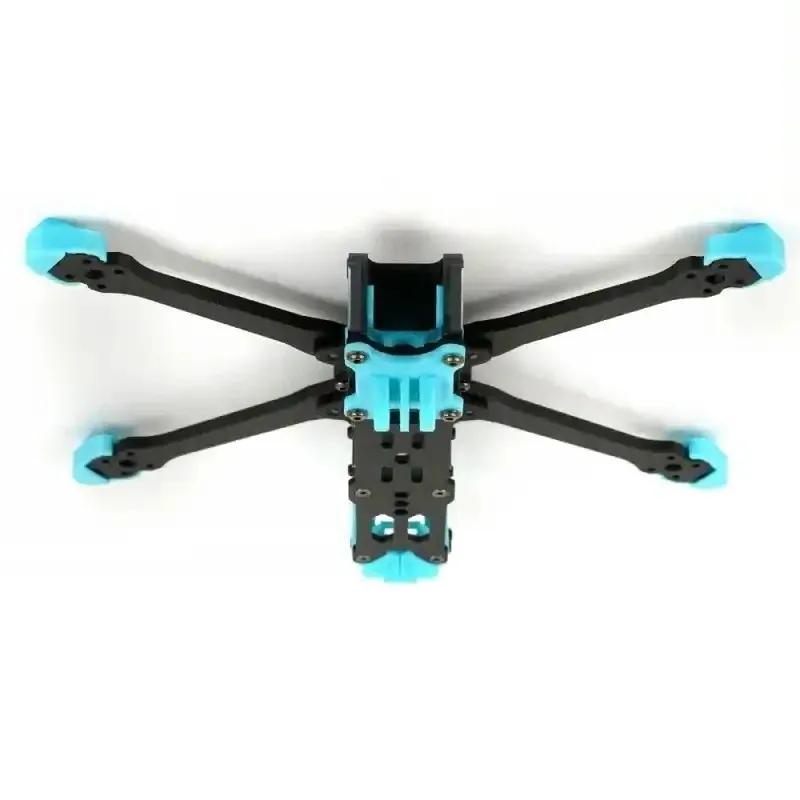

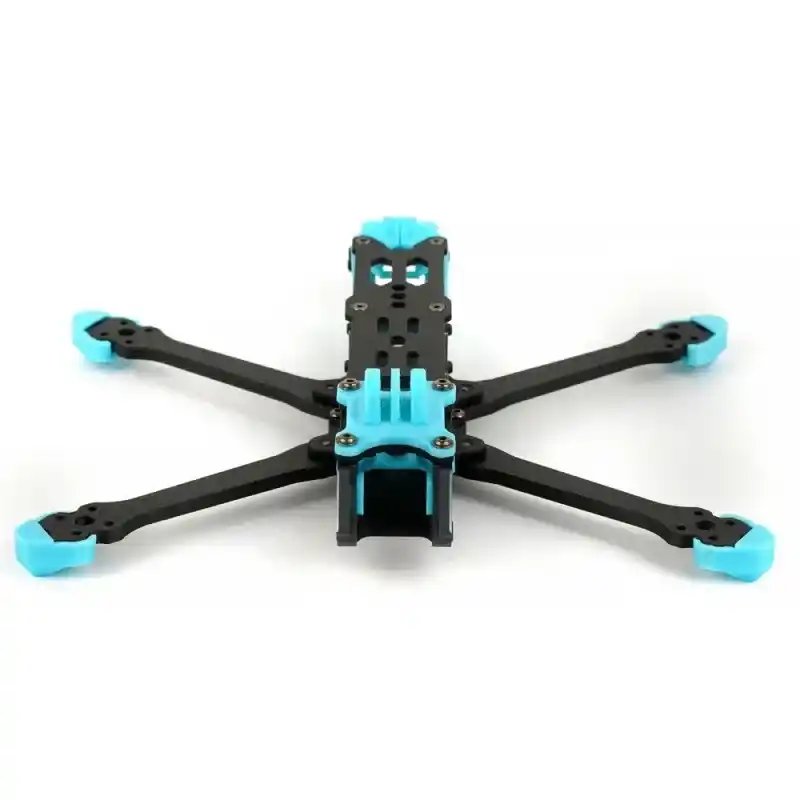

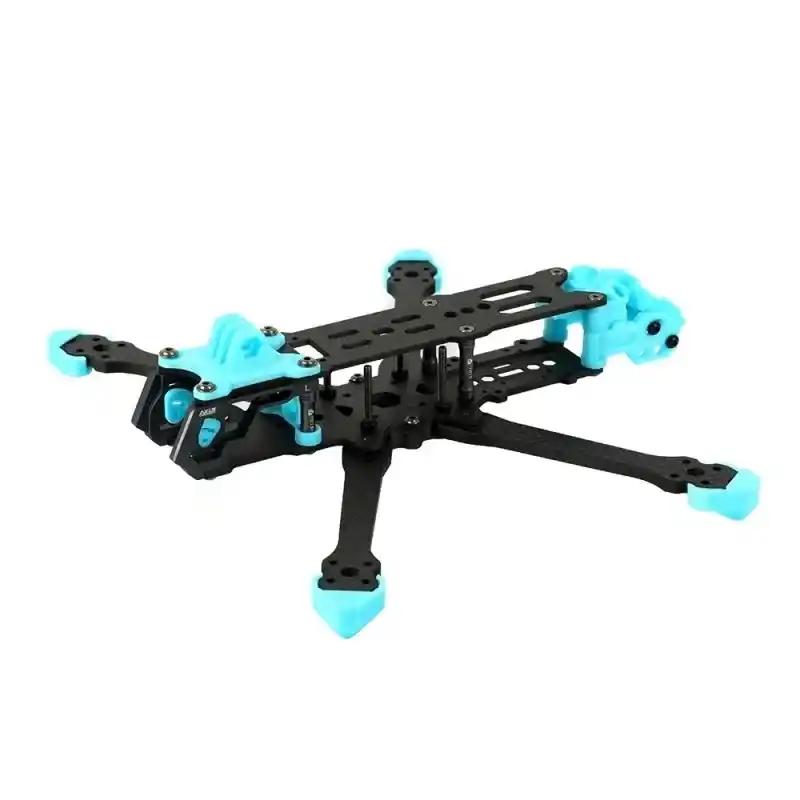

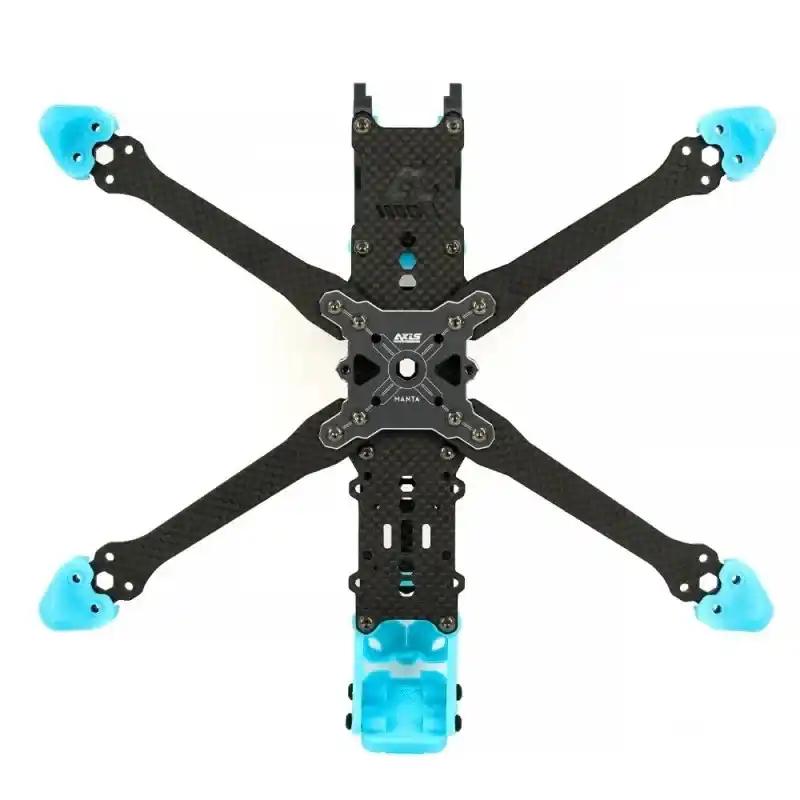

Axisflying MANTA5″ 5inch Fpv Freestyle Squashed X Frame Kit

The Axisflying MANTA5 is a 5-inch FPV freestyle drone frame designed with a “Squashed X” configuration for enhanced maneuverability and a better flight experience.Ideal for both freestyle flying and cinematic applications due to its robust construction and flexible design features.

Designed to hold FPV cameras that are 19-20mm wide, with protective aluminum side plates to enhance durability and stability during flight.

Features:

1. The Squashed X design allows for improved visibility from the FPV camera, as the props do not appear in the camera’s field of view, making it ideal for freestyle flying.
2. The frame incorporates CNC aluminum parts along with high-quality carbon plates, resulting in a robust and stable structure.
3. It supports mounting stacks with hole patterns of 20x20mm and 30.5×30.5mm, accommodating a wide range of flight controllers and ESCs.
4. The design includes compatibility for various FPV camera sizes (19-20mm wide), with protective aluminum side plates to safeguard the camera during flight.

Specifications:

1. Frame Type: Squashed X
2. Wheelbase: 238mm
3. Weight: 133g
4. Material: T700 carbon fiber
5. Maximum Prop Size: 5.1 inches
6. Motor Mounting Holes: 16x16mm
7. Compatible Stack Sizes: 20x20mm and 30.5×30.5mm
8. Recommended Motors: Axisflying AE2306.5, AE2207, AF236, AF227, and C246
9. Battery Compatibility: 1050-1500mAh for 4S and 6S setups
10. Compatible Propellers: Axisflying, Gemfan, or HQ 4.9″-5.1″ freestyle props
11. Camera Compatibility: Supports FPV cameras that are 19-20mm wide, with protective aluminum side plates

Configurations:

1. Motors: Suitable for Axisflying AE2306.5, AE2207, AF236, AF227, and C246 freestyle motors.
2. Battery: Recommended lipos range from 1050mAh to 1500mAh, with options for 4S and 6S setups.
3. Propellers: Can use Axisflying, Gemfan, or HQ freestyle props sized between 4.9 and 5.1 inches
