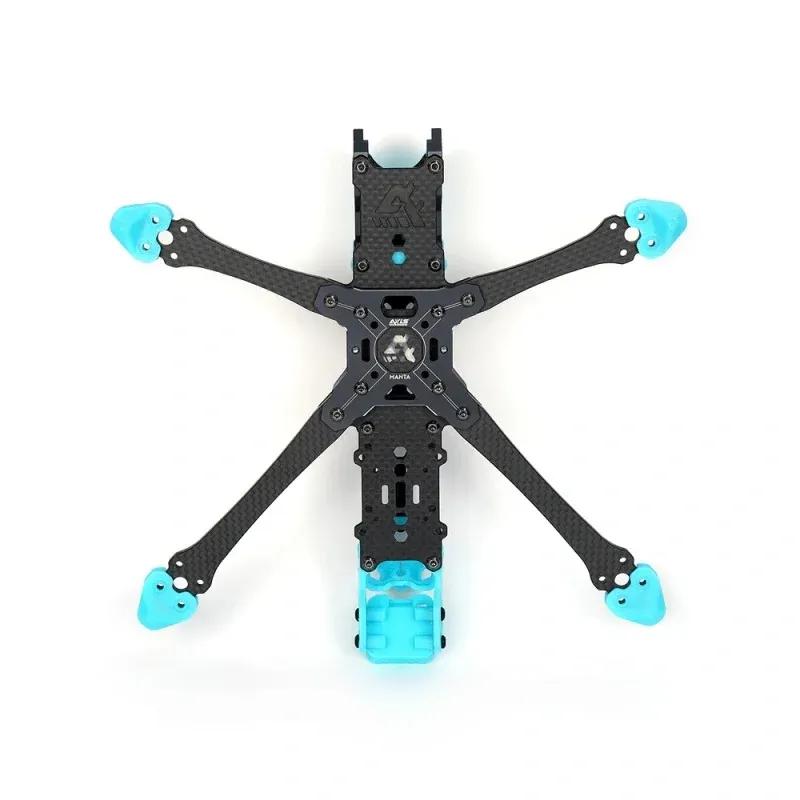

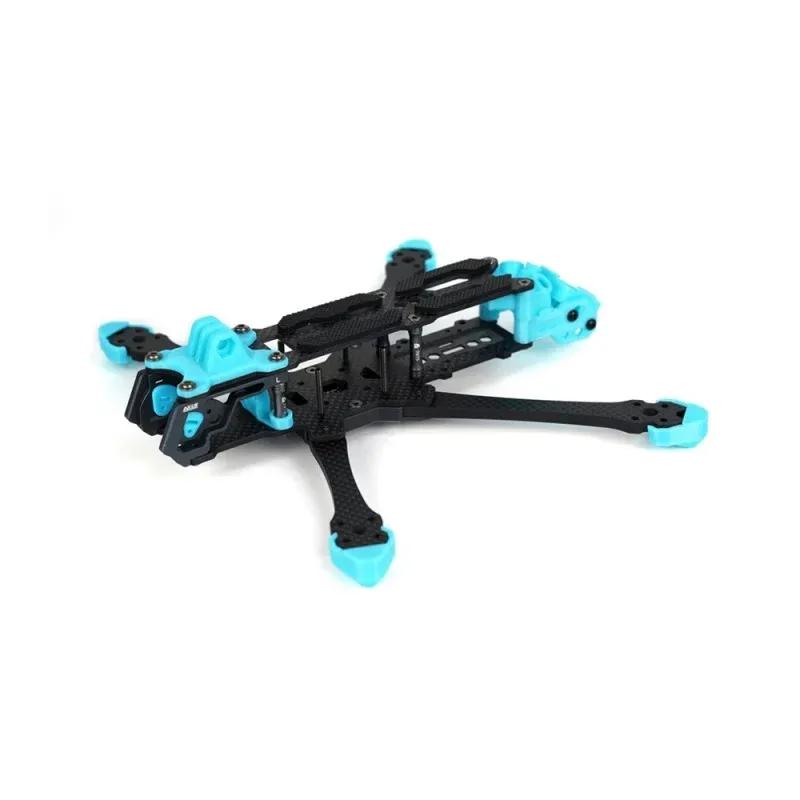

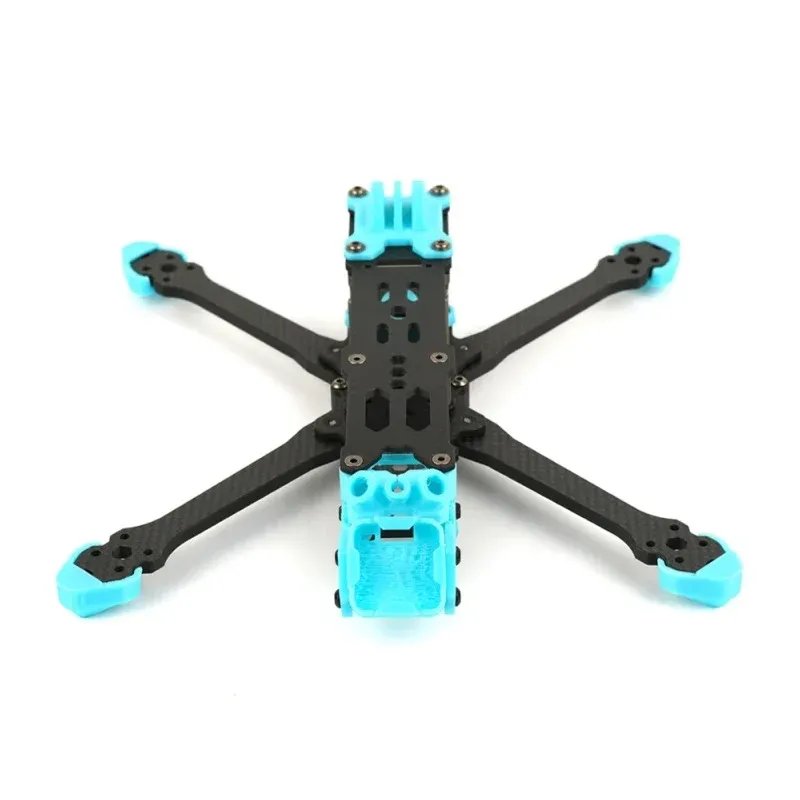

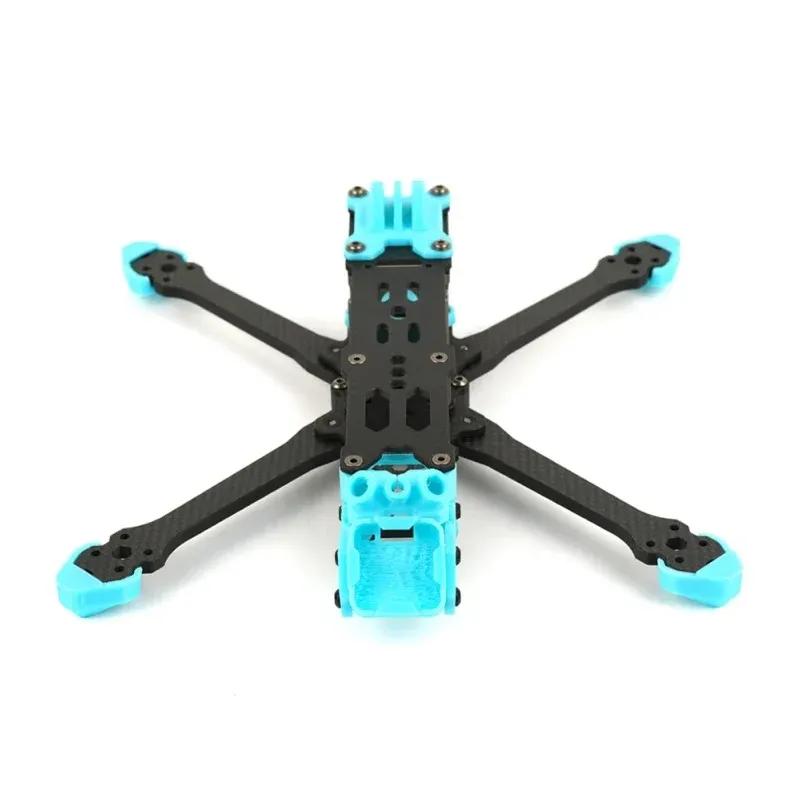

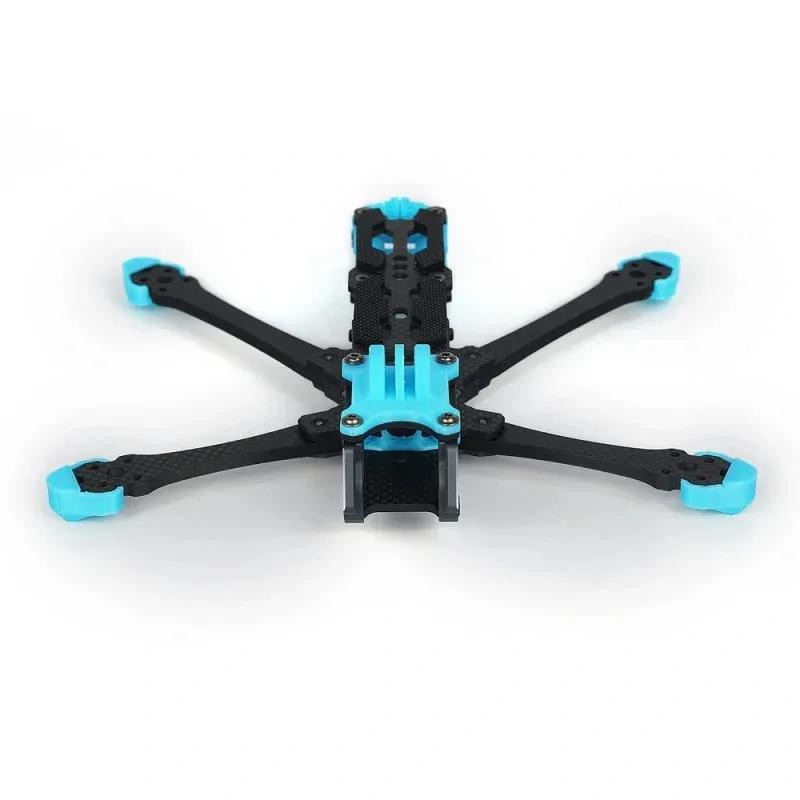

Axisflying MANTA5″ / 5inch Fpv Freestyle DeadCat-DC Type Frame Kit For DJI AIR UNIT

The Axisflying MANTA5 is a versatile 5-inch frame kit designed for both freestyle and cinematic FPV flying. With a choice between True X and Squashed X versions, it caters to pilots seeking either smooth cinematic footage or agile freestyle performance. Constructed with high-quality materials and innovative design elements, the MANTA5 frame offers durability, stability, and compatibility with various FPV systems.

Features:

1. Dual Frame Design: Available in True X for balanced, smooth flight (ideal for cinematic shots) and Squashed X for enhanced maneuverability (great for freestyle).
2. Material: Built from T700 high-strength carbon fiber with a CNC aluminum structure that provides crash resistance, rigidity, and stability.
3. Wide Compatibility:
4. Stack Mounting: Supports both 20x20mm and 30.5×30.5mm mounts, fitting most flight controllers and ESC stacks.
5. VTX Mounting: Movable M2 (20x20mm) and M3 (30.5×30.5mm) mounting options to accommodate both Analog and HD VTX, including DJI Air Unit and Vista.
6. Camera Compatibility: Fits 19-20mm wide FPV cameras, with aluminum side plates for camera protection and vibration reduction.
7. Motor Mounting: Designed with 16x16mm motor mounting holes, compatible with popular 5-inch motors.
8. Recommended Propeller Size: Supports 4.9-5.1 inch propellers.

Specifications:

1. Wheelbase: 238mm
2. Weight: 133g (without additional components)
3. Max Propeller Size: 5.1 inches
4. Carbon Fiber Type: T700

Recommended Configuration:

1. Motors: Compatible with Axisflying AE2306.5, AE2207, AF236, AF227, or C246 motors for freestyle.
2. Battery (LiPo): 1050-1500mAh in 4S or 6S configurations.
3. Flight Stack: Axisflying istack 50A/F722.
4. Propellers: Suitable for Axisflying, Gemfan, or HQ 4.9″-5.1″ freestyle props.

Package Includes:

1 x Axisflying MANTA6″ / 6inch fpv freestyle DeadCat-DC type frame kit Frame Kit – Analog
