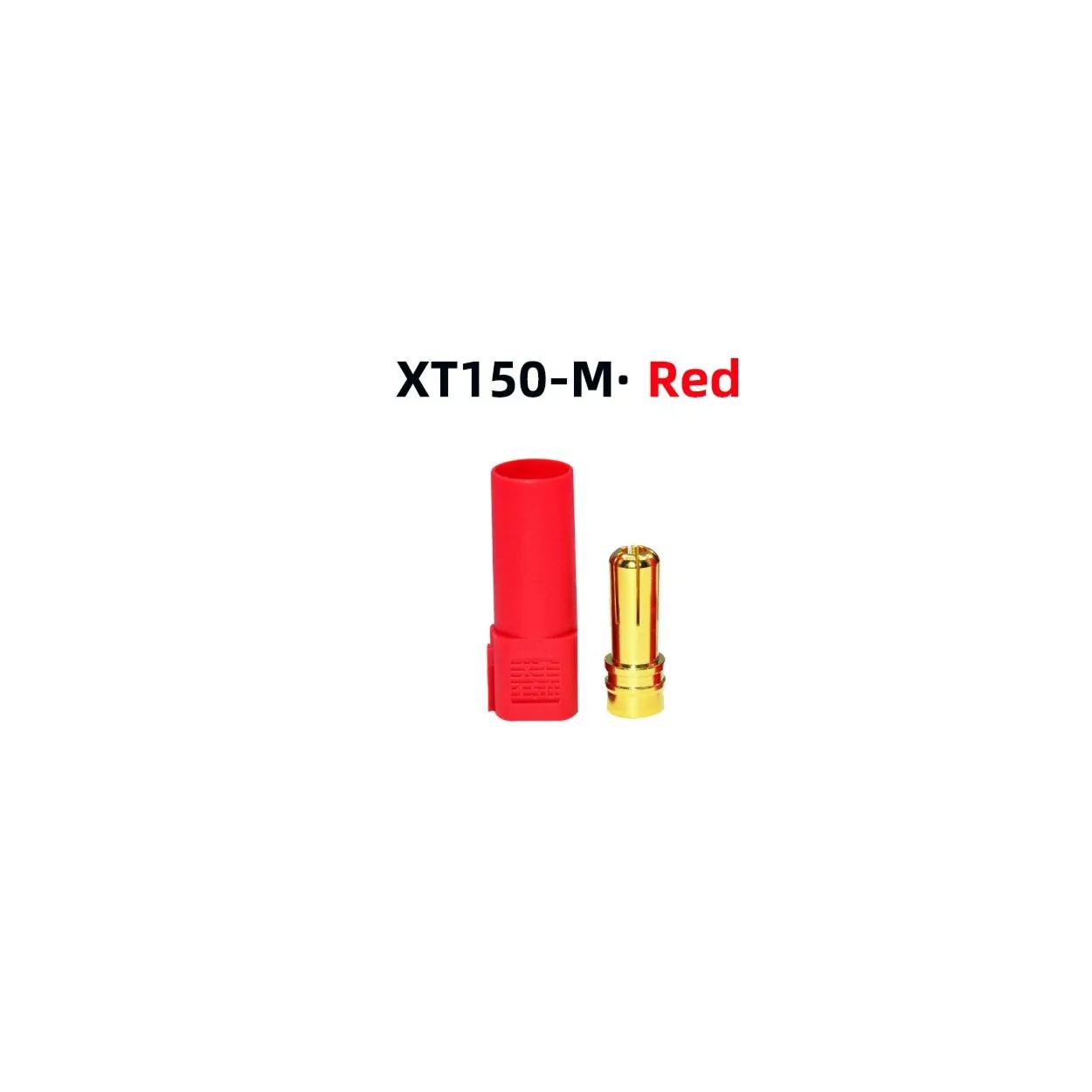

Amass XT150-M Male Red High Power RC Connector For Lipo Battery

XT-150 are High-Quality big Sprung Gold Connectors by Amass that have a large contact area, making them great for high power applications up to 130A!

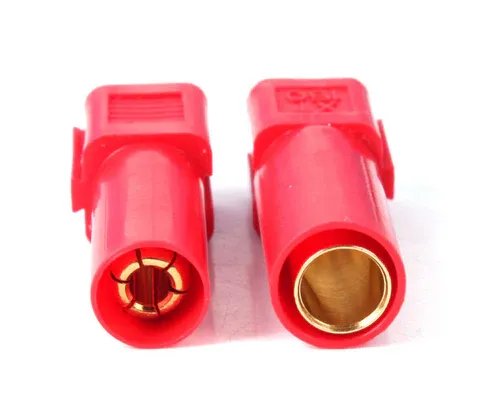

The male connector uses a collet style spliced contact area to provide more surface to surface contact than standard gold connectors which use a thin mushroomed sheet as a spring. We sell connectors induvidually and can be linked together with the dovetail join on the outside of each Nylon housing. Lets users build 2 Pin connectors as per the requirement. Just slide two of these XT150 connectors together and you have a 2 pin connector! You can also mix colors to build a red/black 2 pin connector. Easy to solder and use, they are perfect for large batteries, ESC or motors!

Features :

1. Connector type: XT150
2. Metal Material: Brass
3. Plating: Gold
4. Gender: Male
5. Cover Material: Plastic
6. Colour: Red
7. Designed for currents up to 130 Amps Max.
8. Ideal for those large-scale electric projects where low loss connectors are essential
9. The plastic case is detachable, so you can array the wires in the sequence you prefer, or keep them separated from each other
10. 6mm gold bullet connector, compatible with 8AWG silicon wire
11. Used for: ESC, LIPO Battery, Motor, etc.

Package Includes:

1 x Amass XT150-M Male Red High Power RC Connector For Lippo Batteries
