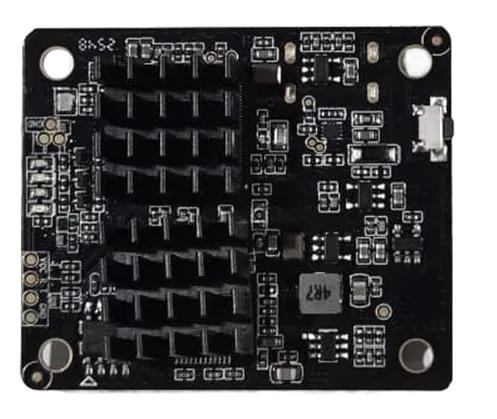

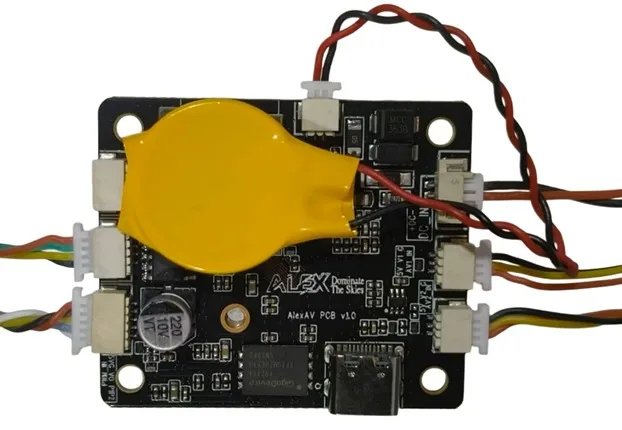

AlexAV Conversion Board for Skydroid T10, T12 with Dual Camera with DVR

This product is a video front-end module designed for UAVs. It integrates dual analog video input switching (CAM1/CAM2), a single AV output, PWM/RC channel control, and wide voltage input compatibility. The AV output port enables connection to an additional external display, allowing the same live video feed to be viewed simultaneously on more than one display device. The module also incorporates comprehensive protection circuits, including reverse polarity protection, short-circuit protection, over-current protection, and over-temperature protection, ensuring safe and reliable operation in demanding environments.

The IRS-AV Board is fully compatible with SkyDroid T10, T12, and H12 ground control systems and their corresponding AV receivers. The board provides standard Analog AV output (CVBS), ensuring seamless video transmission to these receivers without additional signal conversion. Camera switching can be controlled using PWM channels or RC serial signals generated by the T10, T12, or H12 remote controllers, allowing reliable real-time camera selection during flight. The wide input voltage range and stable AV signalling ensure consistent performance and interference-free operation when integrated with SkyDroid T10, T12, and H12 systems in UAV and robotic applications.

Features:

1. Dual Analog Video Switching – Supports CAM1/CAM2 inputs with real-time switching
2. Standard AV Output (CVBS) – Single analog video output for stable transmission
3. PWM & RC Control – Camera switching via PWM channels or RC serial signals
4. Wide Voltage Input – Operates reliably across a broad DC input range
5. Built-In Protection – Reverse polarity, short-circuit, over-current, and over-temperature protection
6. SkyDroid Compatible – Fully compatible with SkyDroid T10, T12, and H12 systems
7. Stable & Interference-Free Video – Ensures consistent performance in UAV and robotic applications

Wires:

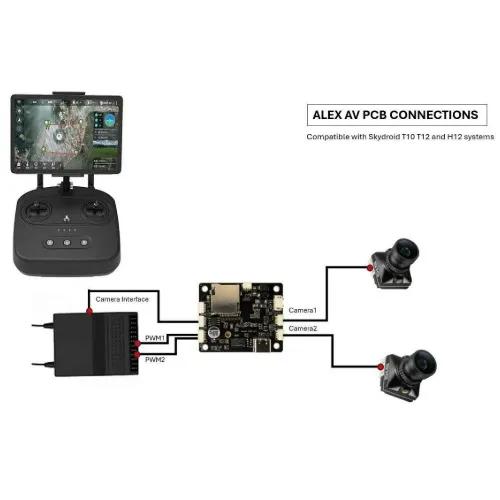

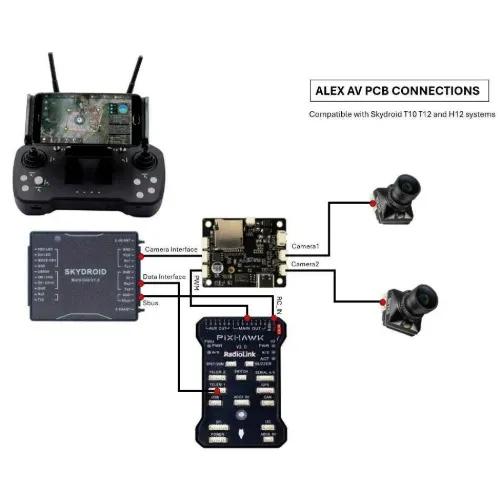

Wiring Diagram:

Package Includes:

1 X AlexAV Conversion Board for Skydroid T10, T12 with Dual Camera with DVR
