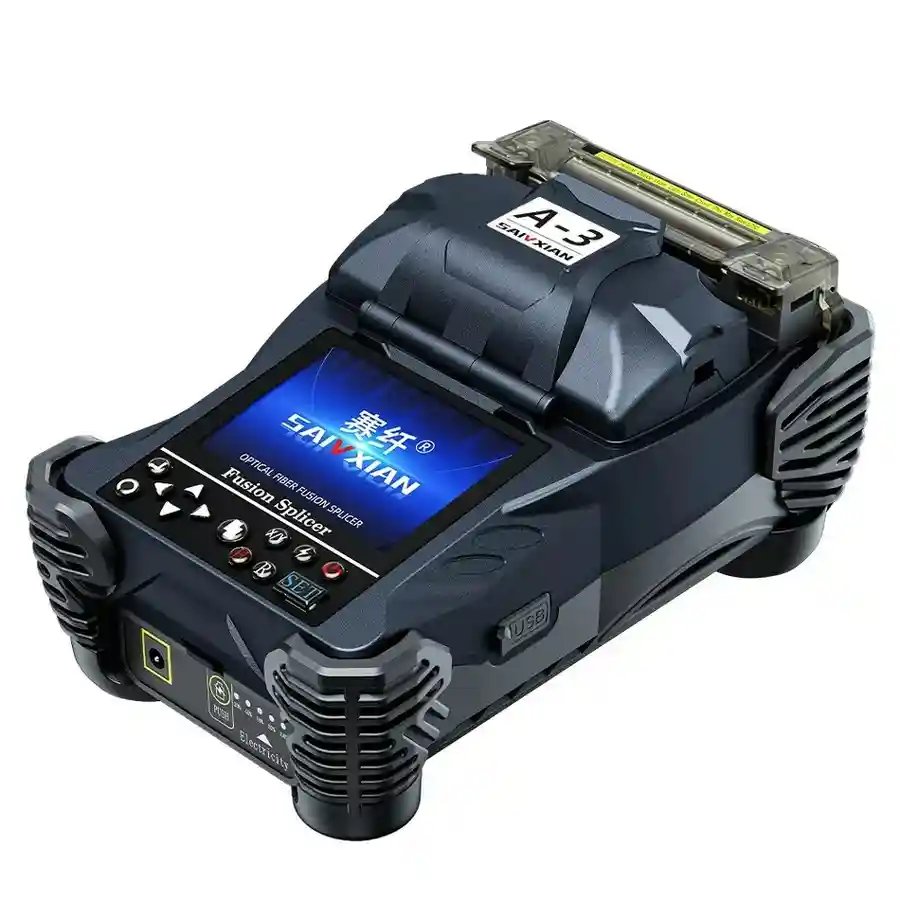

A-3 Fiber Splicing Machine

The A‑3 fiber fusion splicing machine is a portable, high‑precision device used to join optical fibers (single mode, multi mode, DS, NZ/NZDS, etc.) via fusion (arc) splicing. It uses core‑to‑core alignment (or clad alignment in some models) to minimize splice loss, has a built‑in heater for shrink sleeves, and offers automatic / manual operation modes. It is suitable for field use (FTTx, telecom maintenance) with rugged design, battery operation, and support for export of splice records.

Features:

1. High return loss: greater than 60 dB
2. Automatic and manual operation modes
3. High-resolution color LCD display with dual cameras
4. High magnification for accurate fiber alignment
5. Memory storage for thousands of splice results
6. USB port for data export and firmware updates

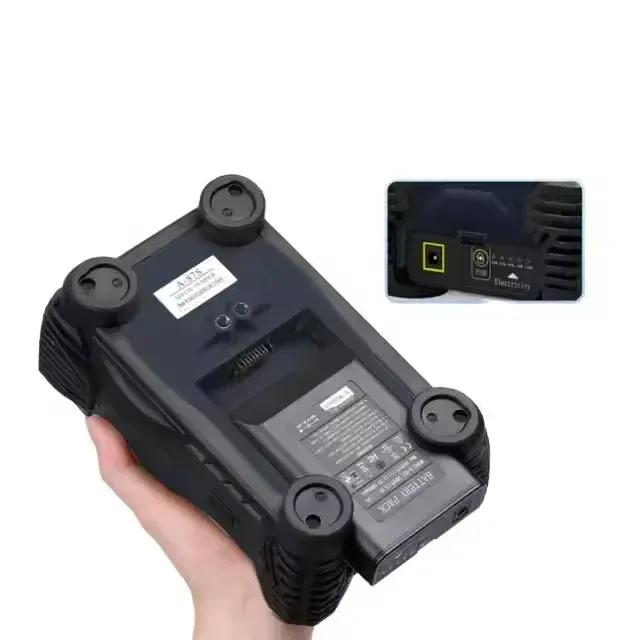

7. Rechargeable lithium-ion battery:
8. Supports up to 200–250 splicing + heating cycles per charge
9. Durable and field-ready design:
10. Shockproof, dustproof, and moisture-resistant
11. Wide operating temperature range:
12. From –10 °C to +50 °C
13. Lightweight and portable for easy transport
14. Supports multiple sleeve lengths (10–60 mm)
15. Electrodes with long life: up to 4000–5000 arc discharges
16. Tension test capability: ~2 N for quality control

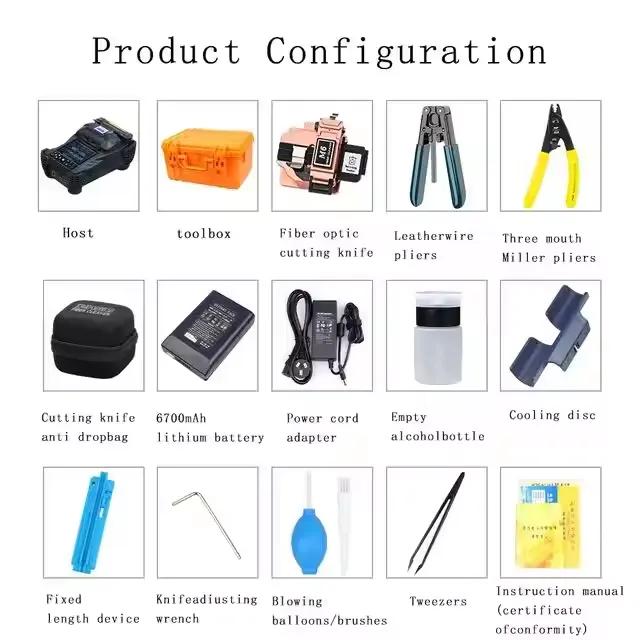

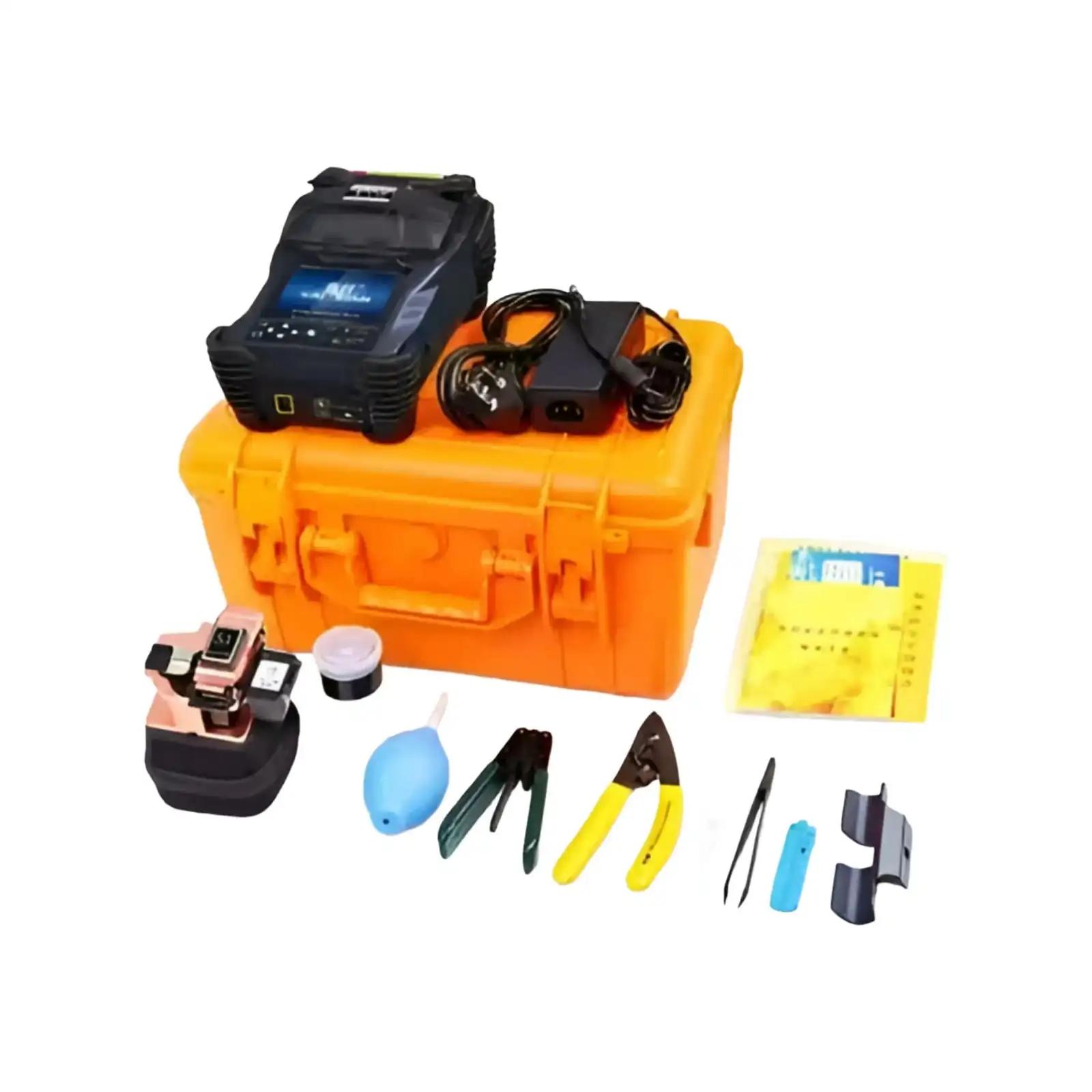

Package Includes:

1 X A-3 Fiber Splicing Machine
