TAROT FLIR VUE PRO 3Axis gimbal TL03FLIR

Description:
– Tarot 3-axis FLIR gimbal is suitable for Flir VUE PRO 320/640.
– Can be with infrared thermal imaging camera for Power Patrol, fire and other industries
– CNC processing

Features:
– Can be used when power on, no need fo rcomplicated debugging
– Accurate perception of the attitude change in motor by magnetic encoder
– Seamless shaft technology, great operation experience
– Motor built-in limit to ensure the orderly rotation of the cable

Specifications:
– Support FILR thermal imaging camera,FILR 336Pro, 640Pro
– Input power supply: 3-6S Li (11-26V)
– Working current: 30mA (@25V) / 50mA (@12V)
– Stall current: 350mA (@25V) / 700mA (@12V)
– Attitude control accuracy: + 0.02 degree
– Maximum controllable speed
– Rotation direction (PAN): +- 200 DEG /s
– Pitch direction (TILT): +* 200 DEG /s
– Roll direction (ROLL): +* 200 /s
– Direction of rotation (PAN): +* 125
– Pitch direction (TILT):-120 DEG to +80 DEG
– Rolling direction (ROLL): +- 50 degree
– Support S-Bus/PPM/DSM receiver
– Working environment temperature: -20 ~+50 DEG C
– Maximum dimensions (with camera): 85mm*100mm*101mm
– Software requirement:Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
– Not include camera

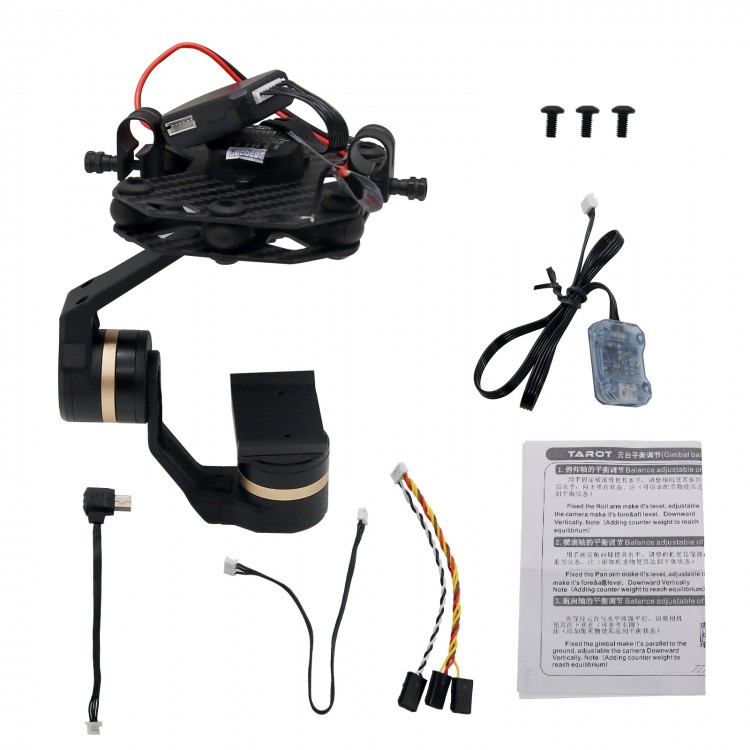

Package Contents:
– 1 x Tarot FLIR VUE PRO Gimbal (191g)
– 1 x PTZ control module (36 x 25 x 1 x 11MM)
– 1 x 8P Connection line
– 1 x 5V output, receiver and video line
– 1 x USB module (27 * 21 * 7MM)
– 1 x Cable
