TAROT TL65S01 650 Sport Quadcopter foldable 4 Axis frame

Tarot 650 Sport quadcopter frame is the latest generation multicopter frame for 650 class multicopter. Tarot company independent designed the frame and hold several patents. The Tarot 650 Sport comes with the new electronic retractable landing skid, retractable landing skid controller board TL8X002. The gravity center is lower, the installation space is bigger, and the quadcopter is more stable.

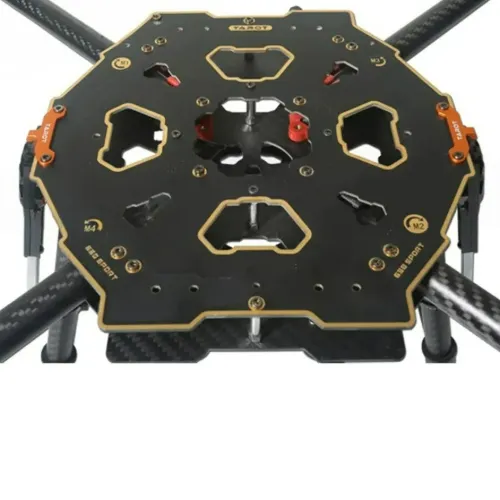

The main frame comes with the high strength matt surface PCB circuit board. With it, it will be faster and safer to connect the power and esc wires. Meanwhile, it saves much space on the frame. The new version motor mount plate added the brushless esc installation hole, clamp-on design make it more convenient to adjust the horizontal of the motor mount. Two different color of the motor mount design has strong visual effect, and it will be easy to know the direction of the quadcopter in the air.

Tarot 650 Sport quadcopter frame is specially designed for those who has requirements on ｡ｰeasy to carry｡ｱ, and it can used for monitoring, remote sensing, mapping, aerial reconnaissance, observing on fire, farm monitoring and some other fields. The wheelbase diameter of the Tarot 650 Sport is 600mm, and the weight is 750g.

Features:

1. High-Strength Carbon Fiber Construction: Durable and lightweight design for improved flight efficiency.
2. Foldable Arm Design: Enables compact storage and easy transport.
3. Versatile Compatibility: Supports a wide range of motors, ESCs, and flight controllers.
4. Adjustable Battery Mount: Allows for optimized weight distribution and balance.
5. Reinforced Landing Gear: Provides stability during takeoff and landing.
6. Customizable Payload Capacity: Suitable for FPV setups, gimbals, and aerial photography.

Recommended Configuration (Not Include)

Propeller: 12 to 15 inches T series propeller

Brushless Motor: 4S/ 620KV 4006 brushless motor TL68P02

Tarot 4114 320KV brushless motor TL100B08-01/TL100B08-02

Tarot 380kv 4008 brushless motor TL68P07

Battery: 10-15C; 14.8V-22V; 4000mah to 5000mah

ESC: 20A - 30A

Package Includes:

1 X TAROT TL65S01 650 Sport Quadcopter foldable 4 Axis frame
