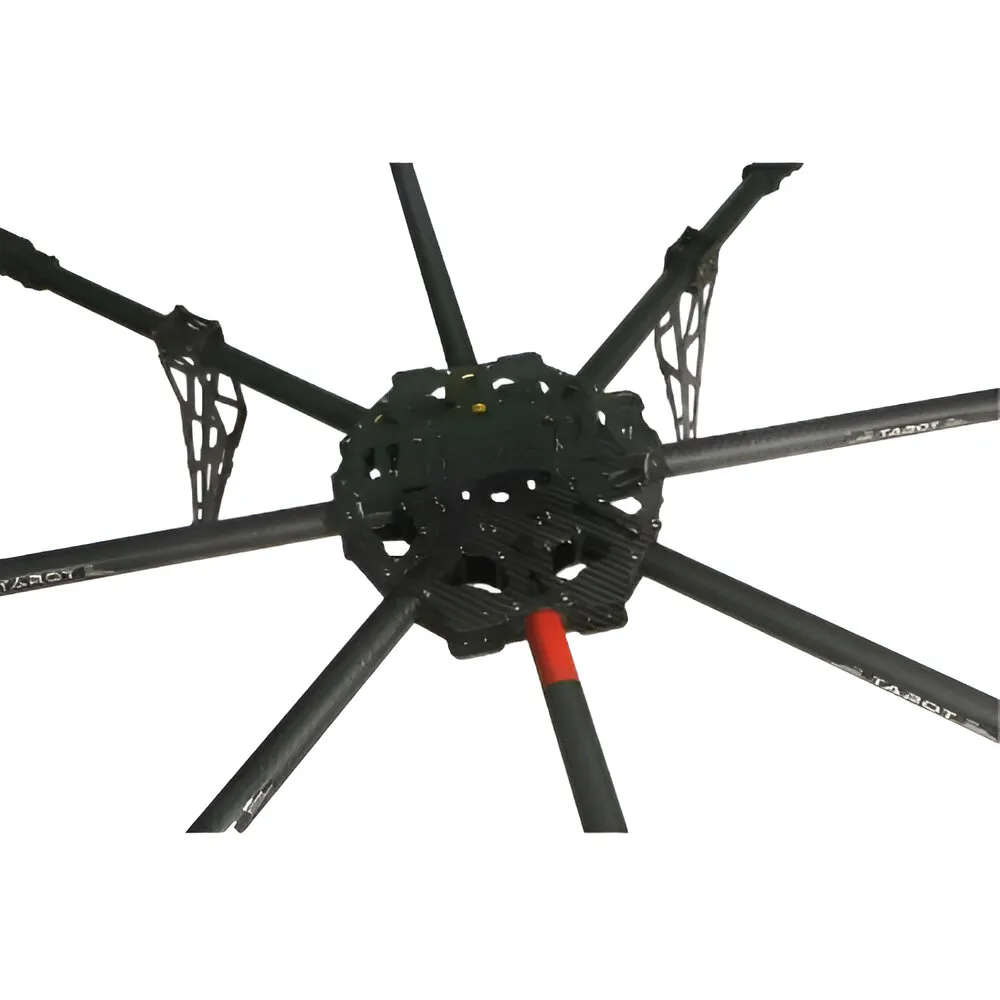

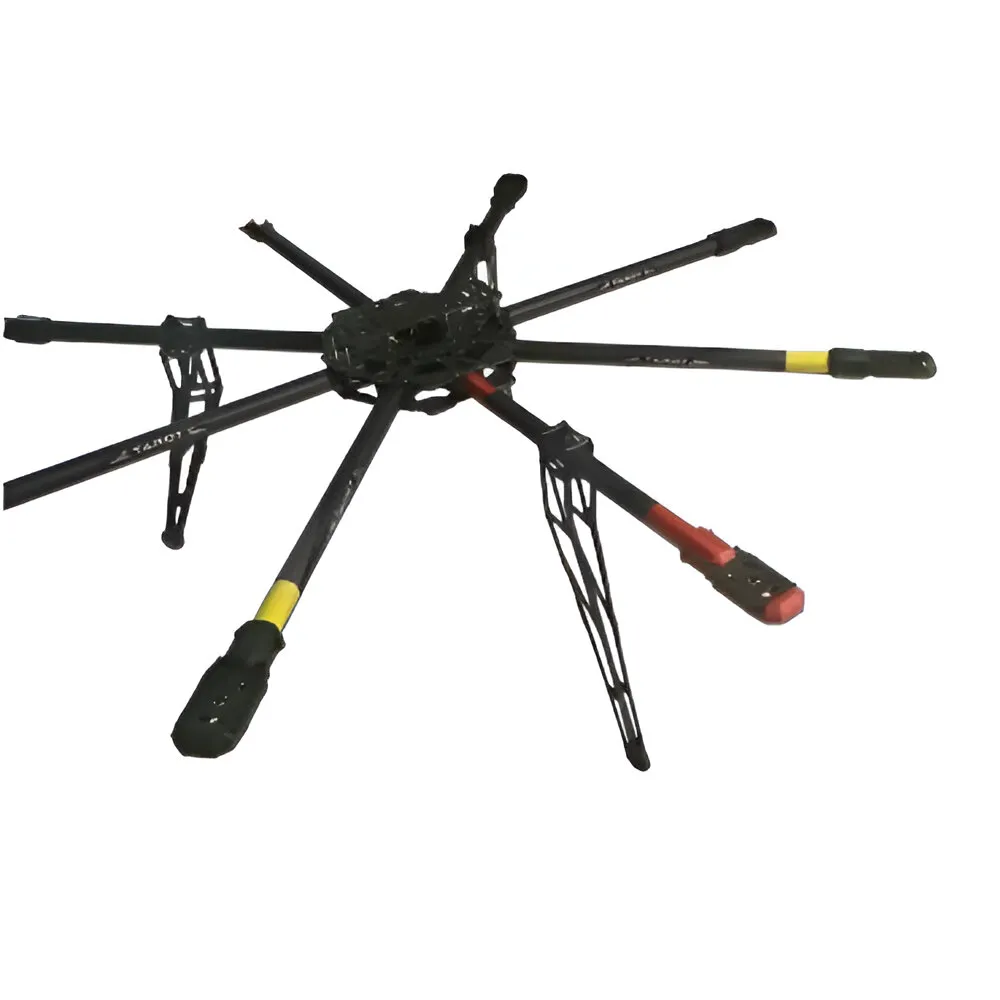

TAROT TL100C01 IRON MAN 1000S Eight axis Octacopter frame set

The Tarot Iron Man 1000 Carbon Fiber Octocopter Frame is an 8 axis octocopter frame. It uses 100% carbon content Toray 3K plain carbon fiber woven and CNC machined with precision. It is made using a high temperature and high pressure precast of 2.0 thickness of pure carbon matte twill carbon fiber sheet with a quality beyond conventional commercially available products.

Tarot TL100B01 adopts CNC precision machining method to cut carbon fiber board and Aluminum alloy tubes, his design standards is higher than similar products, the full set of rack only weighs 1.60 kgrams. Full folding design, satisfied users high portability requirements, particularly suited to do surveillance, remote sensing, mapping, airborne reconnaissance, Observed fire, life exploration, the cable line patrol, farm monitoring, and other high mobile performance requirements. The latest Oct-Copter UAV of TAROT. Newly add plastic motor mount and heightened landing skid.

Features:

1. 100% TORAY 3K carbon fiber applied, CNC processed.
2. The quality of 2.0mm thickness matte carbon fiber is higher than products available on market.
3. The motor mount is reinforced PC injection processed.
4. Lightweight design, dual-color, which can be recognized easily in the air.
5. The whole set is only 1.65 kg weight (include landing skid).
6. Payload is up to 5 kg, which is specific for 5DII, RED EPIC, C300, FS100, FS700 and large-sized photographic equipment.

Package Includes:

1 X Pure carbon fiber upper plate (250x240x2.0MM)

1 X Pure carbon fiber lower plate (250x240x2.0MM)

48 X M3 nut

1 X Pure carbon fiber battery mount (220x63x2.0MM)

1 X Pure carbon fiber adapter (73x73x2.0MM)

6 X M3x35MM (H7) hex aluminum bolt

4 X M3x12MM (H7) hex aluminum bolt

16 X Pure carbon fiber ESC adapter (35×38.6×2.0MM)

25MM 3K pure carbon tube (495MM)

8 X Metal 25MM motor mount

24 X M3x24 cup head hex collar screw

3 X Pure carbon fiber side plate of landing skid / left (345x150x2.0MM)

3 X Pure carbon fiber side plate of landing skid/ right (250x240x2.0MM)

60 X 25MM boom clamp  (dual-color)

60 X M3x35 cup head hex collar screw

3 X Vibration absorbing foam

3 X M3x10MM aluminum bolt

18 X M3*5MM button head socket screw

3 X M2*18Mm cup head hex collar screw

1 X M2 lock nut

4 X Dual-color sticker

8 X Large-size water sticker

1 X Battery Velcro strap

1 X Instruction manual
