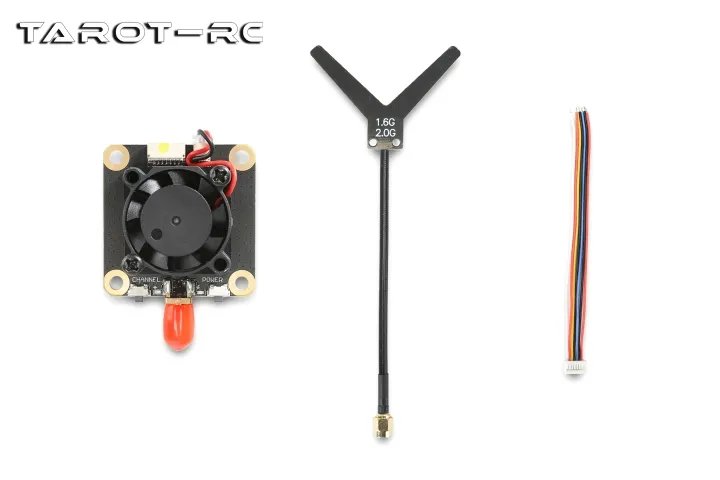

Tarot Image Transmitter 1.7G 8-channel Adjustable Power 1.6W VTX TL300N7-01

Tarot’s latest transmitter delivers an 8-channel, 1600 mW (1.6 W) 1.7 GHz audio and video transmission system in a miniature, lightweight form factor, ideal for multi-rotor and FPV drones built for traversing long distances. Tarot Image Transmitter / 1.7 G / 8-channel / Adjustable Power / 1.6 W VTX (Model: TL300N7-01) to help you visualize the product.

Features:

1. Eight channels selectable for flexible frequency tuning.
2. Utilizes the IRC Tramp control protocol—enabling OSD-based parameter adjustments.
3. Adjustable transmission power levels: PIT Mode, 25 mW, 200 mW, and 1600 mW.
4. Wide input voltage support ranging from 7 V to 36 V (2–8S battery setups).
5. Offers a 5 V / 0.5 A power output to supply compatible cameras.
6. Supports standard flight tower mounting holes (30.5 × 30.5 mm with M3 screws).

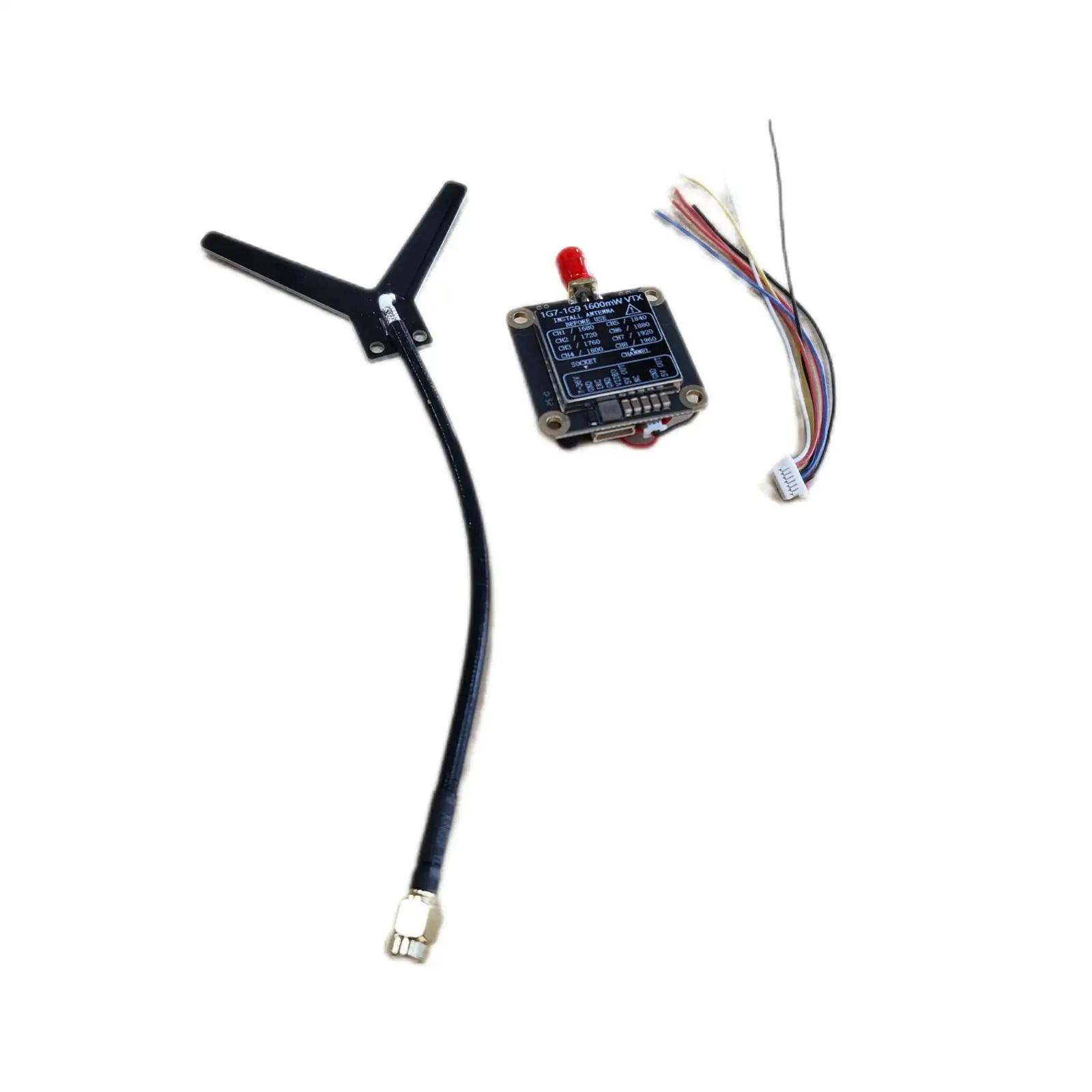

Package Includes:

1 X Tarot Image Transmitter 1.7G 8-channel Adjustable Power 1.6W VTX TL300N7-01
