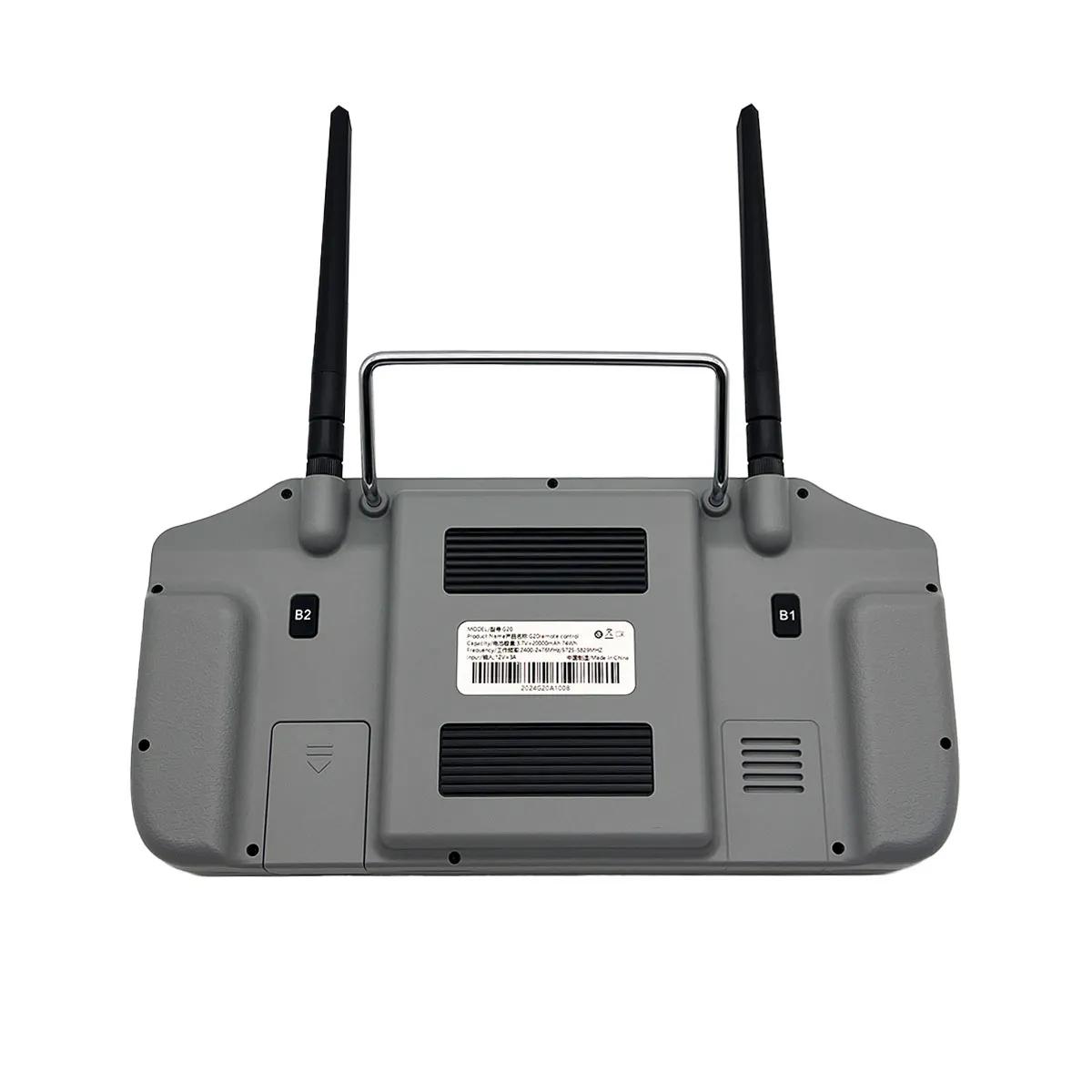

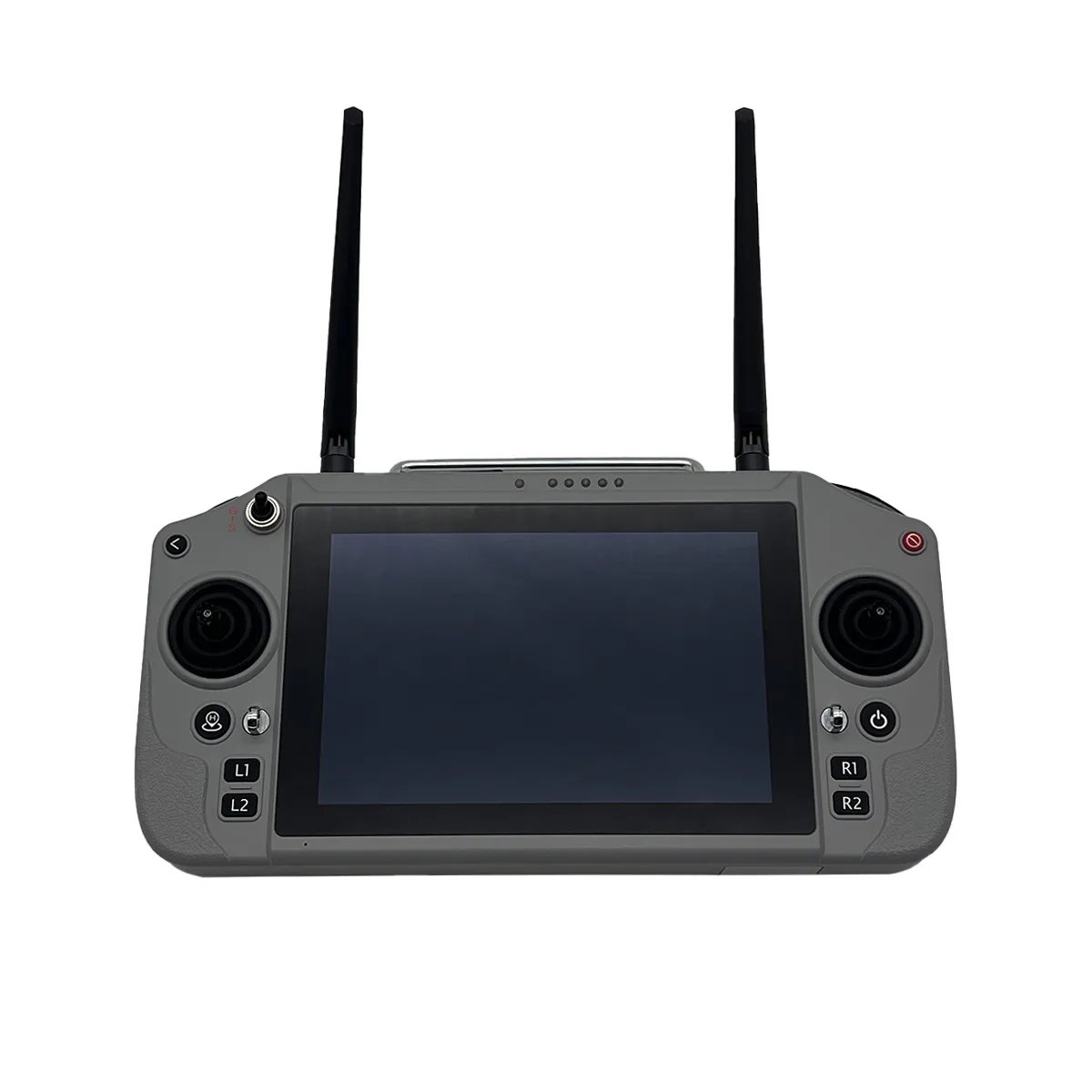

Skydroid G20 2.4G/5.8G Dual-Band 30km Long Range Remote Controller with GR01 Receiver

The Skydroid G20 is a high-end, long-range remote controller tailored for professional UAV operators. Engineered with cutting-edge components, the G20 is equipped with Qualcomm’s latest 6nm 8-core processor and runs on Android 13 (64-bit), delivering ultra-smooth performance and excellent compatibility with mainstream ground station software.

Whether for industrial drone operations, mapping, inspection, agriculture, or defense applications, the G20 provides real-time HD video transmission, stable control, and flexible connectivity, all in a rugged and ergonomic form factor.



Features:

Qualcomm 6nm Processor + Android 13

The G20 features a powerful Qualcomm 6nm chipset, offering hardware decoding support for H.264/H.265 4K video streams. With Android 13 OS, users can install and run most mission control apps, such as QGroundControl, Mission Planner, and Skydroid FLY GCS.

 30KM Image Transmission & Control Distance

Skydroid’s proprietary digital link enables 30KM ground-to-air image and command transmission (LOS). The built-in dual-band module ensures a stable connection even in interference-prone environments.

 Dual-band 2.4GHz / 5.8GHz with Auto Switching

G20 supports automatic frequency switching between 2.4GHz and 5.8GHz, dynamically adjusting according to environmental conditions to optimize communication stability and anti-interference capability.

 7-inch HD High-Brightness Display

Equipped with a 1920×1200 resolution touchscreen, the G20 ensures visibility under sunlight. Combined with Skydroid’s camera system or third-party RTSP streams, it delivers sharp and low-latency image previews.

 8–12 Hours Endurance + 36W PD Fast Charging

Built with a 20,000mAh high-energy lithium battery, the G20 can operate continuously for 8 to 12 hours. It also supports 36W PD fast charging, minimizing downtime in field conditions.

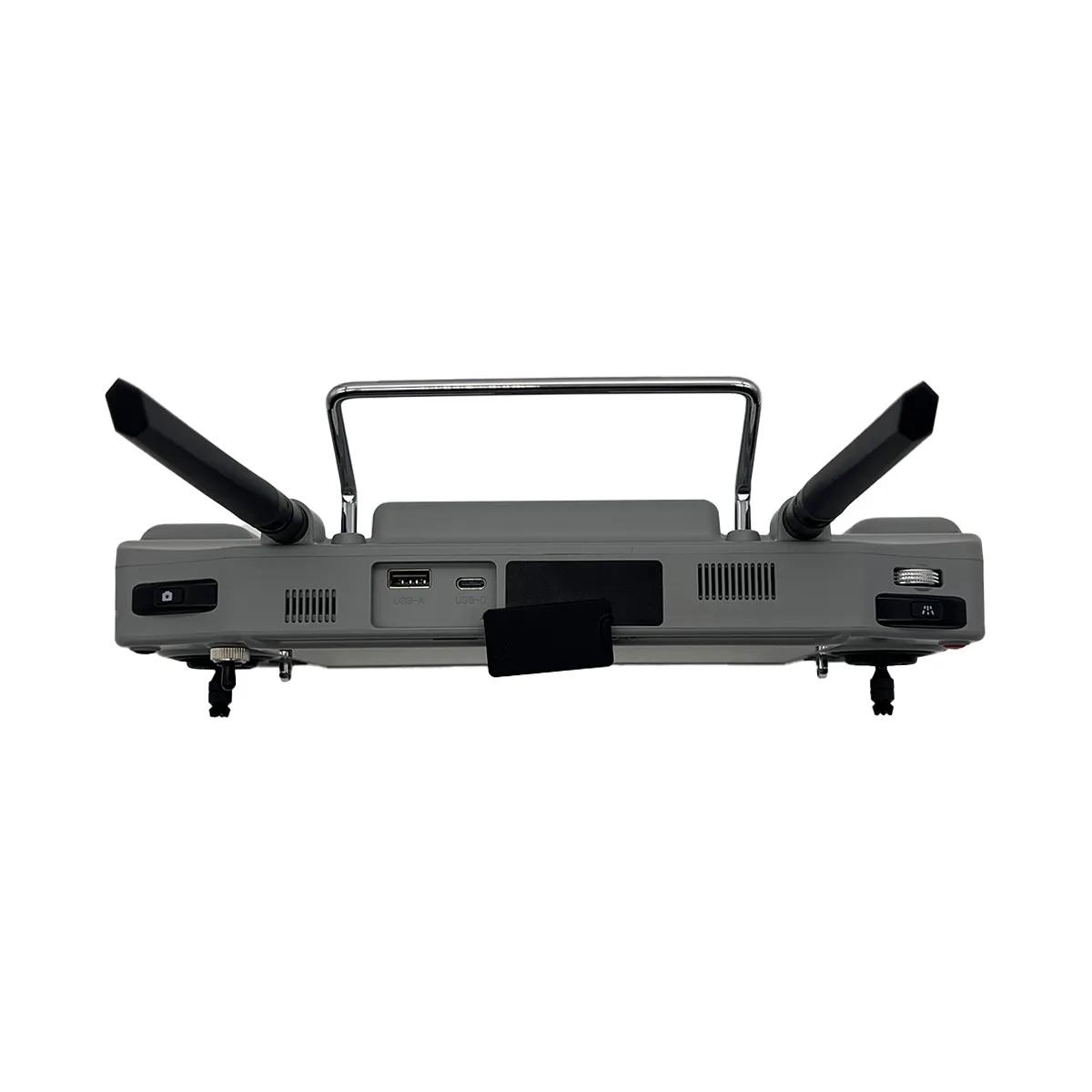

 Rich Interface Options

1. SIM card slot for 4G network
2. USB and Type-C for charging and data
3. Ethernet port for camera access or video sharing
4. Receivers include multiple PWM outputs, SBUS, serial ports, and network interfaces, compatible with mainstream autopilots and gimbals.



Applications

The G20 is suitable for a wide range of unmanned platforms:

1. Fixed-wing UAVs
2. Multi-rotor drones
3. Helicopters
4. USVs (unmanned surface vehicles)
5. UGVs (unmanned ground vehicles)
6. Industrial robots

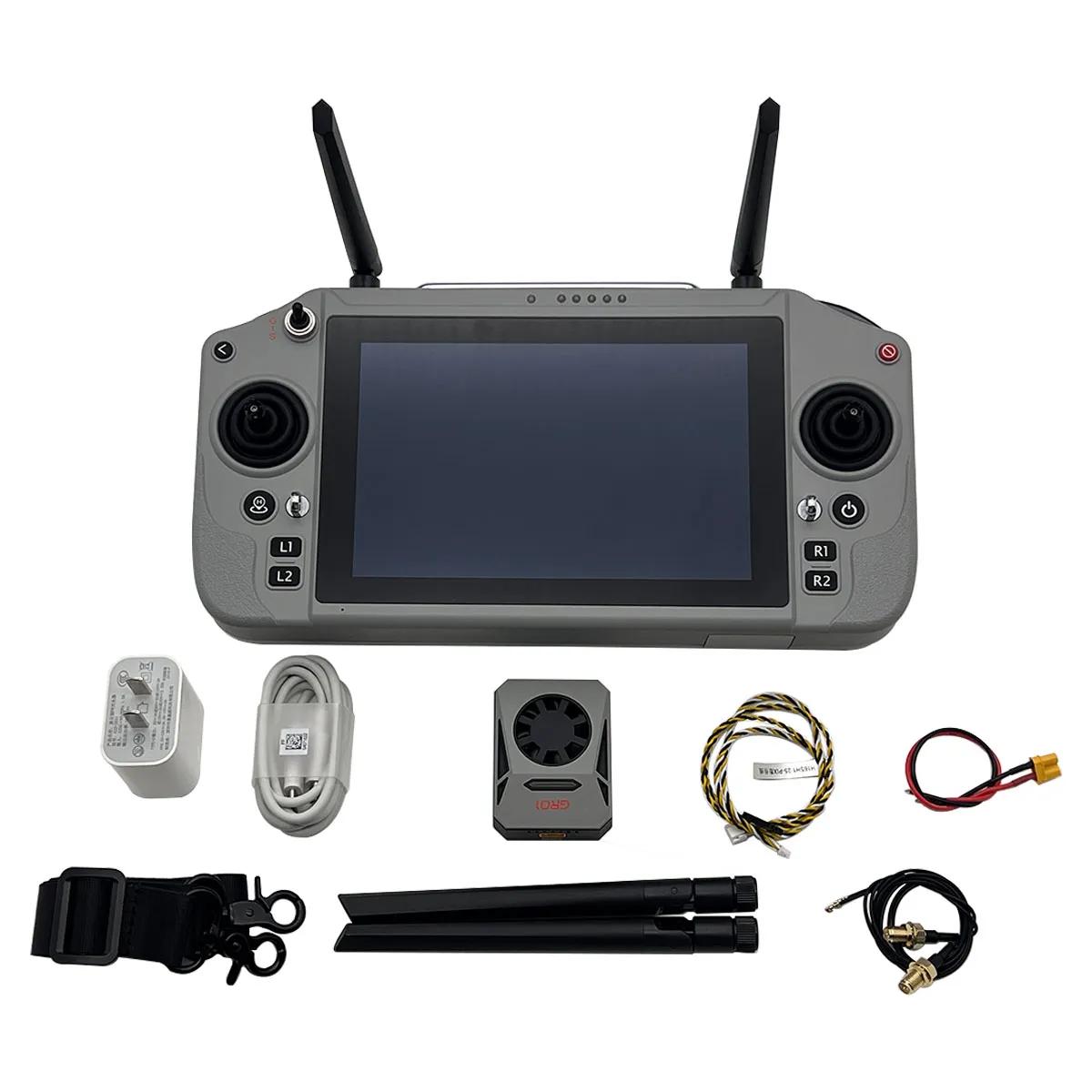

Package Includes:

1 X G20 remote controller

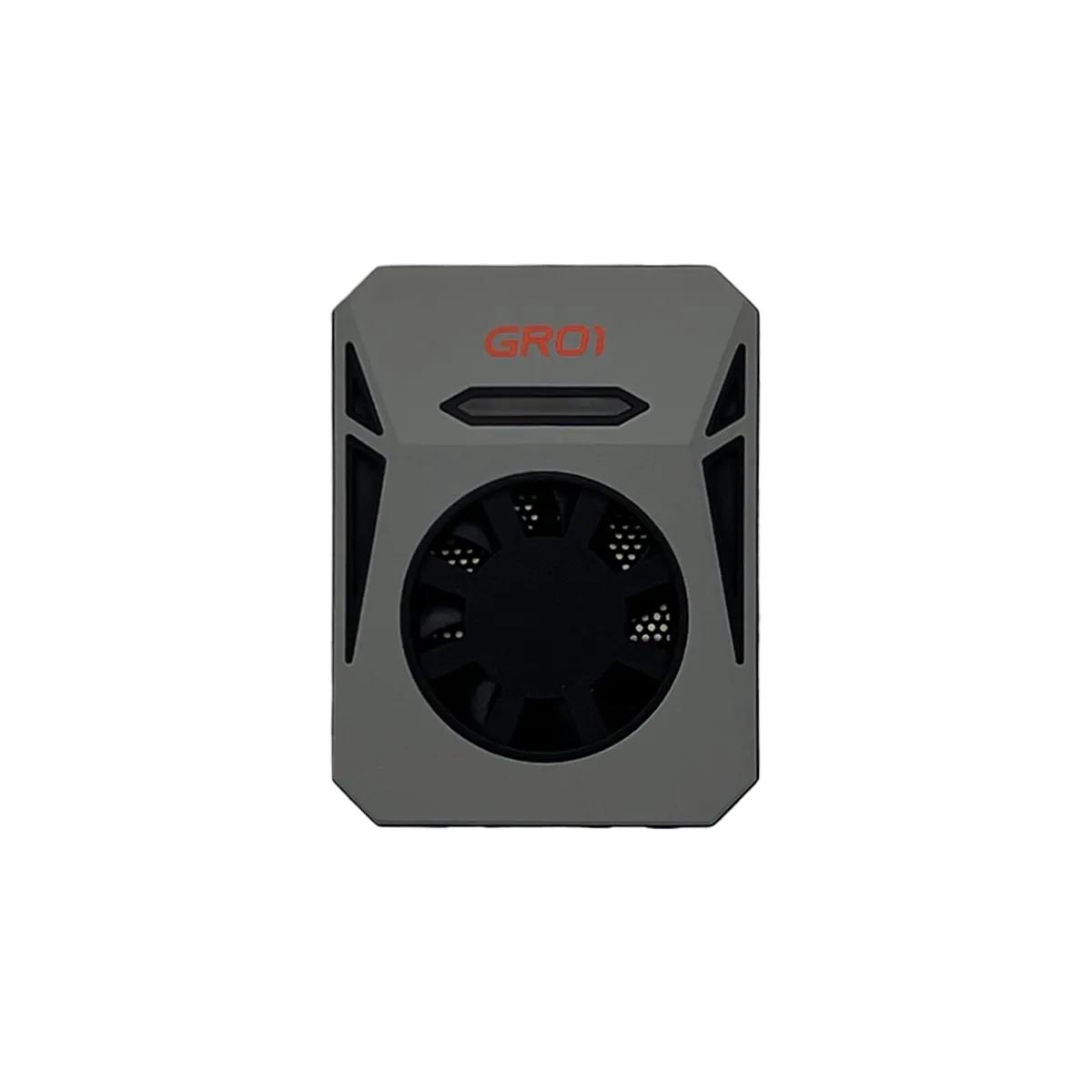

1 X GR01 receiver

2 X 2.4G/5G receiver antenna

2 X Receiver feeder

1 X Receiver power cable (XT30)

1 X PIX Telemetry line

1 X Type-C charger

1 X Shoulder strap
