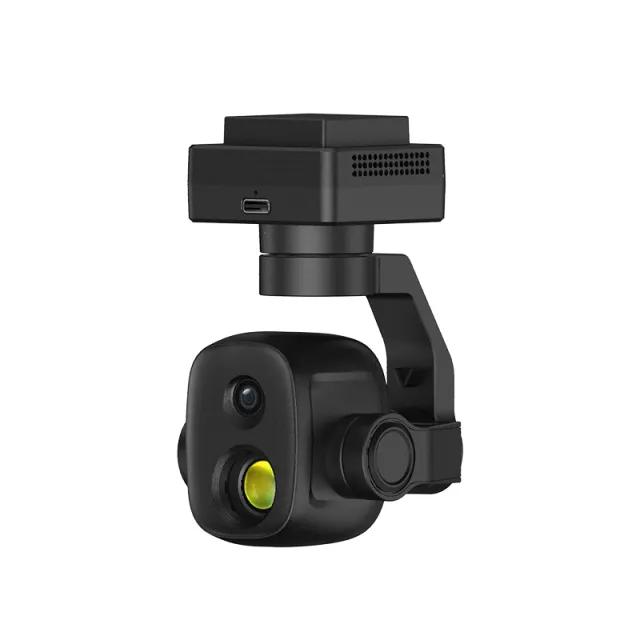

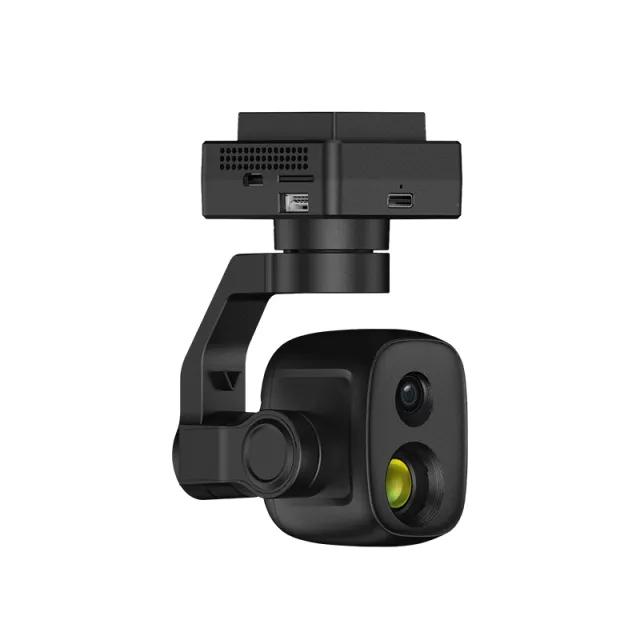

SIYI ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera

The SIYI ZT6 Mini Optical Pod is a state-of-the-art camera system with sophisticated features for surveillance and inspection tasks. With its two sensors. A 4K 8MP optical camera and a 640 x 512 thermal imaging camera, it can detect temperatures precisely and produce high-resolution images at the same time. The 6X digital zoom feature offers more versatility and depth while taking pictures at different distances. The ArduPilot PX4 Mavlink compatibility and 3-axis stabilizer of the ZT6 guarantee steady and uninterrupted filming, even under demanding flying circumstances. This adaptable payload pod is a great option for professionals looking for dependable aerial surveillance, ground-based inspection, or maritime applications because it provides great performance and is compatible with a variety of unmanned systems.

The SIYI ZT6 Mini Optical Pod is a compact, cutting-edge device designed for enthusiasts and professionals in remote sensing, aerial photography, and precision agriculture. Packed with advanced features, this optical pod is engineered to elevate the capabilities of drones and unmanned aerial vehicles (UAVs).

Features:

Gimbal

1. Angular Vibration Range±0.01°
2. Controllable Pitch Angle-90° ~ +25°
3. Controllable Yaw Angle-270° ~ +270°
4. Rotatable Roll Angle-45° ~ +45°

Optical Camera

1. LensFixed Focal Length
2. 6x Digital Zoom
3. Equivalent Focal Length20 mm
4. Image SensorSony 1/2.7 Inch CMOS
5. 8 MP Effective Resolution
6. ApertureF2.8
7. FOVDiagonal 93°
8. Horizontal 84.5°
9. Video Recording Resolution4K (3840 x 2160) @ 30 fps
10. 2K (2560 x 1440) @ 30 fps
11. 1080p (1920 x 1080) @ 30 fps
12. 720p (1280 x 720) @ 30 fps
13. Still Photo Resolution4K (3840 x 2160)

Thermal Imaging Camera

1. Thermal SensorUncooled VOx Microbolometer
2. Resolution640 x 512
3. Zoom2X Digital
4. LensFocal Length: 13 mm
5. Aperture: F1.0
6. Fixed Focus
7. Athermalization
8. Wavelength Range8 ~ 14 um
9. Temperature Measuring RangeHigh Gain: -20 ~ +150℃
10. Low Gain: 50 ~ +550℃
11. Temperature Measuring Accuracy±2℃ (-20 ~ +150℃)
12. ±5℃ (50 ~ +550℃)
13. Temperature Measuring ModePoint Anywhere Measurement
14. Full Image Measurement
15. Selected Box Measurement

General Camera Specs

1. Video Storage Bitrate15 Mbps (H.265 Codec)
2. File Storage FormatFAT32
3. ExFAT
4. Image FormatJPG
5. Video FormatMP4
6. Supported MicroSD CardsMicroSD Class10, Max 256 GB
7. Still Photography ModeSingle
8. White BalanceAuto

Package Includes:

SIYI ZT6 Mini Dual-Sensor Optical Pod
