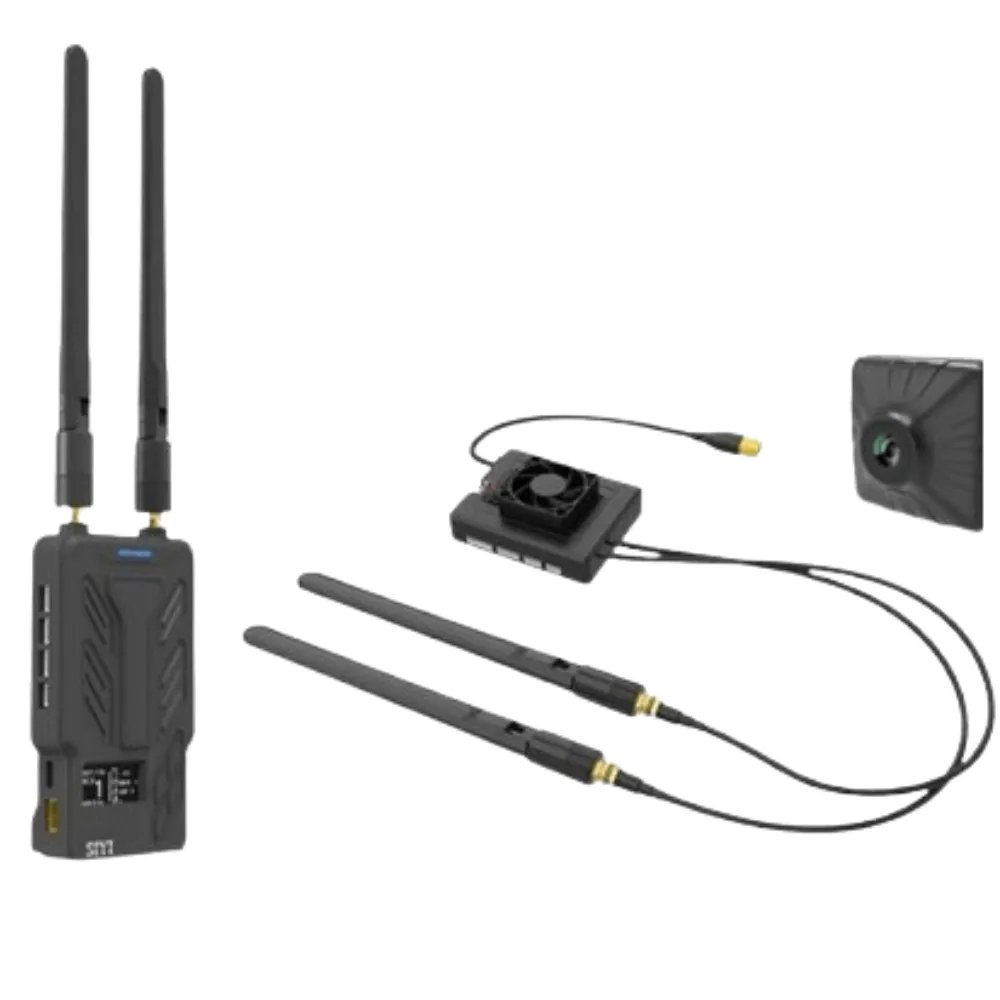

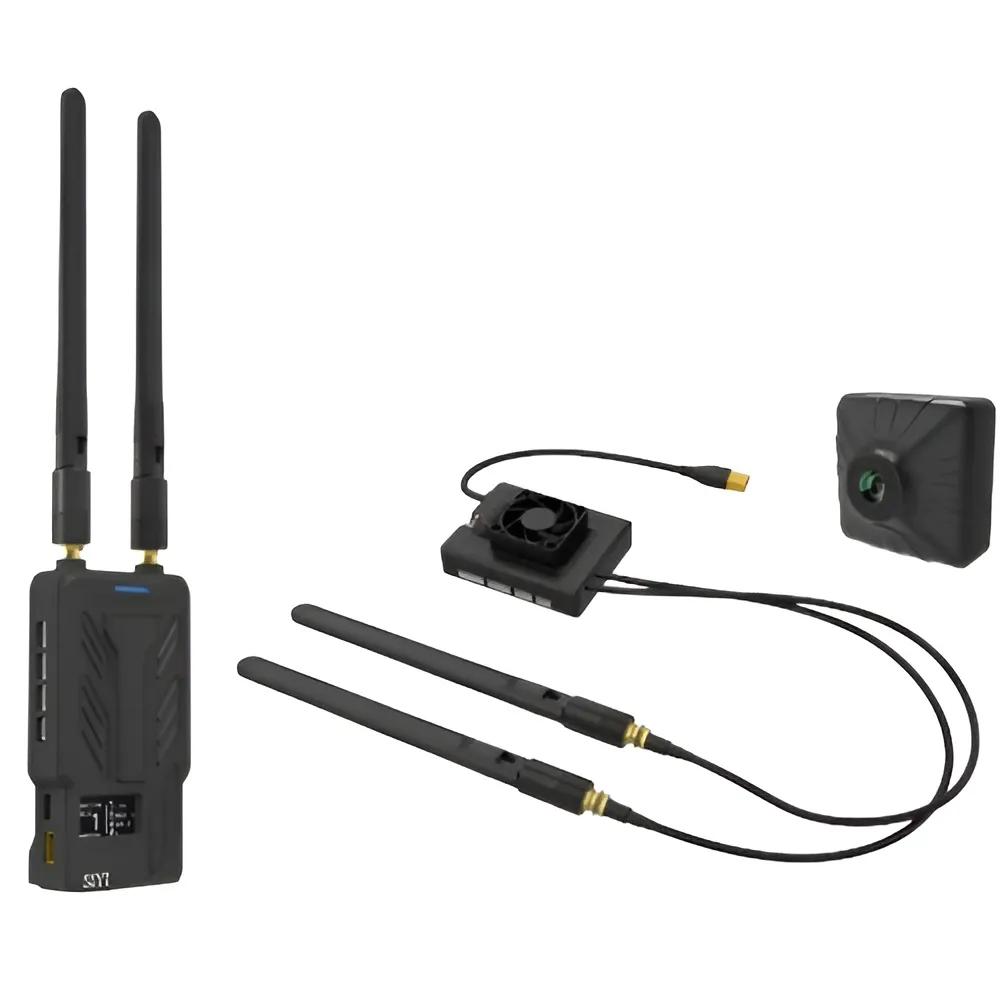

SIYI HM30 Long Range Transmission FPV System

The SIYI HM30 Full HD Digital Image Transmission FPV System is an advanced solution for first-person view (FPV) enthusiasts. This system offers high-definition video transmission with exceptional clarity, enabling real-time, immersive experiences for drone pilots and remote operators. Its compact design ensures easy integration with various drones and RC vehicles. With reliable digital transmission technology, it provides stable and lag-free video feeds, making it an ideal choice for capturing breathtaking aerial footage and enhancing the FPV flying experience.

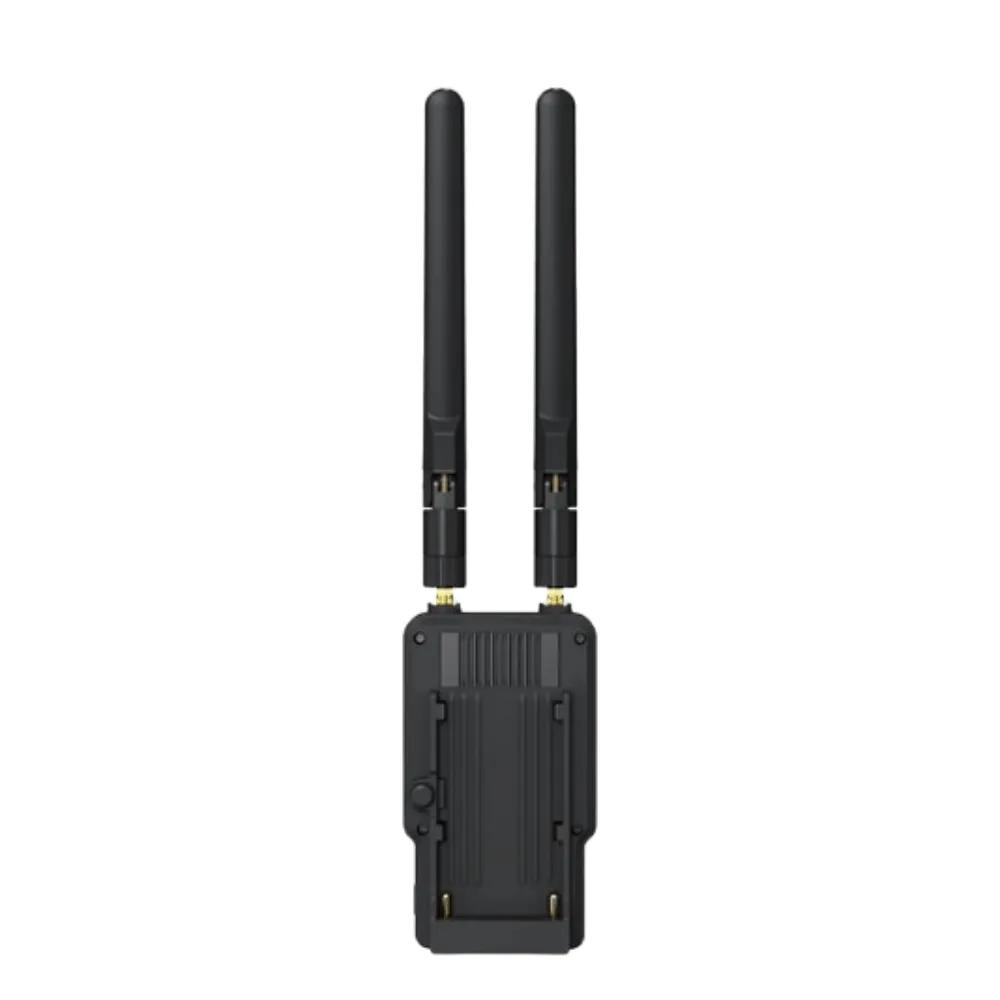

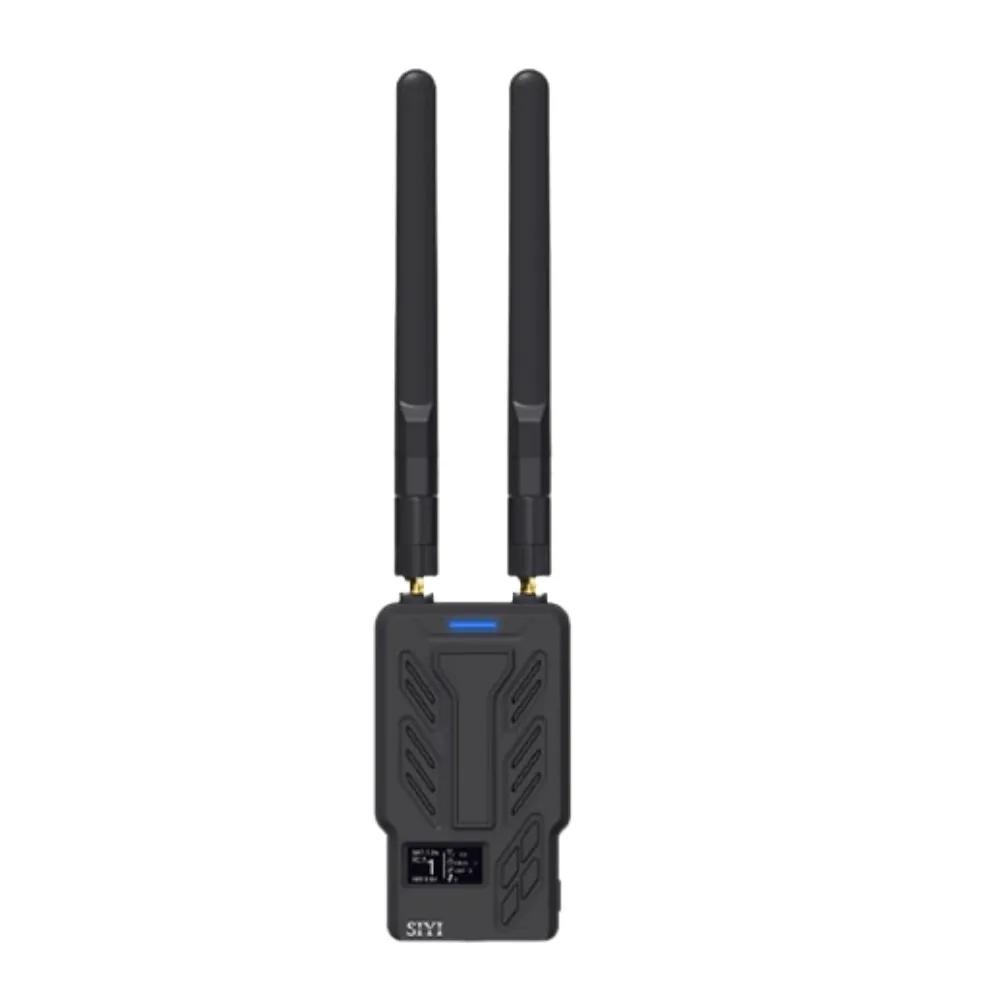

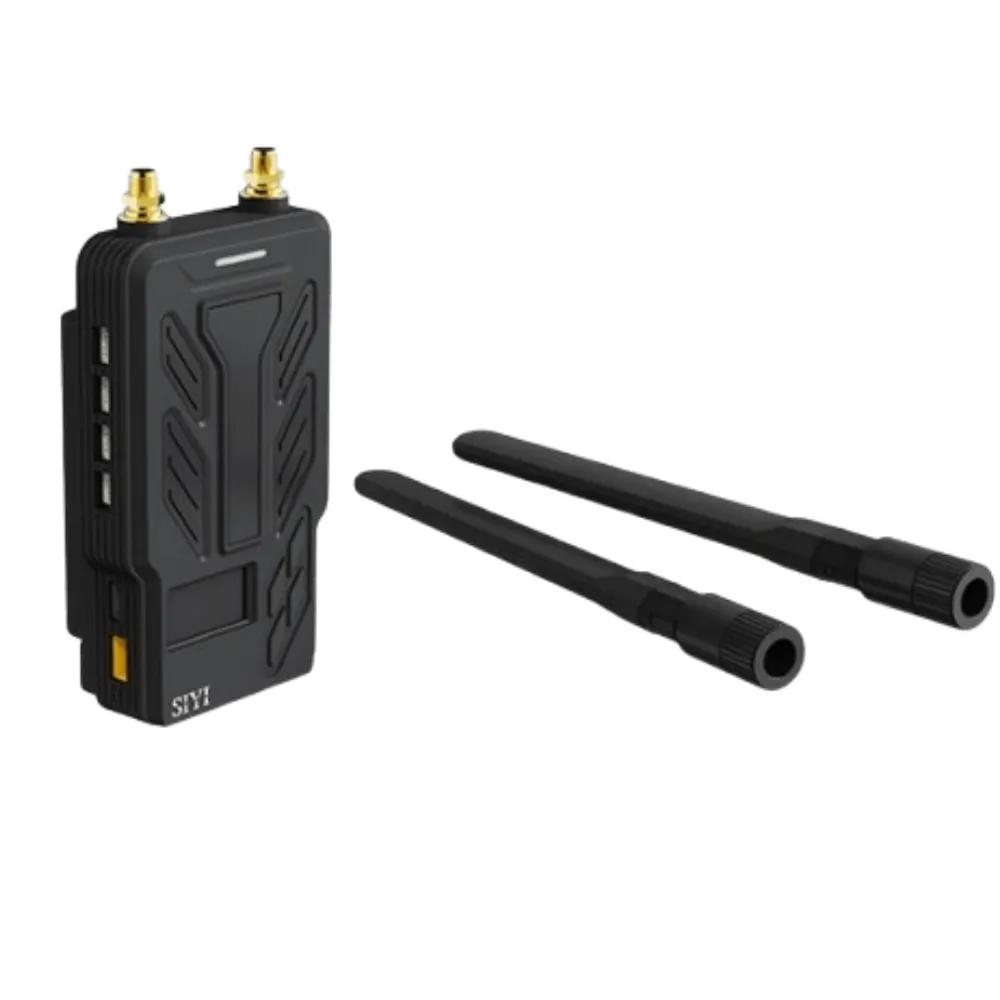

Ground Unit

Monitor Display: 0.96-inch OLED Screen

Dimensions (antennas and battery excluded): 109 x 61 x 28 mm

Weight (antenna and battery excluded): 132 g

Compatible Battery Type:

– NP-F550 / F750 / F770 / F950 / F970 series quick release batteries

(HM30 Fly More Combo comes with NP-F750 battery)

Fast Charging Protocol: PD 30W

Antenna Gain:

– Standard Omni Antennas: 5 dBi

– Standard Long Range Antennas: 11 dBi

Power Consumption: 5 W

Interface & Ports:

– S.Bus / PPM RC Signal Input: RC (GH1.25 4-Pin)

– Datalink Output: UART (GH1.25 4-Pin)

– Ethernet Port: LAN (GH1.25 4-Pin)

– Power Output: VCC (GH1.25 4-Pin)

– USB Video Output / Charging / Firmware Upgrade / USB WiFi: Type-C

– Power Input: PWR (XT30)

– Tripod Connector: 1/4-inch Screw Hole

Waterproof Level: IP53

Working Temperature: -10 to 50℃

Air Unit

Signal Output: 16 channels of S.BUS, 5 channels of PWM

Interface & Ports:

– SBUS: 3-Pin

– Datalink (to FC): UART 4-Pin

– PWM Channel 1 to 5: 6-Pin

– Video Input: Ethernet 8-Pin

– Firmware Upgrade: Type-C

Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm

Weight (antenna excluded): 74 g

Antenna Gain (standard omni): 5 dBi

Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)

Working Temperature: -10 to 50℃

FPV Camera

Frame & Bitrate: 720p 30fps 1.57Mbps H.265 (or 1080p 30fps 2.3 Mbps H.265 only as the reference to DIY configuration)

Sensor: 1/2.9″ CMOS

Effective Resolution: 3 MP

Lens: 3.2 mm, F/2.8

Camera Angle: FOV 105°

Dimensions: 42 x 42 x 25 mm

Weight: 23 g

Cable Lens: 1000 mm

Working Temperature: -10 to 55℃



Features:

1. High-definition digital video transmission.
2. Seamless FPV experience for drone pilots.
3. Compact and easily integrated with drones.
4. Reliable and lag-free video feeds.
5. Enhances aerial photography and videography.
6. Ideal for remote operators seeking real-time clarity.
7. Advanced technology for immersive FPV adventures.



Package Includes:

1 x SIYI HM30 Full HD Digital Image Transmission FPV System
