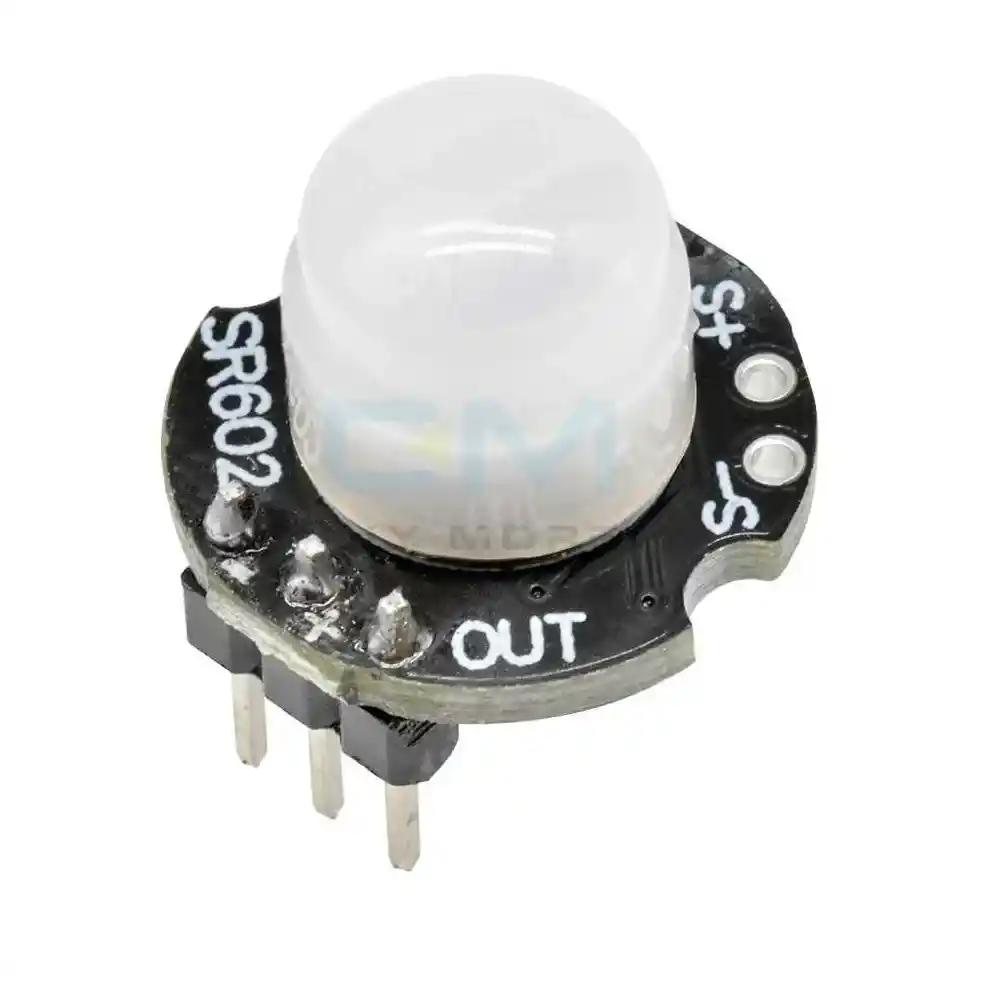

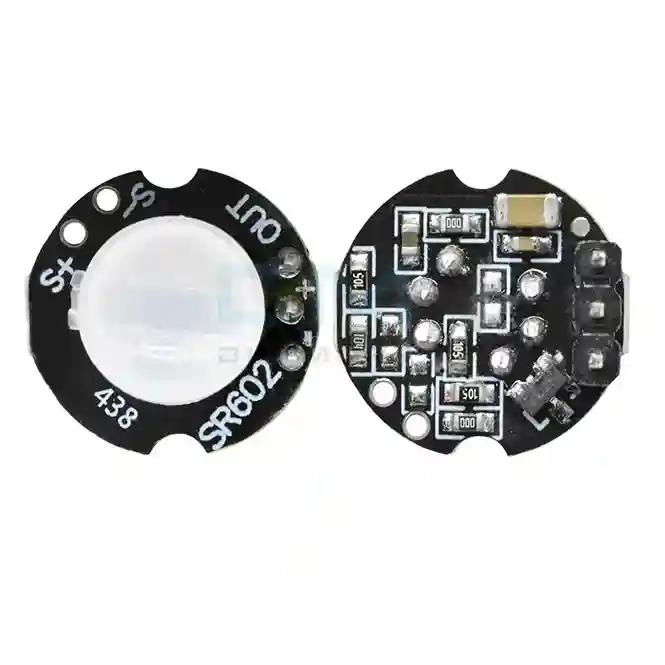

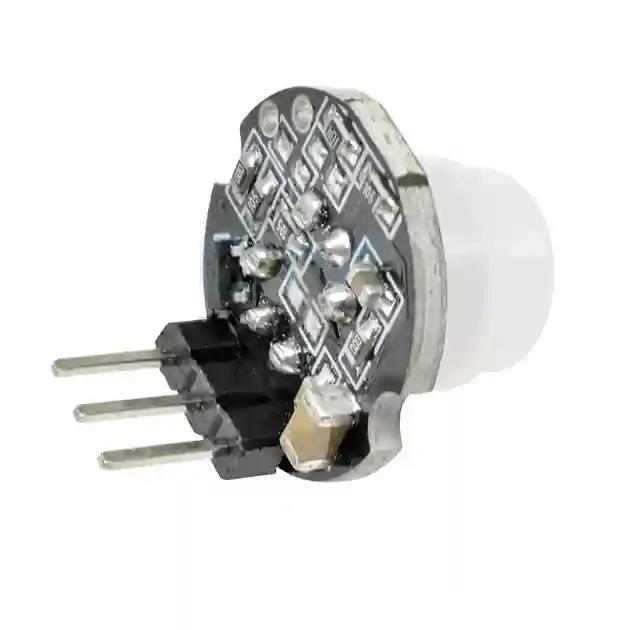

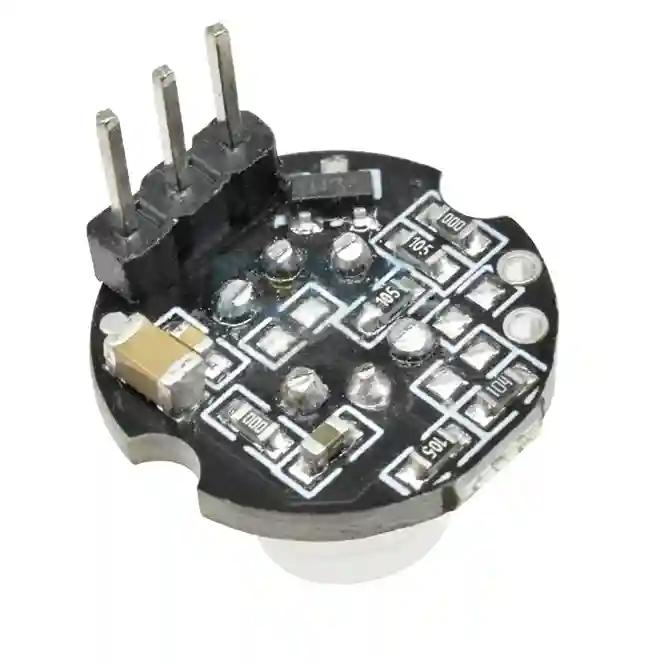

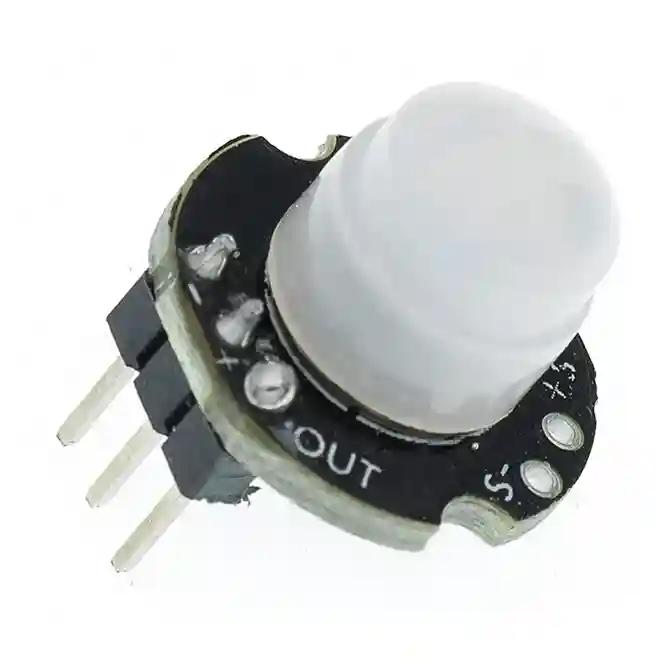

MH-SR602 MINI Motion Sensor Detector Module For Arduino

MH-SR602 MINI Motion Sensor Detector Module is used as a Pyroelectric human body infrared sensor module. This module has a sensing distance of up to 5 meters. It Can be used for body sensor lights, alarms, security.

The MH-SR602 is a compact and highly efficient PIR (Passive Infrared) motion sensor module designed for Arduino and other microcontroller-based projects. This module detects infrared signals emitted by moving objects (such as humans and animals) and triggers an output signal when motion is detected. It is widely used in security systems, automation projects, and motion-activated lighting.

The MH-SR602 is designed with low power consumption and offers reliable performance in detecting motion within its range. It operates on a wide voltage range, making it compatible with various development boards.

Note:

The high-level time of the output of this product is adjustable, 2.5 seconds to 1 hour, the output time set at the factory.

It is 2.5 seconds, and you can change one chip resistor if you need to change it. Please read the resistance value corresponding to the typical delay time.

Features:

1. Detects infrared signals from moving objects.
2. Small size for easy integration into projects.
3. Ideal for battery-operated applications.
4. Operates between 3.3V and 15V, compatible with multiple platforms.
5. Delay output signal can be adjusted as per requirements.
6. Detects motion accurately within its range.
7. Provides a HIGH signal when motion is detected.
8. Used in alarms, motion-activated lights, and smart systems.

Package Includes:

1 X MH-SR602 MINI Motion Sensor Detector Module For Arduino
