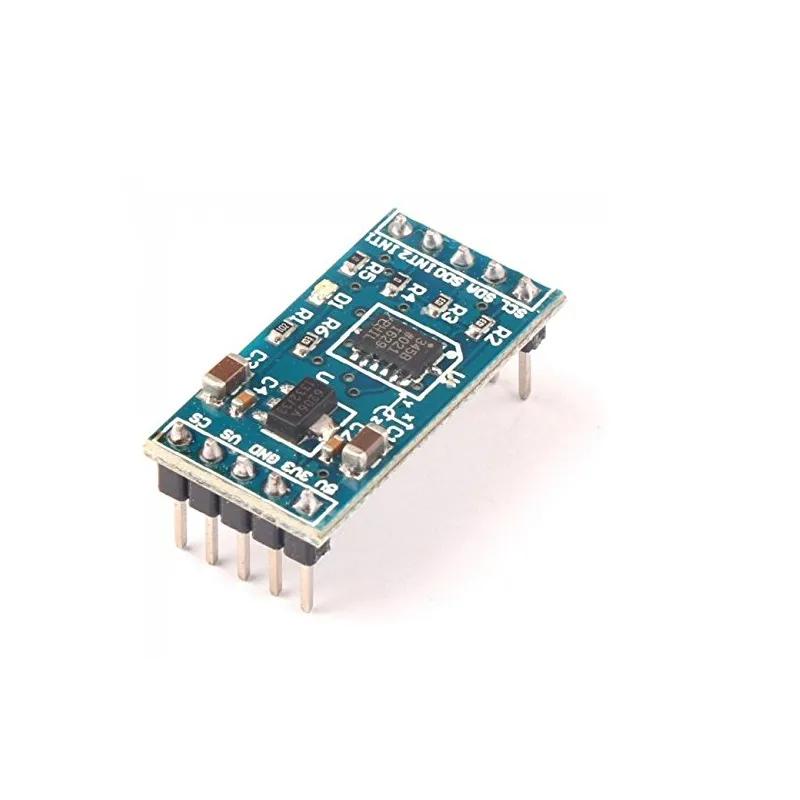

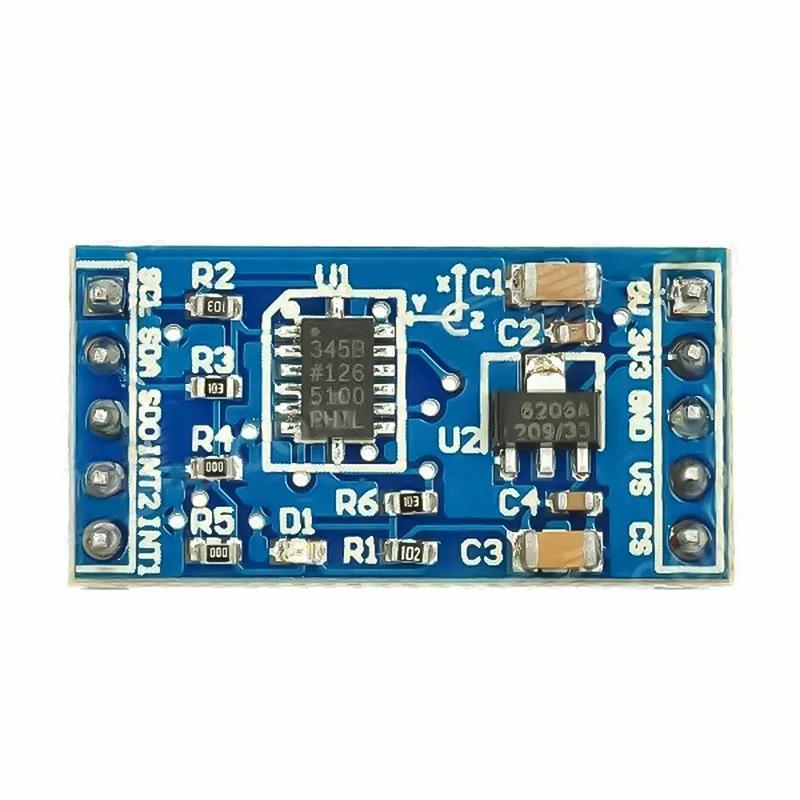

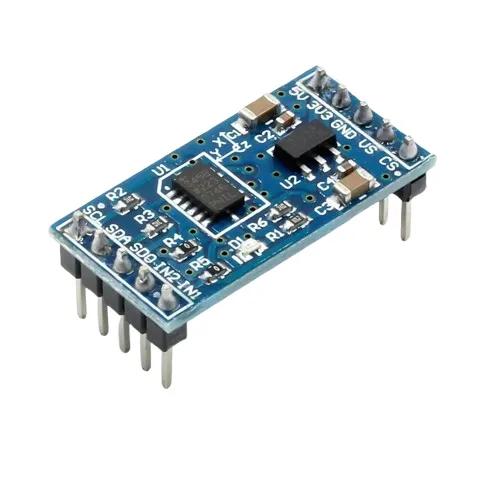

ADXL345 Digital Angle Acceleration Sensor Module

The ADXL345 is a low-power, 3-axis MEMS accelerometer modules with both I2C and SPI interfaces. The Breakout boards for these modules feature on-board 3.3v voltage regulation and level shifting which makes them simple to interface with 5v microcontrollers such as the Arduino.

The ADXL345 features 4 sensitivity ranges from +/- 2G to +/- 16G. And it supports output data rates ranging from 10Hz to 3200Hz.

ADXL345 is very suitable for mobile applications. It can be applied to the skew detection in the measurement of the static acceleration of gravity, also can measure the movement or impact caused by the dynamic acceleration. The high resolution ( 4mg / LSB ), can be measured is less than 1.0° Angle change.

The ADXL345 is a small, low-power, 3-axis digital accelerometer sensor module that measures acceleration in the X, Y, and Z axes. It is capable of detecting both dynamic (e.g., motion or vibration) and static (e.g., tilt) acceleration. This module features a high-resolution 13-bit output and communicates via I2C or SPI interface, making it highly compatible with a wide range of microcontrollers including Arduino, Raspberry Pi, and other development platforms.

The ADXL345 is ideal for applications such as tilt sensing, motion detection, free-fall detection, and orientation monitoring in portable devices. Its compact size and digital interface make it an excellent choice for embedded systems and wearable electronics.

Features:

1.  Supports 5V/3.3V input
2. Onboard RT9161 faster load the appropriate speed
3. Ideal for noisy power environment
4. Application: DIY project.

Package Includes:

1 X ADXL345 Digital Angle acceleration sensor module
